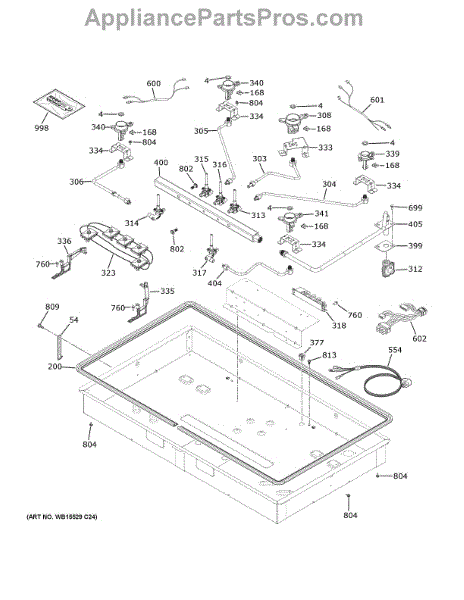

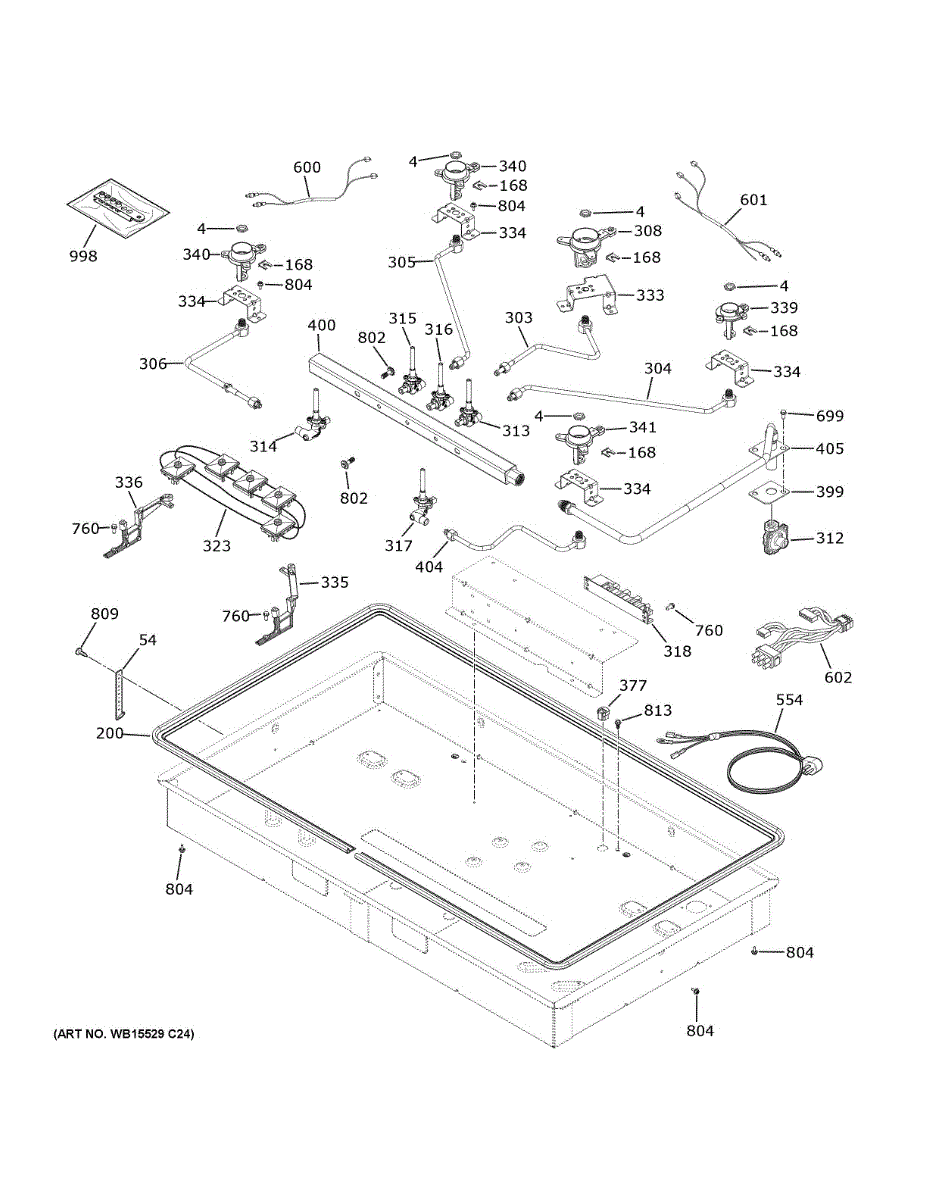

Parts for Ge JGP5030DL4BB: Economic Nut Parts

Replacement fastener nut for gas ranges and cooktops. Secures panels and internal components. Needed when original nut is missing, stripped, or worn.

This hold-down bracket secures a designated component inside your appliance, keeping it firmly anchored during use. Replace a bent, broken, or missing bracket to stop movement and rattling and restore proper alignment and a stable, factory fit. What it does:

• Anchors the specified part to the appliance frame/cabinet to prevent shifting
• Reduces vibration and rattling noises during operation
• Helps maintain correct alignment and spacing for reliable performance
• Replace if the bracket is bent, cracked, corroded, or missing

• 1 hold-down bracket

• Disconnect electrical power; for gas appliances, also shut off the gas supply
• Note the original orientation and screw locations before removal (a quick photo helps)
• Reuse existing mounting hardware unless your model specifies new fasteners
• Do not overtighten; verify the secured component is aligned and stable before restoring power

If your gas range burner won't light or clicks continuously, this igniter clip secures the ignition system. Simple DIY fix in under 15 minutes.

Burner box gasket seals the burner assembly on your gas cooktop. Replace if you notice gas odors, uneven flames, or visible wear. Confirm fit with your model.

This gas tube assembly routes gas from the range's main valve to the center burner area, restoring proper fuel delivery and burner operation. It's a direct-replacement tube used on compatible gas ranges. What it does:

• Channels gas from the main manifold to center burners so they can ignite
• Replaces cracked, corroded or damaged tubing that can block gas flow
• Helps resolve center burner that won't light or has weak/uneven flame
• Restores factory routing and mounting for safe, reliable operation

• Turn off gas supply and unplug the appliance before starting work
• Inspect fittings and gaskets; replace any damaged seals to avoid leaks
• After installation, test all connections for leaks with a soap solution or leak detector

This gas tube assembly routes gas to the oven's rear-right burner, restoring proper fuel flow for safe ignition and consistent heating. Replace a damaged or clogged tube to help resolve burner lighting problems and uneven oven performance. What it does

• Directs gas from the manifold to the rear-right burner for normal combustion
• Helps ensure an even, steady flame at the rear-right oven burner
• Commonly replaced for burners that fail to light or sputter
• Used when a tube is bent, cracked, clogged, or shows corrosion/leaks

• One gas tube assembly (rear right)

• Shut off gas supply and electrical power before beginning work
• Only connect and tighten fittings per manufacturer torque recommendations; use pipe sealant rated for gas if specified by OEM
• After installation, perform a leak test and confirm proper ignition and flame

This gas tube assembly routes fuel from the valve to the burner on compatible gas ranges and ovens, restoring proper fuel delivery for reliable burner operation. It replaces damaged or corroded tubing to help ensure consistent heating. What it does:

• Directs gas from the main gas valve to the burner ports for ignition and steady flame
• Restores proper burner operation when tubing is cracked, dented, or clogged
• Can resolve weak, uneven, or non-lighting burners caused by damaged tubing
• Helps prevent gas leaks when installed and sealed correctly

• Turn off the gas supply and disconnect power before starting any work
• Use proper seals, gaskets, and torque on fittings; inspect connections for leaks with a soap solution or approved leak detector
• After installation, test all burners for correct flame and check for gas leaks before normal use

This is a surface burner base with a built-in gas injector for a cooking range. The base supports the burner cap and head while the injector meters the gas flow to produce the correct flame size. Replace this component if you experience uneven flames, difficulty igniting the burner, or if the base is cracked or corroded.

Controls incoming gas pressure for your cooktop. Replace if cracked, broken, or missing. Installs at the gas line connection point at the unit base.

This gas valve (LF) controls gas flow to the appliance's burner assemblies so the range or oven lights and maintains set temperatures. Replaces a worn or failing valve to restore reliable ignition and gas regulation. What it does:

• Regulates gas flow to the burner(s) so the appliance can ignite and maintain heat
• Works with the oven/range ignition system to enable safe start-up and operation
• Can address symptoms such as failure to light, intermittent flame, or inability to hold temperature
• Operates as part of the appliance's gas delivery and safety system

• One gas valve (LF)

• Shut off gas supply and electrical power before servicing; follow appliance manufacturer guidelines
• Use approved fittings and test all connections with a soap solution or approved leak detector
• Do not modify the part; follow OEM instructions and local codes

A replacement switch harness assembly that routes power and signals between the control switch and appliance wiring for safe, reliable operation. Restores proper electrical connection to help switches control heating and functions. What it does:

• Carries power and signals between the control switch and appliance wiring to enable switch operation
• Commonly replaced when switches fail to respond or controls work intermittently
• Helps stop arcing or intermittent contacts caused by damaged wiring or terminals

• One switch harness assembly

• Always disconnect power (unplug or shut off circuit breaker) before servicing
• Inspect connector orientation and terminal fit; match harness routing to original for strain relief
• Replace only with the exact harness specified for your appliance model

This mounting bracket secures components in place to keep appliance parts stable and properly aligned during operation. It restores structural support so panels or assemblies remain correctly positioned and reduces movement-related noise or wear. What it does:

• Provides a secure mounting point to hold panels, modules, or assemblies in position
• Restores alignment and prevents parts from shifting or vibrating during use
• Helps reduce rattling or intermittent contact caused by loose components
• Suitable when old or damaged brackets are bent, cracked, or missing

• Turn off and unplug the appliance (or disconnect power) before beginning any work
• Handle sharp edges carefully and use appropriate hand tools for removal and installation
• Verify bracket orientation and fastener locations match the original part before tightening
• If mounting hardware is missing or damaged, replace with matching fasteners

This small V2 inlet jet directs water flow to the dispenser/ice-making area so the appliance fills and forms properly. It restores correct water routing for consistent filling and helps reduce weak or misshapen ice or slow dispensing. What it does:

• Channels water to the ice maker/dispenser so the correct amount reaches the fill area.
• Helps ensure uniform ice formation and consistent dispenser flow.
• Can resolve symptoms like weak/slow dispensing, underfilled ice trays, or uneven ice cubes.
• Works as the small replacement nozzle where the original inlet jet is worn or blocked.

• One small V2 inlet jet

• Disconnect power and shut off the water supply before beginning work.
• Access may require removing inner panels or the ice maker/dispenser housing; follow your model's service instructions.
• Inspect the seat and surrounding fittings for debris or damage before installing; replace other damaged components as needed.

This is a medium-sized surface burner base (also called an orifice holder or injector) that supports and positions the burner on the cooktop. It ensures proper gas flow and flame alignment for the burner. Replace this part if your burner sits unevenly, has an irregular flame pattern, or if the original base is cracked or damaged.

Large burner injector for gas ranges and cooktops. Replaces cracked, worn, or missing injectors that control gas flow to the burner assembly.

Right angle

Gas not flowing to burners? This inlet gas tube connects your cooktop's gas supply line to the manifold. Moderate DIY repair in 30-45 minutes.

This range cord supplies main power to an electric range so the appliance can heat and run safely. It replaces a worn or damaged cord to restore reliable power connection and reduce risk of arcing or intermittent power. What it does:

• Transfers mains power from the wall outlet to the range's terminal block
• Restores a secure, stable electrical connection when the original cord is frayed or damaged
• Helps stop sparking, burning smells, or intermittent power caused by a faulty cord
• Supports normal oven and cooktop operation when the outlet and terminal connections are serviceable

• Disconnect power at the breaker before servicing; verify power is off with a meter
• Securely tighten terminal screws and route cord to avoid contact with hot surfaces

Burner won't light or clicks continuously? This gas cooktop igniter and wiring harness assembly restores reliable ignition with a complete plug-in unit.

ST10-16 X 7/16"

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.

Replacement mounting screw for securing panels, brackets, and components inside your appliance. Needed when original screws are stripped or missing.

Replacement screw for securing panels, brackets, and internal components in ranges, ovens, and cooktops. Replace missing, stripped, or damaged screws.

A small machine screw used to fasten appliance panels and components. This 10-32 x 7/16 screw secures assemblies and replacement parts so panels and brackets stay properly mounted during normal operation. What it does:

• Fastens small panels, brackets, and assemblies that use a 10-32 thread
• Replaces missing or stripped mounting screws to stop rattling and loose parts
• Helps maintain proper alignment of fitted components
• Used where a short 7/16" length is required for a flush fit

• Unplug the appliance before starting any repair
• Use the correct sized screwdriver or nut driver for 10-32 threads
• Hand-start the screw to avoid cross-threading, then snug—do not overtighten
• If threads are damaged, replace with correct fastener; avoid forcing the screw

Converts gas cooktop burners for high altitude operation. Adjusts gas pressure flow for proper performance above sea level. Replace if missing.

Convert your natural gas cooktop to propane with this LP conversion kit. Includes all necessary orifices and fittings for safe fuel type conversion.
