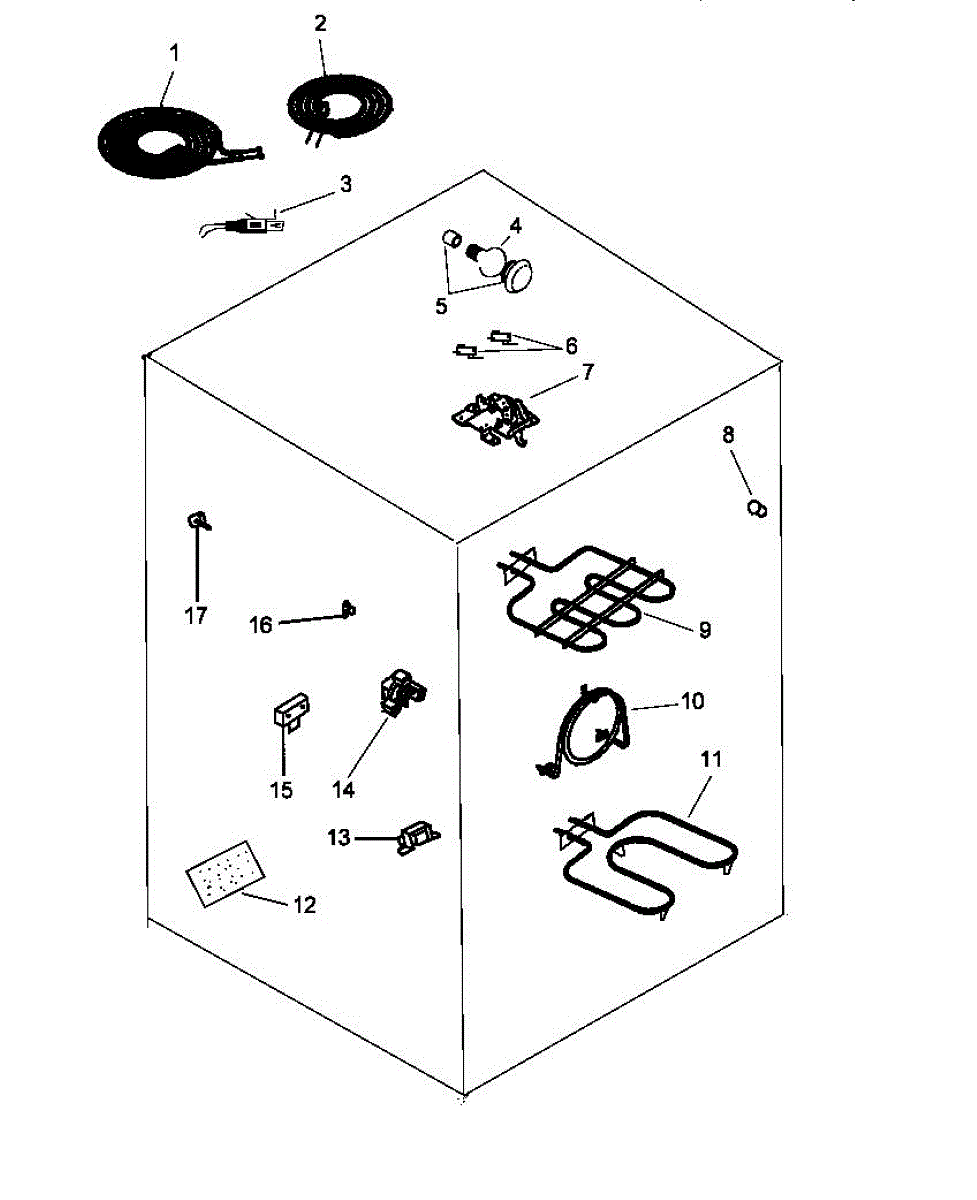

Parts for Amana ARC700LL-P1142698NLL: Electrical Components (Arc700e / P1142652ne) (Arc700e / P1142698ne) (Arc700ll / P1142652nll) (Arc700ll / P1142698nll) (Arc700ww / P1142652nww) (Arc700ww / P1142698nww) Parts

This 6-inch radiant surface element is the heating source for a small burner beneath a glass-ceramic cooktop. Replacing a failed element restores reliable, controllable heat to that cooking zone. What it does:

• Heats the 6-inch cooking zone under the glass top when the control is turned on
• Cycles to help maintain the selected temperature during cooking
• Common symptoms of failure: small burner won't heat, heats unevenly or intermittently, or shows visible burn spots/damage

• 1 six-inch radiant surface element

• Disconnect power at the breaker and allow the cooktop to cool completely
• Lift the glass top or remove the cooktop to access the elements; support the glass to avoid stress or cracks
• Note wire positions and transfer connections to the new element one at a time
• Ensure the element sits flat in its mounting brackets before reassembly and testing

The 8 Inch Large Surface Element is an OEM part for Whirlpool cooktops and ranges, designed to provide reliable and consistent heat for cooking. This large surface element is crucial for performing a wide range of cooking tasks, from boiling water to frying and sautéing.  For matching 6 inch element order WP660532.

The primary reasons for replacing the 8 Inch Large Surface Element often involve wear and tear from regular use, physical damage, or electrical issues within the element itself.

Symptoms indicating the need for a replacement 8 Inch Large Surface Element include:

• The element not heating up, indicating a failure to provide the necessary cooking temperature
• Uneven heating, resulting in inconsistent cooking results
• Visible damage to the element, such as blistering, peeling, or cracking
• The element heating slowly or not maintaining the desired temperature during use

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Oven Bake Element is an OEM replacement part for Whirlpool ovens. Located at the bottom of the oven cavity, it is responsible for providing the consistent heat necessary for baking and roasting. This element ensures even cooking by heating up uniformly and maintaining the set temperature throughout the cooking process.

Over time, the bake element can wear out or become damaged due to repeated exposure to high temperatures, spills, or power surges. Normal wear and tear, as well as accidental impacts during oven cleaning or rack adjustments, can also lead to the element malfunctioning.

Symptoms of a bad oven bake element include:

• The oven not heating up or reaching the set temperature
• Uneven baking or longer cooking times
• Visible signs of damage such as burns, blisters, or breaks in the element
• Sparking or unusual noises when the oven is in use
• The element not glowing red-hot during operation

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Please Note. Due to a manufacturer change element may appear physically different from the original.

This is a replacement control board that has been manufactured by Whirlpool.The control board needs to be kept in good working order, or the user may notice that the range doesn't heat up properly or the temperature is unable to be accurately controlled. In such circumstances, or if there is visible damage to the control board, it should be immediately replaced. Wear work gloves to prevent serious hand injuries and unplug the appliance from power.This genuine OEM part is compatible with different ranges. As an authentic part, this control board is intended for use with different brands of ranges manufactured by Whirlpool, Maytag, Kitchenaid, Magic Chef, and other compatible brands. This part is sold individually.

This terminal block is the insulated connection point where the appliance's incoming power ties into the internal wiring. Replacing a heat-damaged or loose block restores a safe, reliable electrical path and helps prevent arcing and intermittent power loss.

• Connects the supply conductors to the unit's internal wiring
• Provides insulated posts to securely fasten and distribute power
• Helps maintain tight, low-resistance connections
• Common failure signs: melted/discolored plastic, burned or loose terminals, arcing, scorching, or intermittent/no power after confirming the cord and breaker

• Disconnect power at the breaker or unplug the appliance; verify no voltage before servicing
• Photograph or label wire positions to ensure correct reassembly
• Inspect and replace any heat-damaged wire ends or lugs; use appropriate terminals
• Tighten connections securely and ensure wires are fully seated and strain-relieved as originally installed

This temperature sensor monitors internal temperature and relays it to the control so heating or cooling can be regulated. Replacing a faulty sensor helps restore accurate temperature control, consistent cycling, and dependable performance. What it does

• Measures compartment or cavity temperature and sends a signal to the control
• Helps the unit reach and maintain the set temperature
• Common failure symptoms: temperature too hot/cold vs. setting, long/short cycling, failure to reach setpoint, or related error codes
• Tests out-of-range for resistance/ohms when defective

• 1 temperature sensor

• Disconnect power before servicing; shut off gas
• Access the sensor; note wire routing and connector orientation
• Do not pull on wires; transfer any clips, grommets, or brackets from the old sensor
• Restore power and run any model-specific diagnostics or calibration if required

This is a genuine replacement mounting screw used to secure appliance panels and components. It restores proper fastening to reduce vibration and prevent parts from loosening during normal operation. What it does:

• Secures panels, brackets, or trim to the appliance frame
• Prevents rattling or vibration caused by loose fasteners
• Keeps wiring and small components held in place
• Helps maintain proper alignment of removable parts

• Disconnect power to the appliance before servicing
• Use the correct screwdriver or bit to avoid stripping the head
• Start threads by hand, then tighten until snug; do not overtighten
• Keep removed fasteners organized to ensure correct reassembly

The Terminal Block is an OEM part for Whirlpool ranges. It serves as a crucial connection point for the range’s electrical wiring, ensuring a safe and reliable transfer of power to the appliance.

Over time, terminal blocks can deteriorate due to factors such as heat exposure, electrical surges, or wear and tear. When the terminal block becomes damaged or corroded, it can lead to poor electrical connections or potential safety hazards.

Symptoms of a bad terminal block include:

• Burnt or scorched connections
• Intermittent power loss to the range
• Difficulty in the range heating up properly
• Visible damage or corrosion on the terminal block

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
