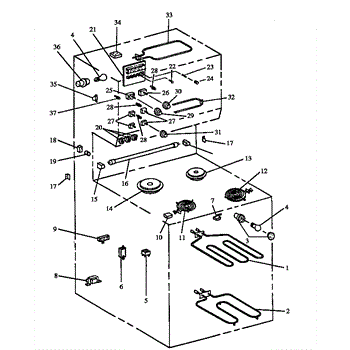

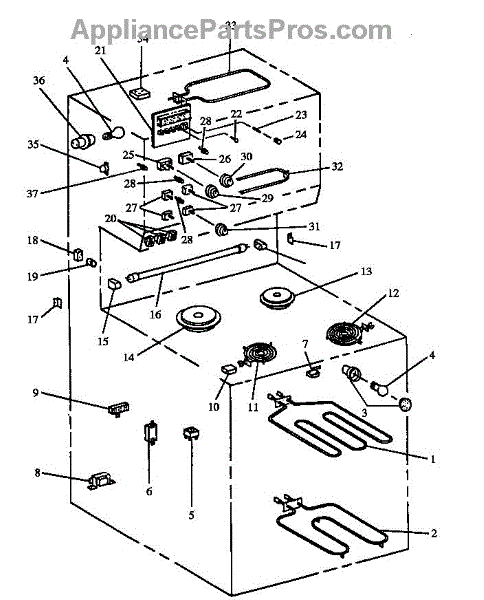

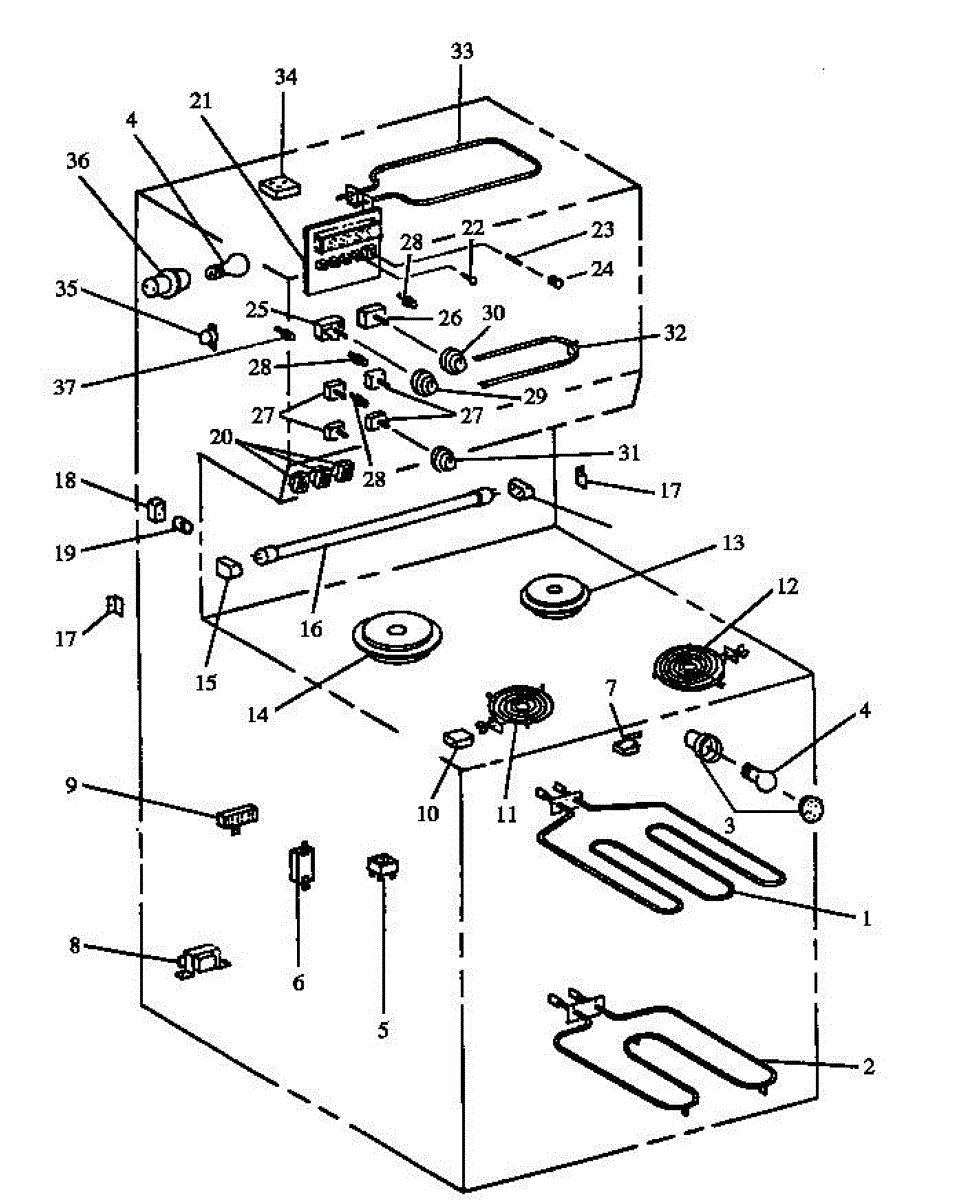

Parts for Caloric EST3992L/P1132643NL: Electrical Components (Est3992l / P1132620nl) (Est3992l / P1132636nl) (Est3992l / P1132637nl) (Est3992l / P1132643nl) (Est3992w / P1132620nw) (Est3992w / P1132636nw) (Est3992w / P1132637nw) (Est3992w / P1132643nw) Parts

Restore top-heat performance with this 240V broil element. It provides the intense overhead heat needed for broiling and finishing, replacing a burned-out or damaged element so your oven broiler works reliably and browns evenly again.

• Supplies the oven's top heat source for broiling and quick browning
• Common failure signs: broiler won't heat, uneven browning, visible breaks/blisters, or a breaker trip when broil is selected
• 240V design for standard residential electric ranges and wall ovens
• Replacing an open/weak element restores proper broiler operation

• Disconnect power at the breaker or unplug the appliance before servicing
• Remove oven racks; unfasten the element mounting screws and gently pull the element forward
• Transfer the two wires to the new element one at a time; do not let wires slip back through the liner
• Reinstall and secure; ensure terminals are tight and the element isn't touching oven surfaces before restoring power and testing

The Oven Bake Element is an OEM replacement part for Whirlpool ovens. Located at the bottom of the oven cavity, it is responsible for providing the consistent heat necessary for baking and roasting. This element ensures even cooking by heating up uniformly and maintaining the set temperature throughout the cooking process.

Over time, the bake element can wear out or become damaged due to repeated exposure to high temperatures, spills, or power surges. Normal wear and tear, as well as accidental impacts during oven cleaning or rack adjustments, can also lead to the element malfunctioning.

Symptoms of a bad oven bake element include:

• The oven not heating up or reaching the set temperature
• Uneven baking or longer cooking times
• Visible signs of damage such as burns, blisters, or breaks in the element
• Sparking or unusual noises when the oven is in use
• The element not glowing red-hot during operation

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Please Note. Due to a manufacturer change element may appear physically different from the original.

This 6-inch radiant surface element is the heating source for a small burner beneath a glass-ceramic cooktop. Replacing a failed element restores reliable, controllable heat to that cooking zone. What it does:

• Heats the 6-inch cooking zone under the glass top when the control is turned on
• Cycles to help maintain the selected temperature during cooking
• Common symptoms of failure: small burner won't heat, heats unevenly or intermittently, or shows visible burn spots/damage

• 1 six-inch radiant surface element

• Disconnect power at the breaker and allow the cooktop to cool completely
• Lift the glass top or remove the cooktop to access the elements; support the glass to avoid stress or cracks
• Note wire positions and transfer connections to the new element one at a time
• Ensure the element sits flat in its mounting brackets before reassembly and testing

The 8 Inch Large Surface Element is an OEM part for Whirlpool cooktops and ranges, designed to provide reliable and consistent heat for cooking. This large surface element is crucial for performing a wide range of cooking tasks, from boiling water to frying and sautéing.  For matching 6 inch element order WP660532.

The primary reasons for replacing the 8 Inch Large Surface Element often involve wear and tear from regular use, physical damage, or electrical issues within the element itself.

Symptoms indicating the need for a replacement 8 Inch Large Surface Element include:

• The element not heating up, indicating a failure to provide the necessary cooking temperature
• Uneven heating, resulting in inconsistent cooking results
• Visible damage to the element, such as blistering, peeling, or cracking
• The element heating slowly or not maintaining the desired temperature during use

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Size: 26 inches long. F18t8/cw/k26.

This part has been discontinued and is no longer available.

This is a genuine replacement mounting screw used to secure appliance panels and components. It restores proper fastening to reduce vibration and prevent parts from loosening during normal operation. What it does:

• Secures panels, brackets, or trim to the appliance frame
• Prevents rattling or vibration caused by loose fasteners
• Keeps wiring and small components held in place
• Helps maintain proper alignment of removable parts

• Disconnect power to the appliance before servicing
• Use the correct screwdriver or bit to avoid stripping the head
• Start threads by hand, then tighten until snug; do not overtighten
• Keep removed fasteners organized to ensure correct reassembly

This machine screw is used across appliances to secure brackets, covers, and internal components. Replacing a missing or stripped fastener helps keep parts aligned and tight, reducing vibration and preventing loose or shifting assemblies.

• Provides machine-thread fastening for panels, brackets, and internal parts
• Helps eliminate rattling, vibration, and loose fits
• Restores proper attachment when the original screw is stripped, missing, or corroded
• Used wherever an 8-32 screw is specified in the service manual or parts list

• Disconnect power to the appliance; turn off gas/water if applicable
• Match the screw to the original location to confirm size and thread
• Start threads by hand to avoid cross-threading; use the correct driver
• Tighten snugly—do not overtighten to prevent stripping or cracking
