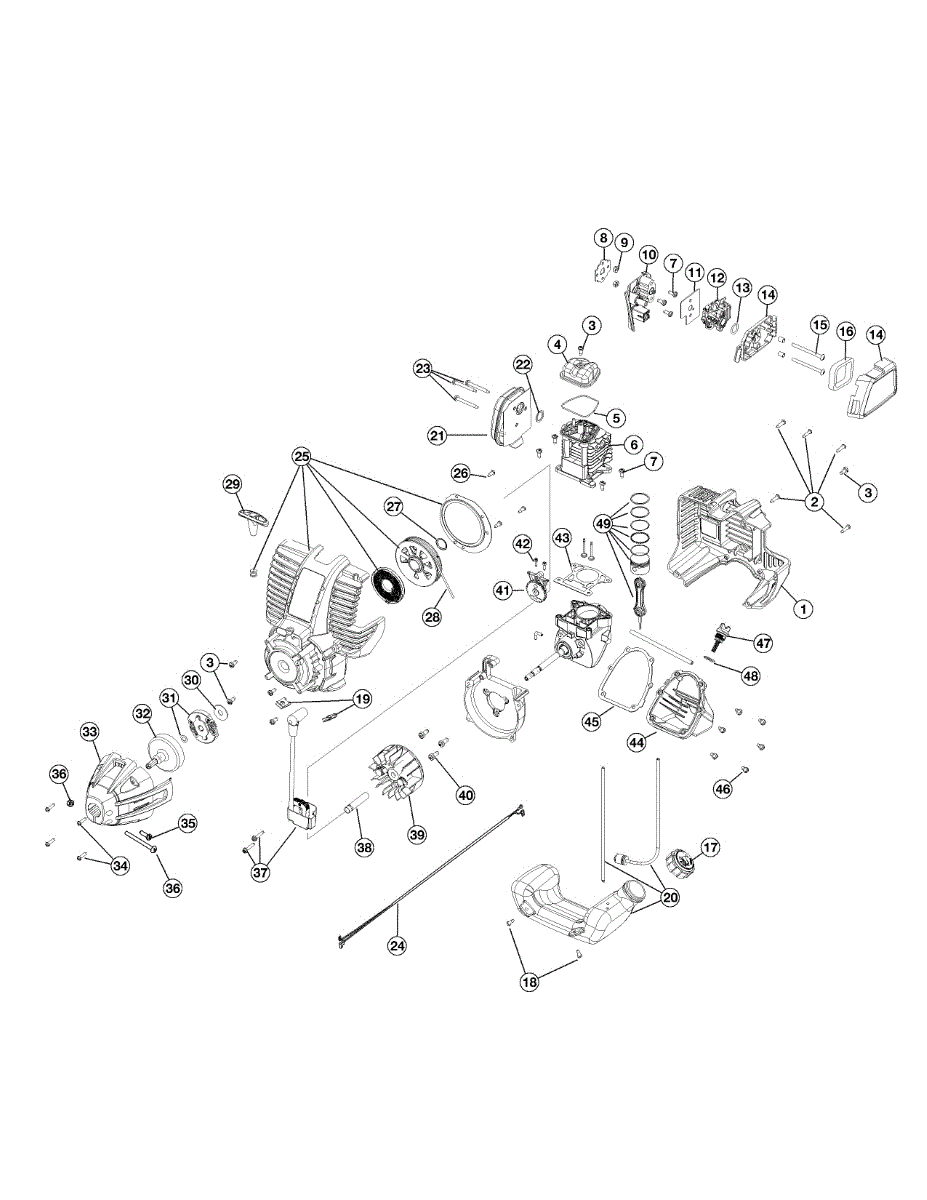

Parts for Craftsman 316.292650: Engine Assembly Parts

Few parts fulfill as many roles on lawn mowers and other landscaping power tools than the cover screw. This screw serves to attach metal housing parts, assemblies, and shrouds to one another on equipment such as power vacuums, snow blowers, edgers, tillers, hedge trimmers, lawn tractors, leaf blowers, grass trimmers and cultivators. As these are extremely durable metal screws, they seldom fail under ordinary use. It should be noted, however, that they are most often used at connection and pressure points. Stresses at these junctions sometime loosen screws, causing them to be lost or occasionally resulting in stripped threads. It's also occasionally the case that these screws are lost during repair or routine maintenance of yard equipment because of their small size. Users should make sure to consult their owner's manuals for replacement steps and any special instructions. Because of their small size and the ease of losing them during repair work or maintenance, it's recommended to keep a supply of appropriately sized screws on hand. Most importantly, when replacing a part make sure to use a genuine OEM replacement part. They are manufactured according to the specs of the original parts and are perfect replicas.

Mounting screw for lawn tractors and tillers. Secures components and housings. Replace if stripped, rusted, missing, or damaged during maintenance.

Replace worn or cracked O-ring seals on tillers, trimmers, and edgers to prevent leaks and ensure proper engine function. Verify fit with your model.

Cylinder assembly for front-tine tillers. Installs in the engine system. Replace if cracked, damaged, or leaking to restore proper operation.

Fastener screw for tillers and lawn equipment. Secures components together for stable operation. Replace if stripped, missing, or damaged during maintenance.

This gasket is a genuine MTD part. It is an insulator gasket meant as a replacement part on tillers, string trimmers, leaf blowers, edgers, and cultivators. The insulator gasket seals the connection between the insulator and cylinder. This gasket is made of durable, heat-resistant plastic. To replace the insulator gasket, a pair of work gloves, wrench, and screwdrivers are necessary. This gasket is a genuine OEM part sourced directly from the manufacturer. It is sold individually. It is compatible with machines made by Craftsman, Cub Cadet, MTD Pro, Troy-Bilt, Yard Machines, and Yard-Man.

Replace your missing or stripped 10-32 hex nut for tillers and lawn tractors. Secures panels, guards, and components. Essential hardware replacement.

The carburetor replacement part here can work with several types of gas-powered machines for use in lawn care and gardening. The carburetor is one of the most important parts of an engine. It is where the air and fuel are mixed before the fuel goes into the engine. The correct ratio helps to ensure that the engine starts easily and functions properly. If the engine is difficult to start, if there are gas leaks, or the engine has trouble continuing to run after being started, the carburetor could be at fault. Over time, parts of the carburetor could fail. When there are issues with the carb, it should be replaced as soon as possible. This genuine OEM replacement carburetor is sold individually. It can replace the carburetors in certain models of edgers, trimmers, and tillers. Compatible brands include MTD, Bolens, Yard-Man, Yard Machines, Ryobi, Cub Cadet, Troy-Bilt, and Craftsman. Owners must ensure they are choosing the correct carb for their make and model.

This is a genuine replacement O-ring, which is a standard part on a number of engines. This O-ring is specifically designed as a replacement for the one found in the carburetor on select lawn and garden engines. The O-ring is designed to create a seal in the carburetor to ensure optimal performance and prevent leaks. It is also designed to help create the right amount of pressure. Over time, O-rings can become corroded, worn, or damaged due to their exposure to pressure and high heat. If they become broken or damaged, they can result in poor engine performance or even total engine failure. This genuine OEM O-ring is manufactured by RYOBI and compatible with a number of tillers, trimmers, and blowers from this brand. It is also designed for use with select models from Bolens, Yard Man, MTD, and Troy-Bilt. There are more than 150 models that can use this specific O-ring. It is made of durable materials and sold as an individual unit. Keep in mind that because O-rings have multiple applications and engines may have more than one type, it is important to double-check the location and application of the part to ensure the right one is being used.

Protective cover that houses the air cleaner assembly on your tiller. Replace if cracked, broken, or missing to keep debris out of the engine.

Foam air filter for tillers and cultivators. Replace when dirty or damaged to maintain proper fuel-air balance for engine performance. Verify fit.

If your tiller won't start or runs out of fuel quickly, a cracked or leaking fuel tank assembly may be the cause. Direct replacement part.

Replacement muffler screw that secures the muffler cover in place on lawn equipment. Needed when original screw is stripped, missing, or damaged.

Tiller won't start or starter pulls hard? This starter housing assembly protects starter mechanisms from debris and weather exposure.

Push nut secures components on edgers, tillers, and trimmers. Replace if worn, damaged, or missing to properly fasten parts and prevent rattling or looseness.

Clutch won't engage or burning smell from your tiller? This clutch assembly connects engine power to the tines. Moderate DIY repair for tillers.

This is the clutch drum that houses the clutch that engages the power tools on more than 50 gasoline-powered lawn and landscape devices. The clutch sits inside this housing, which enables it to rotate. When the RPMs of the engine reach a certain point, the clutch expands and causes the drive shaft of the tool to engage. Among the different kinds of equipment that use this clutch housing are cultivators, edgers, and grass trimmers. The clutch, and therefore the clutch drum, receive a great deal of wear for several reasons: the vibration of the engine, the rapid up and down change of engine revolutions, and resistance met by the tools that are transferred back to the clutch and housing. Signs that the clutch is failing include a slow response to increased engine RPMs and an inability for the power tool to engage the drive shaft. In these cases, the clutch and housing should be replaced in order for the equipment to operate properly again. When choosing a clutch housing, it is important to select one that, like this one, is a genuine OEM certified part. This housing is compatible with Craftsman, Troy-Bilt, MTD, Bolens, Yard-Man, and Ryobi equipment.

Few parts fulfill as many roles on lawn mowers and other landscaping power tools than the cover screw. This screw serves to attach metal housing parts, assemblies, and shrouds to one another on equipment such as power vacuums, snow blowers, edgers, tillers, hedge trimmers, lawn tractors, leaf blowers, grass trimmers and cultivators. As these are extremely durable metal screws, they seldom fail under ordinary use. It should be noted, however, that they are most often used at connection and pressure points. Stresses at these junctions sometime loosen screws, causing them to be lost or occasionally resulting in stripped threads. It's also occasionally the case that these screws are lost during repair or routine maintenance of yard equipment because of their small size. Users should make sure to consult their owner's manuals for replacement steps and any special instructions. Because of their small size and the ease of losing them during repair work or maintenance, it's recommended to keep a supply of appropriately sized screws on hand. Most importantly, when replacing a part make sure to use a genuine OEM replacement part. They are manufactured according to the specs of the original parts and are perfect replicas.

This is a genuine replacement screw designed for use in select MTD engines on lawn and garden equipment. Specifically, this is an anti-rotation screw, which is used to stop the drive shaft housing from turning inside of the main housing assembly. This screw is a small part that is subject to constant vibrations, pressure, and high temperatures. It can sometimes become worn or damaged as a result or even break off entirely, which would mean that the inner housing would no longer be held in place accordingly. If this screw is damaged or lost, it needs to be replaced with a genuine OEM replacement as soon as possible. This MTD anti-rotation screw is manufactured with high-quality materials and designed for use in select trimmers from MTD, RYOBI, Yard-Man, Troy-Bilt, Murray, Cub Cadet, Yard Machines, and Bolens. This replacement will require a screwdriver. Simply remove the damaged screw, if it is not already missing, from the clutch cover assembly, and then install the new screw. It should only take a few minutes to perform the replacement. Be sure to wear gloves to protect the hands. This screw is sold individually and does not include any additional parts or hardware.

This is a genuine replacement flywheel spacer that is used on select outdoor lawn and garden engines. The flywheel spacer is used to connect the flywheel in line trimmers and provide adequate spacing so that the line can rotate properly to provide the trimming required. This spacer is made of durable metal but it can be damaged or become worn over time. If it is not functioning properly, the part will need to be replaced so that the unit is safe to use. This part can provide an exact fit for compatible models. This genuine OEM flywheel spacer is manufactured by MTD. It can be used in units from the brand, as well as compatible units from Troy-Bilt, Cub Cadet, and Craftsman. The spacer is made of durable metal and sold individually. Other parts will require an additional purchase. The line trimmer should be disconnected from power and the spark plug should be disconnected before doing any repairs. Wear gloves for hand protection whenever working on internal components on line trimmers and other outdoor power equipment.

Flywheel assembly for tillers and outdoor power equipment. Replaces cracked, damaged, or worn flywheels that affect engine timing and cooling fan operation.

This replacement part is an oil plug ring. It is a genuine replacement part made by MTD. This specific part is typically found in machines and appliances that have an oil tank. This ring is used to make sure that the oil from the machine does not escape during use.A new oil plug ring might be needed if the current one is allowing oil to escape from the tank. If there are oil drips near the engine it is possible that the ring is damaged or broken. This part is small but important to the overall use of many machines. Be sure to reference the specific user manual for more information on how to replace this part. This part is sold individually. It is a genuine OEM replacement part and is sourced directly from the manufacturer to ensure a proper fit and long-lasting use.
