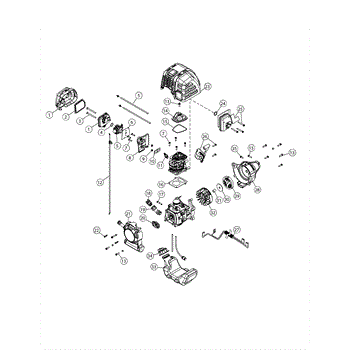

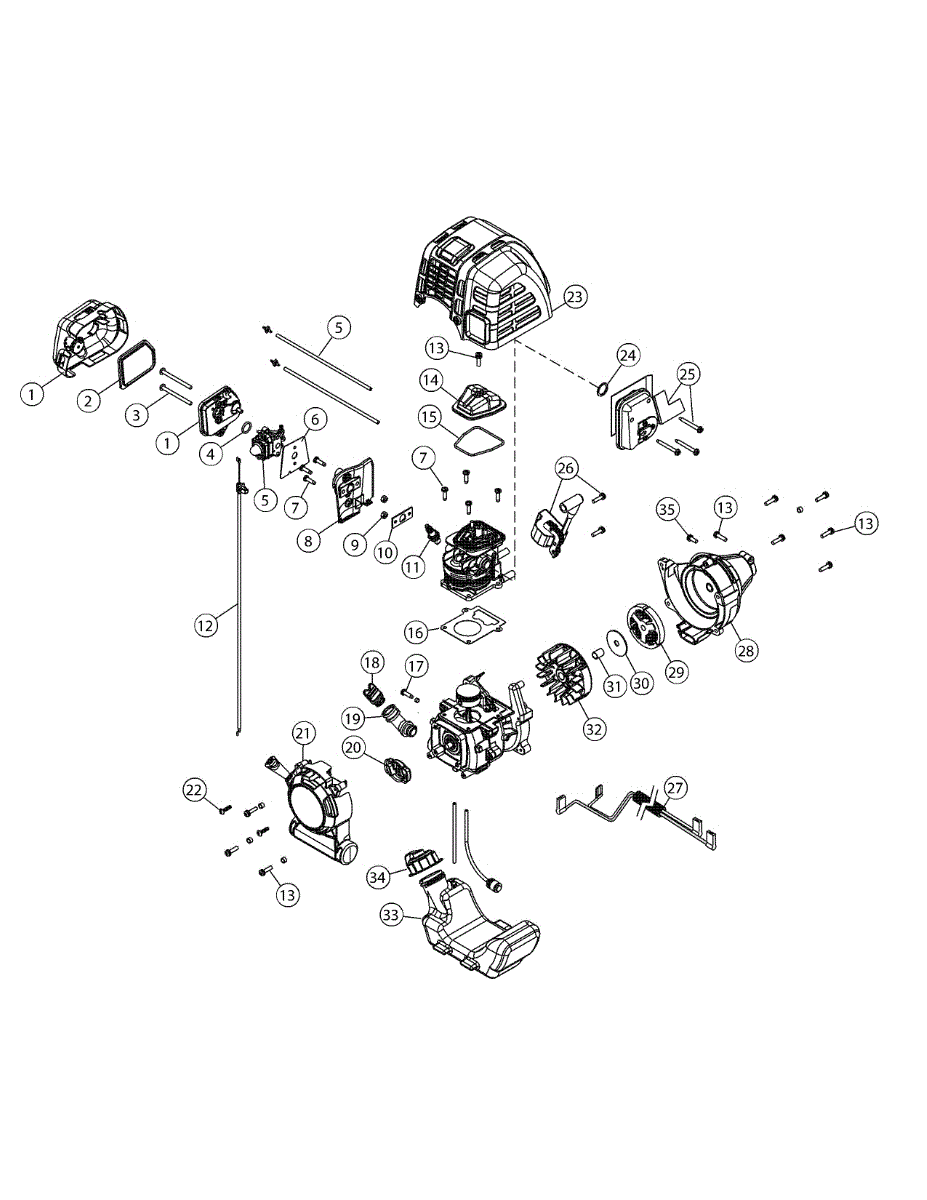

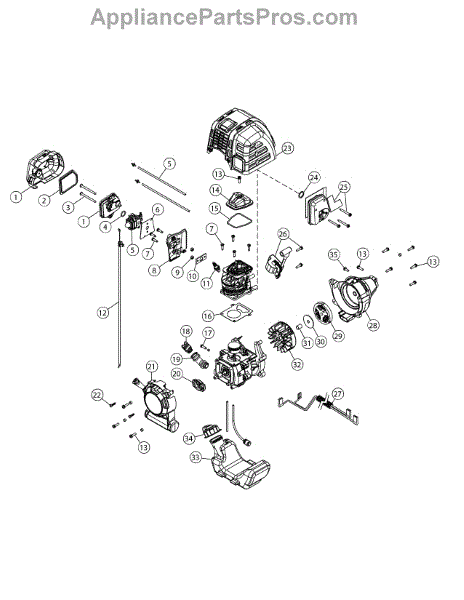

Parts for Craftsman 316.791990: Engine Assembly Parts

This air filter is a genuine Husqvarna part, sold individually. This air filter can be used as a replacement part in a string trimmer. The purpose of the air filter in a string trimmer is to block the potential passage of external materials such as dirt, debris, and pebbles from entering the internal mechanisms of the appliance and causing damage to internal components.The air filter in a string trimmer will likely have to be replaced once or more times during the typical lifespan of the appliance; this could occur if the air filter is damaged in the form of ripping, tearing, denting, puncturing, scraping, warping, or eroding. If this occurs, the air filter should be removed and replaced by this genuine OEM replacement part. Remember to always wear gloves when handling, repairing, and operating outdoor equipment. Always unplug the appliance before performing any kind of repair or replacement.This OEM part is a genuine replacement that is sold individually and sourced directly from the manufacturer. This air filter is compatible with the following outdoor appliance brands: MTD, Craftsman, and Cub Cadet.

This is a genuine replacement O-ring, which is a standard part on a number of engines. This O-ring is specifically designed as a replacement for the one found in the carburetor on select lawn and garden engines. The O-ring is designed to create a seal in the carburetor to ensure optimal performance and prevent leaks. It is also designed to help create the right amount of pressure. Over time, O-rings can become corroded, worn, or damaged due to their exposure to pressure and high heat. If they become broken or damaged, they can result in poor engine performance or even total engine failure. This genuine OEM O-ring is manufactured by RYOBI and compatible with a number of tillers, trimmers, and blowers from this brand. It is also designed for use with select models from Bolens, Yard Man, MTD, and Troy-Bilt. There are more than 150 models that can use this specific O-ring. It is made of durable materials and sold as an individual unit. Keep in mind that because O-rings have multiple applications and engines may have more than one type, it is important to double-check the location and application of the part to ensure the right one is being used.

This is a screw that is used for many pieces of lawn and garden equipment in a host of different ways. Screws such as this one are used to hold two components together. If the screw is not affixed properly or if there is an issue with the screw itself, it could affect the stability of the machine. If it is missing or not tight, it might also result in added noise when the machine is in use.Screws are made from metal and can last for a long time. However, if the threads are stripped or if the head of a screw wears down, it should be replaced. There is also the chance of corrosion or of losing the screw when working on the machine.This part is sold individually, and it can work well for a range of different machines from MTD, Craftsman, Bolens, and Yard Machines. This is a genuine OEM replacement part that is from the manufacturer.

This replacement part is an insulator gasket. Insulator gaskets isolate the metal surfaces of a flanged joint, electrically insulating them.A new insulator gasket might be needed if the current one is damaged in any way. If the engine struggles to turn on or does not start at all, it might be due to a damaged or malfunctioning insulator gasket. When replacing this part, be sure that the engine is completely powered off and cooled down.This is a genuine OEM replacement part manufactured by MTD. This part is sold individually.

This is a genuine OEM throttle cable that is designed for use with select gas string trimmers. The throttle cable connects to the carburetor and is used to stop the engine from running when the lever is shifted from throttle to choke. Over time, this cable is extended and retracted frequently and can become worn with use. It consists of the metal throttle cable and the plastic housing, and those can get broken or damaged as well, which will require the need for a full replacement. Without a functioning throttle cable, the engine may not run correctly, or the speed of the engine will not be able to be controlled. This replacement cable is ideal for compatible devices. This OEM throttle cable is manufactured to exact standards by MTD. It can be used with a variety of models of trimmers from MTD, Troy-Bilt, Yard Man, Cub Cadet, and Yard Machines. It is made of durable metal with a composite plastic housing. The trigger and screws are sold separately and will require an additional purchase if needed. Be sure to wear gloves when performing any equipment repairs.

This is a genuine replacement oil plug that is found in certain trimmers, edgers, and blowers designed for outdoor use. The oil plug is used to seal and fill the oil in the engine. This part is a high-quality plastic piece that features threads for screwing it into place and an O-ring to create a strong seal to prevent leaks and ensure optimal engine pressure. The oil cap may become stripped or damaged over time, or the O-ring could become faulty. In either case, replacing the entire cap/plug is the easiest solution.This genuine OEM replacement oil plug is compatible with machines from Troy-Bilt, MTD, Yard-Man, Yard Machines, and Cub Cadet. The plug is sold individually and comes with the O-ring. There are no other parts or hardware included. No tools are required to replace this plug. Simply unscrew the old one and screw the new one into place once the O-ring has been put on the new plug. Wear gloves whenever engine work is being performed to ensure hand protection. The oil should be checked regularly in all machines, which is a good time to check the cap to ensure it isn't damaged or in need of replacement.

This is a pawl assembly intended for use in many models of lawn and garden equipment. The piece attaches to the short block engine assembly. The pawls will lock onto the flywheel to start the engine when the starter turns and forces the pawls outwards. If there is a problem getting the engine started, the pawl is to blame.The pawl is made from plastic. While it is durable, parts of it could break or crack over time and with a lot of use. When servicing the machine and trying to locate problems that affect the way it starts, owners should check the pawl. A screwdriver and an Allen wrench can help with the replacement of this part.The pawl assembly is compatible with blowers and trimmers from Troy-Bilt, Yard-Man, Cub Cadet, and MTD. The piece is sold individually. It is a genuine OEM replacement part that has been sourced directly from the manufacturer.

This part is a replacement recoil starter assembly. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. This part can replace a defective or broken recoil starter assembly in line trimmers.The recoil starter assembly starts the engine by rotating the flywheel. This part is essential to proper equipment functionality, the user may find it difficult or impossible to start the line trimmer if this part is broken or malfunctioning. Always ensure that the equipment is completely powered off and is cooled down before attempting to start the repair process. For more accurate information on the installation of this particular recoil starter assembly, reference the owner's manual or equipment diagrams for specific instructions and part location. This is an authentic OEM part and as such is sold individually and made from durable and high-quality materials. This part includes the starter cover. This recoil starter assembly can be used with a variety of line trimmer models manufactured by MTD, Craftsman, Troy-Bilt, and other brands.

This part is a replacement lead wire kit. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. This part's intended use is to replace a broken or defective lead wire in line trimmers.Lead wires are critical for the line trimmer to work as they connect the electrical system required to power the equipment. Wires can become stripped, broken, stretched, or otherwise defective over time and thus will require replacement. It's important when working on or near to an engine to make sure the equipment is powered off and completely cooled down before starting any repairs. Take caution when working with electrical wiring. For more accurate information on how and where to install these lead wires, reference the appropriate owner's manual and specific equipment diagrams.This is an authentic OEM replacement part made of high-quality materials. These lead wires can be used with different models of line trimmers that have been manufactured by MTD, Craftsman, Troy-Bilt, and other brands. Part sold individually.

This is a fuel cap. It keeps fuel from leaking or spilling, and slows fuel evaporation when a machine is sitting for long periods. The fuel lid can be cracked or otherwise damaged, or it can become lost when removed for refilling. For the safety of the operator, a missing or broken fuel cap should be replaced immediately.Replacing a fuel cap is simple. If there is an existing cap, remove it first by turning it counterclockwise. Install the new fuel cap by matching up the unit's threads and twisting it clockwise until secure. Wear gloves when working with fuel caps.This fuel cap is a genuine OEM part. It is made of high-quality, durable materials. The cap is sold as an individual piece. The fuel cap can be used with MTD, Cub Cadet, and Troy-Bilt machines. It is compatible with blowers, cultivators, edgers, trimmers, and other lawn and garden equipment.
