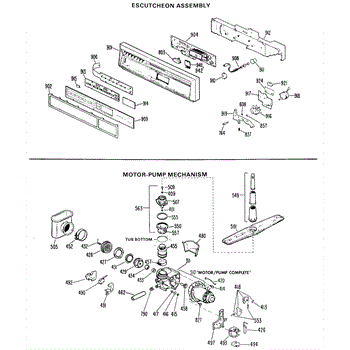

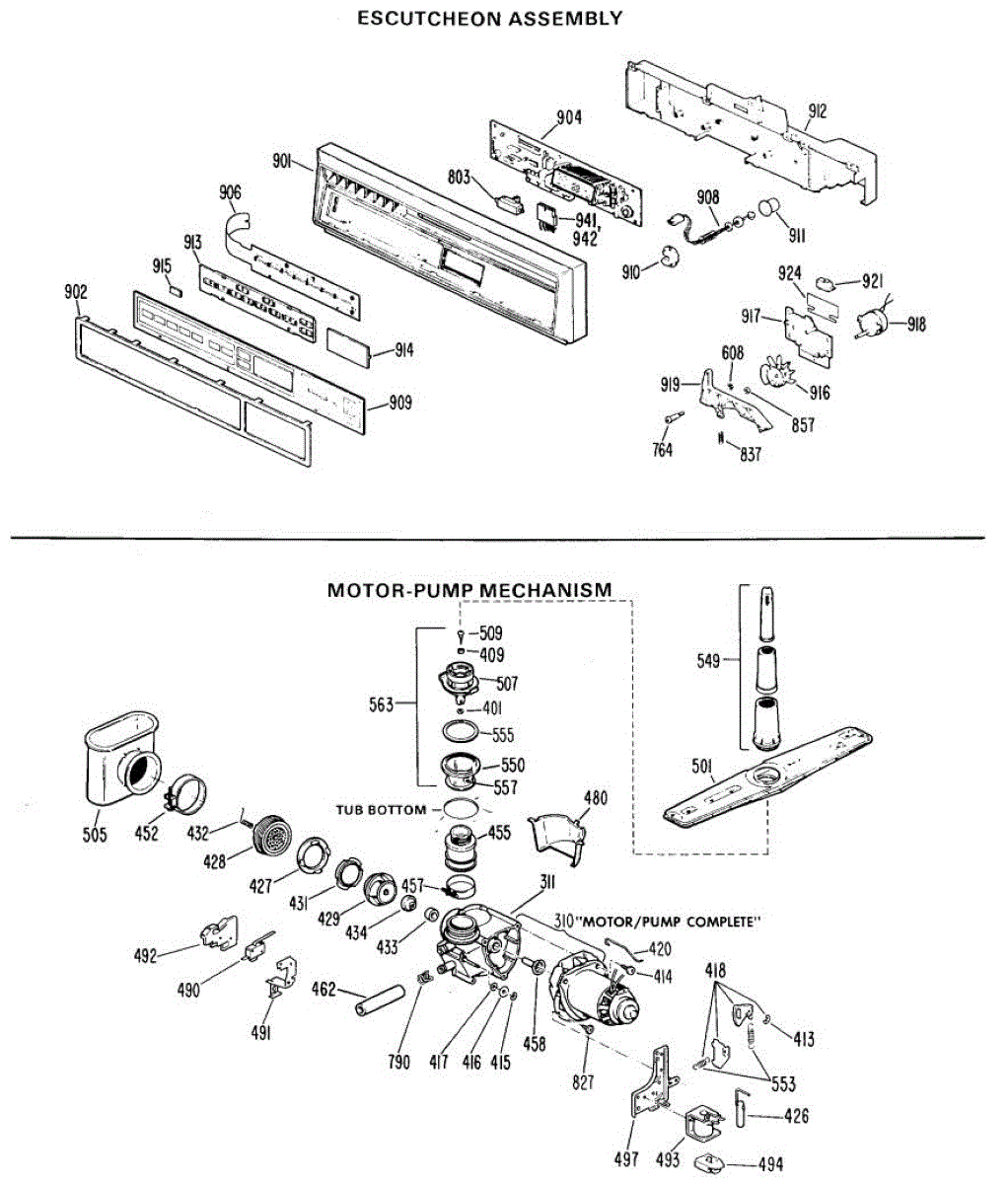

Parts for Ge GSD2200D05: 02 - Escutcheon Assembly Parts

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

C-clip retainers secure components in your dishwasher or range. Replace when clips are loose, broken, or missing to prevent rattling and parts shifting. Verify fit with your model number.

The Dishwasher Shaft Seal is an OEM part for GE dishwashers. This seal is located around the motor shaft and prevents water from leaking out of the dishwasher tub where the motor shaft enters.Seal for pump drain valve shaft. Instruction sheet included. Push-on nut may have to be cut off, order WR2X7054.

Over time, regular use can cause the seal to deteriorate, or debris and mineral deposits can lead to damage. A compromised shaft seal can result in water leaks, potentially causing damage to your kitchen floor and dishwasher components.

Symptoms of a bad dishwasher shaft seal include:

• Water leaking from the bottom of the dishwasher
• Puddles or water damage around the dishwasher area
• Unusual noises coming from the motor area due to water infiltration
• Visible wear or cracks on the seal

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This kit fits both D style and T style shafts.

Fix a dishwasher that won't drain or keeps draining during fill. This solenoid armature controls the drain valve. DIY repair in about 45 minutes.

This kit is used to repair a leaking pump on GE made dishwashers. For a complete pump/motor assembly get WD26X10013.

This kit is used to repair a leaking pump on GE made dishwashers. For a complete pump/motor assembly get WD26X10013.

This kit is used to repair a leaking pump on GE made dishwashers. For a complete pump/motor assembly get WD26X10013.

Secures dishwasher sump to tub, maintaining seal compression to prevent leaks. Replace if corroded or weak. Confirm fit with your model number.

This kit is used to repair a leaking pump on GE made dishwashers. For a complete pump/motor assembly get WD26X10013.

Deflector guard for dishwasher spray arm assembly. Replaces cracked, broken, or missing deflector shields. Mounts to spray system to direct water flow.

This float switch detects rising water in the refrigerator drain pan or lower cabinet area and signals the appliance control to help prevent overflow and water damage. Use it to replace a failed or intermittent water-level sensor. What it does:

• Senses high water level in the drain pan or collection area and closes the circuit to alert the control.
• Helps identify causes of leaks and pooling under or behind the appliance.
• Commonly used when symptoms include water on the floor, drip pan overflow, or water-related error/alert conditions.
• Matches OEM function for refrigeration units that include a float-based water-detection circuit.

• Disconnect power to the appliance before starting any repairs; shut off the water supply if working near water lines.
• Access may require removing lower kick plate or back panel; handle plastic clips and fasteners carefully.
• Disconnect electrical connector gently and note orientation before installing the replacement; secure wiring and verify float moves freely.
• Restore power and run a short test cycle or simulate water level to ensure proper operation.

Fix a dishwasher that won't drain or drains constantly during wash cycles. This drain solenoid valve controls water drainage timing. Moderate DIY repair.

Fix dishwasher leaks or poor cleaning with a new sump cap. Seals the sump opening to contain wash water and protect the pump. Quick DIY replacement.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

This spring kit restores proper door tension so the appliance door opens and closes smoothly and stays in position. Use it to replace worn or broken springs that cause a sagging, loose, or hard-to-operate door. What it does:

• Replaces worn or damaged door tension springs to restore smooth opening and closing.
• Helps prevent the door from dropping, sagging, or not staying open.
• Reduces uneven or jerky door movement caused by lost spring tension.
• Matches OEM-design function for safe, reliable door operation when installed correctly.

• Disconnect power (and water, if applicable) before beginning any repair.
• Springs are under tension—use caution and proper tools to avoid injury.
• Follow the appliance's service manual or OEM instructions.

White dishwasher lower spray arm assembly with collapsible tower. Replaces cracked, broken, or damaged spray arms. Installs at bottom of tub.

Secures washer hoses at pump, tub, and valve connections to prevent leaks and hose blow-offs. Replace worn or missing clamps for a tight seal. Confirm fit.

Size: 10-12 x 1/2 inch.

This molded switch insulator protects and positions a control switch by keeping wiring and terminals electrically isolated from the appliance cabinet. It helps restore proper switch fit and prevents shorting or chafing of switch wiring. What it does:

• Keeps switch terminals and wiring insulated from metal chassis to prevent electrical contact
• Holds the switch securely in its mounting location for reliable operation
• Helps stop arcing, burning marks, or intermittent switch function caused by a damaged insulator
• Restores correct clearance between the switch and surrounding components

• One switch insulator

• Disconnect power to the appliance before starting any repair
• Typically presses or clips into place around the switch housing; no wiring changes required
• Inspect switch and wiring for damage while replacing the insulator; replace any damaged components

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.
