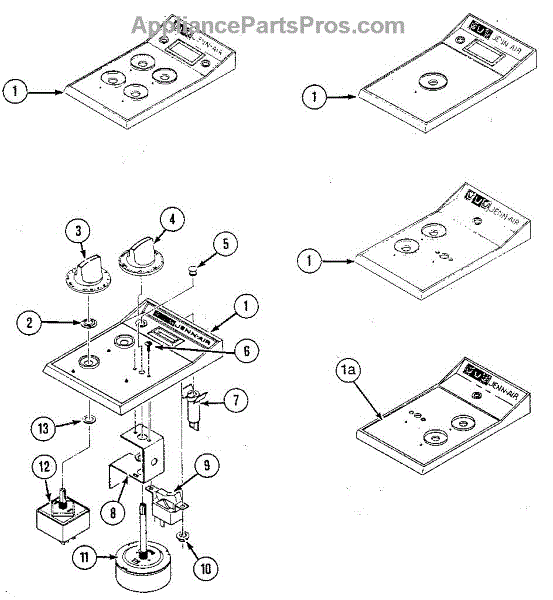

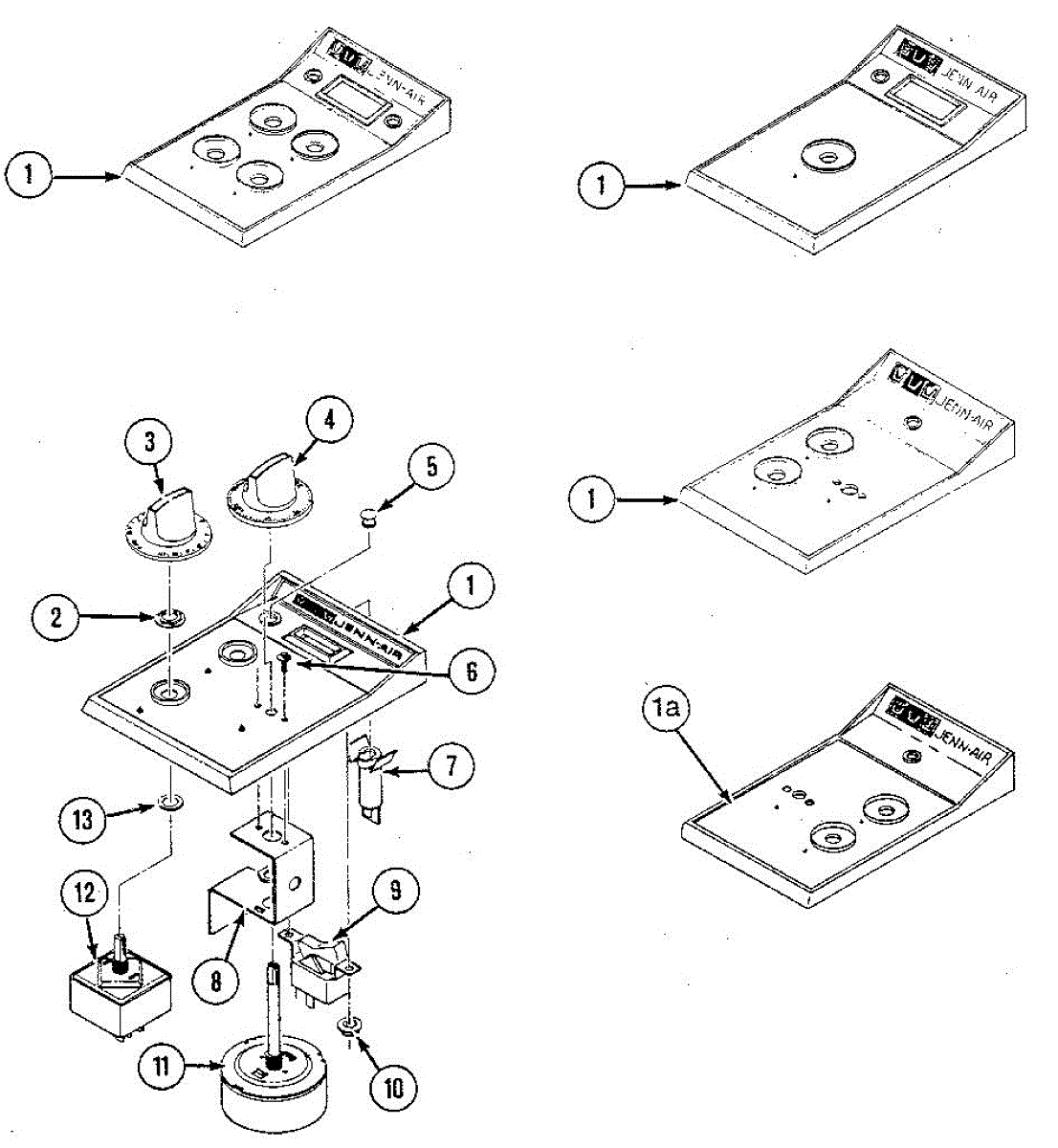

Parts for Kenmore 223.02 / 1988 (22302 / 1988, 223 02 / 1988): Escutcheon Assembly Parts

The Top Burner Control Knob is an OEM replacement part for Whirlpool cooktops and ranges. This knob provides a convenient way to control the heat level of the top burners, allowing for precise adjustments during cooking. It fits securely onto the control shaft, ensuring smooth operation and reliable functionality.

Symptoms of a bad Top Burner Control Knob include:

• The knob becoming loose or failing to turn the control shaft
• Difficulty adjusting the burner flame or heat level
• Visible damage, such as cracks or warping
• The knob falling off or not staying in place

Causes of a failing Top Burner Control Knob can include wear from frequent use, accidental impact, or exposure to high heat. Over time, the plastic or material may degrade, requiring replacement.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This pilot light lens covers and diffuses the indicator lamp on the appliance control panel, making the "on" status easy to see while protecting the opening. Replace a cracked or missing lens to restore a safe, finished look.

• Mounts in the control panel as the viewing lens for the pilot/indicator light
• Diffuses light output to improve visibility of the "on" signal
• Helps protect the lamp opening from dust and debris
• Common signs include a cracked, discolored, loose, or missing lens

• Disconnect power to the appliance before servicing
• Access the control panel per your model's service information
• Note lens orientation; remove the old lens and seat the new lens fully
• Reassemble and verify indicator light visibility and operation

Includes two red lenses. For the lens only order WPY700631

The Infinite Switch is an OEM replacement part for Whirlpool ranges. It is the interface switch positioned at the control panel that allows users to select cooking functions and power levels. Precise operation is crucial for an intuitive user experience. Measures 1.85 inches in height and 6.55 inches in width.

Causes of a bad switch can include components wearing out from heavy use over time, water damage compromising electronic components, or accidental impacts.

Symptoms include:

• Functions not responding to switch presses
• Controls becoming unresponsive or erratic
• Indicator lights flickering or not illuminating
• Improper display of selected power levels

This OEM Whirlpool part is compatible with KitchenAid, Jenn-Air, and some Kenmore induction ranges as well.

Note: Due to factory design change, the switch may look different but is functionally the same.
