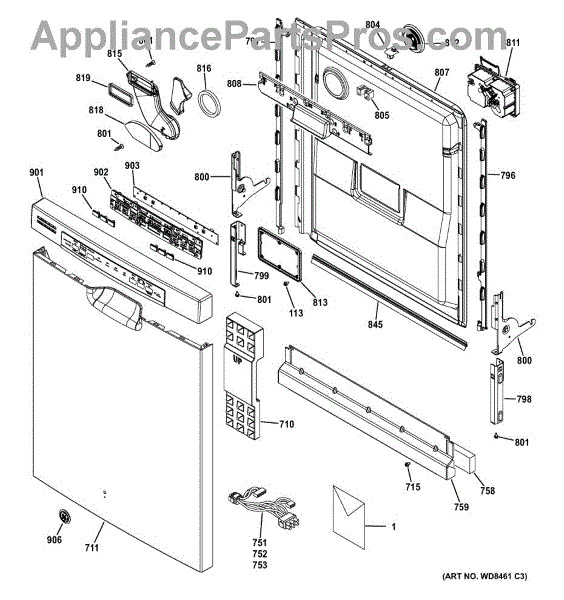

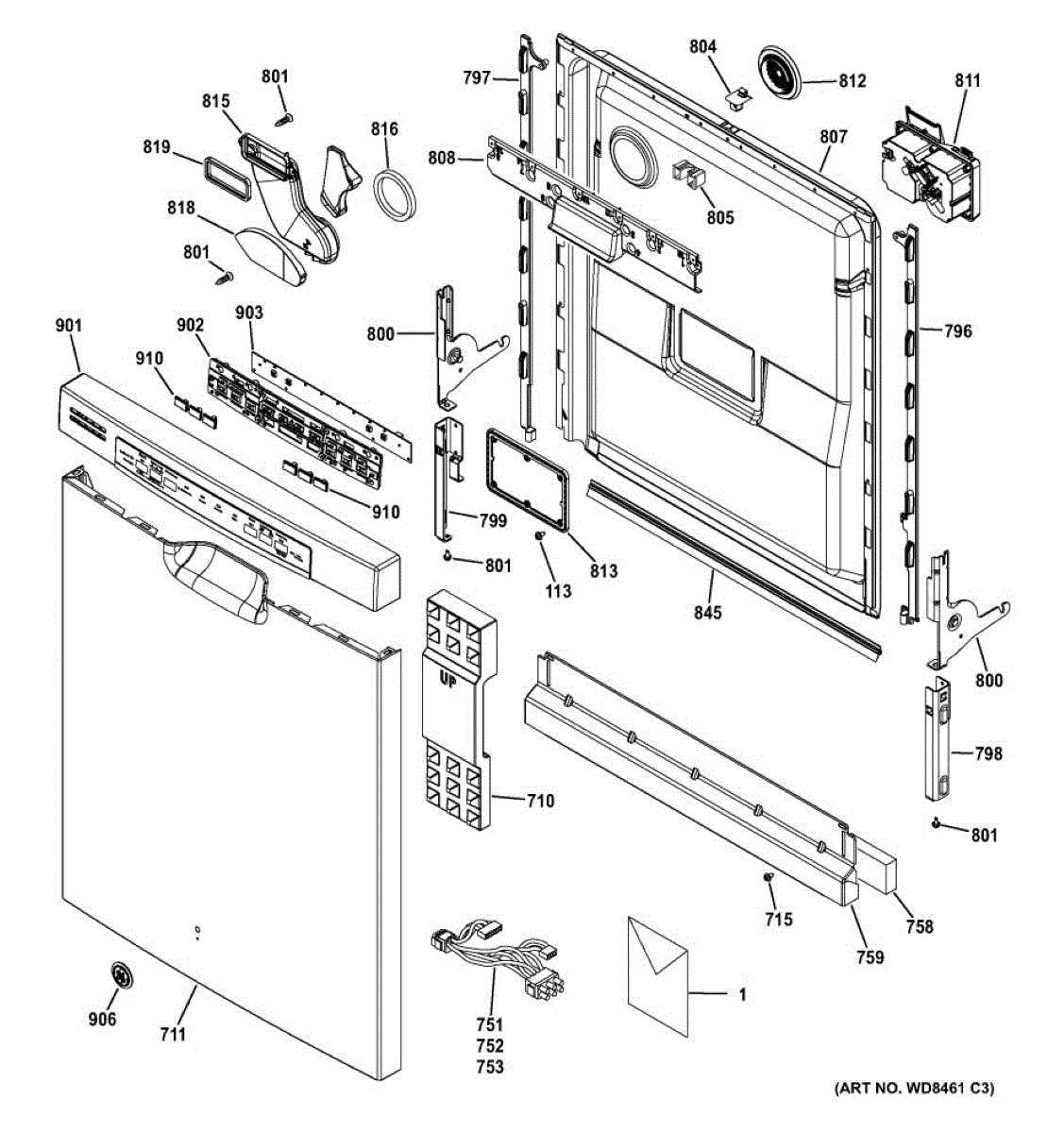

Parts for Ge GDF540HGD0BB: 01 - Escutcheon & Door Assembly Parts

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

The screw is an OEM replacement component for GE dishwashers. It is used to securely fasten parts inside the dishwasher tub assembly.

Causes of a damaged or defective screw usually involve wear from continuous mechanical stresses and vibration during dishwasher usage. Loose parts affect machine balance and performance.

Symptoms of a compromised screw placement include:

• Noises or abnormal sounds coming from inside the tub
• Intermittent error codes related to moving components
• Detached or misaligned spray arms or filters
• Insecure tub fixtures that can be jarred with normal operation

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

If your dishwasher door feels hot or runs inefficiently, this door insulation panel restores thermal barrier. Fits inside door to reduce heat transfer.

Black outer door panel assembly for your dishwasher. Replaces cracked, scratched, or discolored front door panels. Direct fit replacement part.

Wire harness assembly that connects electrical components in the dishwasher door. Replace if wires are frayed, connectors damaged, or harness is broken.

Replace your missing or damaged dishwasher toe kick insulation panel. Blocks drafts and protects internal components. Easy DIY installation repair.

Front lower trim panel that covers the dishwasher base. Replace if cracked, damaged, missing, or to refresh appearance. Direct-fit cover piece.

Left-hand attachment strip secures trim and panels on your dishwasher for a clean, finished appearance. Replace if cracked, broken, or missing.

Note: Right side hinge

Left side door hinge assembly for dishwashers. Mounts to the lower cabinet and supports the door during opening and closing. Replace if broken or worn.

Left side door hinge assembly for dishwashers. Mounts to the lower cabinet and supports the door during opening and closing. Replace if broken or worn.

Note: Right side hinge

The Door Latch Strike is an OEM part for GE dishwashers. It ensures the dishwasher door latches securely, allowing the appliance to operate only when the door is properly closed.

Causes of a bad door latch strike can include wear and tear from regular use, damage from slamming the door, or misalignment due to repeated opening and closing.

Symptoms of a bad door latch strike include:

• The dishwasher door not latching securely
• The dishwasher not starting or stopping mid-cycle
• Leaks around the door during operation
• Difficulty in closing the door properly

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This top attachment strip secures the appliance's top panel and provides the mounting point for the door strike, restoring a stable, properly aligned front. It prevents panel movement and reduces rattles for a snug fit and reliable door engagement. What it does:

• Secures the top/front panel to the cabinet to maintain alignment and fit
• Serves as the mounting point for the door strike or latch components
• Helps eliminate rattling, vibration, and gaps at the top of the door area
• Restores reliable door engagement and prevents the strike from shifting

• Disconnect power to the appliance before beginning any repair
• Remove the top panel or access screws to reach the attachment strip; a screwdriver set is typically required
• Handle mounting tabs and edges carefully to avoid bending or damage
• Verify alignment of the door strike and test door closure after installation

This top attachment strip secures the appliance's top panel and provides the mounting point for the door strike, restoring a stable, properly aligned front. It prevents panel movement and reduces rattles for a snug fit and reliable door engagement. What it does:

• Secures the top/front panel to the cabinet to maintain alignment and fit
• Serves as the mounting point for the door strike or latch components
• Helps eliminate rattling, vibration, and gaps at the top of the door area
• Restores reliable door engagement and prevents the strike from shifting

• Disconnect power to the appliance before beginning any repair
• Remove the top panel or access screws to reach the attachment strip; a screwdriver set is typically required
• Handle mounting tabs and edges carefully to avoid bending or damage
• Verify alignment of the door strike and test door closure after installation

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Replace your dishwasher's door pocket handle. This handle installs on the interior door and is needed when the original is cracked, broken, or missing.

Dishwasher detergent dispenser won't open or latch? This module controls soap release during wash cycles. Moderate DIY repair—30 minutes, door removal.

Gray dishwasher vent cap that releases moist air during the dry cycle. Replace if cracked, damaged, or causing leaks to restore proper steam venting.

Fix poor drying or excess moisture in your dishwasher with this replacement vent. Restores proper airflow and heat exhaust for non-fan models.

Fix poor drying or excess moisture in your dishwasher with this replacement vent. Restores proper airflow and heat exhaust for non-fan models.

Controls airflow in your dishwasher door. Replace if cracked or if you see leaking from the door vent area. Confirm fit with your model number.

Seals the dishwasher door vent to prevent leaks and maintain moisture control. Replace if worn or causing steam leaks. Confirm fit with your model.

Control panel lights dim or hard to see? This dishwasher light pipe guides indicator light to the front bezel for bright, centered display. Simple fix.

Dishwasher won't start or has no lights? This control board manages cycles and operations. DIY-friendly repair—located in the door panel.

Restore your appliance's factory look with this badge assembly. It replaces a missing, cracked, or faded logo on the refrigerator exterior, delivering a clean, professional appearance without affecting performance or operation.

• Decorative nameplate/logo for the refrigerator exterior
• Replaces cracked, faded, loose, or missing badge
• Restores a clean, factory appearance
• Cosmetic component; does not impact cooling or function

• Disconnect power before servicing the appliance
• Protect the finish; use a plastic trim tool to remove the old emblem if needed
• Clean and dry the mounting area; align with locating marks/holes and secure per your model diagram

Restore your appliance's factory look with this badge assembly. It replaces a missing, cracked, or faded logo on the refrigerator exterior, delivering a clean, professional appearance without affecting performance or operation.

• Decorative nameplate/logo for the refrigerator exterior
• Replaces cracked, faded, loose, or missing badge
• Restores a clean, factory appearance
• Cosmetic component; does not impact cooling or function

• Disconnect power before servicing the appliance
• Protect the finish; use a plastic trim tool to remove the old emblem if needed
• Clean and dry the mounting area; align with locating marks/holes and secure per your model diagram

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.
