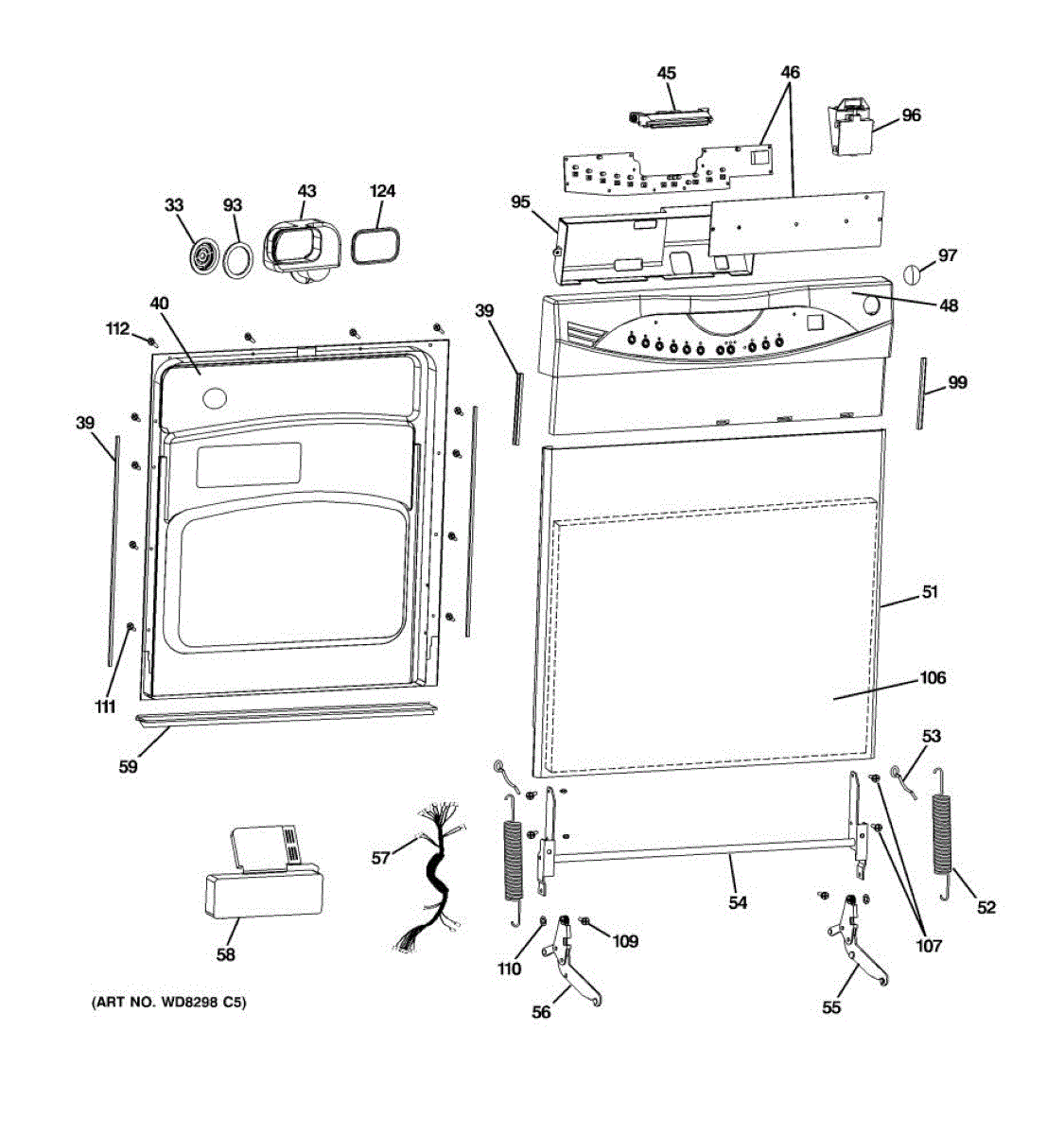

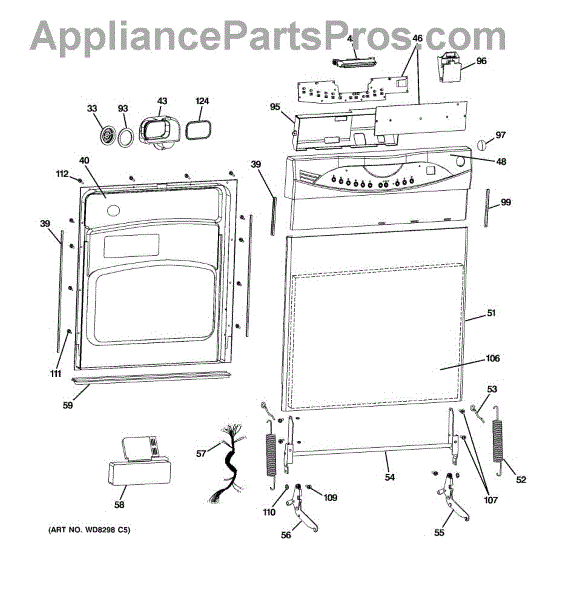

Parts for Ge GLDA690M01BB: 01 - Escutcheon & Door Assembly Parts

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Replace your dishwasher's ring nut with gasket if the original is cracked, worn, or missing. Secures components and ensures a proper seal.

Black edge guard trim for dishwasher door or panel. Replaces cracked, broken, or missing trim pieces to restore a finished appearance.

White edge guard for dishwasher door. Protects and seals the edge of the door panel. Replace if cracked, broken, or missing for proper appearance.

Connecting duct that links dishwasher vent components. Replace if cracked, broken, or disconnected to restore proper venting airflow path.

This is the black outer door panel that forms the exterior face of the dishwasher door. It provides the visible finished surface and helps protect the inner door components and insulation. Replace this panel if it is dented, cracked, discolored, or if the outer finish has become damaged.

The Door Hinge Spring is an OEM part for GE dishwashers. It provides the necessary tension to support and balance the dishwasher door, allowing it to open and close smoothly and stay in the desired position during loading and unloading.

You should replace this door hinge spring if it becomes faulty. Common causes of a bad door hinge spring include wear and tear from regular use, rust or corrosion from exposure to moisture, or physical damage from overextension or improper handling.

Symptoms of a bad door hinge spring include:

• The dishwasher door falling open too quickly
• Difficulty keeping the door in a partially open position
• Unusual noises when opening or closing the door
• The door not aligning properly with the dishwasher frame

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Replacement door hinge pin for dishwashers. Serves as the pivot point for smooth door opening and closing. Replace if worn, missing, or broken.

Right-side dishwasher door hinge assembly with mounting screws. Replaces cracked, broken, or worn hinges to restore door support and alignment.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Dispenser won't open during wash cycle? This detergent dispenser restores reliable soap release and rinse-aid dosing. Moderate DIY repair with video.

The Lower Door Gasket is an OEM part for GE dishwashers. It forms a seal around the bottom of the dishwasher door to prevent leaks and contain heat, moisture, and harsh detergent within the wash chamber.

Causes of a bad gasket can include cracking, warping or tearing of the rubber seal over multiple usage cycles and exposure to hot washing conditions.

Symptoms of a bad lower door gasket include:

• Puddles or pools of water around the base of the dishwasher
• Standing water inside nearby cabinets or on the floor
• An ineffective or steamy seal around the dishwasher door
• Visible cracks, holes, or deformation of the gasket material

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

Dishwasher O-ring seal prevents leaks in pump and valve assemblies. Replace when worn, cracked, or causing water leaks. Verify fit with your model number.

Protective cover for your dishwasher's control board. Replace if cracked, broken, or missing to shield internal electronics from moisture and debris.

Replacement nameplate badge for your dishwasher's exterior panel. Restores appearance when original badge is missing, peeling, or damaged over time.

Structural bracket that secures the detergent dispenser assembly in your dishwasher. Replace if the original bracket is cracked, broken, or missing.

A small M5 x 6 mm machine screw used to secure panels, brackets, and components in household appliances. Its compact size fits tight spaces and helps keep assemblies stable during normal operation. What it does

• Fastens small metal or plastic appliance parts such as trim, brackets, and access panels.
• Replaces missing or stripped screws that can cause rattling, loose panels, or misaligned components.
• Provides a reliable threaded connection when used with the correct mating nut or tapped hole.
• Helps restore proper fit and reduce vibration-related noise.

• Disconnect power to the appliance before servicing to avoid electrical shock.
• Use the correct screwdriver or bit to avoid damaging the screw head; do not force if threads bind.
• Hand-start the screw to ensure proper thread alignment, then tighten securely but avoid overtightening.
• Repair or use the correct replacement fastener and mating hardware.

A replacement joint pin that secures a hinge or linkage, restoring stable door or panel movement. Use this durable metal pin to fix loose, sagging, or misaligned doors and ensure reliable operation. What it does:

• Acts as the pivot/fastener for a hinge or linkage assembly to maintain correct alignment and motion
• Restores secure door or panel attachment when the original pin is worn or missing
• Helps eliminate sagging, rubbing, or uneven closing caused by a broken or loose pivot
• Works with the associated hinge and bracket to keep moving parts aligned during normal use

• Designed for direct replacement—remove the old pin and press or slide the new pin into the hinge or linkage assembly
• Use basic hand tools; wear gloves and eye protection to avoid injury from sharp edges or slipping tools
• Do not force damaged hinge parts—replace any broken brackets or worn components for a secure repair

Replace a missing, damaged, or worn spring washer in your dishwasher. Provides tension to keep fasteners secure during vibration and movement.

This ST3.5 tapping screw is a factory-style fastener used to secure appliance panels, trim, and components where a self-tapping thread is required. It provides a reliable hold for repairs and replacement parts. What it does:

• Creates its own mating threads in sheet metal or plastic to fasten panels and brackets
• Commonly used to secure control panels, trim pieces, and interior components
• Helps stop rattles and loose panels when the original screw is missing or damaged
• Matches OEM fit and function for straightforward replacement

• Use the correct ST3.5 screwdriver or bit to avoid cam-out and damage
• Start straight and apply steady pressure; do not force if resistance indicates wrong thread fit
• Avoid over-tightening to prevent stripping the mating material or breaking the screw
• Wear eye protection and follow appliance power/disconnect safety before servicing

Self-tapping screw for securing dishwasher panels, brackets, and internal components. Replace missing, stripped, or damaged screws during repairs.

Secure your dishwasher's vent system with this guard ring clip. Replace if loose, damaged, or missing to prevent leaks and ensure proper venting.
