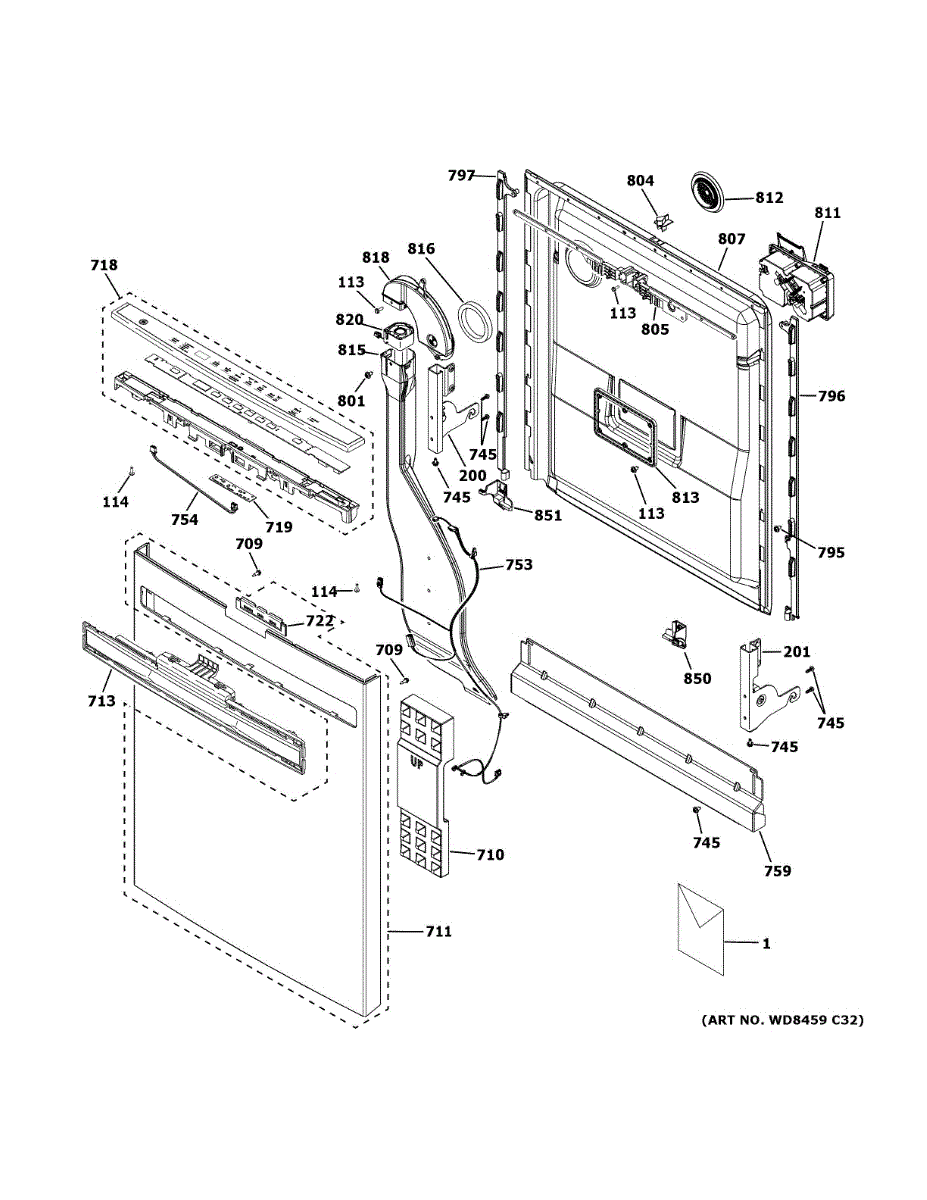

Parts for Ge PDP715SYN3FS: Escutcheon Door Assembly Parts

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

The screw is an OEM replacement component for GE dishwashers. It is used to securely fasten parts inside the dishwasher tub assembly.

Causes of a damaged or defective screw usually involve wear from continuous mechanical stresses and vibration during dishwasher usage. Loose parts affect machine balance and performance.

Symptoms of a compromised screw placement include:

• Noises or abnormal sounds coming from inside the tub
• Intermittent error codes related to moving components
• Detached or misaligned spray arms or filters
• Insecure tub fixtures that can be jarred with normal operation

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

8-18 hi/lo 5/8

Secures and supports the dishwasher door for smooth opening and closing. Replace if hinge is cracked, broken, or causing misalignment issues.

Right-hand hinge arm assembly supports and guides your dishwasher door through its full travel. Replace if bent, worn, or causing uneven door movement.

8-18 x 9/16-inch hex washer head screw secures panels, brackets, and trim in appliances. Replace missing, damaged, or stripped screws for proper fit.

If your dishwasher door feels hot or runs inefficiently, this door insulation panel restores thermal barrier. Fits inside door to reduce heat transfer.

Replace your dishwasher's damaged or dented outer door panel to restore appearance and structural fit. Confirm compatibility with your model number.

Replace a worn, cracked, or broken dishwasher door pocket handle. This recessed grip installs on the door interior for smooth opening and closing.

Fix a dim or dark dishwasher control panel with this LED light board. Restores clear button visibility and display illumination for easier operation.

Control panel lens and adhesive assembly for your dishwasher. Replaces a cracked, scratched, or missing lens cover on the display panel.

10-32 x 9/16" machine screw secures dishwasher panels, brackets, and internal assemblies. Replace missing, stripped, or damaged fasteners to restore fit.

Fix dishwasher control panel with no lights or unresponsive buttons. This door wiring harness connects power to controls, latch, and lighting components.

Replace your dishwasher's LED board harness to restore lighting and fix intermittent operation. Connects LED light board to power and controls. Verify fit.

Front lower trim panel that covers the dishwasher base. Replace if cracked, damaged, missing, or to refresh appearance. Direct-fit cover piece.

This T15 Torx mounting screw secures internal dishwasher components and panels. Replace screws that are stripped, missing, or lost during repairs.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Left-hand attachment strip secures trim and panels on your dishwasher for a clean, finished appearance. Replace if cracked, broken, or missing.

6-20 x 3/8 inch nickel screw secures trim panels, brackets, and small components in dishwashers and ovens. Replace missing or stripped screws.

The Door Latch Strike is an OEM part for GE dishwashers. It ensures the dishwasher door latches securely, allowing the appliance to operate only when the door is properly closed.

Causes of a bad door latch strike can include wear and tear from regular use, damage from slamming the door, or misalignment due to repeated opening and closing.

Symptoms of a bad door latch strike include:

• The dishwasher door not latching securely
• The dishwasher not starting or stopping mid-cycle
• Leaks around the door during operation
• Difficulty in closing the door properly

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This top attachment strip secures the appliance's top panel and provides the mounting point for the door strike, restoring a stable, properly aligned front. It prevents panel movement and reduces rattles for a snug fit and reliable door engagement. What it does:

• Secures the top/front panel to the cabinet to maintain alignment and fit
• Serves as the mounting point for the door strike or latch components
• Helps eliminate rattling, vibration, and gaps at the top of the door area
• Restores reliable door engagement and prevents the strike from shifting

• Disconnect power to the appliance before beginning any repair
• Remove the top panel or access screws to reach the attachment strip; a screwdriver set is typically required
• Handle mounting tabs and edges carefully to avoid bending or damage
• Verify alignment of the door strike and test door closure after installation

The Inner Door Panel is an OEM part for GE dishwashers. It serves as the inner lining of the dishwasher door, ensuring a watertight seal and supporting components like the detergent dispenser and vent assembly.

Common causes of a bad inner door panel include wear and tear from regular use, exposure to high temperatures and harsh detergents, or physical impacts that cause cracks or warping.

Symptoms of a bad Inner Door Panel include:

• Water leaking from the door area during operation
• Difficulty in opening or closing the door properly
• Visible cracks, warping, or other damage to the panel
• Malfunctioning detergent dispenser or other door-mounted components

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Dishwasher detergent dispenser won't open or latch? This module controls soap release during wash cycles. Moderate DIY repair—30 minutes, door removal.

This is a vent cover designed for the dishwasher's exhaust or drying vent area. It helps direct airflow and prevents debris or moisture from escaping into unwanted areas during the drying cycle. Replace this cover if it is cracked, warped, or missing, which can lead to poor drying performance or moisture buildup around the dishwasher.

Detergent not dispensing during wash cycle? This dishwasher detergent dispenser plate holds and releases detergent at the right time for proper cleaning.

Routes exhaust air from your dishwasher through the proper ventilation channel. Replace if damaged, crushed, or disconnected. Verify fit with your model.

Controls airflow in your dishwasher door. Replace if cracked or if you see leaking from the door vent area. Confirm fit with your model number.

Duct that connects the dishwasher door vent system. Replace if cracked, broken, or causing leaks inside the door. Installs between vent and cover.

Dishes not drying properly? This fan vent assembly removes moist air from your dishwasher during the dry cycle. Moderate DIY repair requires removing door panel.

Right-side door trim for dishwashers. Covers the door edge and mounting area for a clean, finished look. Replace when cracked, chipped, or worn.

Left-side door trim piece for dishwashers. Replaces cracked, chipped, or worn trim to restore proper door fit and exterior appearance.
