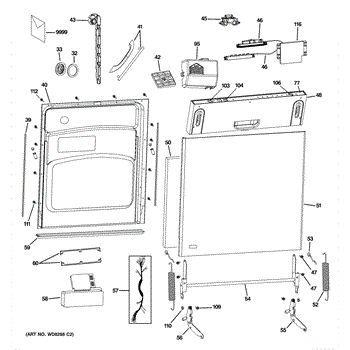

Parts for Ge PDW1800N00BB: 01 - Escutcheon & Door Assembly Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Latch Assembly is an OEM part for GE dishwashers. This part secures the dishwasher door during operation, ensuring that the door remains tightly closed to prevent water leaks and to allow the dishwasher to operate correctly.

Common causes of a bad latch assembly include wear and tear from regular use, damage from forceful closing or impacts, and issues with the internal mechanism or switches.

Symptoms of a bad Latch Assembly include:

• The dishwasher door not closing or latching properly
• The dishwasher not starting or pausing mid-cycle due to the door not being securely latched
• Water leaking from the door during operation
• The door popping open during a cycle

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is a door hinge spring that is used on dishwashers. This dishwasher door hinge spring prevents the dishwasher door from dropping open or slamming shut. It allows the movement to be controlled and smooth rather than abrupt and forceful. Each dishwasher unit has two springs at the bottom, one on each side.A new dishwasher door hinge spring may be needed if the dishwasher door is dropping open without any resistance or if it is slamming shut without any resistance. The springs provide tension to prevent these opening and closing concerns, so if that tension is missing, it is time to replace the springs on the dishwasher door.This is a genuine General Electric part and is an OEM part sourced directly from the manufacturer. It is sold individually. This specific dishwasher door hinge spring is compatible with dishwashers that are manufactured by the General Electric brand.

This door hinge pin is the pivot that allows a dishwasher door hinge to open and close smoothly. Replacing a worn or missing pin restores aligned, controlled door movement and proper latching performance.

• Provides the hinge's pivot point between the hinge arm and the cabinet/frame
• Helps maintain proper door alignment for smooth opening and closing
• Wear or damage may cause squeaking/clicking, binding or uneven motion, door dropping too quickly, or difficulty latching
• Restores correct hinge operation when an original pin is bent, worn, or missing

• Disconnect power at the breaker and turn off water before servicing
• Support the door and relieve hinge spring tension; remove the toe-kick/access panel to reach the hinge area
• Remove the old pin and install the new pin through the aligned hinge holes; ensure it is fully seated
• Test door movement and latching before reassembling and restoring power

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This replacement dishwasher detergent dispenser stores detergent and releases it at the correct time in the cycle, while also controlling rinse-aid dosing. It restores reliable cleaning performance when the original dispenser is damaged, leaking, or won't open.

• Holds detergent securely and opens on command during the wash cycle
• Meters rinse aid during the final rinse to help reduce spots and film
• Seals to the inner door at the dispenser opening to help prevent leaks
• Typical symptoms: detergent left in cup, dispenser door won't latch/pop open, rinse aid not dispensing or leaking, visible cracks or warping

• Disconnect electrical power and turn off water supply before servicing
• Open the door and remove inner-door panel screws to access the dispenser
• Unplug the wire connector(s), release retaining screws/tabs, and remove the old dispenser
• Clean the door cutout, seat the new gasket evenly, secure the dispenser evenly, reconnect wiring, and run a leak check

This replacement power board cover protects the appliance's electrical control board from debris and accidental contact, helping maintain safe operation. A direct-fit external housing designed to restore the original protective barrier. What it does:

• Shields the control/power board from dust, lint, and moisture buildup
• Helps prevent accidental contact with live electrical components
• Maintains correct board spacing and alignment inside the appliance
• Supports safe, reliable operation when the control board is installed

• One power board cover

• Disconnect power to the appliance before attempting any service
• Remove access panels to reach the control board area; reattach the cover securely
• Use caution around wiring and connectors; avoid forcing parts into place

This is the On/Off push button used to operate the appliance's power control. It restores a reliable tactile switch surface so the unit responds correctly when turning power on or off. What it does:

• Replaces a worn or broken On/Off push button so the control panel registers user input reliably
• Helps resolve symptoms like a loose, stuck, or non-responsive power button
• Restores proper tactile feedback for confident operation
• Works with the panel's existing switch mechanism and trim to complete power input actions

• One On/Off push button

• Turn power to the appliance off at the breaker or unplug before servicing
• Remove control panel trim to access and replace the push button; handle internal parts gently
• Verify fit and orientation before final reassembly

This push-button replaces the Delay/Star control on compatible GE laundry appliances, restoring a responsive delay-start/select function on the console. It's a simple, direct replacement that lets the machine accept delay-start inputs reliably. What it does:

• Registers user presses for the delay/start feature so the washer/dryer can accept delayed-start commands.
• Provides the tactile "push" action and electrical contact needed for console input.
• Commonly used when the delay/select button is unresponsive, sticky, or physically damaged.
• Works as a single-button replacement; matches OEM fit and function.

• One push-button Delay/Star control.

• Disconnect power to the appliance before starting any service.
• Access requires removing the control panel; handle internal connectors and ribbon cables gently.
• Do not operate the appliance with panels removed; ensure all parts and fasteners are reinstalled.

A replacement joint pin that secures a hinge or linkage, restoring stable door or panel movement. Use this durable metal pin to fix loose, sagging, or misaligned doors and ensure reliable operation. What it does:

• Acts as the pivot/fastener for a hinge or linkage assembly to maintain correct alignment and motion
• Restores secure door or panel attachment when the original pin is worn or missing
• Helps eliminate sagging, rubbing, or uneven closing caused by a broken or loose pivot
• Works with the associated hinge and bracket to keep moving parts aligned during normal use

• Designed for direct replacement—remove the old pin and press or slide the new pin into the hinge or linkage assembly
• Use basic hand tools; wear gloves and eye protection to avoid injury from sharp edges or slipping tools
• Do not force damaged hinge parts—replace any broken brackets or worn components for a secure repair

This spring washer provides a tensioning/retaining function to keep fasteners and components secured under vibration and movement. It helps maintain proper assembly alignment and reduces the chance of parts working loose over time. What it does:

• Applies spring tension to fasteners to prevent loosening from vibration
• Helps keep assemblies aligned and components seated correctly
• Can reduce rattling, vibration noise, and intermittent contact caused by loose parts
• Restores proper clamping force when worn or damaged washers allow play

• One spring washer

• Disconnect power to the appliance before beginning any repair
• Use appropriate tools to remove fasteners and note component orientation
• Replace only with the exact part number to ensure correct fit and function

This ST3.5 tapping screw is a factory-style fastener used to secure appliance panels, trim, and components where a self-tapping thread is required. It provides a reliable hold for repairs and replacement parts. What it does:

• Creates its own mating threads in sheet metal or plastic to fasten panels and brackets
• Commonly used to secure control panels, trim pieces, and interior components
• Helps stop rattles and loose panels when the original screw is missing or damaged
• Matches OEM fit and function for straightforward replacement

• Use the correct ST3.5 screwdriver or bit to avoid cam-out and damage
• Start straight and apply steady pressure; do not force if resistance indicates wrong thread fit
• Avoid over-tightening to prevent stripping the mating material or breaking the screw
• Wear eye protection and follow appliance power/disconnect safety before servicing

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces
