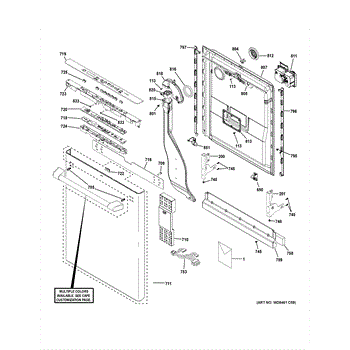

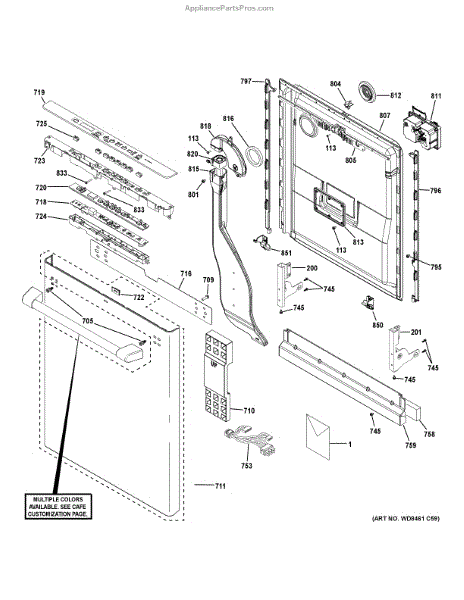

Parts for Ge CDT836P3M4D1: Escutcheon & Door Assembly Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Door Arm Hinge Assembly is an OEM component specifically designed for GE dishwashers. It is the mechanism responsible for securing the dishwasher door in place and facilitating smooth opening and closing motions. Reliable door hinges are essential for proper door alignment and a securely closed operation environment during cycles.

Symptoms of a bad door arm hinge include:

• Squeaks or grinding noises heard from the door area
• Difficulty opening or closing the door
• Door that does not stay securely shut
• Potential door or door frame damage from loose hinges

Replacement ensures your door operates safely and precisely as intended. Replace yours today with this genuine OEM GE part for trouble-free use.

Note: Left side

This GE replacement part is compatible with Hotpoint, RCA, and Kenmore models.

This right-hand door hinge arm assembly supports and guides the dishwasher door as it opens and closes. Replacing a bent or worn hinge restores smooth, balanced door motion and helps prevent abrupt, uncontrolled door movement.

• Serves as the right-side pivot for the dishwasher door
• Interfaces with the door spring/link mechanism to counterbalance door weight
• Helps maintain proper door alignment and smooth opening/closing
• Common signs of wear: door drops quickly, feels heavy, binds/creaks, or sits unevenly

• Disconnect power at the breaker before servicing; wear cut-resistant gloves
• Support the door to prevent sudden drop when removing the hinge arm
• The spring/link is under tension—release and reattach carefully
• After installation, check door balance and alignment; adjust spring/link tension if applicable

The Fastener Door Handle is an OEM component for GE refrigerators. This door handle provides a comfortable grip for accessing refrigerator shelves and bins. It attaches securely to the refrigerator door through durable metal fasteners.

Causes for a bad door handle could be cracks, damage, or stripped fastener holes resulting in a loose or detached handle. Regularly gripping and lifting may also cause normal wear over time.

Symptoms of a failing door handle include:

• The handle detaching completely from the door
• Looseness making the handle wobbly or unstable to hold
• Sharp edges or broken parts posing a safety risk

This OEM GE handle is also compatible with Hotpoint, RCA, and select Kenmore refrigerator models.

This is a 6-20 machine screw, 3/8 inch length, used to secure trim, panels, or small components on compatible cooking appliances. Replacing a missing or damaged screw helps keep parts tight and prevents rattles or shifting during use.

• Fastens brackets, panels, or trim in the appliance chassis
• Helps restore a secure fit when the original screw is stripped or lost
• Can resolve issues like loose trim, minor rattling, or misaligned panels
• Nickel finish for corrosion resistance in warm, humid environments

• Disconnect power and allow appliance to cool before servicing
• Remove only the necessary adjacent fasteners to access the mounting point
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing
• Replace any missing clips or spacers originally used with the screw

This block foam door is an insulated panel that fits inside the appliance door to help reduce heat transfer and maintain consistent internal temperatures. It restores door insulation for more efficient cooling and temperature stability. What it does:

• Provides thermal insulation inside the door to reduce heat gain or loss
• Helps prevent frost buildup and cold spots by improving temperature consistency
• Supports efficient compressor cycling and can reduce energy waste when functioning properly
• Common symptom: uneven temperatures, visible condensation or frost on the door, or reduced cooling performance

• One block foam door

• Disconnect power before servicing and follow the appliance manufacturer's disassembly instructions
• May require removing the inner door liner and fasteners to access and replace the foam; keep hardware for reassembly
• Handle carefully to avoid damaging the foam or door liner; use appropriate hand protection

The User Interface Assembly is an OEM replacement part for GE dishwashers. Located on the dishwasher door or top edge, this assembly serves as the primary interaction point for users to select and customize wash cycles, start or pause operations, and monitor the status of ongoing cycles.

Over time and with regular usage, the User Interface Assembly can experience wear or malfunction due to moisture exposure, electrical issues, or simple wear and tear.

Symptoms of a malfunctioning User Interface Assembly include:

• Unresponsive buttons or touch controls
• Inconsistent or erroneous display readings
• The dishwasher not starting despite user inputs
• Random changes in selected cycles or settings without user intervention

This GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The COVER CONSOLE ASSEMBLY is an OEM replacement part for GE dishwashers. This part covers and protects the control panel of the dishwasher while also providing an aesthetic facade.

Causes of a bad console cover include cracks, discoloration from prolonged exposure to heat and steam, or loose/missing mounting clips that no longer securely hold it in place.

Symptoms of a bad console cover include:

• Exposure of internal electronic components to moisture due to lack of coverage
• Loose or sagging appearance
• Inability to securely latch or lock the dishwasher door

It is also compatible with Hotpoint, RCA, and some Kenmore dishwashers.

The Silicone Light Pipe is an OEM component specifically designed for GE dishwashers. The silicone light pipe is responsible for transmitting light from the power light and other indicator lights within the dishwasher control area. It provides clear illumination of status lights to keep users informed of the dishwasher's cycle and operation details.

Causes of a bad light pipe include cracks or breaks in the silicone material, yellowing or clouding of the pipe that obstructs light transmission, or loose connections that prevent lights from functioning properly.

Symptoms of a bad light pipe include:

• Status lights not illuminating or flashing as intended
• Lights seem dimmer than normal
• Lights not turning on at all

This authentic OEM GE part provides long-lasting and reliable status lighting within the dishwasher. It is constructed of high-quality silicone material for maximum durability and performance.


This console top control is the electronic control panel that operates oven and cooktop functions, providing user input, display readouts, and mode selection for safe, accurate cooking and timer control. What it does:

• Registers button presses and touch inputs to start, stop, or change oven/cooktop cycles
• Displays clock, temperature, timer, and error codes for troubleshooting
• Manages oven bake/broil and timed cooking sequences when communicating with the range control board
• Common symptom when failing: unresponsive buttons, blank or erratic display, or inability to select oven functions

• One console top control assembly

• Disconnect power to the appliance before starting to avoid shock or injury
• Handle the control and display lens carefully to avoid scratching or damaging the keypad
• Installation typically requires removing the console trim and disconnecting/reconnecting the wire harness; keep track of mounting screws
• After installation, restore power and test all functions; if problems persist, verify connections and complementary control boards

The User Interface Housing is an OEM replacement part for GE dishwashers. Located at the front of the console, it houses the control panel responsible for cycle/option navigation.

The housing protects sensitive electronic components from water damage and physical impact. Its sturdy construction allows for responsive touch inputs without flex or play in the assembly.

Symptoms of a bad user interface housing include:

• Warping or cracks exposing circuitry to damage
• Faulty sealing allowing moisture penetration
• Difficulty registering button presses from structural defects
• Ill-fitting installation negatively impacting usability

Causes can be repetitive openings allowing entry of dirt/moisture into critical areas and use over the years breaking down seals and weakening materials.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This 10-32 x 9/16 machine screw secures dishwasher components and panels. Replacing a missing or stripped fastener restores a tight fit, reduces vibration/rattles, and keeps assemblies properly aligned for reliable operation.

• Secures panels, brackets, or internal assemblies using a 10-32 machine thread
• Replaces lost, corroded, or stripped screws
• Can help resolve looseness or rattling from a loose mounting point
• Correct 9/16-inch length helps maintain proper spacing and alignment

• Disconnect power at the breaker before servicing
• Use the appropriate driver for the screw head; start threads by hand to avoid cross-threading
• Tighten snugly but do not overtighten to prevent stripping threads or damaging mating parts
• Compare to the original fastener to matching thread and length

• Thread size: 10-32
• Length: 9/16 inch

This dishwasher door wire harness assembly carries power and signals between the user interface/control and components in the door. Replacing a damaged harness restores reliable connections and can fix intermittent controls, no-starts, or cycles that stop when the door moves.

• Provides factory-terminated wiring path between the control/UI, latch, and other door-mounted components
• Replaces broken, pinched, heat-damaged, or corroded wires that interrupt electrical continuity
• Helps address symptoms such as unresponsive buttons, blank or flickering display, random beeps/lights, or unit won't start
• Operation changes when the door is opened/closed may indicate a failing door harness

• Disconnect power at the circuit breaker before servicing
• Remove the inner door panel to access the harness; support the panel to protect the UI/control
• Note original routing and connector locations; move one connector at a time, secure ties/retainers, and ensure grommets/strain reliefs are seated and wires are clear of hinges
• After reassembly, restore power and run a quick test cycle to verify operation

This insulation toe kick is a replacement panel that fits the refrigerator base to help block drafts and protect internal components under the cabinet. It restores the factory barrier that supports temperature stability and efficient operation. What it does

• Replaces damaged or missing toe-kick insulation that lets cold air escape beneath the appliance
• Helps reduce drafts and minimize warm air intrusion into the refrigerator cavity
• Protects wiring and components located in the toe-kick area from dust and debris
• Can help prevent uneven cooling or frost buildup that results from compromised base insulation

• One insulation toe kick panel

• Disconnect power to the appliance before starting any service
• Remove the existing toe kick/board and fasteners, then position the replacement so mounting tabs align with factory slots
• Avoid compressing or tearing the insulation; maintain original fit for proper performance

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This left-hand attachment strip secures trim and panels for a clean, finished fit on compatible GE appliances. It helps maintain proper alignment and prevents gaps that can collect dirt or allow panels to shift during use. What it does:

• Attaches and stabilizes a side trim or panel to the appliance cabinet
• Keeps door/side trim aligned to reduce rattling or shifting
• Helps maintain an even, finished appearance along the appliance edge
• Addresses symptoms like loose trim, visible gaps, or panel movement

• One left-hand attachment strip

• Remove power to the appliance (or disconnect power source) before starting work
• Use basic hand tools; avoid forcing parts to prevent breakage
• Replace with OEM-specified hardware if fasteners are missing or damaged

The Door Latch Strike is an OEM part for GE dishwashers. It ensures the dishwasher door latches securely, allowing the appliance to operate only when the door is properly closed.

Causes of a bad door latch strike can include wear and tear from regular use, damage from slamming the door, or misalignment due to repeated opening and closing.

Symptoms of a bad door latch strike include:

• The dishwasher door not latching securely
• The dishwasher not starting or stopping mid-cycle
• Leaks around the door during operation
• Difficulty in closing the door properly

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This top attachment strip secures the appliance's top panel and provides the mounting point for the door strike, restoring a stable, properly aligned front. It prevents panel movement and reduces rattles for a snug fit and reliable door engagement. What it does:

• Secures the top/front panel to the cabinet to maintain alignment and fit
• Serves as the mounting point for the door strike or latch components
• Helps eliminate rattling, vibration, and gaps at the top of the door area
• Restores reliable door engagement and prevents the strike from shifting

• Disconnect power to the appliance before beginning any repair
• Remove the top panel or access screws to reach the attachment strip; a screwdriver set is typically required
• Handle mounting tabs and edges carefully to avoid bending or damage
• Verify alignment of the door strike and test door closure after installation

The Inner Door Panel is an OEM part for GE dishwashers. It serves as the inner lining of the dishwasher door, ensuring a watertight seal and supporting components like the detergent dispenser and vent assembly.

Common causes of a bad inner door panel include wear and tear from regular use, exposure to high temperatures and harsh detergents, or physical impacts that cause cracks or warping.

Symptoms of a bad Inner Door Panel include:

• Water leaking from the door area during operation
• Difficulty in opening or closing the door properly
• Visible cracks, warping, or other damage to the panel
• Malfunctioning detergent dispenser or other door-mounted components

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Detergent Module is an OEM replacement part for GE dishwashers. It plays a role in dispensing the appropriate amount of detergent into the wash tub at the right time during cycles.

Causes of a bad detergent module can be clogs or jams preventing proper detergent distribution, cracks or breaks in dispensing components, or faults in the electronic sensors controlling the dosage.

Symptoms of a bad detergent module include:

• Dishes or tubs with residual detergent buildup or lingering food soils
• Cycles failing to advance past the initial wash stages
• Cloudy or soapy water visible in the final rinse

This OEM GE part is also compatible with some Hotpoint, RCA, and select Kenmore dishwasher models.

This detergent plate is the replacement dispenser component that holds and releases detergent during the wash cycle, ensuring detergent is delivered when the machine runs for proper cleaning performance. What it does

• Holds detergent inside the dispenser area until the wash cycle calls for release.
• Opens or allows detergent to be flushed into the wash chamber at the correct time.
• Common symptom: detergent stays in the dispenser and doesn't release, leaving dishes or laundry soiled.
• Common symptom: damaged, cracked or warped plate can prevent proper release or seating of detergent.

• One detergent plate

• Disconnect power (and water if applicable) before accessing the dispenser to avoid shock or injury.
• Handle the plate carefully; plastic parts can crack if forced or over-tightened.
• Remove the door/dispenser trim per your model's service instructions to access the plate; reinstall ensuring proper alignment so the dispenser seals and operates correctly.

This vent conduit assembly routes exhaust from the dryer to the home vent, restoring proper airflow and helping the appliance vent safely. It replaces a damaged, crushed, or disconnected dryer vent channel to improve drying performance and reduce lint buildup. What it does:

• Channels dryer exhaust from the appliance to the wall vent
• Prevents restricted airflow caused by crushed or separated vent tubing
• Helps reduce long dry times and overheating symptoms
• Lowers risk of lint buildup and related odors near the dryer

• Disconnect power (and gas supply for gas dryers) before beginning service
• Verify correct alignment and secure with appropriate clamps or fasteners
• Inspect adjacent venting and clean lint from vent path while replacing

TRANSITION PIECE ASM

Vent fan assembly replaces the blower and housing that moves air through the appliance vent system, restoring proper exhaust airflow to help clear smoke, steam, and cooking odors. What it does:

• Replaces the vent blower that circulates exhaust; common symptom is reduced or weak airflow from the vent.
• Replaces a worn or damaged fan that causes loud, grinding, rattling, or unusual noises during vent operation.
• Restores effective exhaust to help remove steam, smoke, and cooking odors from the appliance.

• Disconnect power to the appliance before servicing to avoid electrical shock.
• Follow the appliance's service manual and wiring diagrams; you will need to remove access panels and unplug the old assembly from its wiring harness.
• Ensure the replacement assembly is oriented and mounted the same way as the original; secure all fasteners and reconnect wiring per the diagram.
• Restore power and test vent operation after installation; stop and re-check connections if the fan does not run or is unusually noisy.

This left-side door trim piece restores the exterior appearance and proper fit of a damaged or worn appliance door. It replaces cracked, chipped, or loose trim to help the door close and sit correctly in the frame. What it does:

• Covers and protects the left edge of the door while providing a finished appearance
• Replaces cracked, broken, or cosmetically damaged trim
• Helps maintain correct alignment of the door edge and attachment points
• Secures to the door with factory mounting tabs or screws
• Useful when left-side trim has snapped, warped, or come loose

• One left side door trim

• Disconnect power and/or fuel supply before beginning any repair
• Use appropriate hand tools; support the door to prevent dropping or damage
• Inspect mounting tabs and nearby components; replace any broken fasteners
• Follow the appliance service manual for disassembly and torque/spec guidance

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces
