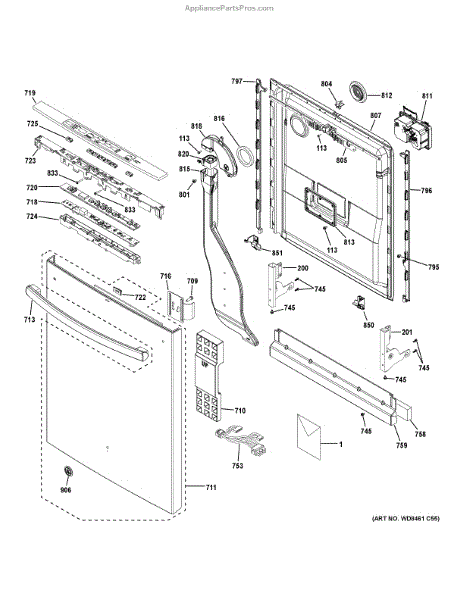

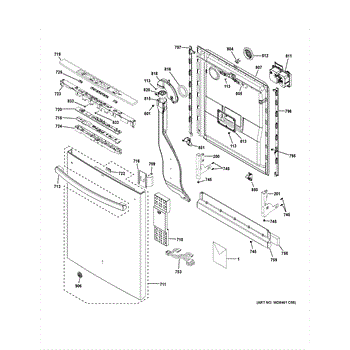

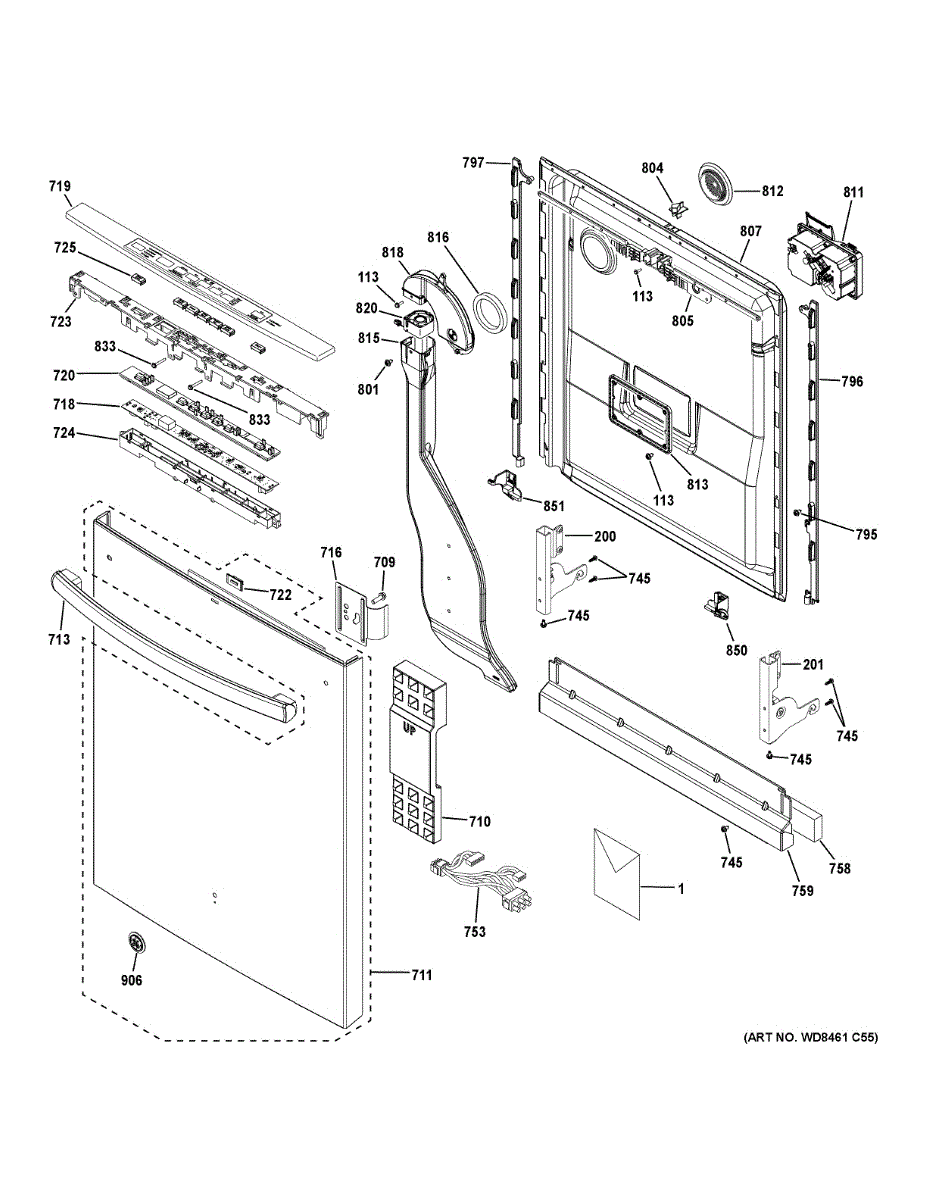

Parts for Ge DDT595SGJ2BB: Escutcheon & Door Assembly Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The screw is an OEM replacement component for GE dishwashers. It is used to securely fasten parts inside the dishwasher tub assembly.

Causes of a damaged or defective screw usually involve wear from continuous mechanical stresses and vibration during dishwasher usage. Loose parts affect machine balance and performance.

Symptoms of a compromised screw placement include:

• Noises or abnormal sounds coming from inside the tub
• Intermittent error codes related to moving components
• Detached or misaligned spray arms or filters
• Insecure tub fixtures that can be jarred with normal operation

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Door Arm Hinge Assembly is an OEM component specifically designed for GE dishwashers. It is the mechanism responsible for securing the dishwasher door in place and facilitating smooth opening and closing motions. Reliable door hinges are essential for proper door alignment and a securely closed operation environment during cycles.

Symptoms of a bad door arm hinge include:

• Squeaks or grinding noises heard from the door area
• Difficulty opening or closing the door
• Door that does not stay securely shut
• Potential door or door frame damage from loose hinges

Replacement ensures your door operates safely and precisely as intended. Replace yours today with this genuine OEM GE part for trouble-free use.

Note: Left side

This GE replacement part is compatible with Hotpoint, RCA, and Kenmore models.

This right-hand door hinge arm assembly supports and guides the dishwasher door as it opens and closes. Replacing a bent or worn hinge restores smooth, balanced door motion and helps prevent abrupt, uncontrolled door movement.

• Serves as the right-side pivot for the dishwasher door
• Interfaces with the door spring/link mechanism to counterbalance door weight
• Helps maintain proper door alignment and smooth opening/closing
• Common signs of wear: door drops quickly, feels heavy, binds/creaks, or sits unevenly

• Disconnect power at the breaker before servicing; wear cut-resistant gloves
• Support the door to prevent sudden drop when removing the hinge arm
• The spring/link is under tension—release and reattach carefully
• After installation, check door balance and alignment; adjust spring/link tension if applicable

This replacement screw fastens and secures appliance components where a 1/4-28 threaded flange screw with an internal hex washer head is required. It restores proper fit and helps prevent movement or rattling of panels and assemblies. What it does:

• Secures panels, brackets and components that use a 1/4-28 threaded flange screw
• Internal hex washer head allows a compact, low-profile drive for tight spaces
• Helps stop looseness, vibration noise, and misalignment when the original fastener is missing or worn
• Matches OEM fit and fastening form for reliable reassembly

• Disconnect power and follow all appliance safety procedures before servicing
• Use the correct hex driver/socket to avoid stripping the head
• Tighten to snug fit—do not overtighten to avoid damaging threads or mating parts
• Replace with identical part number to ensure proper fit and function

This block foam door is an insulated panel that fits inside the appliance door to help reduce heat transfer and maintain consistent internal temperatures. It restores door insulation for more efficient cooling and temperature stability. What it does:

• Provides thermal insulation inside the door to reduce heat gain or loss
• Helps prevent frost buildup and cold spots by improving temperature consistency
• Supports efficient compressor cycling and can reduce energy waste when functioning properly
• Common symptom: uneven temperatures, visible condensation or frost on the door, or reduced cooling performance

• One block foam door

• Disconnect power before servicing and follow the appliance manufacturer's disassembly instructions
• May require removing the inner door liner and fasteners to access and replace the foam; keep hardware for reassembly
• Handle carefully to avoid damaging the foam or door liner; use appropriate hand protection

This door handle assembly replaces a broken or worn handle to restore a secure grip and normal door operation. It's a direct-fit replacement designed to match the original part's fit and function. What it does

• Replaces a cracked, loose or broken door handle so the door opens and closes properly
• Provides a solid handhold for everyday use and prevents sharp edges from exposed damage
• Restores correct alignment and engagement with the door trim and latch area
• Helps eliminate rattling or wobble caused by a failing handle

• One complete door handle assembly

• Disconnect power to the appliance before starting any repair
• Remove exterior trim or access panels as required to reach mounting screws; retain hardware if in good condition
• Handle is secured with screws or clips—inspect fasteners and striker/latch for wear during install

This bracket handle is the replacement mounting bracket that secures a refrigerator or freezer door handle, restoring proper handle alignment and a secure grip. It helps keep the door handle firmly attached and functioning. What it does:

• Secures the door handle to the appliance door so the handle stays mounted and aligned
• Restores a loose, wobbly, or detached handle for reliable opening and closing
• Prevents further wear on handle fasteners by providing the proper mounting support
• Matches OEM fit and function for straightforward replacement

• One replacement bracket handle

• Basic hand tools typically required; handle hardware may need removal first
• Follow OEM instructions and use correct fasteners; replace any damaged screws or anchors
• Disconnect power to the appliance (or keep door open/unloaded) and work safely to avoid pinching or dropping the door

The User Interface Control Board is an OEM part for GE dishwashers. It serves as the main control panel, allowing users to select and monitor various wash cycles and settings. This control board interfaces with the dishwasher's electronic system to ensure proper operation.

Causes of a bad control board can include electrical issues, exposure to moisture, or general wear and tear over time. Damage to the circuitry or components can also impair its functionality.

Symptoms of a bad user interface control board include:

• Unresponsive or malfunctioning buttons
• Display screen not working or showing incorrect information
• Inability to select or change wash cycles
• Dishwasher not starting or stopping unexpectedly

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This console cover graphic assembly replaces the worn or damaged control panel overlay so button labels and settings are readable and the console looks factory-fresh. It installs over the appliance console to restore appearance and user clarity. What it does:

• Provides a labeled graphic overlay for the appliance console so controls and settings are easy to read
• Restores the original appearance of a faded, scratched, or peeled console face
• Helps prevent further wear to the underlying control surface by covering it
• Addresses symptoms such as faded labels, peeling decal, or cosmetic damage to the console area

• Disconnect power to the appliance before starting any work to avoid electrical hazard
• Installation typically requires removing the console trim or screws and carefully aligning the graphic before securing
• Handle with care to avoid creases or damage to the graphic; use appropriate adhesive or fasteners as originally supplied

This lens and adhesive assembly replaces a worn, cracked, or cloudy control/display lens and secures the lens to the appliance for a clean, finished appearance and protected electronics. Restores visibility and prevents debris entry behind the lens. What it does:

• Replaces a damaged or discolored control/display lens to improve visibility and aesthetics
• Includes adhesive to secure the lens and maintain a sealed fit over controls or indicators
• Protects underlying buttons, LEDs, and circuit components from dust and moisture
• Helps restore original appearance after impact, cracking, or peeling

• Disconnect power before servicing to avoid shock or unintended appliance operation
• Clean and dry mounting surface; remove old adhesive residues for proper adhesion
• Align lens carefully, press into place, and hold per adhesive manufacturer recommendations
• Allow adhesive to set fully before reconnecting power or using the appliance

This top-control console is the panel at the upper edge of the dishwasher door. It forms the interface area for selecting cycles and protects the components behind it, helping keep the controls aligned and presentable.

• Houses and protects the user interface at the top edge of the door
• Provides the interface area for cycle and option selection
• Restores fit and appearance when the original console is cracked, warped, or loose
• Help if buttons feel misaligned due to a damaged console housing

• Disconnect power at the breaker before servicing; shut off water if moving the appliance.
• Open the door and remove perimeter screws to separate inner/outer door panels; support wiring when removing the console.
• Transfer any model-specific components from the original console to the new console; avoid pinching harnesses during reassembly.
• Restore power and selections engage and the door latches properly.

The User Interface Housing is an OEM replacement part for GE dishwashers. Located at the front of the console, it houses the control panel responsible for cycle/option navigation.

The housing protects sensitive electronic components from water damage and physical impact. Its sturdy construction allows for responsive touch inputs without flex or play in the assembly.

Symptoms of a bad user interface housing include:

• Warping or cracks exposing circuitry to damage
• Faulty sealing allowing moisture penetration
• Difficulty registering button presses from structural defects
• Ill-fitting installation negatively impacting usability

Causes can be repetitive openings allowing entry of dirt/moisture into critical areas and use over the years breaking down seals and weakening materials.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This Button and Graphic Assembly replaces a worn or damaged control-panel button and its printed overlay so controls are readable and easy to press. It restores the button surface and visible markings for normal user operation. What it does:

• Replaces a single control-panel button and the printed graphic/overlay
• Restores legible markings and tactile button feel
• Helps resolve faded, scratched, or peeling button graphics
• Addresses buttons that stick or feel unresponsive due to worn front-surface parts

• Disconnect the appliance from power before servicing to avoid shock
• Remove any required trim or fascia carefully to access the button assembly
• Align the new assembly and press or secure per the original mounting—do not force

This 10-32 x 9/16 machine screw secures dishwasher components and panels. Replacing a missing or stripped fastener restores a tight fit, reduces vibration/rattles, and keeps assemblies properly aligned for reliable operation.

• Secures panels, brackets, or internal assemblies using a 10-32 machine thread
• Replaces lost, corroded, or stripped screws
• Can help resolve looseness or rattling from a loose mounting point
• Correct 9/16-inch length helps maintain proper spacing and alignment

• Disconnect power at the breaker before servicing
• Use the appropriate driver for the screw head; start threads by hand to avoid cross-threading
• Tighten snugly but do not overtighten to prevent stripping threads or damaging mating parts
• Compare to the original fastener to matching thread and length

• Thread size: 10-32
• Length: 9/16 inch

The Door Harness Assembly is an OEM part for GE dishwashers. As an essential wiring component, this harness electrically connects the multiple interior dishwasher door elements to the main control board.

Symptoms of a failed door harness include:

• Lights or interior heating elements not functioning
• Inability to properly detect when the door is opened
• Faulty or disrupted communication between the door and the control board

Causes of a bad harness include wear and tear over time, repeated flexing and crimping from opening and closing the door, or moisture penetration degrading wires.

For safety and full performance, replace the harness assembly at the first signs of trouble in your GE dishwasher. This part is also compatible with some Kenmore, Hotpoint, and RCA brand models.

This insulation toe kick is a replacement panel that fits the refrigerator base to help block drafts and protect internal components under the cabinet. It restores the factory barrier that supports temperature stability and efficient operation. What it does

• Replaces damaged or missing toe-kick insulation that lets cold air escape beneath the appliance
• Helps reduce drafts and minimize warm air intrusion into the refrigerator cavity
• Protects wiring and components located in the toe-kick area from dust and debris
• Can help prevent uneven cooling or frost buildup that results from compromised base insulation

• One insulation toe kick panel

• Disconnect power to the appliance before starting any service
• Remove the existing toe kick/board and fasteners, then position the replacement so mounting tabs align with factory slots
• Avoid compressing or tearing the insulation; maintain original fit for proper performance

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This left-hand attachment strip secures trim and panels for a clean, finished fit on compatible GE appliances. It helps maintain proper alignment and prevents gaps that can collect dirt or allow panels to shift during use. What it does:

• Attaches and stabilizes a side trim or panel to the appliance cabinet
• Keeps door/side trim aligned to reduce rattling or shifting
• Helps maintain an even, finished appearance along the appliance edge
• Addresses symptoms like loose trim, visible gaps, or panel movement

• One left-hand attachment strip

• Remove power to the appliance (or disconnect power source) before starting work
• Use basic hand tools; avoid forcing parts to prevent breakage
• Replace with OEM-specified hardware if fasteners are missing or damaged

This is a 6-20 machine screw, 3/8 inch length, used to secure trim, panels, or small components on compatible cooking appliances. Replacing a missing or damaged screw helps keep parts tight and prevents rattles or shifting during use.

• Fastens brackets, panels, or trim in the appliance chassis
• Helps restore a secure fit when the original screw is stripped or lost
• Can resolve issues like loose trim, minor rattling, or misaligned panels
• Nickel finish for corrosion resistance in warm, humid environments

• Disconnect power and allow appliance to cool before servicing
• Remove only the necessary adjacent fasteners to access the mounting point
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing
• Replace any missing clips or spacers originally used with the screw

This top attachment strip secures the appliance's top panel and provides the mounting point for the door strike, restoring a stable, properly aligned front. It prevents panel movement and reduces rattles for a snug fit and reliable door engagement. What it does:

• Secures the top/front panel to the cabinet to maintain alignment and fit
• Serves as the mounting point for the door strike or latch components
• Helps eliminate rattling, vibration, and gaps at the top of the door area
• Restores reliable door engagement and prevents the strike from shifting

• Disconnect power to the appliance before beginning any repair
• Remove the top panel or access screws to reach the attachment strip; a screwdriver set is typically required
• Handle mounting tabs and edges carefully to avoid bending or damage
• Verify alignment of the door strike and test door closure after installation

The Inner Door Panel is an OEM part for GE dishwashers. It serves as the inner lining of the dishwasher door, ensuring a watertight seal and supporting components like the detergent dispenser and vent assembly.

Common causes of a bad inner door panel include wear and tear from regular use, exposure to high temperatures and harsh detergents, or physical impacts that cause cracks or warping.

Symptoms of a bad Inner Door Panel include:

• Water leaking from the door area during operation
• Difficulty in opening or closing the door properly
• Visible cracks, warping, or other damage to the panel
• Malfunctioning detergent dispenser or other door-mounted components

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Detergent Module is an OEM replacement part for GE dishwashers. It is designed to dispense the correct amount of detergent at the appropriate times during the wash cycle, ensuring that dishes are cleaned effectively. The module holds the detergent and releases it into the dishwasher when needed, contributing to the overall performance and efficiency of the appliance.

Causes of a bad detergent module can include buildup of detergent residues, which can clog the dispenser mechanism, or damage to the module's door or latch, preventing it from opening correctly. Additionally, electrical faults or wear and tear over time can impair the module's functionality, leading to ineffective detergent dispensing.

Symptoms of a bad detergent module include:

• The detergent not dispensing or remaining in the compartment after the wash cycle
• Dishes not being cleaned properly due to insufficient detergent use
• The module door not opening or closing correctly
• Leaks or drips from the detergent module area
• Error codes related to the dispensing system

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Door Vent Cover is an OEM part for GE dishwashers. This cover is designed to fit over the vent on the dishwasher door, allowing steam to escape while keeping the interior components protected from moisture and debris.

Common causes of a bad vent cover include physical damage from impact, warping due to prolonged exposure to high temperatures, and buildup of residues that can block the vent.

Symptoms of a bad door vent cover include:

• Visible cracks or breaks in the cover
•  Steam escaping from unexpected areas of the door
• Increased moisture inside the dishwasher
• Loose or poorly fitting cover

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This detergent plate is the replacement dispenser component that holds and releases detergent during the wash cycle, ensuring detergent is delivered when the machine runs for proper cleaning performance. What it does

• Holds detergent inside the dispenser area until the wash cycle calls for release.
• Opens or allows detergent to be flushed into the wash chamber at the correct time.
• Common symptom: detergent stays in the dispenser and doesn't release, leaving dishes or laundry soiled.
• Common symptom: damaged, cracked or warped plate can prevent proper release or seating of detergent.

• One detergent plate

• Disconnect power (and water if applicable) before accessing the dispenser to avoid shock or injury.
• Handle the plate carefully; plastic parts can crack if forced or over-tightened.
• Remove the door/dispenser trim per your model's service instructions to access the plate; reinstall ensuring proper alignment so the dispenser seals and operates correctly.

This vent conduit assembly routes exhaust from the dryer to the home vent, restoring proper airflow and helping the appliance vent safely. It replaces a damaged, crushed, or disconnected dryer vent channel to improve drying performance and reduce lint buildup. What it does:

• Channels dryer exhaust from the appliance to the wall vent
• Prevents restricted airflow caused by crushed or separated vent tubing
• Helps reduce long dry times and overheating symptoms
• Lowers risk of lint buildup and related odors near the dryer

• Disconnect power (and gas supply for gas dryers) before beginning service
• Verify correct alignment and secure with appropriate clamps or fasteners
• Inspect adjacent venting and clean lint from vent path while replacing

The Door Vent Seal is an OEM part for GE dishwashers. Located within the front dishwasher door, it functions to control moist air circulation and maintain humidity levels inside the wash chamber.

Causes of a bad door vent seal can include cracking of the flexible seal material. Mineral or soap deposits may also compromise sealing integrity.

Symptoms of a bad vent seal include:

• Excess condensation buildup within the door interior
• Water leaks detected around door ventilation openings
• Drying and sanitization issues related to inconsistent humidity levels

This GE OEM replacement part is also compatible with Hotpoint, RCA, and select Kenmore-branded dishwashers.

TRANSITION PIECE ASM

The Vent Fan Assembly is an OEM replacement part for GE dishwashers. As a key ventilation component, the vent fan is responsible for drawing moisture-laden air out of the dishwasher tub and venting it outside during and after the wash cycle. It plays an important role in effectively drying dishes and preventing mold or odor issues.

Causes of a bad vent fan include a failing motor, broken or cracked fan blades, or an obstructed vent opening.

Symptoms of a bad vent fan include:

• Incomplete or slow drying of dishes
• Excess moisture remaining in the tub at the end of the cycle
• Mold or mildew growth inside the dishwasher
• Strange noises or vibrations coming from the vent area

Over time, the vent fan motor and blades can degrade due to continuous use. This part is also compatible with ASKO, Crosley, Inglis, Magic Chef, RCA, and some Kenmore models.


This left-side door trim piece restores the exterior appearance and proper fit of a damaged or worn appliance door. It replaces cracked, chipped, or loose trim to help the door close and sit correctly in the frame. What it does:

• Covers and protects the left edge of the door while providing a finished appearance
• Replaces cracked, broken, or cosmetically damaged trim
• Helps maintain correct alignment of the door edge and attachment points
• Secures to the door with factory mounting tabs or screws
• Useful when left-side trim has snapped, warped, or come loose

• One left side door trim

• Disconnect power and/or fuel supply before beginning any repair
• Use appropriate hand tools; support the door to prevent dropping or damage
• Inspect mounting tabs and nearby components; replace any broken fasteners
• Follow the appliance service manual for disassembly and torque/spec guidance

Restore your appliance's factory look with this badge assembly. It replaces a missing, cracked, or faded logo on the refrigerator exterior, delivering a clean, professional appearance without affecting performance or operation.

• Decorative nameplate/logo for the refrigerator exterior
• Replaces cracked, faded, loose, or missing badge
• Restores a clean, factory appearance
• Cosmetic component; does not impact cooling or function

• Disconnect power before servicing the appliance
• Protect the finish; use a plastic trim tool to remove the old emblem if needed
• Clean and dry the mounting area; align with locating marks/holes and secure per your model diagram

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces
