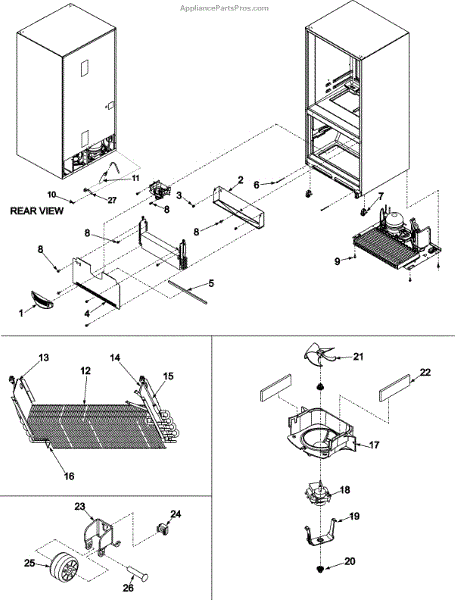

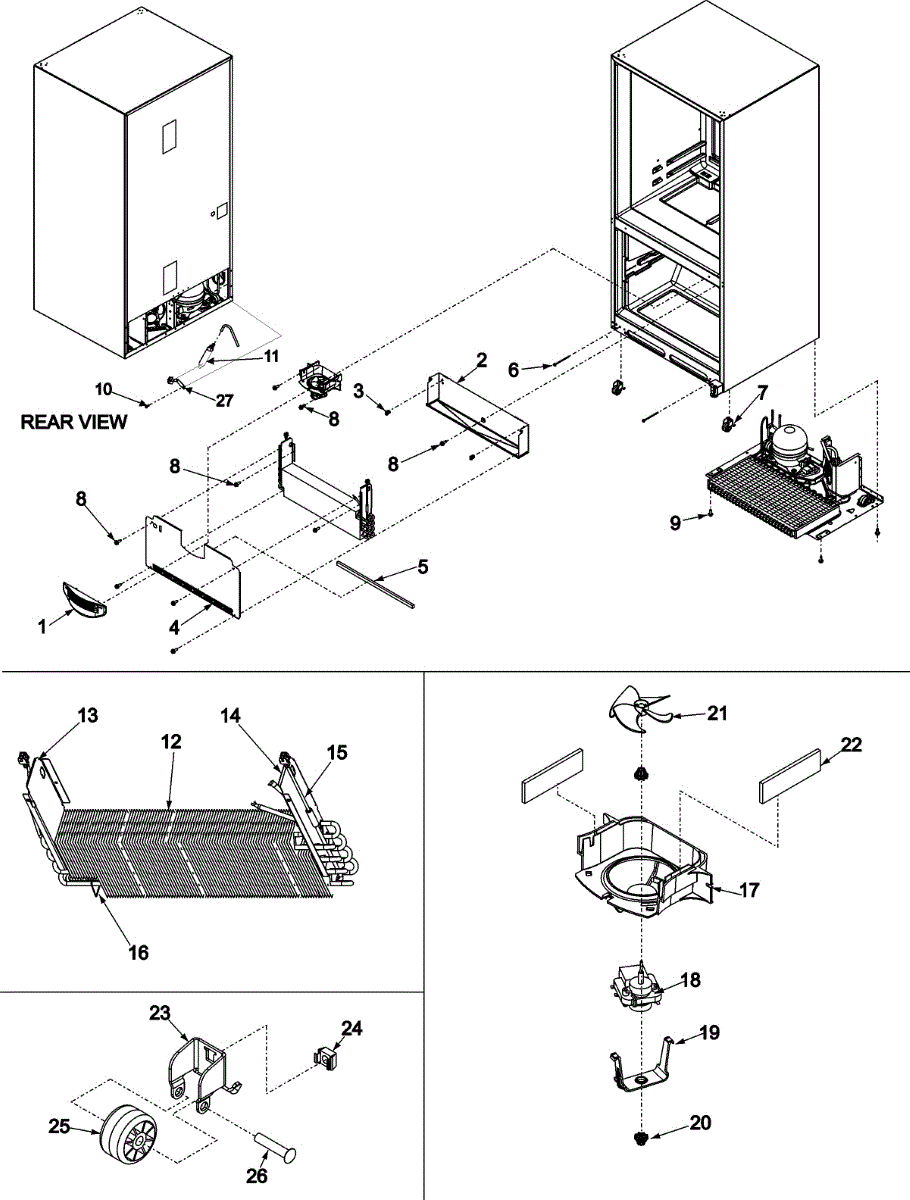

Parts for Kenmore 596.66942401 (59666942401, 596 66942401): Evaporator Area & Rollers Parts

This is a plastic vent grille that covers the air intake or exhaust area on the refrigerator, typically located at the bottom front or top of the unit. It allows airflow to the condenser while keeping debris out. Replace this grille if it is cracked, broken, discolored, or if missing louvers are restricting proper ventilation and causing the refrigerator to run warm.

This evaporator clip secures the refrigerator evaporator assembly and related components so the cooling system stays aligned and vibration-free. It helps maintain proper airflow and prevents rubbing or loose parts. What it does:

• Holds the evaporator coil/assembly or associated covers in place
• Prevents vibration, noise, and contact between the coil and cabinet parts
• Helps maintain consistent airflow for reliable cooling performance
• Commonly linked to rattling, buzzing, or loose parts around the freezer evaporator

• Disconnect power before servicing the appliance
• Handle evaporator and surrounding fins carefully; they are sharp and fragile
• Verify clip orientation against the OEM diagram before fastening

This is a flexible rubber seal that attaches around the perimeter of the refrigerator door. It creates an airtight seal when the door is closed to maintain proper internal temperature and prevent warm air from entering. Replace this gasket if you notice condensation forming around the door edges, the refrigerator running constantly, or if the seal is torn, cracked, or no longer holding the door closed tightly.

Replacement mounting screw for securing appliance panels, brackets, or trim. Restores tight fit when original fastener is missing, stripped, or rusted.

Fix a refrigerator that won't roll or sits unevenly with this cabinet roller bracket assembly. Moderate DIY repair—tilt fridge, support on blocks, remove screws.

This small replacement screw secures trim, panels, or internal components so parts stay aligned and appliances operate quietly. Use it to replace a missing or damaged fastener and restore proper fit and function. What it does:

• Fastens small panels, brackets, or trim pieces to the appliance body
• Keeps components aligned to prevent vibration, rattling, or gaps
• Replaces stripped, rusted, or missing screws that can cause loose parts
• Restores secure mounting after service or component replacement

• Disconnect power (and gas where applicable) before servicing the appliance
• Use the correct screwdriver or bit to avoid stripping the head
• Keep track of tiny fasteners and use a magnetic tray to prevent loss
• Do not overtighten; snug until seated to avoid damaging threads or components

This replacement screw fastens internal components and panels so parts stay secure and quiet. It's a direct-fit fastener used where the original mounting screw is missing or damaged to restore proper assembly. What it does:

• Secures panels, brackets or components to prevent movement and vibration
• Restores proper alignment for covers and access panels
• Stops rattling or loose-fitting parts caused by a missing or stripped screw
• Works as the factory-specified fastener for the original mounting point

• The screw location and type before installing; use the original hole and thread
• Power off and disconnect the appliance before accessing internal components
• Start the screw by hand to avoid cross-threading, then snug with the appropriate screwdriver
• Do not overtighten — stop once the part is secure to avoid stripping or cracking

This is a filter drier installed in the sealed refrigeration system that removes moisture and contaminants from the refrigerant as it circulates. It protects the compressor and other components from damage caused by moisture or debris in the refrigerant lines. Replace this filter drier if the refrigerator or ice machine is not cooling properly, the compressor is struggling, or during any sealed system repair where the refrigerant lines have been opened.

Fixes frost buildup in freezer and warm fridge temps. This defrost heater melts ice from evaporator coils to restore proper cooling in 30-60 minutes.

Directs airflow from the evaporator fan to cooling coils in your refrigerator. Replace if cracked, broken, or missing to restore proper air circulation.

This mounting clip secures the evaporator fan motor in place within your refrigerator's cooling system. It prevents motor vibration and ensures proper alignment for efficient air circulation. Replace when you hear rattling noises from the freezer section or notice reduced cooling performance.

This grommet isolates the refrigerator's fan motor from its mounting bracket to reduce vibration and noise while keeping the motor secure. Replacing worn or missing grommets helps stop rattles and prevents the fan blade from rubbing.

• Cushions the fan motor to maintain proper alignment and clearance
• Absorbs vibration to help reduce humming, buzzing, or rattling sounds
• Helps keep the motor stable so the blade doesn't contact the shroud
• Common signs of failure include excess vibration, noise, or a loose fan motor

• Disconnect power to the refrigerator before servicing
• Access the fan motor area (rear of unit or inside the freezer, depending on model) and support the motor
• Remove mounting hardware and seat the new grommet fully in the bracket/mount
• The fan blade spins freely with even clearance before reassembling and restoring power

Loud noise or freezer warming up? This evaporator fan blade circulates cold air over coils. Simple DIY fix—most repairs done in under an hour.

Replace your refrigerator door gasket to restore an airtight seal, maintain temperature, and reduce frost buildup. Confirm fit with your model number.

Supports and enables smooth movement of your refrigerator cabinet. Replace if cracked, broken, or crumbled to restore stable positioning and mobility.

This small metal fastener secures the roller assembly to the refrigerator's bottom panel, allowing smooth door movement. Located underneath the appliance, it needs replacement if the refrigerator rocks, tilts, or has difficulty rolling when moved.

Freezer icing up and fridge running warm? This defrost thermostat regulates defrost cycles to prevent frost buildup. Takes about 30 minutes to install.
