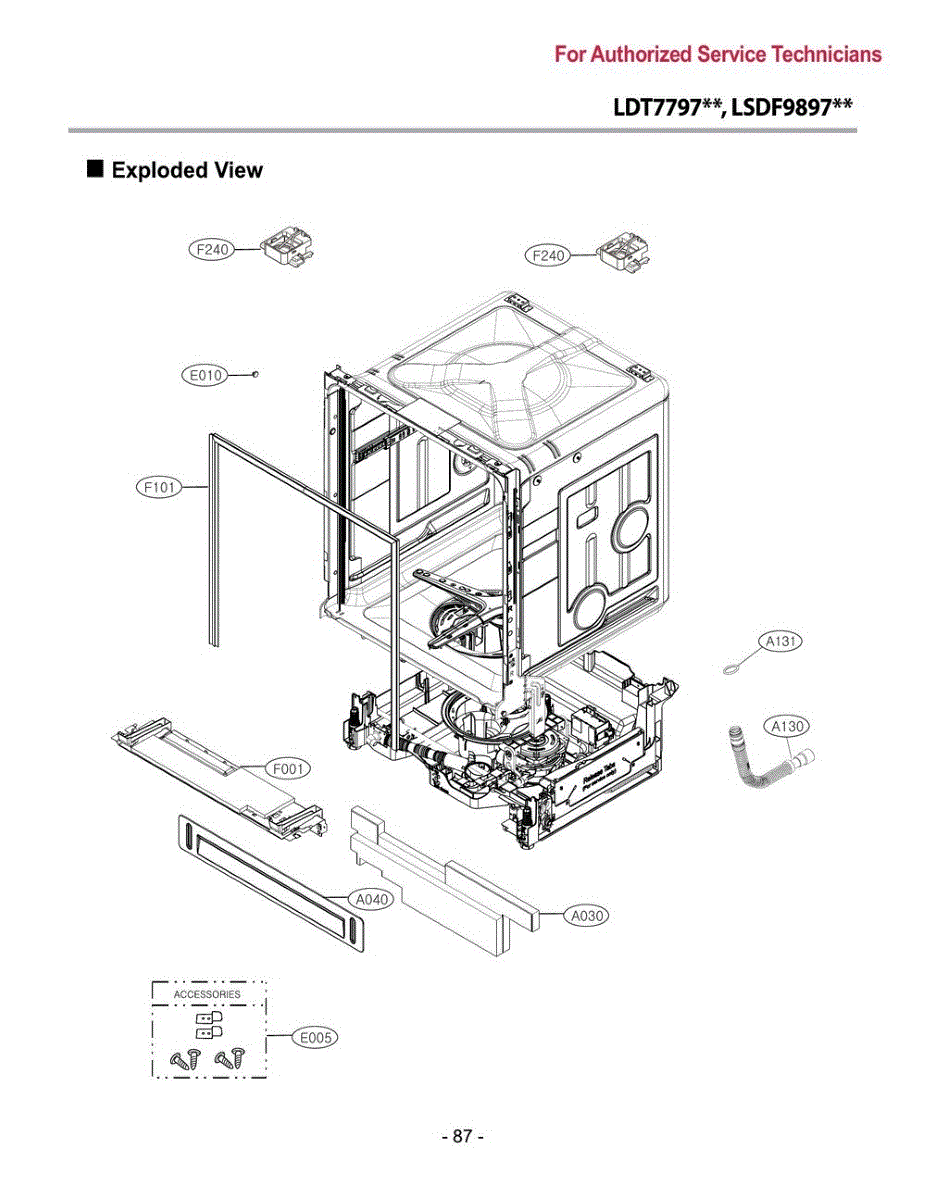

Parts for Lg LDT7797BM: Exploded View Parts

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Secures dishwasher to countertop or cabinet to prevent tipping. Includes mounting brackets for stable installation. Replace if broken, missing, or worn.

Small sleeve bushing that supports pivoting or rotating joints in your dishwasher. Replace when worn, cracked, or causing excess friction between moving parts.

This damper assembly controls airflow between refrigerator compartments to help maintain even temperatures and proper cooling. It replaces a failed or stuck damper to restore normal air distribution and reduce temperature fluctuations. What it does:

• Regulates cold-air flow from the freezer to the fresh-food section for consistent temperatures
• Opens and closes in response to the fridge control to balance cooling needs
• Can cause warm spots, inconsistent cooling, or unusual air movement/noise when faulty
• Works with the cabinet ducting and control motor to direct airflow as required

• One damper assembly

• Disconnect power before starting to avoid shock or damage
• Remove interior panels or duct cover to access the damper; retain screws and fasteners
• Disconnect the wiring harness and remove mounting screws; install new assembly in reverse order
• After installation, restore power and let the unit stabilize; verify damper opens/closes and temperatures normalize

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Fix visible cracks or damage to your dishwasher's base enclosure with this lower cover assembly. Houses motor and pump components securely.

This Door Seal is an OEM part for LG dishwashers. It plays a crucial role in preventing water leaks by creating a watertight seal around the dishwasher door.

Over time, door seals can degrade due to constant exposure to water, detergents, and varying temperatures. This can lead to a compromised seal, increasing the risk of leaks during operation.

Symptoms of a failing door seal in a dishwasher include:

• Water leaking from around the dishwasher door.
• Visible signs of wear, cracks, or damage to the seal.
• The door not closing as tightly or securely as it used to.
• Dampness or water marks on the floor near the dishwasher after use.
• An increase in noise during operation, potentially due to water escaping the seal.

This OEM LG part is also compatible with some Sears/Kenmore models.


The Drain Hose Assy is an OEM component specifically designed for LG dishwashers. This hose works with the drain pump to effectively drain wash water from the dishwasher tub after each cycle.

The drain hose assy is responsible for efficiently draining wash water during and after the dishwashing cycle. It allows used water to be drained properly, keeping the dishwasher tub and components clean and dry between cycles.

Symptoms of a bad drain hose assy include:

• Incomplete draining of wash water after cycles
• Water remaining or pooling in the bottom tub
• Leaks or puddling near the drain pump or hose area
• Loud noises or vibrations from the drain pump

This OEM LG part is also compatible with select Sears/Kenmore.
