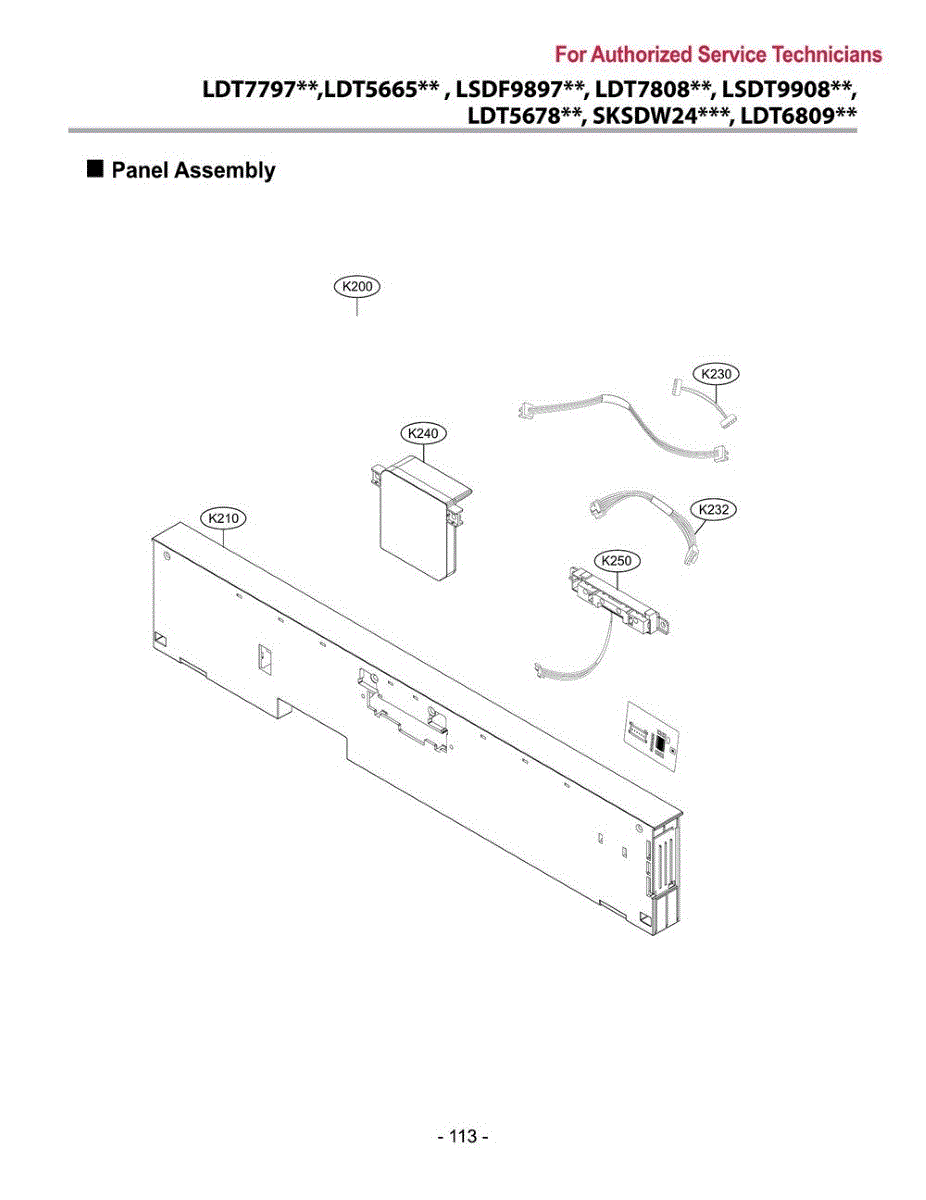

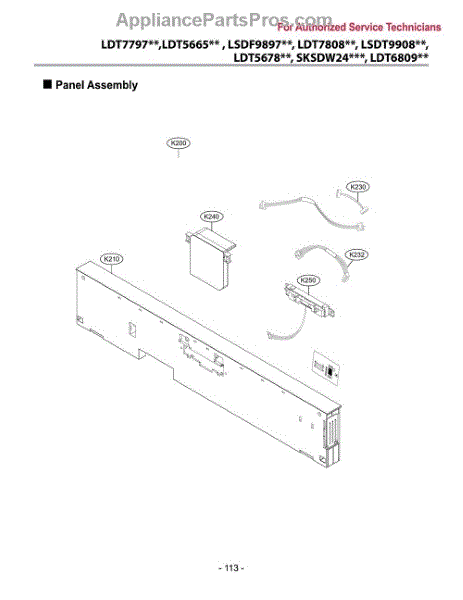

Parts for Lg LDT7797BM: Panel Assembly Parts

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

The Dishwasher Control Panel Assembly is an OEM replacement part for LG dishwashers. It houses both the control interface along with mounting supports within the door frame.

Causes of failure can include cracked/broken circuit boards from repeated flexing of the door seal area, moisture degrading electrical pathways over time, or components fatigued by ongoing heat and detergents near the assembly.

Symptoms involve:

• Non-responsive buttons that prevent cycle selection
• Faulty LED/digital displays limiting use of monitoring functions
• Errors like improper door locking during cycles

This authentic LG assembly is also compatible with select Kenmore brand models.

This is a factory-style parts assembly designed to replace a worn or damaged assembly and restore proper operation. It provides a direct, drop-in replacement when the original assembly is failing. What it does

• Replaces the original assembly to restore the appliance's intended function
• Helps stop symptoms such as intermittent operation, failure to start, or visible damage to the assembly area
• Matches OEM fit so mounting points and connectors align with the original
• Reduces troubleshooting time by replacing a known-issue component

• One parts assembly

• Disconnect power (and water if applicable) before starting any repair
• Verify the exact location and orientation against the appliance's parts diagram before removal
• Handle connectors and wiring gently; avoid forcing clips or fasteners

The Display PCB Assembly is an OEM replacement part for LG dishwashers. It is the circuit board located within the control panel that operates the digital display interface. The PCB processes signals to illuminate touch buttons and cycle indicators, showing status updates at each stage of the wash.

Symptoms of a faulty display PCB include:

• Blank or unresponsive control display screen
• Inability to select wash cycles or options
• Touch buttons not activating functions properly
• Flashing error codes or abnormal display messages

Causes of a bad PCB can be moisture damage, component failures over time, or electrical damage from power surges.

This precision-engineered LG replacement is compatible with select Kenmore Elite models.

This front PCB assembly is the electronic control board that manages user inputs and front-panel functions, restoring responsive controls and display operation. Use it to replace a failed or unresponsive front control board and recover normal panel behavior. What it does:

• Sends and receives signals between the control panel and the appliance for cycle selection and status display
• Re-establishes responsive push-button/touch input and display/LED feedback
• Stops intermittent or total control-panel failures that cause unresponsive controls or wrong display indications
• Works as the primary front-facing electronics for user interface and front-end diagnostics

• Disconnect power before starting; follow all safety precautions to avoid shock
• Handle the board by its edges and avoid touching components; protect against electrostatic discharge (ESD)
• Retain all mounting hardware and note cable/connector positions for correct reinstallation
