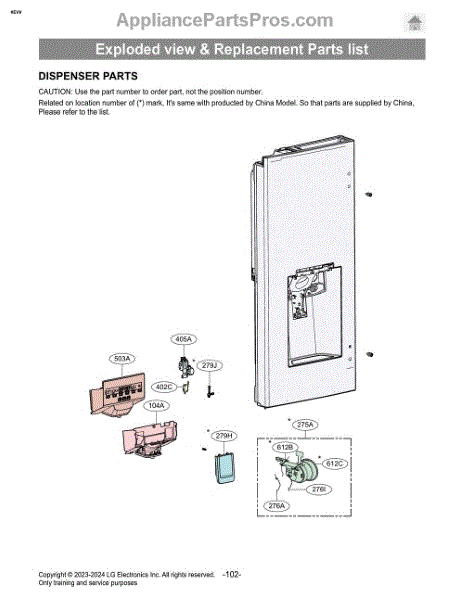

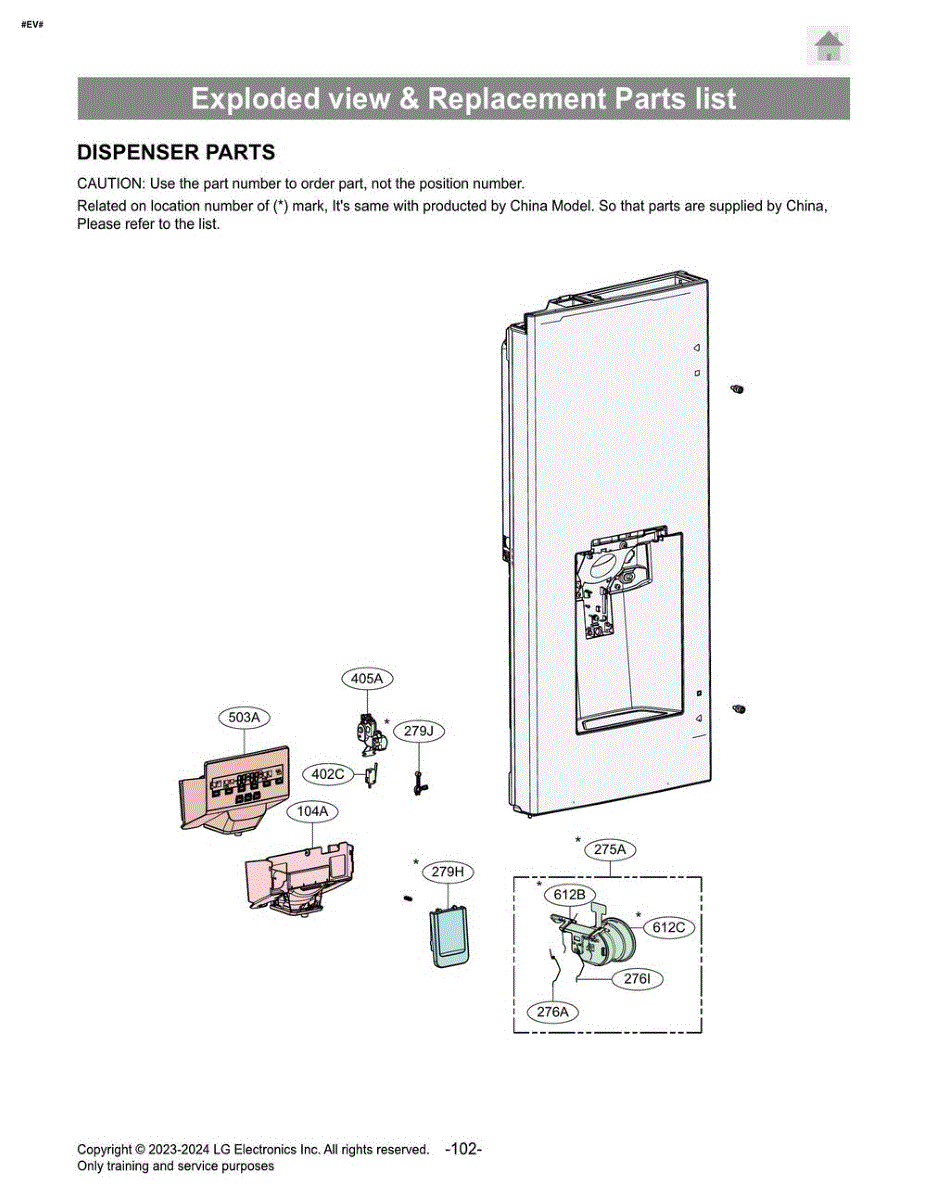

Parts for Lg LHFS28XBD: Exploded View & Replacement Parts List Parts

Water funnel assembly for bottom-mount refrigerators. Directs water flow in the ice and water dispenser system. Replace if cracked or damaged.

Seals and finishes the duct opening in your refrigerator, directing airflow properly. Replace if cracked, loose, or missing to restore secure connections.

Lever spring for bottom-mount refrigerators. Provides tension for internal lever mechanisms. Replace if broken, stretched, or missing to restore proper fit.

If your refrigerator lever won't return to position or feels loose, this lever return spring restores proper tension for smooth operation. Direct-fit part.

Connector link between refrigerator door and cabinet. Replace if original is broken, cracked, or worn. Essential for smooth door operation and alignment.

Fix a non-responsive or broken dispenser button with this push-style lever. Restores tactile feedback and control input. Simple snap-in replacement.

Fix a stuck or non-working ice/water dispenser with this micro switch. Common cause of dispensers running continuously or not activating. Easy DIY repair.

The Ice Dispenser Door Motor is an OEM part for LG refrigerators. This motor is responsible for the operation of the ice dispenser door, controlling its opening and closing mechanism to allow ice to be dispensed without letting warm air into the freezer.

Symptoms of a bad Ice Dispenser Door Motor include:

• The dispenser door not opening or closing properly,
• Ice not being dispensed when activated,
• Unusual noises coming from the dispenser mechanism.

Causes of ice dispenser door motor failure can include electrical issues such as shorts or wiring problems, mechanical wear over time, or blockages that strain the motor.

This OEM LG part is also compatible with Sears/Kenmore.

This dispenser lever is the user-operated push arm that activates a refrigerator's water or ice dispenser. It replaces a broken or worn lever so the dispenser responds correctly when pressed. What it does:

• Acts as the push actuator for the fridge water/ice dispenser
• Transfers user pressure to the dispenser switch/valve so water or ice is released
• Restores proper alignment and feel if original lever is cracked, loose, or missing
• Fits into the dispenser housing and connects to the dispenser mechanism

• One dispenser lever

• Disconnect power to the appliance before starting any repair
• Remove the dispenser bezel or front panel per your model's service instructions to access the lever
• Inspect surrounding clips and pins; replace any damaged fasteners for a secure fit
