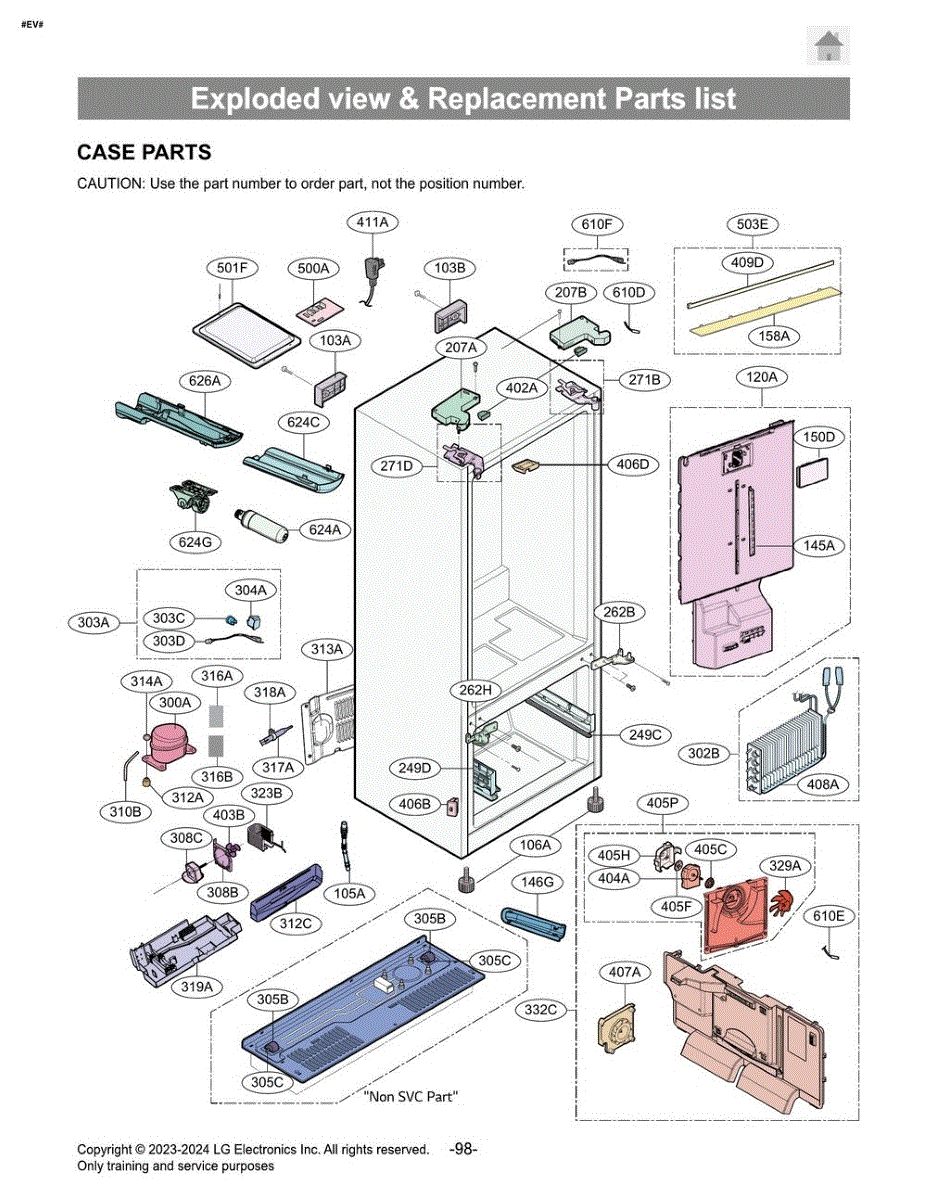

Parts for Lg LHFS28XBD: Exploded View & Replacement Parts List Parts

Plastic drain tube that channels defrost water from evaporator coils to drain pan. Replace if cracked, melted, broken, or causing water leaks in freezer.

Leveling leg for refrigerators. Installs at bottom corner to elevate and stabilize the appliance. Replace if broken, compressed, or no longer secure.

Air duct connector for refrigerators. Channels airflow between compartments. Replace if cracked, broken, or missing to restore proper air circulation.

Secures and pivots the center refrigerator door for proper alignment and sealing. Replace if your door sags, won't close fully, or pivots roughly. Verify fit by model number before ordering.

Secures and pivots your refrigerator door at the top for proper alignment and smooth operation. Replace if door sags or seals poorly. Verify fit.

Right side upper hinge.

Fix a refrigerator not cooling or freezing over with a new evaporator coil assembly. This part circulates refrigerant to cool your fridge compartments.

Refrigerator won't cool or motor keeps shutting off? The overload protector prevents compressor damage by cutting power during overheating. Simple fix.

Rattling or loose parts in your refrigerator? This retaining pin secures moving components and keeps them aligned for smooth, quiet operation.

Support roller that mounts to the refrigerator base, allowing the unit to roll for cleaning or service. Replace if worn, broken, or causing uneven positioning.

The Fan Motor Assembly is an OEM part for LG refrigerators. It is responsible for circulating air throughout the refrigerator and freezer compartments to maintain consistent temperatures. By ensuring proper airflow, the fan motor helps to keep your food fresh and evenly cooled.

Over time, fan motors can wear out or become damaged due to factors such as dust buildup, electrical issues, or general wear and tear from continuous use. A faulty fan motor can lead to uneven cooling, increased energy consumption, and potential spoilage of food.

Symptoms of a bad fan motor include:

• Unusual noises coming from the refrigerator
• Inconsistent temperatures in the fridge or freezer
• The refrigerator running constantly or cycling on and off frequently
• Frost buildup in the freezer section

This OEM LG part is also compatible with Sears/Kenmore.

Fix a refrigerator not cooling properly with this compressor sealing pipe. Essential sealed system component for restoring proper refrigeration.

Drain tray assembly that collects condensation beneath your refrigerator. Replace if cracked, broken, or missing to prevent water leakage issues.

This is a small retainer clip that secures the compressor in place at the base of the refrigerator. It helps prevent the compressor from shifting or vibrating excessively during operation. Replace this clip if your refrigerator produces unusual rattling or vibrating noises from the back, or if the compressor appears loose or has shifted from its mounting position.

This noise damper reduces vibration and rattling sounds from refrigerant lines in your refrigerator. It cushions the copper tubing against the cabinet to prevent metal-on-metal contact that creates annoying noises. Install this damper if your refrigerator makes clicking, rattling, or vibrating sounds, especially when the compressor cycles on and off.

Drier assembly for refrigerators. Installs in the sealed refrigerant system to remove moisture and contaminants. Replace if damaged or worn during repair.

This holder is a small mounting bracket used to secure internal components in place, helping keep parts aligned and stable for reliable operation. It provides a direct, OEM-compatible replacement to restore proper fit and function. What it does

• Secures and supports nearby components to prevent shifting or vibration.
• Restores proper alignment where a worn or broken holder causes rattling or loose parts.
• Helps maintain normal operation by keeping assemblies seated correctly.
• Works behind panels or inside assemblies where a dedicated bracket is required.

• One holder/mounting bracket as shown.

• Installation generally requires removing the panel or access cover where the holder is located.
• Use proper fasteners shown in your appliance; replace any damaged screws or clips as needed.
• Disconnect power before servicing electrical appliances to reduce shock risk.

Fix uneven cooling or warm spots in your refrigerator with a new evaporator fan blade. This part circulates cold air throughout the unit for consistent temps.

This fan grille assembly replaces the vent cover that surrounds the refrigerator/freezer fan, helping direct airflow and protecting the fan blades from debris. It restores proper air circulation and keeps the fan area tidy. What it does:

• Covers and protects the evaporator/fan area from loose debris
• Helps direct airflow for consistent cooling performance
• Reduces noise from exposed fan housing by providing a finished vent surface
• Commonly used when the existing grille is cracked, warped, or missing

• One fan grille assembly

• Disconnect power to the appliance before beginning any repair
• Usually secures with clips or a few screws; keep hardware from the original grille if reusable
• Handle plastic parts gently to avoid cracking during installation

Refrigerator making loud noise or not cooling evenly? This fan assembly circulates air to eliminate hot spots and restore consistent temperatures.

This DC fan motor assembly powers the cooling fan that moves air through the appliance and across the coils, helping maintain steady temperatures and efficient performance. Replacing a failing motor restores proper airflow and reduces noise and long run times.

• Spins the fan to circulate air across coils and through air passages for consistent cooling
• Supports stable compartment temperatures and overall cooling efficiency
• Common failure signs: fan won't run or is intermittent, weak/no airflow, or loud rattling/buzzing/grinding near the fan area
• Can contribute to warmer-than-normal temperatures and extended compressor run time

• Disconnect power before servicing; wear cut-resistant gloves
• Access location varies by model; note wire orientation and mounting order during removal
• Transfer any reusable brackets, grommets, or the fan blade from the original assembly if required by your model
• Ensure the fan spins freely and no wiring contacts the blade; restore power and test operation

Uneven cooling or noisy damper? This damper motor support bracket secures the air control assembly for proper airflow between compartments. DIY fix.

Refrigerator not cooling properly? This damper motor support secures the air damper assembly that controls airflow between compartments. Simple DIY fix.

Fix refrigerator lights staying on or not turning off when door closes. This magnetic door switch is a common solution. Simple DIY repair in 15 minutes.

This is a defrost heater assembly with a protective sheath that mounts along the evaporator coils inside the refrigerator's freezer section. It generates heat during the defrost cycle to melt frost buildup on the evaporator, ensuring proper airflow and cooling. Replace this part if you notice excessive frost in the freezer, the refrigerator not cooling properly, or water pooling beneath the unit.

Fix ice buildup in your refrigerator with this defrost heater. Melts frost from the evaporator during defrost cycles to restore consistent cooling.

Protective cover assembly that shields the printed circuit board (PCB) in your refrigerator. Replace if cracked, broken, or missing to protect electronics.

Fix a refrigerator that's too warm or won't cool properly. This sensor control board reads temperature sensors and signals the main control board.

If your refrigerator display is dead, shows error codes, or behaves unpredictably, this sub PCB assembly processes inputs and controls specific functions.

Fix erratic temperatures, warm spots, or excessive run time in your refrigerator. This temperature sensor monitors compartment temps and feeds data to the control board.

This replacement cover filter secures and protects the unit's internal air filters while maintaining correct airflow. It restores the sealed fit of the filter compartment to help the appliance run as intended. What it does:

• Holds the internal filter in place so air passes through the filter media
• Prevents large debris and foreign objects from reaching internal components
• Helps maintain designed airflow path for consistent performance
• Can reduce rattling or vibration caused by a loose or damaged cover

• Unplug the appliance or disconnect power before starting
• Remove the front panel or filter access per the owner's manual to reach the cover
• Align tabs and snap or fasten the cover securely; do not force parts
• Do not operate the appliance with missing or damaged filter cover

Replace a broken or leaking water filter housing that prevents water flow to your dispenser and ice maker. Direct fit for bottom-mount refrigerators.

Removes impurities and contaminants for clean, fresh-tasting water and ice. Replace every 6 months or when water flow decreases. Verify fit with your model.

Secures and protects your refrigerator's air filter, maintaining proper airflow and filtration. Replace if cracked or loose. Verify fit with your model.
