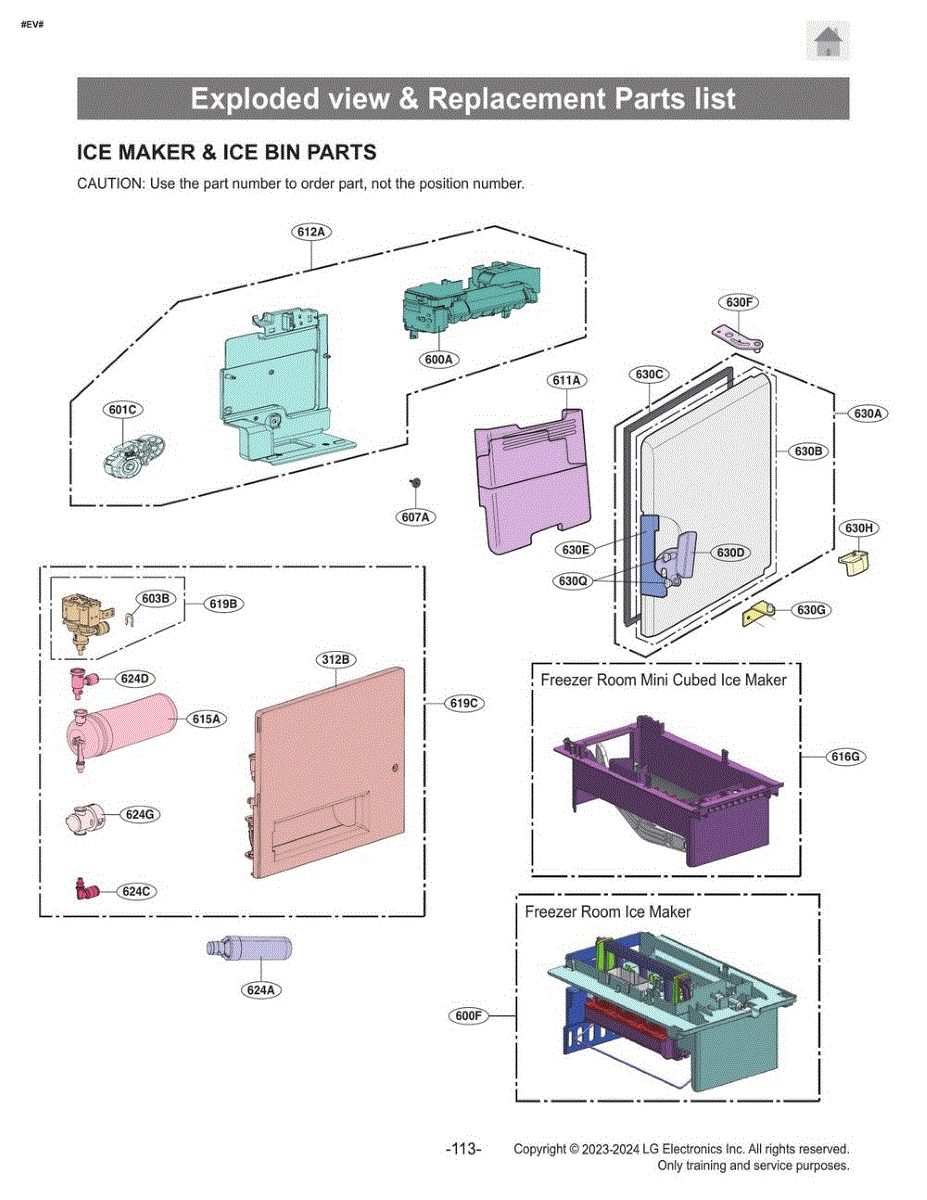

Parts for Lg LRYKC2606D: Exploded View & Replacement Parts List Parts

Protective front cover panel for refrigerators. Installs on the exterior to conceal components. Replace if cracked, broken, or missing.

Ice maker not producing ice or making hollow cubes? This complete ice maker assembly kit replaces failed units. Moderate DIY repair in 30-45 minutes.

This ice maker assembly replaces the refrigerator's molded ice-making unit to restore automatic ice production. It installs in the freezer compartment and collects, freezes and ejects ice cubes so the dispenser and storage bin work reliably. What it does

• Replaces the molded ice-making unit that forms and harvests ice cubes.
• Cycles through fill, freeze and harvest to move ice into the storage bin.
• Common symptom: refrigerator stops producing ice or ice production is reduced.
• Common symptom: ice jams, continuous motor cycling, or visible damage to the ice tray.

• Disconnect power to the appliance and shut off the water supply before starting.
• Handle the assembly carefully to avoid damaging the thermostat, heater strip or fill tube.
• Align mounting tabs and fasteners; do not force components—confirm electrical connector engagement.

The Auger Motor is an OEM part for LG refrigerators. It is responsible for dispensing ice from the icemaker into the ice bucket.

Symptoms of a bad auger motor include:

• Slow or incomplete ice filling of the ice bucket
• Ice clumping or jamming in the auger assembly
• Grinding or rubbing noises coming from the icemaker region
• The icemaker not producing any ice at all

Causes of a bad auger motor can be wear and tear over time, freezing or ice buildup preventing proper operation, or failure of internal motor components.

This OEM LG part is also compatible with select Sears/Kenmore models.

Secures water supply line connections in your refrigerator. Replace if leaking, loose, or damaged to restore proper ice and water dispenser function.

This holder assembly is a structural mounting piece that supports and secures an internal component in your appliance. Replacing a cracked or worn bracket helps restore proper alignment and keeps parts stable during everyday use.

• Provides a rigid mounting point for the attached component
• Keeps parts aligned to reduce movement and vibration
• Helps prevent rattling or noise from loose mounts
• Common signs of failure: visible cracks/broken tabs, looseness, or parts that won't stay seated

• Disconnect power and, if applicable, turn off the water supply before service
• Note the orientation of the original part to match fitment
• Reuse existing mounting screws or hardware unless the manufacturer specifies otherwise
• Do not overtighten fasteners; the secured component is fully seated and stable

Ice bucket assembly collects and dispenses ice from your refrigerator. Replace if cracked, broken, or ice won't dispense properly. Verify fit with model number.

Fix ice jams or slow dispensing with this refrigerator ice dispenser assembly. Mounts behind the door to guide cubes smoothly to the outlet.

The Water Tank is an OEM part for LG refrigerators. It is responsible for storing and supplying water to the refrigerator's internal dispenser and ice maker. Made from food-grade plastic, the water tank is designed to hold water in a safe, sealed container.

Causes of a bad water tank can include cracks that develop over time, possibly from repeated fillings and drainings of the tank which lead to stress fractures. Mineral or sediment buildup may also cause issues.

Symptoms of a faulty water tank include:

• Leaks or water spillage inside the refrigerator
• Inconsistent or disrupted water supply to the dispenser/icemaker
• Irritating noises from water sloshing around a damaged tank

This OEM LG part is also compatible with Sears/Kenmore refrigerator models. Proper installation of this replacement part will restore full water functionality.

The Filter assembly,water is an OEM component specifically designed for LG refrigerator water filters. This assembly contains activated carbon blocks that remove impurities from the water supply as it flows through.

Causes for replacement include normal filter exhaustion from heavy water use, or accidental damage. LG recommends changing the filter every 6 months for optimum performance.

Causes of a bad water filter assembly include:

• Impurities detected in taste tests of dispensed water
• Slimy or unappealing buildup in water lines or dispenser area
• Error codes or functionality issues with the dispenser

This OEM LG part is also compatible with select Sears/Kenmore refrigerators.

Fix ice maker overflows, water leaks, or no water to dispenser. This inlet valve controls water flow from your supply line. DIY-friendly repair.

Water line tube connector for bottom-mount refrigerators. Replaces cracked, leaking, or broken connectors that secure water supply tubing connections.

Fix water leaking from your refrigerator's filter area with a new filter head assembly. Solves filter connection issues and slow water flow. DIY repair.

Removes impurities and contaminants for clean, fresh-tasting water and ice. Replace every 6 months or when water flow decreases. Verify fit with your model.

Complete freezer door assembly for bottom-mount refrigerators. Replaces cracked, dented, or damaged freezer doors. Includes door shell and inner components.

Replacement door hinge assembly for your refrigerator. Installs on the cabinet to support the door. Replace if cracked, bent, or worn for proper alignment.

Molded door shelf cover for the home bar compartment. Replaces cracked, broken, or missing covers. Installs on the refrigerator door for a finished look.

Secures and supports refrigerator door pivot for proper alignment and smooth operation. Replace when door sags, seals poorly, or binds. Confirm fit with model.

This lever cover is a molded trim/protective piece that fits over a user-operated lever on the appliance. Replacing a damaged or missing cover helps protect the mechanism and restores a clean, finished appearance. What it does:

• Shields and guides the lever mechanism to help ensure smooth operation
• Helps keep internal components covered and aligned
• Restores the finished look when the original cover is cracked or missing
• Common symptoms: cracked or broken cover, loose/wobbly lever feel, sticking or misaligned lever action

• Includes 1 lever cover

• Disconnect power before servicing; if working near a dispenser, shut off water supply as applicable
• Remove any screws or clips and release locking tabs carefully to avoid breaking adjacent plastics
• Transfer any reusable hardware from the original part
• Check lever movement and engagement before final reassembly

Roller component for the ice dispenser door handle on bottom-mount refrigerators. Replaces broken, worn, or missing rollers. Ensures smooth handle operation.

Seals the ice bank door to prevent warm air from melting ice and causing clumping. Replace if ice melts, refreezes into clumps, or frost forms around the bin.
