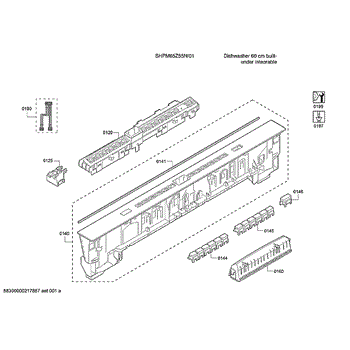

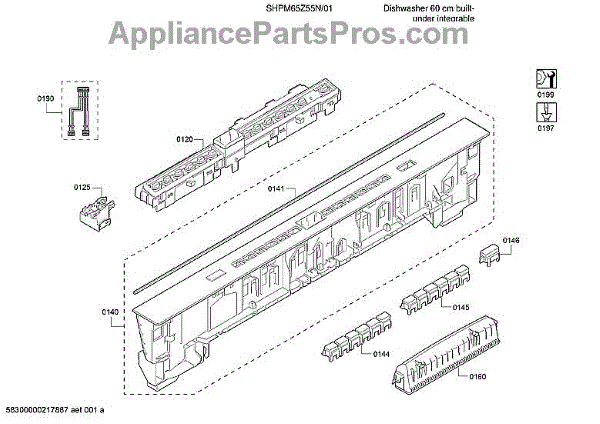

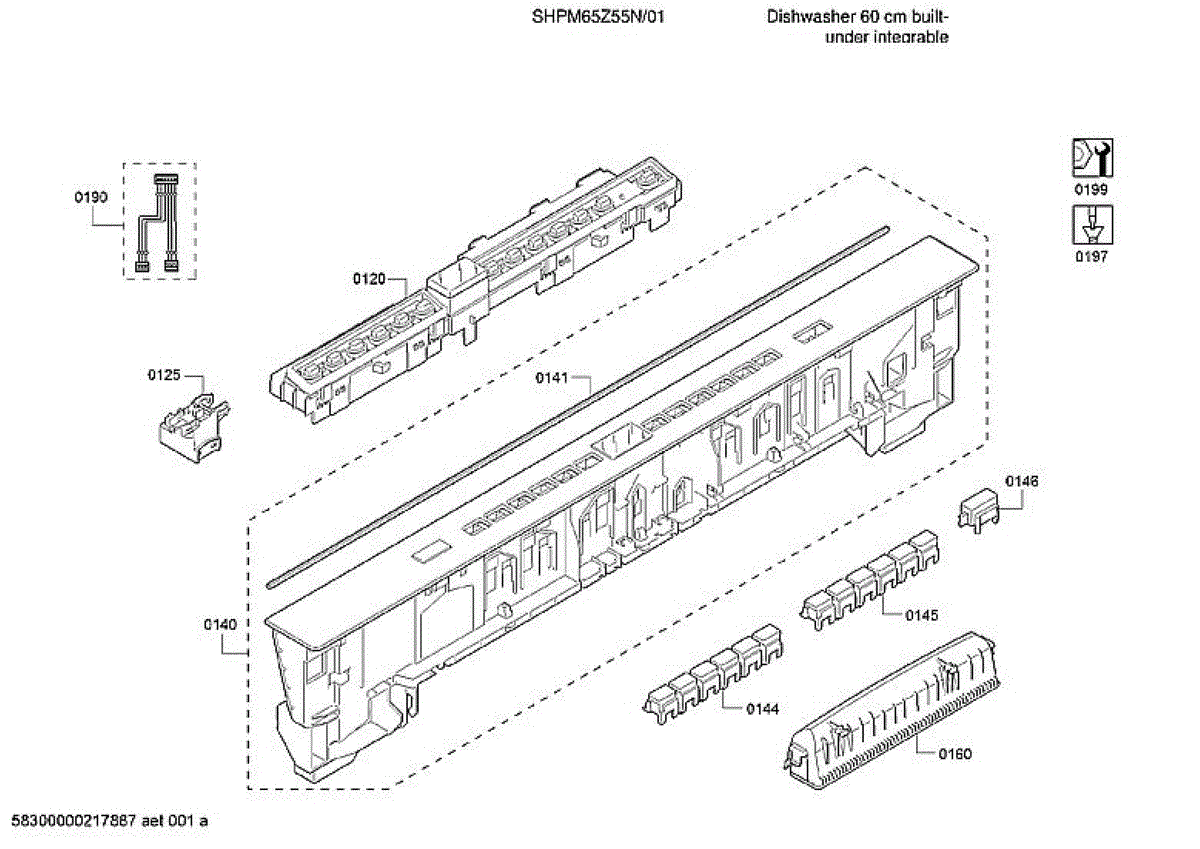

Parts for Bosch SHPM65Z55N/01: Facia Panel / Operating Module Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Control Module is an OEM part for Bosch brand dishwashers. It contains electronic components that direct the operation of the various systems within the dishwasher.

Symptoms of a bad control module include:

• The dishwasher not powering on at all
• Lack of response when pressing control panel buttons
• Inability to run through a full cycle
• Random automatic starting and stopping

Causes of a bad control module can be failure of microchips, circuit boards, or wiring over time. Water damage from leaks can also negatively impact electronic function.

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore dishwashers.


The On/Off Switch is an OEM part for Bosch dishwashers. This switch controls the power to the dishwasher, allowing the user to turn the appliance on and off. It is typically located on the control panel and is essential for initiating and halting the wash cycles.

Causes of a bad On/Off switch can include wear and tear from regular use, electrical malfunctions, or physical damage such as cracks or breaks. When the switch fails, it can prevent the dishwasher from powering on or off correctly, disrupting the appliance's functionality.

Symptoms of a bad On/Off switch include:

• Dishwasher not turning on
• Difficulty in turning the dishwasher off
• The switch feeling loose or unresponsive
• Flickering power or intermittent operation

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

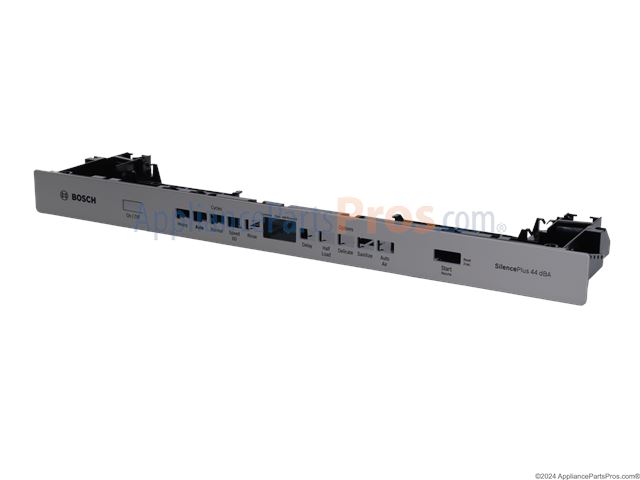

This Bosch Dishwasher Control Panel is an OEM part for various Bosch dishwasher models, ensuring a perfect fit and seamless function. The control panel, houses the interface for selecting wash cycles and settings, making it integral to the appliance's usability and performance.

Common causes for the deterioration of a control panel include frequent use, exposure to moisture and detergent chemicals, and potential electrical issues. Over time, these factors can lead to wear and tear or malfunctions in the panel's circuitry or physical components.

Symptoms of a failing Bosch Dishwasher Control Panel include:

• Unresponsive or inconsistent response to button presses or touch inputs.
• Difficulty in selecting or starting wash cycles.
• Fading or malfunctioning display.
• Erratic behavior or incorrect signaling of dishwasher functions.
• The dishwasher failed to start despite a proper power supply.

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.


The Sealing is an OEM part for Bosch dishwashers. It serves as a protective barrier between the control panel and the internal components of the dishwasher, preventing moisture and dust from entering and causing damage.

A bad sealing can occur due to wear and tear, exposure to moisture, or accidental damage. Signs of a faulty sealing include water seeping into the control panel, visible cracks or gaps, or a loose fit.

Symptoms of a bad sealing include:

• Water or moisture around the control panel
• Visible cracks or gaps in the sealing
• A loose or ill-fitting seal

Replace your damaged or worn-out sealing with this genuine OEM Bosch part to restore your dishwasher. This Bosch part can also be used on Thermador and Gaggenau appliances.


This replacement push button set mounts in the control panel and provides the button caps/actuators you press during use. It restores smooth, positive button action so you can reliably select settings and functions when the originals wear out. What it does:

• Provides the physical button caps/actuators that interface with the user interface switches or board
• Transmits your press to the underlying switch to select settings and functions
• Typical symptoms include sticking or jammed buttons, no tactile "click," cracked or missing caps, or selections not registering due to broken actuators
• Can restore normal operation when the electronics are otherwise functional

• One push button set assembly

• Disconnect power at the breaker before servicing
• Access the control console; note screw locations and cable routing
• Transfer any clips, light windows, or seals from the old set as needed
• Seat the new buttons squarely over the switches, reassemble, and test

This replacement push button installs in the control panel and provides a positive, responsive press. Replace it if the original button is cracked, missing, loose, or sticks and controls don't reliably register.

• Serves as the finger-operated actuator for the control switch behind the panel
• Helps ensure selections register when pressed
• Typical symptoms: cracked or missing cap, sticking or hard-to-press action, loose/wobbly feel, or unresponsive selection

• Disconnect power to the appliance before servicing
• Access the control panel and release the old button from its retaining tabs/clips
• Align and snap the new button into place so it travels freely and actuates the switch
• Reassemble and test operation

This replacement handle restores a secure, comfortable grip for opening and closing your appliance. Use it to replace a worn, loose, cracked, or missing handle and bring back the original look and everyday usability. What it does:

• Provides the handhold needed to open and close the door, drawer, or panel
• Attaches to the appliance panel using model-specific fasteners
• Helps maintain proper alignment and a clean, finished appearance
• Common symptoms: loose or wobbly handle, cracks/breaks, missing handle, difficulty opening

• 1 handle

• Disconnect power at the breaker and, if applicable, shut off water before servicing
• Access and remove the mounting fasteners from the opposite side of the panel/door; support the handle while removing
• Transfer and reuse the original screws, spacers, and end caps as required by your model
• Tighten fasteners evenly and avoid overtightening; verify smooth operation after reassembly

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This cable harness routes power and signals between appliance control and components to restore reliable electrical connections. It replaces a damaged or worn harness to help eliminate intermittent operation and connectivity issues. What it does:

• Replaces the main wiring harness that links controls, sensors, and motors for proper electrical communication
• Restores reliable power and signal paths to correct intermittent power, non-responsive controls, or components that won't run
• Ensures secure connector mating to prevent arcing and poor contact
• Matches OEM connector types and wire lengths to fit in the original routing

• Disconnect power (unplug or shut off breaker) before servicing to avoid shock
• Compare the new harness to the old one for connector types and routing before installation
• Handle connectors by the housings; do not pull on wires. Ensure all plugs snap fully into place

The Wire Harness is an OEM component specifically designed for select Bosch dishwashers requiring electrical connections between moving components. It facilitates signal and current pathways throughout appliance frames.

Reinforced flexing sections bend without kinks accommodating shifting door movements. While connector joints remain snug against jostling. This daisy chain design simplifies diagnostics and maintenance procedures compared to individual wiring.

Symptoms signaling the need for a new harness include:

• Intermittent cycle malfunctions indicating loose or corroded connections
• Broken or cracked housing exposing live conductors to shorting hazards
• Overly taut sections hindering the intended range of component motions

Causes relate to prolonged abrasion stresses and water damage compromising insulation throughout thousands of cycles. Physical damage during repairs may require a complete replacement of this integral wiring backbone.

This OEM Bosch replacement harness is also compatible with Thermador, Gaggenau, and some Kenmore dishwashers relying on consistent control schemes. Reinstallation restores reliable electrical pathways.


This repair set renews the hinge pivot components so the door opens smoothly and closes squarely. Replacing the worn hardware helps maintain proper alignment and a tight gasket seal for consistent performance. What it does:

• Replaces worn hinge pin/bushing hardware to restore door support
• Helps fix a door that sags, scrapes, or won't close flush
• Can reduce clicking, squeaking, or grinding at the hinge
• Helps the door seal make full contact to prevent warm air leaks

• 1 repair set

• Disconnect power; if applicable, turn off the water supply
• Remove items from the door; support the door and lift it off the hinge
• Install the new hinge hardware in the original orientation
• Reinstall and align the door; verify gasket seal and adjust leveling if needed
