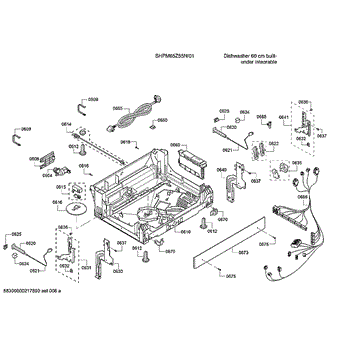

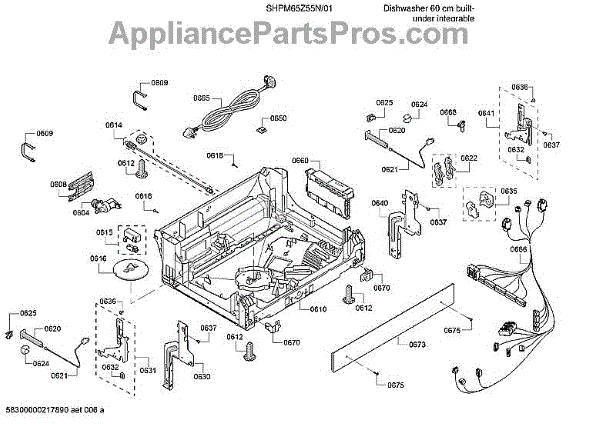

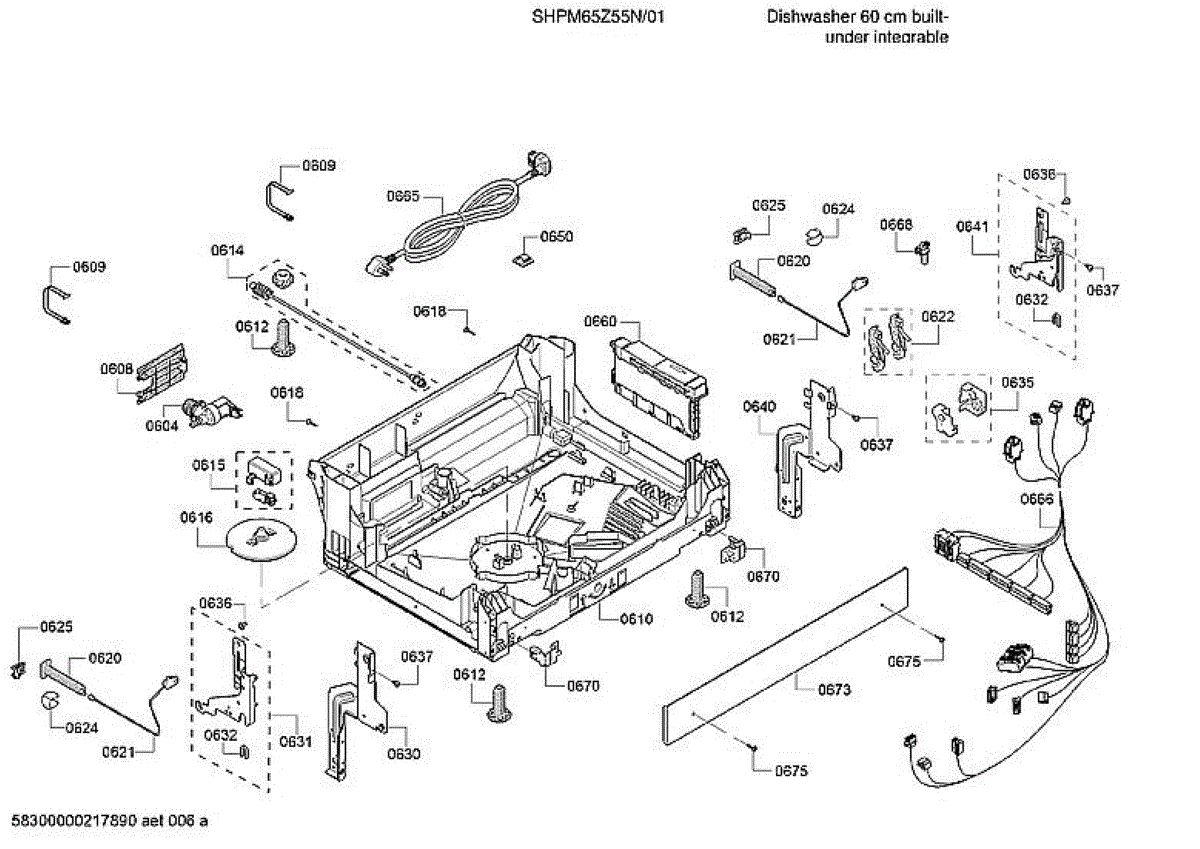

Parts for Bosch SHPM65Z55N/01: Base Assy / Main Harness Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Dishwasher Water Inlet Valve is an OEM part for Bosch dishwashers that is responsible for controlling the flow of water into the dishwasher at the start of each wash cycle. The water inlet valve opens to allow water to enter the dishwasher and then closes to ensure the correct amount of water is used during the cycle.

Symptoms of a bad Dishwasher Water Inlet Valve include:

• Inadequate water filling the dishwasher.
• Overfilling, which can cause leaks and potential water damage.
• Unusual noises coming from the valve area.
• The dishwasher not starting.

Causes of a bad water inlet valve can vary from mineral buildup from hard water, which can block the valve, to mechanical failure or wear and tear over time. Electrical issues can also affect the valve's operation, preventing it from opening or closing properly.

This OEM Bosch part can also be used on Thermador and Gaggenau appliances.

This support is a factory replacement component that holds and stabilizes a specific part within your appliance so it stays aligned and secure. Replacing a cracked or missing support restores proper fit and helps prevent noise or binding.

• Provides structural support and alignment for the designated component
• Keeps parts seated securely to minimize movement and vibration during use
• A damaged or missing support can cause looseness, rattling, sagging, or misalignment
• Restores proper fit and function when the original is cracked, warped, or broken

• Disconnect power and shut off any gas/water supplies before servicing
• Refer to your model's parts diagram to identify location and orientation
• Install using the appliance's existing screws or clips; avoid overtightening to prevent damage
• Wear cut-resistant gloves; beware of sharp edges and pinch points

This holder/retainer secures its mating part in the correct position inside the appliance, preventing unwanted movement and ensuring consistent operation. Replace a cracked or missing holder to restore a solid, factory fit and reliable performance.

• Supports and locks the attached component or rack/accessory in place
• Helps prevent vibration, rattling, or misalignment during use
• Typical signs of failure: broken tabs, visible cracks, looseness, or the part no longer staying secured
• Restores proper positioning of the related component for consistent function

• Disconnect power at the breaker; shut off water supply if applicable
• Note the holder's orientation; take a photo before removal
• Reuse existing screws/fasteners if none are supplied with the part
• Seat fully until it clicks/locks; do not overtighten into plastic

This Bottom Case is the lower housing of the appliance. It forms the structural base that supports and protects internal components, helping restore proper alignment and stability when the original base is cracked, warped, or damaged.

• Provides the mounting base for key assemblies and exterior panels
• Helps protect internal parts from impact and debris
• Maintains chassis alignment to reduce vibration, rattling, or poor panel fit
• Replace if the original base is broken, warped, or otherwise compromised

• Disconnect power and, if applicable, shut off water before servicing
• Edges can be sharp; wear cut-resistant gloves and eye protection
• Access typically requires removing lower/outer panels; transfer any hardware or seals from the old base
• Before reassembly and testing

The Leveling Leg is an OEM replacement part for Bosch dishwashers. It permits adjustment to compensate for uneven floor surfaces, leveling the dishwasher, and ensuring proper drainage. Precise leveling facilitates water collection and effective cleaning performance.

Symptoms of a bad leveling leg can include broken or stripped threads preventing adjustment, and conditions that promote rocking during operation.

Causes of a bad leveling leg include:

• Loose or unstable mounting where legs spin freely
• Legs unable to securely lock into position once adjusted
• Drainage issues such as standing water or poor rinsing
• Excessive vibration or noise heard from the leveling area

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

This replacement worm gear is a small plastic drive gear that transmits rotational motion between the motor and driven components, restoring normal gear-driven movement and reducing slipping or grinding. What it does:

• Transfers torque from the motor to the mating gear or gearbox for proper mechanical operation
• Replaces worn, stripped, or damaged worm teeth that cause slipping or loss of drive
• Stops grinding, clicking, or intermittent movement when the gear is the fault
• Helps restore smooth, consistent operation of the driven mechanism when installed correctly

• One worm gear

• Disconnect power to the appliance before beginning any repair
• Inspect mating gears and shafts for wear; replace worn parts to prevent repeat failure
• Use OEM-approved lubricant only where specified; do not force or overtighten mating components

The Float Housing is an OEM part for Bosch dishwashers. It is the part that houses the float assembly, which is responsible for detecting the water level inside the dishwasher tub during operation.

Causes of a malfunctioning or damaged Float Housing can range from debris or mineral buildup preventing proper float movement, to cracks or breaks in the housing itself due to age, heat exposure, or impact.

Symptoms of a bad Float Housing can include:

• Water leaks or flooding from the dishwasher
• The dishwasher not filling with water or overfilling
• Error codes related to water level sensing issues
• The float itself getting stuck or failing to move freely within the housing

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

The Water Level Float is an OEM part for Bosch dishwashers. It is a component inside the dishwasher which detects the water level during fill cycles. The float activates sensors to allow for controlled water intake at the proper levels.

Causes of a bad float can include mineral or biofilm buildup affecting mobility, cracks that compromise sealing integrity, or damage to the sensors in the sump area.

Symptoms of a bad water level float include:

• Incorrect or uneven water level filling the tub
• Longer cycle times to fill water to proper heights
• Drain issues or water collecting in the bottom of the tub
• Error codes displayed related to water level sensing

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau, and select Kenmore models.

This is a replacement screw used to secure panels, trim pieces, and small brackets on compatible Bosch appliances — a simple hardware fix that restores proper fit and stops rattling or loose parts. What it does:

• Fastens outer panels, control bezels, or internal brackets to the appliance chassis
• Keeps panels aligned so doors and controls fit and operate correctly
• Stops vibration noise caused by loose or missing fasteners
• Replaces damaged, stripped, or corroded screws

• Disconnect power to the appliance before beginning any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Thread by hand to start, then snug; avoid over-tightening which can strip threads or crack panels
• If threads are damaged, replace the mating nut or threaded insert per OEM guidance

This genuine replacement spring restores the proper return force and smooth movement of the connected mechanism in your appliance. Replacing a worn or broken spring helps the assembly operate consistently and return to position as designed. What it does

• Provides the return/tension force for the associated lever, latch, or hinge mechanism
• Helps the mechanism move smoothly and maintain correct alignment
• Direct replacement for a stretched, weakened, or broken spring
• Common symptoms: weak or inconsistent tension, sticking or failure to return, uneven feel, or visible spring damage

• Includes: Spring

• Disconnect power before service; also shut off water supply
• Note the original routing/orientation and take a reference photo before removal
• Control tension with needle-nose pliers; wear gloves and eye protection
• If the mechanism uses matched springs in pairs, replace both to keep balanced tension

The Door Pulley Rope is an OEM part for Bosch dishwashers. It works with the door latch mechanism, allowing smooth opening and closing of the dishwasher door.

Causes of a bad door pulley rope can include fraying or breakage due to repeated use over time. Exposure to heat and chemicals may also damage synthetic fibers prematurely.

Symptoms of a bad dishwasher door pulley rope include:

• Difficulty latching or sealing the dishwasher door
• Sliding or squeaking noises coming from the door
• The door not sitting flush or properly aligned
• The door is unable to stay fully open for loading/unloading

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

The Door Spring Retainer is an OEM part for Bosch dishwashers. This component secures the door spring in place, ensuring the dishwasher door opens and closes smoothly. It helps maintain the proper tension and balance, facilitating easy loading and unloading of dishes.

Causes of a bad door spring retainer can include wear and tear from frequent use, damage from accidental impacts, or deterioration from prolonged exposure to moisture and detergents.

Symptoms of a bad door spring retainer include:

• The dishwasher door not staying open or closed properly
• Difficulty opening or closing the door
• A loose or sagging dishwasher door
• Unusual noises when operating the door

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

The Hinge Plate Assembly is an OEM replacement part for Bosch dishwashers. This assembly consists of the outer hinge bracket and internal mounting plate that together secure the dishwasher door.

Causes of a bad assembly tend to be repetitive stress from normal usage, as well as potential damage from forced or improper door openings/closings over time.

Symptoms include:

• Loosening or sagging of the door during wash cycles
• Difficulty smoothly operating or securing the door
• Alignment problems affecting seals or balanced movement

This OEM Bosch replacement part is also compatible with Siemens, Thermador, and some LG dishwasher models.

The Left Door Hinge Lever is an OEM part for Bosch dishwashers. It plays a role in the smooth operation of the dishwasher door, ensuring it opens and closes with ease and security. This part is essential for maintaining the proper alignment of the door, thereby preventing leaks and ensuring the dishwasher operates efficiently.

Causes of a bad Left Door Hinge Lever include normal wear and tear from frequent use, accidental damage, or exposure to high loads that can lead to bending or breaking of the hinge.

Symptoms of a bad Left Door Hinge Lever include:

• Difficulty in opening or closing the dishwasher door smoothly.
• A noticeable gap when the door is closed, which can lead to leaks.
• Unusual noises coming from the door hinge area during operation.
• The door feeling loose or off-balance when opened or closed.

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Hinge Bushing is an OEM component for Bosch dishwasher models. This bushing acts as a guide and support component for the dishwasher door hinge assembly. It facilitates smooth and quiet opening and closing of the door.

Symptoms of a bad hinge bushing include:

• noise or squeaking coming from the door hinges
• excess play or looseness feeling in the hinge movement
• difficulty fully closing or opening the dishwasher door

Causes of a bad hinge bushing can be normal wear and tear over the life of the appliance. Small metal particles embedded in the bushing material during manufacturing may also cause premature wear.

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

This factory screw secures select Bosch/BSH appliance components. Use it to replace a missing or damaged fastener so panels, brackets, or trim stay tight and rattle-free during operation.

• Tightens and holds appliance parts such as panels, brackets, or trim in place
• Helps correct issues like loose or vibrating panels caused by a missing/stripped screw
• Maintains proper fitment after service or disassembly
• Torx T20 drive head helps resist cam-out during tightening

• Unplug power and shut off any water supply before servicing
• Use a T20 Torx driver; hand-start to avoid cross-threading
• Do not overtighten—snug to manufacturer torque guidance if available
• Replace any additional missing or damaged fasteners for even clamping

This metric M4 x 8 screw secures the toe-kick/lower access panel at the base of the appliance. Replace a missing or stripped fastener to keep the kickplate tight and aligned, helping prevent looseness and noise.

• Secures the toe-kick or lower access panel to the base/frame
• Restores proper fit when the original screw is lost or damaged
• Helps reduce panel rattles and vibration
• Maintains correct alignment and clearance at the bottom edge

• Disconnect power before servicing; also shut off the water supply
• Support the panel and align holes before threading the screw
• Start by hand to avoid cross-threading; tighten snugly—do not overtighten
• Verify size matches the original; replace matching hardware together if required by your model

The Right Door Hinge Plate is an OEM replacement part for Bosch dishwashers. As one half of the hinging mechanism, the right hinge lever works together with its counterpart to securely and smoothly attach the dishwasher door.

Causes of a bad hinge plate can include cracks, warping, or loosening of mounting screws due to regular opening and closing force exerted on the door over many cycles.

Symptoms of a bad hinge lever include:

• The door not sitting flush or securely against the dishwasher body
• Difficulty fully opening or closing the door
• Noises or vibrations emitting from the hinge area
• Possible damage to connected hinge components like springs or cables

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore dishwashers.

The Right Door Hinge Lever is an OEM component specifically designed for Bosch dishwashers. It provides stability and positioning for the lower right side of the dishwasher door during opening and closing.

Symptoms of a bad right door hinge lever include:

• The door sagging toward one side when open
• Increased resistance or difficulty smoothly moving the door
• Potential door alignment or sealing issues impacting performance

Causes of failure relate to repetitive stresses placed on metal hinges through thousands of door cycles. Over time, fatigue leads to loose fits or stripping that compromise secure engagement.

This OEM Bosch part is compatible with Thermador, Gaggenau and some Kenmore models using Bosch components.

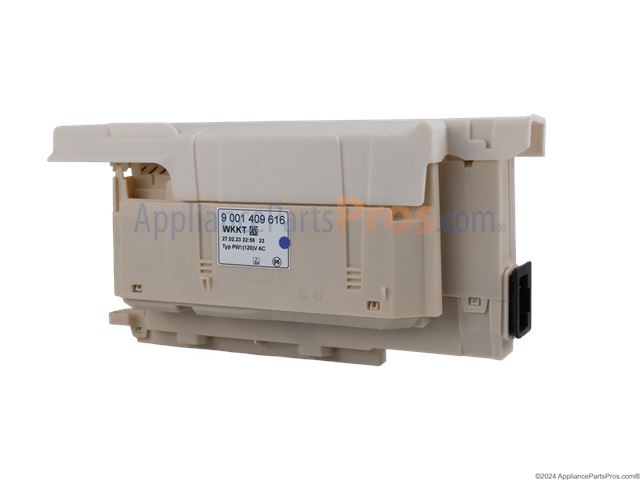

The Power Module Programmed is an OEM component specifically designed for Bosch dishwashers. It houses the integrated control board that oversees all critical dishwasher functions including cycle selection, temperature regulation, leak detection, and timing of the various wash and rinse stages.

Symptoms of a bad power module can include:

• Faulty or non-responsive controls
• Inability to select or advance through cycles
• Flashing error codes on the display
• Abnormal sounds or smells from the unit

Causes of failure include wear over time leading to shorts or opens in the circuitry, moisture damage corroding connections, or software bugs in the onboard programming.

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore dishwashers. Replace to restore full cycle functionality and extend the life of your dishwasher.


The Power Cord is an OEM part for Bosch dishwashers. It provides electrical connection between the appliance and the power source to allow operation.

The power cord contains multiple insulated wire conductors capable of safely transferring electrical current at the proper voltage, fuse rating, and amperage required by the dishwasher motor and components. It terminates in a three-prong plug compatible with standard 110-120 volt outlets.

Symptoms of a bad power cord can include:

• The dishwasher failing to power on when plugged in
• Tripped circuit breakers or blow fuses each time the dishwasher runs
• Worn, cracked, cut or damaged outer insulation exposing wires
• Loose, disconnected or corroded connections at either end of the cord

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

CABLE HARNESS

The Indicator Light is an OEM part for Bosch dishwashers. It serves as a visual cue, providing important status updates and notifications related to the dishwasher's operation.

Causes of a malfunctioning Indicator Light can stem from issues with the control board or wiring harness that powers the light, or the light itself burning out due to age or electrical surges.

Symptoms of a bad Indicator Light include:

• The light not illuminating at all, even when it should be on
• Flickering or dimming of the light during operation
• The wrong indicator light turning on or staying on inappropriately

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

The Toe Panel Support Bracket is an OEM part for Bosch dishwashers. This part provides support and stability to the toe panel, which is the panel at the bottom of the dishwasher's front.

Causes of a bad part can include physical impact, improper installation, or general wear and tear over time, leading to weakening or damage of the support bracket.

Symptoms of a bad Toe Panel Support Bracket can include:

• Looseness or instability of the toe panel
• The toe panel becoming detached or falling off
• Difficulty in properly aligning or installing the toe panel
• Visible damage or cracks in the support bracket itself

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

The Base Panel is an OEM part for Bosch dishwashers. This part is located at the bottom front of the dishwasher, serving both functional and aesthetic purposes. It helps protect internal components from dust, debris, and moisture, while also providing a finished look to the appliance.

Causes of a bad base panel can include physical damage from impacts, corrosion due to exposure to moisture, and wear and tear over time.

Symptoms of a bad base panel include:

• Visible cracks, dents, or holes in the panel
• The panel becoming loose or falling off
• Increased noise during dishwasher operation
• Internal components being exposed to dust and moisture

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

The 4 x 16 Screw is an OEM component for Bosch dishwashers.

Common causes of faulty screws include standard wear from years of housing vibrations during wash cycles. Mineral deposits lingering around screw heads also risk eventual corrosion and seizing issues.

Symptoms of potentially loose or damaged screws comprise:

• Odd knocking or buzzing noises from inside cabinets
• Detached or misaligned door panels
• Water leaks developing between internal seams
• Components unable to be fully secured down during repairs

This screw type is additionally suited for Thermador, Gaggenau as well as some premium Kenmore dishwashers.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces
