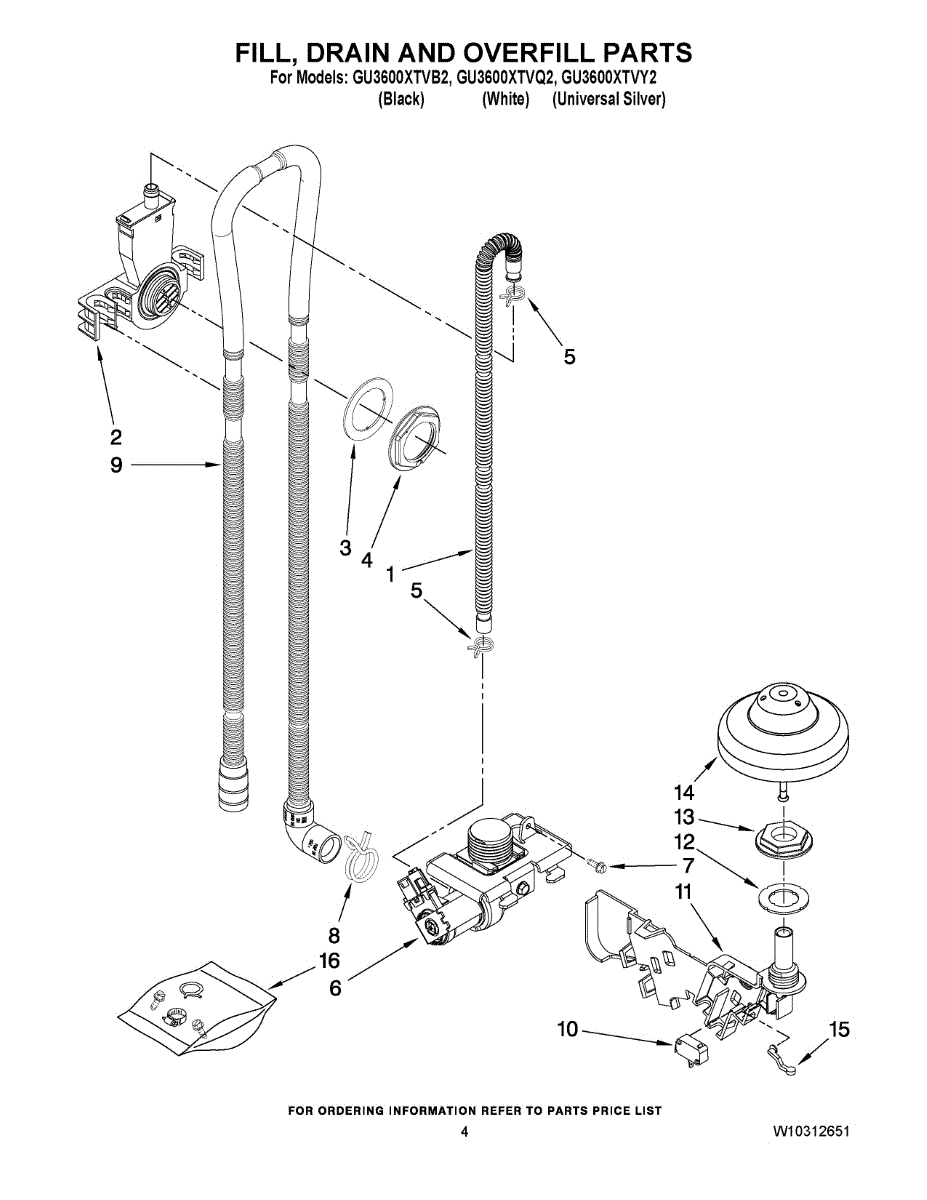

Parts for Whirlpool GU3600XTVB2: 04 - Fill, Drain And Overfill Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Fill Hose is an OEM part for Whirlpool dishwashers. This hose is responsible for delivering water from your home’s water supply to the dishwasher during the wash cycles. It ensures that the appliance receives the necessary amount of water to clean dishes effectively.

Over time, the fill hose can become damaged due to wear and tear, exposure to high water pressure, or kinks and bends that restrict water flow. If the hose is compromised, it can lead to water supply issues or leaks, impacting the dishwasher’s performance.

Symptoms of a bad fill hose include:

• Water not entering the dishwasher
• Leaks or puddles around or under the dishwasher
• Error codes related to water supply issues
• Visible cracks, kinks, or damage to the hose

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Inlet Assembly is an OEM part for Whirlpool dishwashers. It is responsible for controlling the flow of water into the dishwasher during the wash cycle. This assembly ensures that the correct amount of water enters the dishwasher to clean dishes effectively.

You should replace the inlet assembly if it becomes faulty. Causes of a bad inlet assembly can include wear and tear from regular use, blockages from debris or mineral buildup, or electrical issues. A malfunctioning inlet assembly can lead to inadequate water flow, which affects the dishwasher’s cleaning performance.

Symptoms of a bad inlet assembly include:

• The dishwasher not filling with water or filling slowly
• Water leaks around the inlet area
• Error codes related to water intake issues
• The dishwasher stopping mid-cycle or not starting

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Tub Inlet Gasket is an OEM part for Whirlpool dishwashers. It ensures a watertight seal at the point where water enters the tub, preventing leaks and maintaining efficient water flow during the wash cycle.

Causes of a bad tub inlet gasket include wear and tear from regular use, damage from harsh cleaning chemicals, or drying out and cracking due to age.

Symptoms of a bad tub inlet gasket include:

• Water leaking from the front or bottom of the dishwasher
• Poor cleaning results due to insufficient water pressure
• Visible cracks or wear on the gasket
• Unusual noises from the dishwasher during the filling cycle

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This compression tube nut secures water inlet tubing to a threaded fitting to create a reliable, leak-resistant seal. Replace a cracked or stripped nut to stop drips at the connection and keep your appliance's water system working properly.

• Compresses the tubing against the fitting to seal the water line at the inlet valve, filter head, or other water-system connections
• Helps correct leaks at the water line connection point
• Replaces nuts that are cracked, cross-threaded, or deformed
• Common symptoms: water dripping at the connection, difficulty tightening the line, or a poor seal after reassembly

• Shut off the water supply and disconnect power before servicing.
• Slide the nut onto the tubing first, seat the tube fully on the fitting, then hand-tighten and snug with a wrench; do not overtighten.
• Inspect and reuse the existing sleeve/ferrule and tube insert if in good condition; replace if worn.
• Restore water and check for leaks at the connection.

The Hose Clamp is an OEM part for Whirlpool appliances. It secures hoses in place, ensuring a tight connection and preventing leaks in various systems such as washing machines, dishwashers, and refrigerators. This clamp is crucial for maintaining the integrity of the water or air lines it secures.

Causes of a bad hose clamp include wear and tear over time, exposure to water and detergents, or mechanical stress from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Leaks at the hose connection points
• Hoses slipping off the connections
• Visible rust or damage on the clamp
• Reduced appliance efficiency due to leaks

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Dishwasher Water Inlet Valve is an OEM part for Whirlpool dishwashers that is responsible for controlling the flow of water into the dishwasher at the start of each wash cycle. The water inlet valve opens to allow water to enter the dishwasher and then closes to ensure the correct amount of water is used during the cycle. Redesigned: Valve mounts directly on the frame and no longer includes or requires the mounting bracket.

Symptoms of a bad Dishwasher Water Inlet Valve include:

• Inadequate water filling the dishwasher.
• Overfilling, which can cause leaks and potential water damage.
• Unusual noises coming from the valve area.
• The dishwasher not starting.

Causes of a bad water inlet valve can vary from mineral buildup from hard water, which can block the valve, to mechanical failure or wear and tear over time. Electrical issues can also affect the valve's operation, preventing it from opening or closing properly.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

The Spring Tension Hose Clamp is an OEM part for Whirlpool washing machines. It is designed to secure hoses in place, preventing leaks by maintaining consistent tension on the hose connections.

Over time, spring tension hose clamps can lose their effectiveness due to metal fatigue, corrosion, or damage from frequent tightening and loosening. This can lead to leaks and improper hose connections.

Symptoms of a bad spring tension hose clamp include:

• Water leaks around hose connections
• Loose or disconnected hoses
• Unusual noises or vibrations during operation
• Water pressure issues within the washing machine

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Drain Hose is an OEM part for Whirlpool dishwashers. It is designed to transport wastewater from the dishwasher to the household drain system, ensuring efficient and safe removal of water after each wash cycle. This drain hose is 67” long and includes the check valve.

Symptoms of a bad Drain Hose include:

• Water leaking from underneath or behind the dishwasher.
• Signs of water damage or mold near the appliance, indicating persistent dampness.
• Poor draining performance, with water remaining in the dishwasher after cycles.

Causes of a bad drain hose can include physical damage such as cracks or holes, clogging from food particles or grease, or improper connections that lead to leaks or kinks in the hose.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

Overfill control.

The Float Switch Kit is an OEM part for Whirlpool dishwashers. It includes the float and the switch mechanism that monitors and controls the water level inside the dishwasher. The float switch ensures that the dishwasher does not overfill by signaling the water inlet valve to shut off the water supply once the appropriate level is reached.

Causes of a bad float switch can include debris or mineral buildup, wear and tear over time, or electrical failures within the switch mechanism. A malfunctioning float switch can lead to water overfilling, which may cause leaks and inefficient washing performance.

Symptoms of a bad float switch kit include:

• Dishwasher overfilling with water
• Water leaks during operation
• Dishwasher not filling with enough water
• Error codes related to water levels

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Float Switch Base Gasket is an OEM part for Whirlpool dishwashers. This gasket is specifically designed to seal the area around the float switch base, preventing water leaks that can occur during the dishwasher's operation.

Causes of damage to the Float Switch Base Gasket often involve normal wear and tear, as the rubber or plastic material can degrade over time due to exposure to detergents, hot water, and the mechanical action of the float switch.

Symptoms of a bad Float Switch Base Gasket include:

• Water leaking from the bottom of the dishwasher
• Signs of water damage or corrosion around the float switch area
• The dishwasher may malfunction or display error codes related to water filling issues if water leaks interfere with the float switch operation.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This standpipe nut secures the washer drain standpipe or tub outlet fitting to the drain assembly, preventing leaks and keeping the drain connection stable. Simple replacement restores a proper sealed drain connection. What it does:

• Threads onto the standpipe or drain outlet to hold the drain tube or fitting in place
• Creates a tight connection to help prevent water leaks at the drain junction
• Restores proper alignment and stability of the drain hose or standpipe assembly
• Common fix for leaking or loose drain connections around the washer drain area

• Disconnect power and water supply before working on the drain or pump area
• Inspect mating threads and any gaskets; replace damaged seals as needed for a proper seal
• Thread the nut by hand to avoid cross-threading, then snug with appropriate tool—do not overtighten
• Test for leaks after reassembly by running a short drain cycle

This overfill float and shaft assembly monitors the dishwasher's water level. As the tub fills, the float rises and triggers the float switch to shut off the inlet water, helping prevent overfilling and leaks.

• Senses tub water level and moves up/down with the water
• Activates the float switch to stop filling at the correct level
• Helps protect against overfill-related leaks
• Common symptoms include: won't fill (float stuck up), continuous filling/overfilling (float stuck down or damaged), or float not moving freely

• Disconnect power and turn off the water supply before servicing
• Lift the old float straight up from inside the tub; access the underside (behind the toe panel) as needed to release the shaft from the float switch lever
• Install the new shaft through the guide and onto the switch lever; seat the float so it moves freely
• Verify smooth float movement and test a fill cycle while checking for leaks

This replacement lever operates the overflow/level switch assembly to help the washer detect and respond to water level changes. It restores the mechanical action that tells the control when the tub is full. What it does:

• Moves the overflow/level switch mechanism so the machine can sense water level correctly
• Helps address overfilling, continuous filling, or erratic fill behavior caused by a worn or broken lever
• Restores reliable engagement between the float/actuator and the switch
• Works as the mechanical linkage for the overflow/level sensing assembly

• Disconnect power and turn off the water supply before beginning service.
• Access typically requires removing the cabinet or control console; keep fasteners organized.
• Install the lever so it aligns with the switch actuator and float linkage; verify smooth movement after assembly.

This loose bag assembly is a direct-fit replacement designed to restore the original containment or collection function in compatible Whirlpool appliances. It provides a simple swap to fix a damaged or missing bag and keep the appliance operating as intended. What it does:

• Replaces a worn, torn, or missing bag used for containment or collection in the appliance
• Restores proper collection and helps prevent debris or material from escaping into the appliance cavity
• Helps reduce related performance issues that occur when the bag is damaged or absent
• Matches OEM form and fit for an easy, reliable replacement

• One loose bag assembly as shown

• Turn off and unplug the appliance before attempting replacement
• Remove any panels or components required to access the bag
• Install the bag in the correct orientation and secure all fasteners or clips
• Inspect surrounding seals and openings; replace any damaged parts to ensure proper operation
