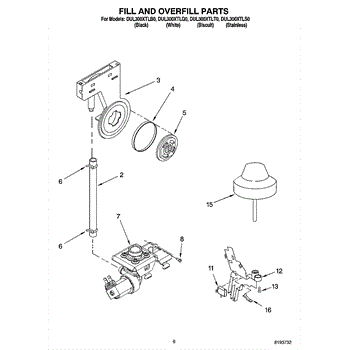

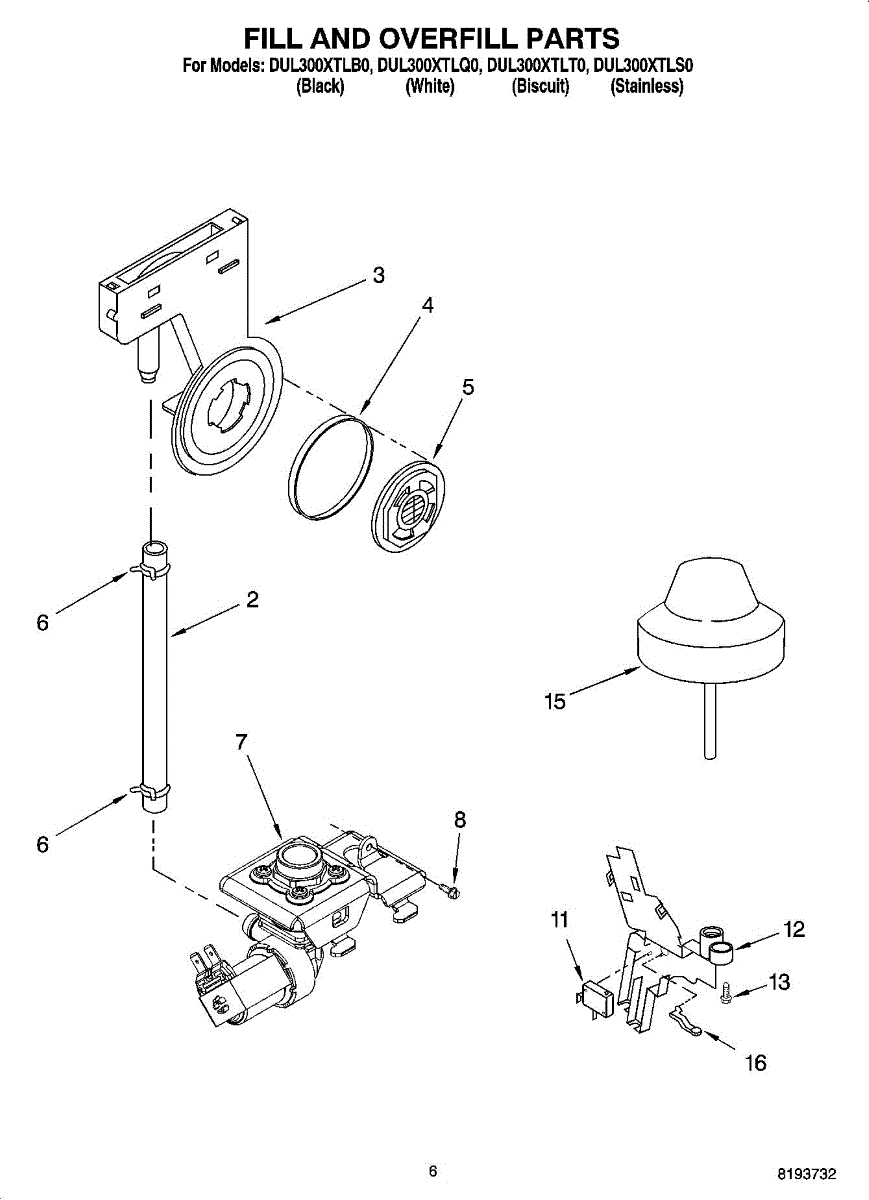

Parts for Whirlpool DUL300XTLS0: 06 - Fill And Overfill Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This inlet fill hose directs incoming water from the household supply to the washer's tub or dispenser so the appliance fills properly. Replaces a damaged, cracked, or leaking fill hose to restore normal water flow. What it does:

• Carries water from the home supply to the washer fill valve and dispenser
• Helps the washer fill to the correct level for cycles
• Commonly replaced when you see leaks, visible cracks, or reduced fill flow
• Prevents water damage from split or worn hoses

• Disconnect power and shut off the water supply before servicing
• Inspect hose fittings and clamps; replace worn clamps and tighten securely
• Avoid sharp bends or kinks when routing the hose
• After installation, turn on water and check all connections for leaks before use

Kit includes gasket and bezel.

This inlet water bezel is the trim piece that fits around the washer's water inlet to provide a finished opening and support the inlet connection. It restores appearance and helps position the inlet area for a proper hose fit. What it does:

• Covers and finishes the water inlet opening on the cabinet for a clean appearance
• Helps hold and align the inlet connection and hose to reduce stress on the valve
• Prevents direct contact between the inlet hose/valve and the cabinet edge
• Commonly replaced when the inlet trim is cracked, broken, or worn

• Disconnect power and shut off the water supply before starting
• Remove the appropriate access panel or control console to reach the inlet area
• Handle the bezel carefully to avoid scratching painted surfaces during install
• Re-check inlet hose routing and tighten connections; test for leaks after restoring power/water

The Hose Clamp is an OEM part for Whirlpool appliances. It secures hoses in place, ensuring a tight connection and preventing leaks in various systems such as washing machines, dishwashers, and refrigerators. This clamp is crucial for maintaining the integrity of the water or air lines it secures.

Causes of a bad hose clamp include wear and tear over time, exposure to water and detergents, or mechanical stress from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Leaks at the hose connection points
• Hoses slipping off the connections
• Visible rust or damage on the clamp
• Reduced appliance efficiency due to leaks

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Water Inlet Valve Assembly is an OEM part for Whirlpool dishwashers. This valve assembly is crucial for regulating the flow of water into the dishwasher during the wash and rinse cycles.

Common causes include mineral buildup from hard water, wear and tear from frequent use, or electrical issues affecting the valve's solenoid. A malfunctioning valve can lead to improper water levels or no water entering the dishwasher at all.

Symptoms of a bad water inlet valve assembly include:

• The dishwasher not filling with water
• Low water levels during cycles
• Water leaking from the valve
• The dishwasher not cleaning dishes properly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

Overfill control.

This standpipe houses the washer's overfill control and directs excess water into the drain path, helping prevent overfilling and internal flooding. It's a direct-fit replacement for the factory overfill control housing. What it does:

• Provides the sealed channel for excess wash water to flow to the drain
• Supports and locates the overfill/level control assembly
• Helps stop water from overflowing the tub and causing leaks
• Can resolve symptoms like unexplained overfilling, water leaking at the washer base, or fill-level issues

• Disconnect power and shut off water before starting any repair
• Access may require removing the washer top or control housing
• Inspect surrounding gaskets and hoses for wear; replace if damaged
• Handle plastic components carefully to avoid cracking; test operation after reassembly

Size: 8-18 x 1/2 inch.

This dishwasher overfill control float mounts in the tub floor and rises with the water level to trip the float switch and stop filling. Replacing a warped or stuck float restores proper fill control and helps prevent leaks. What it does:

• Monitors tub water level and actuates the float switch to shut off the inlet valve
• Helps prevent overfilling and water leaking from the door
• Common symptoms of a faulty float include no fill, continuous filling/overfilling, or inconsistent water level

• Float and retainer

• Disconnect power and turn off the water supply before servicing
• Remove the lower rack; lift out the old float
• Access beneath the tub may be required to release/install the retainer
• Ensure the float stem engages the switch lever and moves freely; test-fill and check for leaks

This replacement lever operates the overflow/level switch assembly to help the washer detect and respond to water level changes. It restores the mechanical action that tells the control when the tub is full. What it does:

• Moves the overflow/level switch mechanism so the machine can sense water level correctly
• Helps address overfilling, continuous filling, or erratic fill behavior caused by a worn or broken lever
• Restores reliable engagement between the float/actuator and the switch
• Works as the mechanical linkage for the overflow/level sensing assembly

• Disconnect power and turn off the water supply before beginning service.
• Access typically requires removing the cabinet or control console; keep fasteners organized.
• Install the lever so it aligns with the switch actuator and float linkage; verify smooth movement after assembly.
