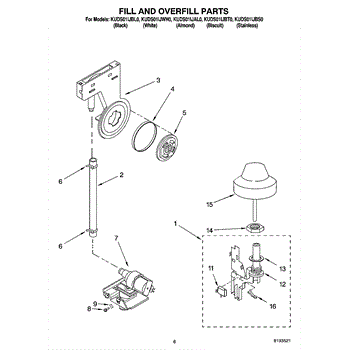

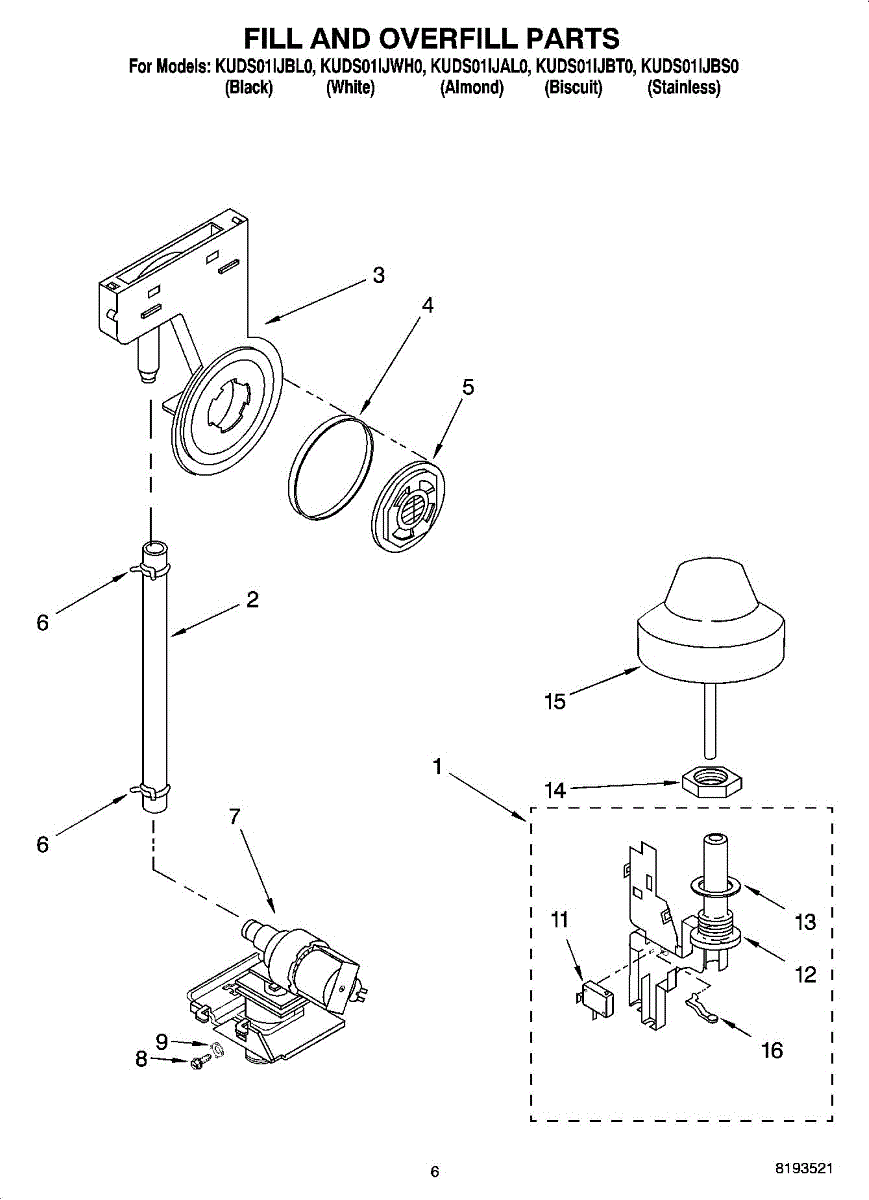

Parts for Kitchenaid KUDS01IJBS0: 06 - Fill And Overfill Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Float Switch Kit is an OEM part for Whirlpool dishwashers. It includes the float and the switch mechanism that monitors and controls the water level inside the dishwasher. The float switch ensures that the dishwasher does not overfill by signaling the water inlet valve to shut off the water supply once the appropriate level is reached.

Causes of a bad float switch can include debris or mineral buildup, wear and tear over time, or electrical failures within the switch mechanism. A malfunctioning float switch can lead to water overfilling, which may cause leaks and inefficient washing performance.

Symptoms of a bad float switch kit include:

• Dishwasher overfilling with water
• Water leaks during operation
• Dishwasher not filling with enough water
• Error codes related to water levels

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This inlet fill hose directs incoming water from the household supply to the washer's tub or dispenser so the appliance fills properly. Replaces a damaged, cracked, or leaking fill hose to restore normal water flow. What it does:

• Carries water from the home supply to the washer fill valve and dispenser
• Helps the washer fill to the correct level for cycles
• Commonly replaced when you see leaks, visible cracks, or reduced fill flow
• Prevents water damage from split or worn hoses

• Disconnect power and shut off the water supply before servicing
• Inspect hose fittings and clamps; replace worn clamps and tighten securely
• Avoid sharp bends or kinks when routing the hose
• After installation, turn on water and check all connections for leaks before use

Kit includes gasket and bezel.

This inlet water bezel is the trim piece that fits around the washer's water inlet to provide a finished opening and support the inlet connection. It restores appearance and helps position the inlet area for a proper hose fit. What it does:

• Covers and finishes the water inlet opening on the cabinet for a clean appearance
• Helps hold and align the inlet connection and hose to reduce stress on the valve
• Prevents direct contact between the inlet hose/valve and the cabinet edge
• Commonly replaced when the inlet trim is cracked, broken, or worn

• Disconnect power and shut off the water supply before starting
• Remove the appropriate access panel or control console to reach the inlet area
• Handle the bezel carefully to avoid scratching painted surfaces during install
• Re-check inlet hose routing and tighten connections; test for leaks after restoring power/water

The Hose Clamp is an OEM part for Whirlpool appliances. It secures hoses in place, ensuring a tight connection and preventing leaks in various systems such as washing machines, dishwashers, and refrigerators. This clamp is crucial for maintaining the integrity of the water or air lines it secures.

Causes of a bad hose clamp include wear and tear over time, exposure to water and detergents, or mechanical stress from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Leaks at the hose connection points
• Hoses slipping off the connections
• Visible rust or damage on the clamp
• Reduced appliance efficiency due to leaks

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Water Inlet Valve Assembly is an OEM part for Whirlpool dishwashers. This valve assembly is crucial for regulating the flow of water into the dishwasher during the wash and rinse cycles.

Common causes include mineral buildup from hard water, wear and tear from frequent use, or electrical issues affecting the valve's solenoid. A malfunctioning valve can lead to improper water levels or no water entering the dishwasher at all.

Symptoms of a bad water inlet valve assembly include:

• The dishwasher not filling with water
• Low water levels during cycles
• Water leaking from the valve
• The dishwasher not cleaning dishes properly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Size: 8-32 x 1/2 inch.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

A pronged cup washer that secures and cushions mating parts on appliances, restoring proper fit and reducing wobble. Replaces worn or damaged cup-style washers to help maintain stable component alignment and reliable operation. What it does:

• Fits into a cup or socket to hold shafts, knobs, or trim pieces in place
• Pronged design grips the mounting surface to prevent rotation and slippage
• Helps reduce vibration and noise caused by loose or worn washers
• Commonly used when a knob, shaft, or trim feels loose or wobbly

• Disconnect power to the appliance before servicing to avoid shock or injury
• Remove the related knob or trim carefully to access the washer; note orientation for correct reassembly
• Press the washer fully into the cup or socket so the prongs engage the mounting surface
• Inspect the surrounding components for wear and replace any damaged parts

Overfill control.

The Float Switch Kit is an OEM part for Whirlpool dishwashers. It includes the float and the switch mechanism that monitors and controls the water level inside the dishwasher. The float switch ensures that the dishwasher does not overfill by signaling the water inlet valve to shut off the water supply once the appropriate level is reached.

Causes of a bad float switch can include debris or mineral buildup, wear and tear over time, or electrical failures within the switch mechanism. A malfunctioning float switch can lead to water overfilling, which may cause leaks and inefficient washing performance.

Symptoms of a bad float switch kit include:

• Dishwasher overfilling with water
• Water leaks during operation
• Dishwasher not filling with enough water
• Error codes related to water levels

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Float Switch Base Gasket is an OEM part for Whirlpool dishwashers. This gasket is specifically designed to seal the area around the float switch base, preventing water leaks that can occur during the dishwasher's operation.

Causes of damage to the Float Switch Base Gasket often involve normal wear and tear, as the rubber or plastic material can degrade over time due to exposure to detergents, hot water, and the mechanical action of the float switch.

Symptoms of a bad Float Switch Base Gasket include:

• Water leaking from the bottom of the dishwasher
• Signs of water damage or corrosion around the float switch area
• The dishwasher may malfunction or display error codes related to water filling issues if water leaks interfere with the float switch operation.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This standpipe nut secures the washer drain standpipe or tub outlet fitting to the drain assembly, preventing leaks and keeping the drain connection stable. Simple replacement restores a proper sealed drain connection. What it does:

• Threads onto the standpipe or drain outlet to hold the drain tube or fitting in place
• Creates a tight connection to help prevent water leaks at the drain junction
• Restores proper alignment and stability of the drain hose or standpipe assembly
• Common fix for leaking or loose drain connections around the washer drain area

• Disconnect power and water supply before working on the drain or pump area
• Inspect mating threads and any gaskets; replace damaged seals as needed for a proper seal
• Thread the nut by hand to avoid cross-threading, then snug with appropriate tool—do not overtighten
• Test for leaks after reassembly by running a short drain cycle

This overfill float and shaft assembly monitors the dishwasher's water level. As the tub fills, the float rises and triggers the float switch to shut off the inlet water, helping prevent overfilling and leaks.

• Senses tub water level and moves up/down with the water
• Activates the float switch to stop filling at the correct level
• Helps protect against overfill-related leaks
• Common symptoms include: won't fill (float stuck up), continuous filling/overfilling (float stuck down or damaged), or float not moving freely

• Disconnect power and turn off the water supply before servicing
• Lift the old float straight up from inside the tub; access the underside (behind the toe panel) as needed to release the shaft from the float switch lever
• Install the new shaft through the guide and onto the switch lever; seat the float so it moves freely
• Verify smooth float movement and test a fill cycle while checking for leaks

This replacement lever operates the overflow/level switch assembly to help the washer detect and respond to water level changes. It restores the mechanical action that tells the control when the tub is full. What it does:

• Moves the overflow/level switch mechanism so the machine can sense water level correctly
• Helps address overfilling, continuous filling, or erratic fill behavior caused by a worn or broken lever
• Restores reliable engagement between the float/actuator and the switch
• Works as the mechanical linkage for the overflow/level sensing assembly

• Disconnect power and turn off the water supply before beginning service.
• Access typically requires removing the cabinet or control console; keep fasteners organized.
• Install the lever so it aligns with the switch actuator and float linkage; verify smooth movement after assembly.
