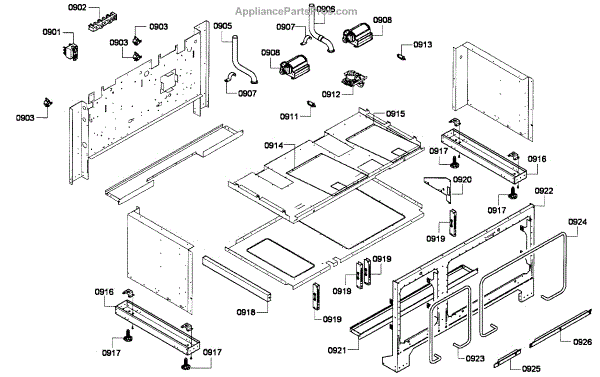

Parts for Thermador PRD486EDPG/01: Frame Assy Parts

This Terminal Box is an OEM part for Bosch Built-In Ovens. Integral to the oven's electrical system, this component serves as a secure connection point for various electrical wires within the appliance.

A common issue with a malfunctioning Terminal Box is loose connections or damage to the terminal block due to heat exposure or aging.

Symptoms of a defective Terminal Box may include:

• Inconsistent power supply to the oven
• Non-functional heating elements
• Sparks or electrical arcing within the terminal box area

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

A thermal fuse that cuts power when temperatures exceed safe limits, helping prevent overheating and related damage. Installs in the appliance's heater or control circuit to restore safe operation when replaced. What it does:

• Acts as a one-time overheat cutoff, opening the circuit if internal temperatures get too high
• Common symptom: appliance fails to heat or the heater element won't energize
• Common symptom: appliance has no power to the affected circuit or intermittent operation
• Restores overheat protection when replaced with the correct part number

• Always disconnect power (unplug or switch off breaker) before accessing the appliance
• Handle carefully and replace only with the exact part number to ensure correct temperature rating
• Verify wiring orientation and secure connections; some units require soldering or connector terminals

The Blower Fan Motor is an OEM part for Bosch gas ranges. It features an integrated motor and blades to circulate air throughout the oven cavity.

The blower fan motor plays an important role in circulation by distributing heat evenly during the baking and broiling cycles. It helps prevent hot and cold spots to ensure foods are cooked consistently.

Causes of a bad blower fan motor can include wear and tear from extended use, damage from excess heat exposure, or failure of internal electrical components.

Symptoms of a bad blower fan motor include:

• Uneven or inconsistent cooking results
• Hot and cold spots inside the oven cavity
• The fan motor makes strange noises or does not turn on
• Extended or incomplete cook times

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

This Foot is an OEM component for Bosch Ranges. Functioning as a stabilizing support for the range, these feet provide balance and elevation, ensuring the appliance's proper positioning and stability on the floor.

A common issue with malfunctioning or damaged Foot involves wear, breakage, or loss of the foot's grip, leading to instability or uneven placement of the range. Exposure to weight strain, movement, or irregular floor surfaces can contribute to foot damage over time.

Symptoms of defective or worn-out Foot may include:

• Uneven or wobbly placement of the range
• Difficulty in leveling the appliance
• Visible damage or missing components in the feet

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

This flexible door seal/gasket creates a watertight barrier around the appliance door to help prevent leaks and keep internal temperatures stable. Replacing a worn seal restores proper sealing for reliable operation. What it does:

• Seals the door edge to prevent water from leaking during cycles
• Helps maintain internal temperature and cleaning performance
• Reduces moisture buildup and prevents odors from trapped debris
• Restores proper door alignment when the old seal has become misshapen or torn

• Disconnect power and water supply before starting any repair
• Remove the old seal by gently pulling from the door channel and clean the channel of debris
• Press the new gasket into the channel evenly, working around the entire door; ensure the seal is fully seated and not twisted
• If clips or retainers are present, verify they are correctly engaged; do not use sharp tools that can nick the gasket
