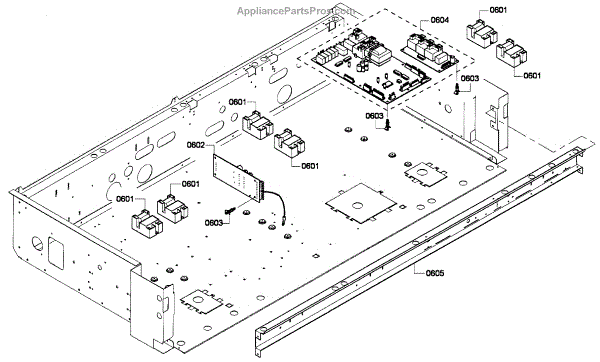

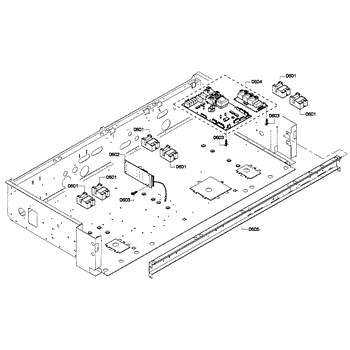

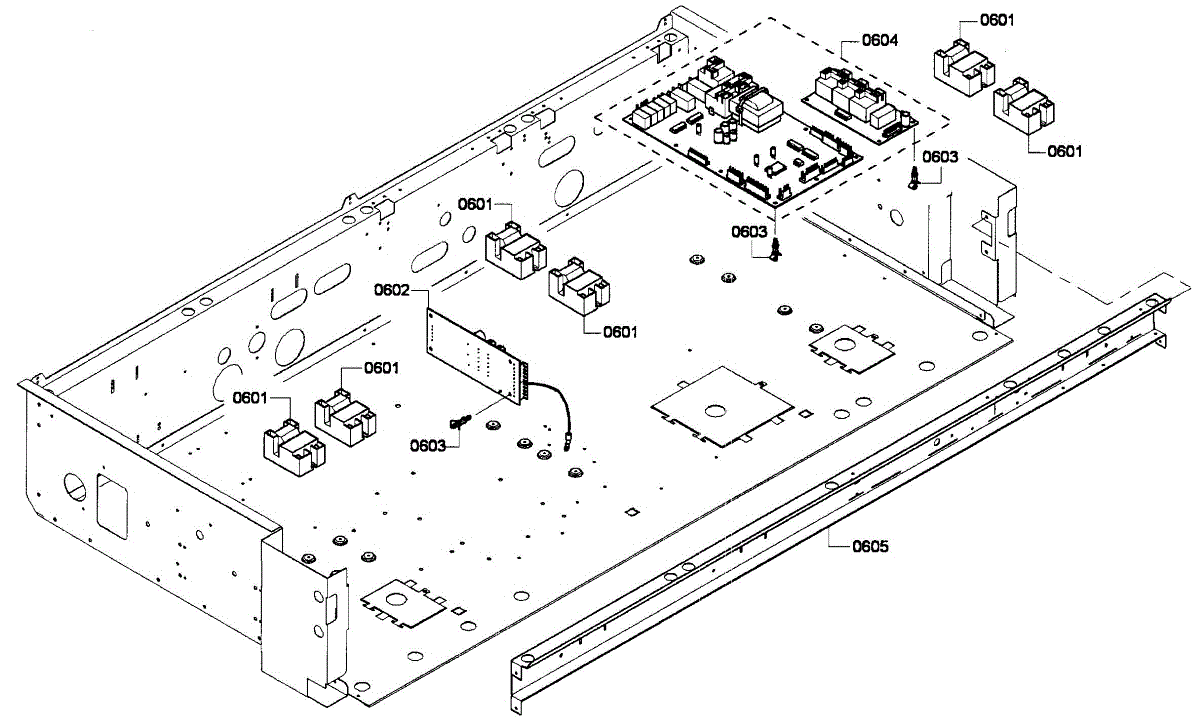

Parts for Thermador PRD486EDPG/01: Pcb's Assy Parts

The Re-Ignition Spark Module is an OEM replacement part for Bosch ranges. It is an electronic component that generates sparks to reliably light the burners on a gas cooktop. Consistent sparking is necessary for fully lighting the burner flames and facilitating safe and efficient cooking operation.

Causes of a bad spark module can include normal component wear over time or damage from exposure to moisture or other contaminants. Improper cleaning methods could potentially impact performance.

Symptoms of a bad spark module include:

• Burners not lighting or sparking when the knob is turned
• Unreliable or intermittent lighting requiring multiple attempts
• Burner flames that emit an inconsistent or unstable pattern
• Sparks appearing outside of the burner ring pose a safety risk

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

This factory fixing kit supplies the OEM hardware required to secure the appliance or designated components during installation or service. Replacing missing or damaged fasteners restores a solid, aligned mount so the unit stays stable without shifting, rattling, or gaps.

• Provides the correct hardware to fasten parts per your model's installation or service instructions
• Replaces stripped, corroded, or missing screws/clips that lead to looseness
• Helps maintain alignment and clearances to prevent gaps, rattles, or vibration
• Typical symptoms: loose mounting, panels that shift, or movement when opening/closing doors or drawers

• Disconnect power; shut off water or gas if applicable before starting work
• Follow the model-specific installation/service manual for attachment points and sequence; use the proper driver bit and do not overtighten
• Verify the unit is level and securely anchored; check clearances and operation after securing

This OEM replacement pin is a small hardware fastener used to secure or pivot mating components within the appliance. Replacing a worn or missing pin restores proper alignment and reliable movement of the affected part or linkage.

• Serves as an axle/retainer for hinges, brackets, or linkages
• Maintains alignment of moving parts to reduce wobble or binding
• When bent, worn, or missing, you may notice looseness, rattling, misalignment, or difficulty opening/closing related components
• Direct-fit OEM replacement for the specified application

• Disconnect electrical power and shut off water or gas before servicing
• Support the component being serviced to prevent strain or damage during removal/installation
• Note the original orientation and retain any washers, clips, or spacers for transfer to the new pin
• Inspect mating holes/bushings; replace related worn parts to ensure proper fit and operation

This OEM part is a power control board. The power control board provides power to the electronic oven control board. If the oven is no longer turning on, or the digital display is no longer visible, this could mean it's time to replace the power control board. Luckily this is a relatively simple process.To begin, make sure to turn off the power to the oven by unplugging it or shutting off the circuit breaker. Then proceed to remove the upper back panel. Once removed locate the power control board and remove the wire harness and wires attached to it. Be sure to take note of the orientation of the wires to place them into the correct terminals on the new board. Attach the wires to the new board and snap the new board back in place. Resecure the back panel and put the oven back in place.This genuine replacement part is sold individually and is compatible with Bosch, Thermador, and Gaggenau ovens.

This cable harness routes power and signals between key components to restore reliable electrical connections and normal appliance operation. Replace a damaged harness to fix intermittent power, control failures, or non-responsive functions. What it does:

• Provides the multi-conductor wiring path that links control boards, sensors, and motors
• Carries low-voltage signals and/or line power needed for normal appliance functions
• Commonly replaced when wires or connectors are damaged, burned, or corroded
• Can resolve symptoms such as intermittent operation, no power to components, or control errors

• Disconnect all power before accessing wiring or controls to avoid shock
• Route harness along original clips and channels to prevent pinching or chafing
• Inspect connectors for damage and replace if terminals are loose or burned

This ignition cable connects the stove's spark electrode to the ignition system so burners ignite reliably. It replaces a damaged or degraded lead to restore spark delivery and consistent lighting. What it does:

• Transfers ignition voltage from the module to the burner electrode so sparks form at the burner
• Helps stop intermittent or no-spark symptoms when the wire is cracked or corroded
• Prevents arcing caused by insulation damage or improper routing
• Restores normal ignition behavior when the original cable is worn or burned

• One ignition cable

• Disconnect power and turn off gas supply before starting any service
• Inspect routing and connectors; replace only if the wire or insulation is damaged
• Keep the cable away from high-heat areas and sharp edges to prevent future damage
