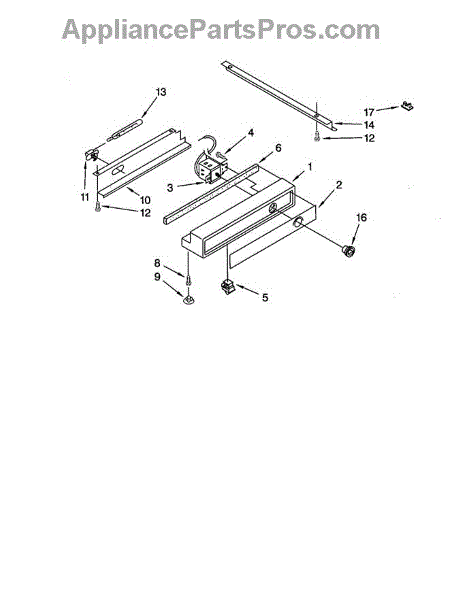

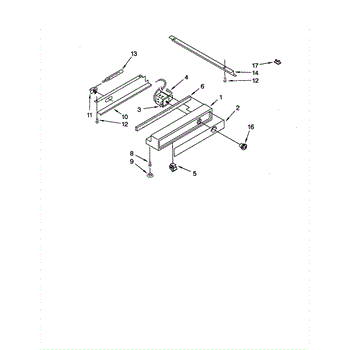

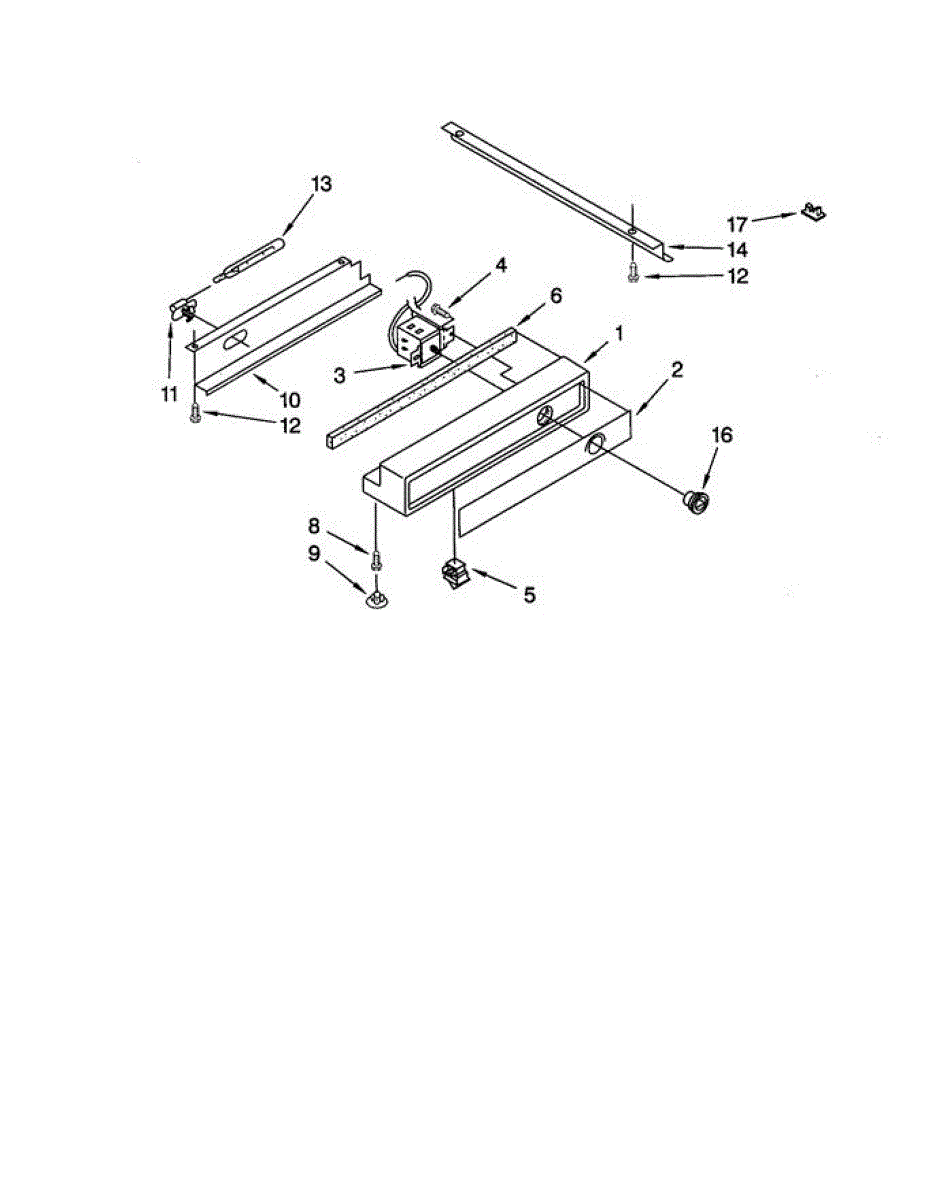

Parts for Kitchenaid KSSS36QJS00: Freezer Control Panel Parts

The Whirlpool EveryDrop Refrigerator Water Filter 5 is an OEM replacement filter for Whirlpool refrigerators. This filter is used in Whirlpool bottom freezer and side-by-side refrigerators which accept Filter 5.

• Single Port Filter
• Simple turn installation requires no special tools
• For best performance, replace every six months
• Micron Rating: 0.5
• Filter Media: Coconut Carbon Block
• Flow Rate: 0.5 GPM
• Capacity: 300 gallons
• Temp Range: 33 - 100 °F
• Pressure Range: 30 - 120 psi
• Approximate dimensions: 2.30 x 3.00 x 11.60 Inches
• Meets NSF Standard: 42
• Approved for WQA Gold Seal
• Reduces 16 contaminants, including lead, mercury, asbestos, etc

This part shields and positions the temperature control's sensing bulb inside the control housing, helping the control respond accurately and keep cabinet temperatures stable. Replace a cracked, deformed, or missing barrier to restore consistent, predictable cooling. What it does:

• Shields the cold-control thermostat/capillary bulb from direct airflow
• Helps the temperature control sense average compartment temperature and cycle correctly
• Supports steady temperatures and normal run times
• A damaged or missing barrier may contribute to temperature swings or frequent control adjustments

• 1 thermostat barrier

• Disconnect power before servicing
• Access the control housing; remove the dial/cover and any retaining screws or clips
• Note the factory routing of the thermostat capillary; install the barrier without kinking or sharply bending the sensor tube
• Reassemble, set controls to mid-range, and allow up to 24 hours for temperatures to stabilize

This push-button door switch senses when your refrigerator door opens and closes to control the interior light. Replace a worn or stuck switch to restore reliable lighting and proper on/off operation when the door moves. What it does:

• Turns the interior light on when the door opens and off when it closes
• Common fix for a light that won't turn on with the door open
• Resolves lights that stay on continuously with the door closed
• Addresses intermittent lighting from a sticking or damaged plunger

• One door switch

• Disconnect power to the refrigerator before servicing
• Carefully pry the old switch from the liner; protect the surface to avoid damage
• Transfer wires to the new switch one at a time to maintain correct connections
• Press the new switch fully into place and restore power to test operation

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Color: Clear. This bulb is 40 watts and 120 volts.
