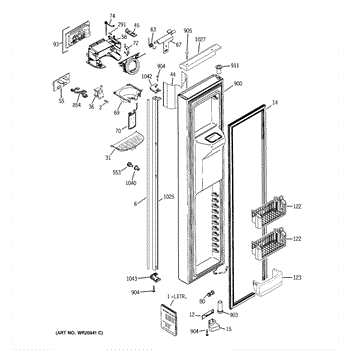

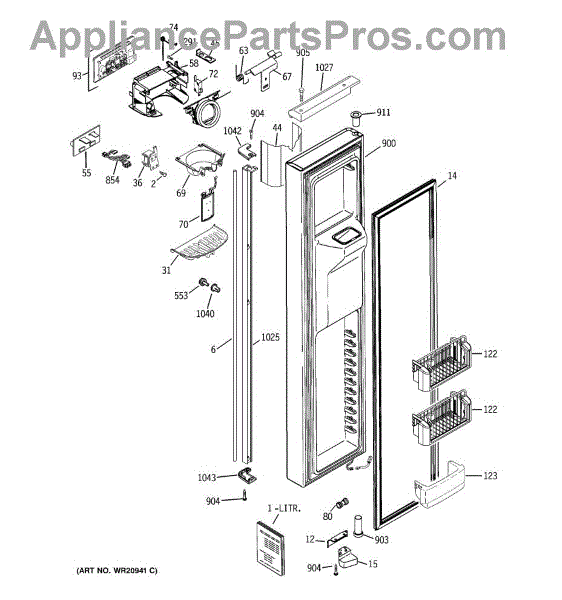

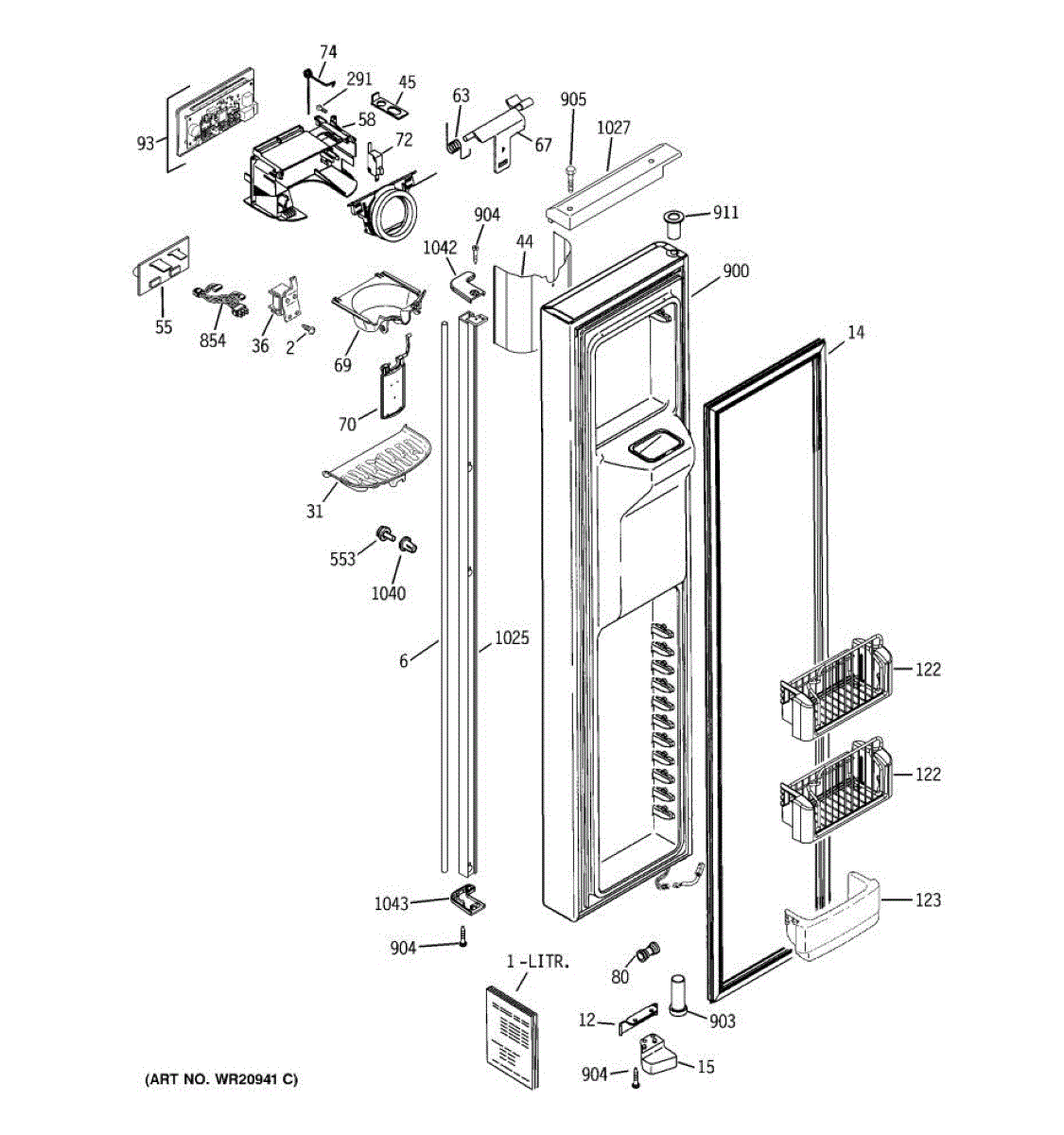

Parts for Ge RCA25RGBBFSV: 01 - Freezer Door Parts

Replacement mounting screw for refrigerator panels, brackets, and internal components. Secures loose assemblies when original fasteners are stripped or missing.

Soft touch insert for refrigerator door handle. Replaces worn, cracked, or missing grip inserts. Restores comfortable grip and finished appearance.

Replaces broken or cracked refrigerator door stop. Installs on door to limit swing range and prevent cabinet damage. Needed when missing or worn.

Replaces a broken or worn freezer door cam closure on side-by-side refrigerators. Installs on the door to control opening range and secure latching.

Recess grill that installs below the dispenser bar to catch spills and overflow. Replace if cracked, warped, or missing from prolonged water exposure.

Ice won't dispense or dispenser flap sticks open? The ice dispenser solenoid controls ice flow. DIY-friendly repair with our install video.

This is the touchpad overlay that covers the dispenser control panel on a refrigerator door. It provides the labeled surface with buttons for selecting water, ice, and other dispenser functions. Replace this overlay if the printed labels are worn or illegible, the buttons feel unresponsive or sticky, or the overlay is peeling away from the panel.

The recess door retainer secures the dispenser's ice chute flapper in the refrigerator door. Replacing a cracked or missing retainer restores proper flapper pivot and sealing to help reduce frost buildup and air leaks around the dispenser.

• Holds the recess/ice door on its pivot within the dispenser assembly
• Helps the flapper close fully to seal the ice chute
• Restores smooth open/close action of the dispenser door
• Common symptoms: loose or fallen flapper, poor chute seal, frost or condensation in the dispenser area, and ice clumping near the chute

• Unplug the refrigerator before servicing the dispenser
• Carefully remove the dispenser bezel/control panel to access the ice chute door assembly
• Note spring orientation and retainer position; transfer components to the new retainer
• Verify flapper movement and seal before reassembly and restoring power

If your dispenser light stays off or won't turn on, this control board restores proper illumination. Moderate DIY, requires clip release and wiring.

Golden-gray shield that covers the dispenser opening on your refrigerator. Replace this trim piece if it's cracked, faded, or missing to restore appearance.

Spring that provides closing tension for the refrigerator water/ice dispenser door flap. Keeps the dispenser sealed when not in use. Replace if door hangs open or won't close.

Replacement dispenser door recess crank for refrigerators. Operates the ice/water dispenser door mechanism. Replace if broken, worn, or corroded.

Ice spilling outside the dispenser or jamming in the chute? A cracked funnel is often the culprit. This replacement guides ice cleanly into your glass.

Water or ice dispenser not working? This dispenser switch activates when you press the lever. Easy DIY repair—takes about 30 minutes with basic tools.

Spring that controls dispenser arm movement in refrigerators. Installs on the paddle assembly. Replace if broken, detached, or missing to restore arm function.

Joins two water tubing sections for your refrigerator's icemaker or dispenser. Replace this fitting if cracked, leaking, or broken to restore connections.

Fixed shelf that secures the freezer control module assembly in place. Replace if cracked, broken, or missing to properly mount electronics and components.

This is a mounting screw used to secure various internal or external components in the refrigerator. It is a small Phillips pan-head fastener designed for use with the specific thread and length required by the appliance. Replace this screw if the original is stripped, lost, or damaged during a repair, causing a component to be loose or improperly secured.

Wire harness for refrigerator dispenser recess area. Replaces damaged, frayed, or corroded wiring. Essential for maintaining electrical connections.

Plastic bushing that fits inside the lower freezer door hinge assembly. Replace when cracked, worn, or broken to restore smooth door operation.

Replacement mounting screw for refrigerator panels, brackets, door handles, and trim. Needed when original hardware is missing, stripped, or corroded.

Replacement mounting screw for refrigerator panels, brackets, and hardware. Secures loose components and reduces rattling from missing or stripped screws.

Bushing that lines the upper hinge pin on refrigerator doors. Replace if cracked, worn, or missing to restore smooth door swing and proper alignment.
