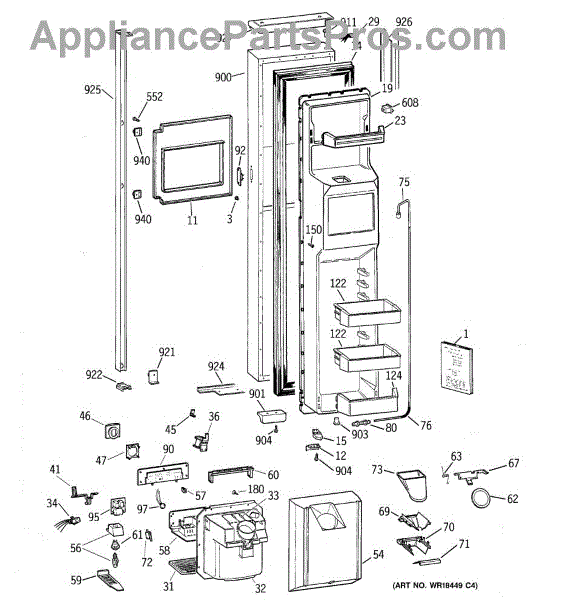

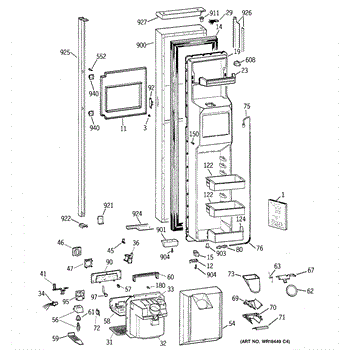

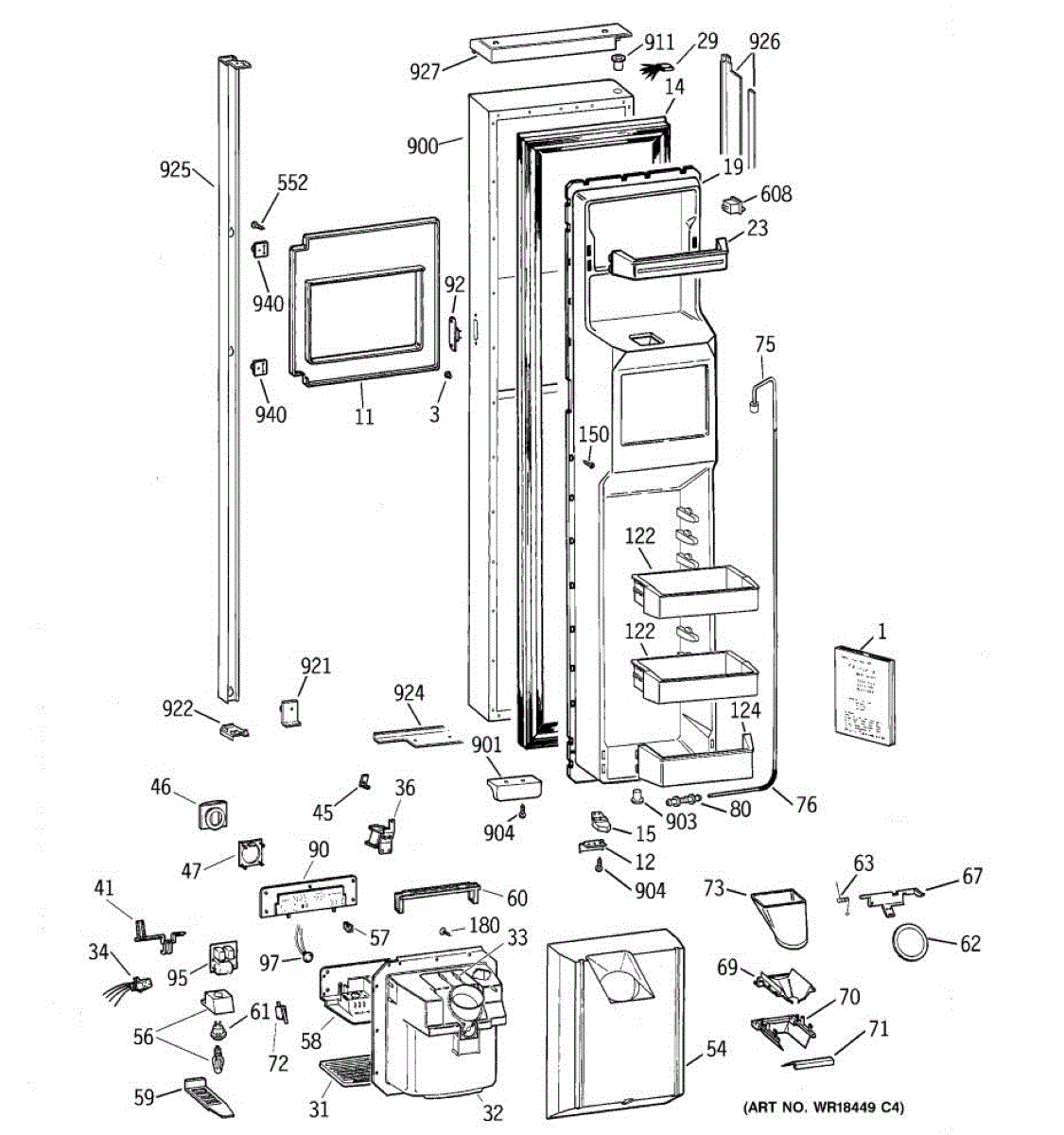

Parts for Ge TPG24BFCEBB: 01 - Freezer Door Parts

Size: 10-32 GXTT FLP.595 S

Color: Black. Other colors: For white use WR17X4153, for almond use WR17X4151.

The recess door retainer secures the dispenser's ice chute flapper in the refrigerator door. Replacing a cracked or missing retainer restores proper flapper pivot and sealing to help reduce frost buildup and air leaks around the dispenser.

• Holds the recess/ice door on its pivot within the dispenser assembly
• Helps the flapper close fully to seal the ice chute
• Restores smooth open/close action of the dispenser door
• Common symptoms: loose or fallen flapper, poor chute seal, frost or condensation in the dispenser area, and ice clumping near the chute

• Unplug the refrigerator before servicing the dispenser
• Carefully remove the dispenser bezel/control panel to access the ice chute door assembly
• Note spring orientation and retainer position; transfer components to the new retainer
• Verify flapper movement and seal before reassembly and restoring power

Color: Black.

This refrigerator lamp socket holds an E12-base appliance bulb and provides the electrical connection for the light fixture. Replace it when the light won't turn on or flickers despite a known-good bulb and functioning door switch.

• Secures an E12 (candelabra) bulb and supplies power to it
• Works with the door/light switch to illuminate the compartment or dispenser area
• Typical failures include heat damage, cracking, or internal contact wear
• Symptoms: no light, intermittent flicker, or a bulb that won't seat firmly

• Disconnect power to the refrigerator before servicing
• Remove any lens/cover, note wire placement, and install the new socket in the original orientation
• Use an E12-base appliance bulb with the wattage specified on your model's rating label
• Restore power and verify operation with the door switch

The Ice Door Assembly is an OEM part for GE refrigerators. It is integral to the ice dispenser system, controlling access to the ice chute. This component ensures the efficient delivery of ice cubes or crushed ice when activated and seals off the chute when not in use to maintain the freezer's temperature and prevent frost buildup.

Symptoms of a bad Ice Door Assembly include:

• Frost or ice buildup around the dispenser area
• Ice escaping from the dispenser when not in use
• Failure to dispense ice
• Noise during operation indicating misalignment or malfunction

Causes of a bad Ice Door Assembly can include mechanical wear from frequent use, failure of the spring mechanism or solenoid that operates the door, or damage to the sealing surfaces that leads to air leaks.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Ice Door Spring is an OEM part compatible with GE refrigerators. It is responsible for providing tension and support to the ice chute door, allowing it to open and close smoothly. When you activate the ice dispenser, the spring helps to release the door and allow the ice to pass through. After dispensing, the spring assists in closing the door to prevent cold air leakage and maintain the desired temperature inside the refrigerator.

You should replace the ice door spring if it loses tension or breaks, which can happen due to regular wear and tear, frequent use, or accidental damage. A faulty spring can lead to issues with the ice dispenser's operation and overall efficiency.

Symptoms of a bad ice door spring may include:

• Difficulty in opening or closing the ice chute door
• Ice dispensing issues, such as the door not opening when the dispenser is activated
• Cold air leakage from the ice chute area
• Ice buildup on the front of the icemaker

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This dispenser crank links the dispenser solenoid and the ice chute door. When you press the dispenser lever, the crank pivots to open and close the ice door so cubes or crushed ice can dispense cleanly without warm air leaking into the freezer.

• Connects the solenoid to the ice chute door to control door movement
• Helps seal the chute when not dispensing to reduce frost and moisture issues
• Common failure signs include ice door not opening/closing, constant frost around chute, or warm/moist air leakage at dispenser
• Can cause ice clumping, frost buildup, or water/ice dispensed irregularly when worn or broken

• Disconnect power before servicing the dispenser area
• Access typically requires removing the dispenser front panel and trim; use care with plastic tabs and wiring
• Note linkage orientation to the solenoid and door flap before removal
• Inspect related parts for wear while open

Color: Black.

Color: Black.

The Refrigerator Union Connector is an OEM replacement part for GE refrigerators. It is responsible for connecting the water supply lines from the kitchen plumbing to the refrigerator, allowing water to flow to the ice maker and water dispenser. The plastic connector assists your water dispenser by joining two 5/16 inch x 5/16 inch plastic water lines. Over time, Union Connectors can crack or break under pressure.

Causes of a bad Union Connector include wear and tear from repeated use, exposure to extreme fluctuations or surges in water pressure, or damage from accidental mishandling.

Symptoms of a bad Refrigerator Union Connector include:

• Water leaks at or near the connector area
• Inconsistent or no water flow to the ice maker/dispenser
• Fluctuations in water pressure to the fridge
• Water damage to surrounding kitchen areas from leaks

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Size: 8-32 TT FL 1/2 S.

Includes 12 screws. Size: 8-18 ab.

This is a screw intended for use in refrigerators, specifically as the top mounting screw for the handle. If the screw in the handle is missing, stripped, or otherwise not performing its function, a replacement screw should be ordered.A visual inspection will determine if a screw is missing. If the door handle is loose or falling off from the top, it is a sign that a replacement screw is required. This repair is a quick and easy process. It involves the use of a screwdriver. Remove the old screw if there is one in place. Line up the holes on the door and the door handle component before twisting the new screw into position. Wear gloves to protect hands during the repair.This screw is a genuine OEM replacement part. It is sourced directly from the manufacturer. The screw is sold individually. The screw is compatible with several different models of refrigerators. It can be installed in ranges made by Electrolux, Frigidaire, Gibson, Westinghouse, and Kelvinator.

8 - 18 x .375

This replacement screw secures panels, brackets, and other hardware in your appliance. Installing a new fastener restores a tight, rattle-free fit when the original is missing, stripped, or corroded, helping keep components properly aligned.

• Fastens components, trim, and brackets to the cabinet or frame
• Replaces a missing, stripped, or rusted screw
• Helps reduce rattles, vibration, and loose panels or handles
• Maintains proper alignment of panels and hardware

• Disconnect power (and water/gas if applicable) before servicing.
• 12-24 thread, approximately 0.90-inch length; match to the original location.
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening.
• Replace any additional damaged fasteners to ensure even clamping and a secure fit.

Package of 12

This freezer door light switch turns the interior freezer light on and off when the door opens and closes, restoring proper illumination so you can see contents clearly and avoid wasting food. What it does:

• Activates the freezer interior light when the door opens; deactivates it when the door closes.
• Replaces a worn, stuck or intermittent switch that causes the light to stay on, not turn on, or flicker.
• Fits into the door or cabinet frame mounting and connects to the existing wiring harness for direct replacement.

• Disconnect power to the appliance before starting any repair to prevent shock.
• Typically snaps into place and connects to the factory wiring harness; no special parts required.

Size: 10-16 ab.

This screw secures panels and components on compatible GE appliances to restore proper fit and reduce vibration. Use it to replace a lost or stripped fastener and keep covers and brackets held firmly in place. What it does:

• Fastens access panels, trim pieces, or internal brackets to maintain proper alignment
• Stops rattling or vibration caused by missing or loose screws
• Restores secure mounting after repair or parts replacement
• Works where the appliance requires a short sheet-metal or machine screw for fastening

• Disconnect power to the appliance before removing panels or performing repairs.
• Use the correct screwdriver or bit to avoid stripping the head.
• Hand-start the screw to ensure proper threading; tighten until snug but avoid over-torquing.

This is a replacement 10-32 x 1 machine screw used to fasten appliance components. It restores secure mounting of panels, brackets and hardware so parts stay aligned and vibration or rattling is reduced. What it does:

• Secures panels, brackets, housings and small components to the appliance frame
• Keeps control boards, motors or assemblies held firmly in place
• Prevents loose parts that can cause vibration, noise or intermittent connections
• Matches the OEM thread and length for proper fit when replacing a worn or missing screw

• Disconnect power before working inside the appliance
• Use the correct 10-32 driver or bit to avoid stripping the head
• Thread into the original hole and tighten snugly; avoid over-torquing
• Replace with the same size and thread type to ensure proper fit and safety
