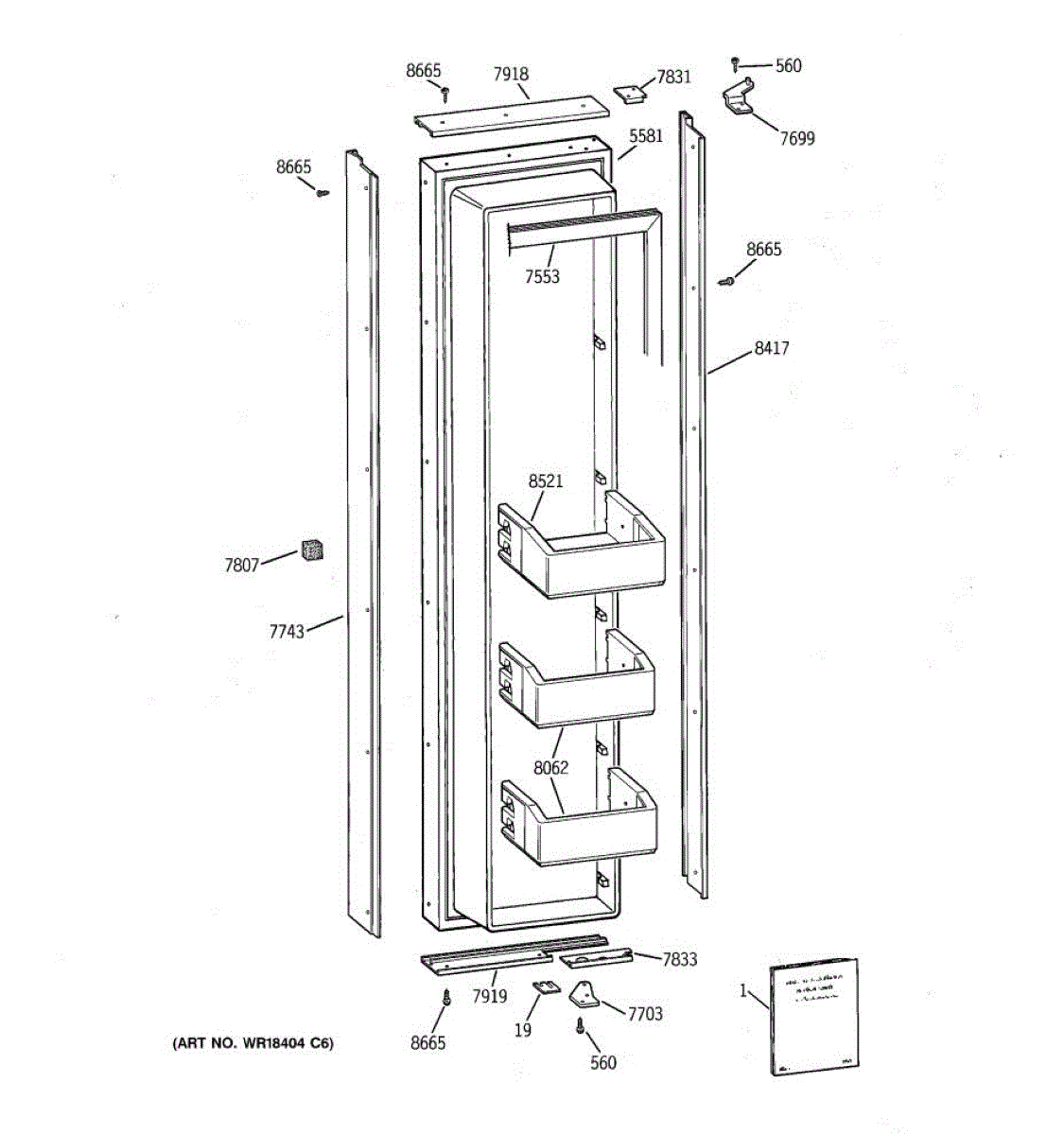

Parts for Ge ZIS48NCA: 01 - Freezer Door Parts

This .030-inch shim is a thin leveling spacer used to correct small height and alignment gaps. It helps stabilize and align appliance components for proper fit and reduced vibration during operation. What it does:

• Provides a precise 0.030-inch thickness to raise or level panels, doors, or chassis components
• Helps eliminate small gaps that can cause rubbing, misalignment, or uneven sealing
• Reduces vibration or rocking by evening out contact points and load distribution
• Useful during cabinet installation or when replacing worn leveling feet or brackets

• Disconnect power (and water if applicable) to the appliance before performing service
• Use appropriate hand tools and keep shims flat and properly seated under the component being adjusted
• Add shims incrementally—do not force parts into position or over-tighten fasteners after shimming

This pack contains twelve replacement screws used to fasten appliance panels, trim, and components. They restore secure mounting and help stop rattling, loose panels, and gaps for a safer, quieter appliance. What it does:

• Secures exterior and interior panels, brackets, and trim pieces
• Restores proper fit where missing or stripped screws cause movement or noise
• Helps maintain appliance alignment and prevents parts from vibrating loose
• Used for general-purpose repairs on compatible GE appliances

• Disconnect power or unplug the appliance before performing any internal repairs
• Use the correct screwdriver bit and avoid overtightening to prevent stripping threads
• Keep remaining screws in a labeled container for future service
• If a screw does not seat easily, stop and verify correct fit to avoid damage

This refrigerator door gasket creates an airtight seal between the door and cabinet to keep cold air in and moisture out. Replace a torn, warped, or leaky gasket to restore proper sealing and consistent temperatures around the door opening. What it does:

• Seals the door perimeter against the cabinet to limit air leaks
• Helps maintain interior temperature and reduce condensation or frost near the door
• Supports proper door closing and alignment
• Common symptoms of a failed gasket: visible cracks/tears, door not sealing, condensation or frost at the door edge, warm spots near the door

• One door gasket

• Disconnect power before servicing
• Warm the new gasket (soak in warm water or use low heat) to make it pliable
• Remove the old gasket and clean the retainer/channel thoroughly
• Press the new gasket fully into the retainer; square corners, check for even contact all around, and use gentle low heat to relax waves; allow up to 24 hours for the gasket to conform

Freezer side bottom door hinge.

Freezer side top hinge shim. For bottom hinge shim use WR2X8593.

Freezer side bottom hinge shim. For top hinge shim use WR2X8592.

The Refrigerator Union Connector is an OEM replacement part for GE refrigerators. It is responsible for connecting the water supply lines from the kitchen plumbing to the refrigerator, allowing water to flow to the ice maker and water dispenser. The plastic connector assists your water dispenser by joining two 5/16 inch x 5/16 inch plastic water lines. Over time, Union Connectors can crack or break under pressure.

Causes of a bad Union Connector include wear and tear from repeated use, exposure to extreme fluctuations or surges in water pressure, or damage from accidental mishandling.

Symptoms of a bad Refrigerator Union Connector include:

• Water leaks at or near the connector area
• Inconsistent or no water flow to the ice maker/dispenser
• Fluctuations in water pressure to the fridge
• Water damage to surrounding kitchen areas from leaks

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This bottom freezer door trim piece provides a finished edge and helps seal the freezer door while restoring the appliance's appearance. It replaces a cracked, dented, or missing lower door trim for a clean, consistent look. What it does:

• Covers and protects the lower edge of the freezer door, keeping the door looking finished
• Helps maintain an even door seal by supporting the door edge where trim mounts
• Commonly replaced when trim is cracked, warped, bent, or cosmetically damaged
• Matches factory fit and mounting locations for straightforward replacement

• One bottom freezer door trim piece

• Designed for bolt- or snap-on installation; remove power to the appliance before starting work
• Handle trim carefully to avoid scratching finish; use non-marring tools as needed
• Small fasteners or clips may be required

Freezer door side trim.

Replacement screw that secures panels and internal components, helping stop rattles and keep parts aligned. Use it to replace stripped, rusted, or missing fasteners and restore a secure fit. What it does:

• Secures panels, trim, or internal parts to prevent movement and vibration.
• Replaces worn, corroded, or missing screws that cause loose panels or rattling.
• Restores proper alignment for doors, covers, and mounted components.
• Provides a simple hardware fix that helps maintain safe, stable operation.

• Always disconnect power to the appliance before accessing internal components.
• Use the correct screwdriver or bit to avoid stripping the head; apply firm but controlled torque.
• Verify screw length, head style, and thread type match the original before installation.
• If threads are damaged, replace with a matching OEM screw rather than over-tightening.
