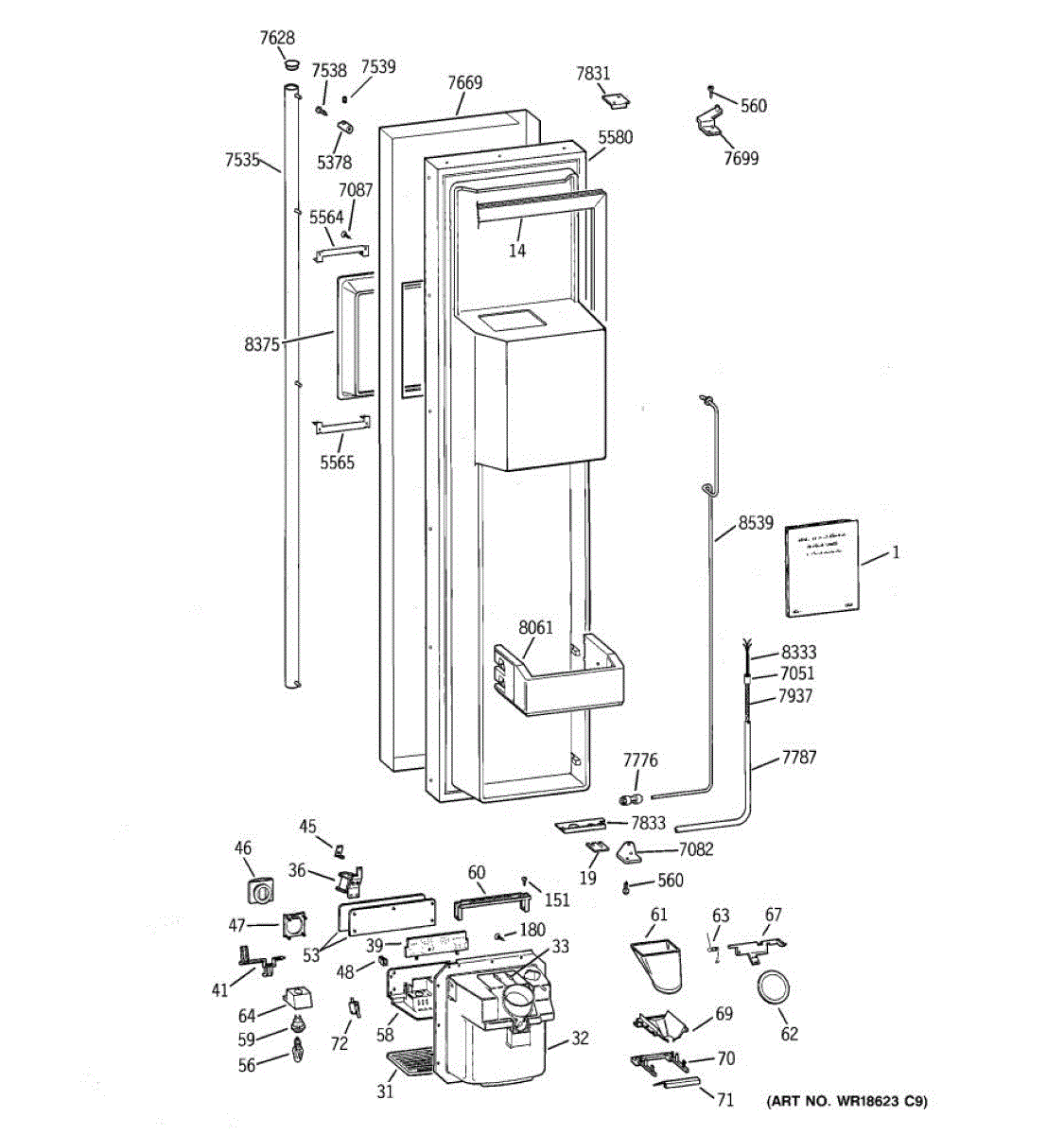

Parts for Ge ZISS36DCBSS: 01 - Freezer Door Parts

This is the magnetic door gasket that seals the refrigerator compartment. A tight, intact gasket helps maintain proper temperature and reduces energy loss by keeping warm air out and cold air in.

• Creates an airtight seal between the refrigerator door and cabinet
• Helps prevent temperature swings, frost, and moisture around the door
• Worn, torn, or warped gaskets can cause warm spots, condensation, or doors not closing properly
• Replace if you see cracks, gaps, or if the gasket no longer holds a seal

• Unplug the appliance before service and remove door contents for easier handling
• Gently warm the gasket (hair dryer on low) to relax folds and improve fit
• Transfer and reuse any retaining hardware; seat the gasket fully in the channel
• Check door alignment and perform a dollar-bill test around the perimeter to confirm sealing

This .030-inch shim is a thin leveling spacer used to correct small height and alignment gaps. It helps stabilize and align appliance components for proper fit and reduced vibration during operation. What it does:

• Provides a precise 0.030-inch thickness to raise or level panels, doors, or chassis components
• Helps eliminate small gaps that can cause rubbing, misalignment, or uneven sealing
• Reduces vibration or rocking by evening out contact points and load distribution
• Useful during cabinet installation or when replacing worn leveling feet or brackets

• Disconnect power (and water if applicable) to the appliance before performing service
• Use appropriate hand tools and keep shims flat and properly seated under the component being adjusted
• Add shims incrementally—do not force parts into position or over-tighten fasteners after shimming

Color: Black. Other colors: For white use WR17X4153, for almond use WR17X4151.

Color: Black.

Door solenoid with plunger.

This control board comes with 2 slide switches and is mounted in the dispenser area.

The recess door retainer secures the dispenser's ice chute flapper in the refrigerator door. Replacing a cracked or missing retainer restores proper flapper pivot and sealing to help reduce frost buildup and air leaks around the dispenser.

• Holds the recess/ice door on its pivot within the dispenser assembly
• Helps the flapper close fully to seal the ice chute
• Restores smooth open/close action of the dispenser door
• Common symptoms: loose or fallen flapper, poor chute seal, frost or condensation in the dispenser area, and ice clumping near the chute

• Unplug the refrigerator before servicing the dispenser
• Carefully remove the dispenser bezel/control panel to access the ice chute door assembly
• Note spring orientation and retainer position; transfer components to the new retainer
• Verify flapper movement and seal before reassembly and restoring power

Color: Black.

Color: clear. It's 7 watts 130 volts.

The Ice Door Assembly is an OEM part for GE refrigerators. It is integral to the ice dispenser system, controlling access to the ice chute. This component ensures the efficient delivery of ice cubes or crushed ice when activated and seals off the chute when not in use to maintain the freezer's temperature and prevent frost buildup.

Symptoms of a bad Ice Door Assembly include:

• Frost or ice buildup around the dispenser area
• Ice escaping from the dispenser when not in use
• Failure to dispense ice
• Noise during operation indicating misalignment or malfunction

Causes of a bad Ice Door Assembly can include mechanical wear from frequent use, failure of the spring mechanism or solenoid that operates the door, or damage to the sealing surfaces that leads to air leaks.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Ice Door Spring is an OEM part compatible with GE refrigerators. It is responsible for providing tension and support to the ice chute door, allowing it to open and close smoothly. When you activate the ice dispenser, the spring helps to release the door and allow the ice to pass through. After dispensing, the spring assists in closing the door to prevent cold air leakage and maintain the desired temperature inside the refrigerator.

You should replace the ice door spring if it loses tension or breaks, which can happen due to regular wear and tear, frequent use, or accidental damage. A faulty spring can lead to issues with the ice dispenser's operation and overall efficiency.

Symptoms of a bad ice door spring may include:

• Difficulty in opening or closing the ice chute door
• Ice dispensing issues, such as the door not opening when the dispenser is activated
• Cold air leakage from the ice chute area
• Ice buildup on the front of the icemaker

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This dispenser crank links the dispenser solenoid and the ice chute door. When you press the dispenser lever, the crank pivots to open and close the ice door so cubes or crushed ice can dispense cleanly without warm air leaking into the freezer.

• Connects the solenoid to the ice chute door to control door movement
• Helps seal the chute when not dispensing to reduce frost and moisture issues
• Common failure signs include ice door not opening/closing, constant frost around chute, or warm/moist air leakage at dispenser
• Can cause ice clumping, frost buildup, or water/ice dispensed irregularly when worn or broken

• Disconnect power before servicing the dispenser area
• Access typically requires removing the dispenser front panel and trim; use care with plastic tabs and wiring
• Note linkage orientation to the solenoid and door flap before removal
• Inspect related parts for wear while open

Color: Black.

Color: Black.

This is a replacement 8-18 x 9/16 machine screw used to secure internal and external appliance components. It restores proper fastening and helps stop rattling or loose panels caused by worn or missing fasteners. What it does

• Secures panels, brackets, or small assemblies to prevent movement and vibration
• Replaces stripped, corroded, or missing screws that can cause rattling or misalignment
• Helps maintain electrical and mechanical connections by holding parts in proper position
• Appropriate where an 8-18 thread size and 9/16" length are required

• Replacement screw

• Disconnect power to the appliance before accessing internal components
• Use the correct driver to avoid stripping the screw head and ensure proper torque
• Do not overtighten; snug until secure to avoid damaging threads or parts

8 - 18 x .375

This pack contains twelve replacement screws used to fasten appliance panels, trim, and components. They restore secure mounting and help stop rattling, loose panels, and gaps for a safer, quieter appliance. What it does:

• Secures exterior and interior panels, brackets, and trim pieces
• Restores proper fit where missing or stripped screws cause movement or noise
• Helps maintain appliance alignment and prevents parts from vibrating loose
• Used for general-purpose repairs on compatible GE appliances

• Disconnect power or unplug the appliance before performing any internal repairs
• Use the correct screwdriver bit and avoid overtightening to prevent stripping threads
• Keep remaining screws in a labeled container for future service
• If a screw does not seat easily, stop and verify correct fit to avoid damage

This euro standoff kit provides the mounting hardware used to secure trim panels and components on compatible appliances, restoring proper panel alignment and preventing rattles or loose trim. It's a direct-fit replacement for the listed part number. What it does:

• Replaces worn or damaged mounting standoffs that hold panels or trim in place
• Restores secure panel attachment to reduce vibration, rattling, or misalignment
• Helps maintain proper spacing between panels and cabinet for correct fit and finish
• Designed to match the original part's fit and function for reliable repair

• Disconnect power to the appliance before servicing to avoid shock or injury
• Remove affected trim/panel carefully to access standoffs; retain screws and hardware
• Install standoffs in the original locations and tighten screws until snug — do not overtighten
• If alignment issues persist after replacement, check adjacent clips, fasteners, and mounting surfaces

This custom collar bracket secures the top collar/trim assembly on the appliance, restoring proper alignment and reducing wobble or vibration where panels meet. Durable stamped metal designed to match the OEM fit. What it does:

• Anchors the top collar or trim to the appliance cabinet to keep panels aligned
• Prevents looseness, rattling, and gaps along the top edge
• Helps maintain a flush fit for doors or trim that rely on the collar for support
• Works as a direct-replacement mounting bracket for the top collar assembly

• Disconnect power to the appliance before starting any repair
• Remove any trim or top panels that obstruct access to the collar area
• Position the bracket and secure using the original fasteners; replace any damaged screws

Freezer foamed door assembly for 36 and 42 inch GE/Monogram refrigerators.

This is a refrigerator handle kit. This kit includes one handle that has a stainless steel finish. The purpose of the handle is to provide a piece to hold onto to open the refrigerator door. The handle could become damaged if it comes into forceful impact with another object. It can become dented or scratched. If the stainless steel finish begins to wear over time, this part will be a high-quality replacement. Save the screws from the original handle to install the one one. Replacing this part is very easy and can be done quickly by following the installation instructions. Some people may wish to wear work gloves to protect their hands during the replacement process.This specific handle kit is compatible with refrigerator units that are manufactured by the General Electric brand, including Hotpoint and RCA. It is sold individually and is sourced directly from the manufacturer.

This is a #10-32 x 3/4 truss-head screw designed to fasten small appliance panels and components securely. It replaces missing or worn fasteners to restore stable mounting and reduce rattles or movement. What it does:

• Secures trim, control panels, brackets, and small assemblies
• Restores tight mounting to stop panel vibration or rattling
• Keeps electrical and mechanical components properly aligned
• Works where a #10-32 machine screw with a short 3/4" length and truss head is required

• Disconnect power before working on the appliance
• Use the correct screwdriver or nut driver to avoid stripping the head
• Tighten until secure; avoid over-tightening which can strip threads or crack plastic
• Keep removed hardware organized for reinstallation

This screw set contains #10-32 thread fasteners used to secure appliance panels and components. It provides direct-fit replacement screws to restore proper fastening and stop loose or rattling parts. What it does:

• Replaces missing or damaged #10-32 screws used on appliances
• Secures panels, brackets, trim pieces, and internal components
• Helps eliminate rattling, vibration noise, and loose fittings
• Restores factory fastening for safe, stable operation

• Disconnect power and water before servicing the appliance
• Keep small parts organized and use a magnetic tray to avoid loss
• Use the correct driver to avoid stripping screw heads; do not overtighten

This water line connector links the refrigerator's water supply tubing to the appliance, restoring a secure water feed for the dispenser and ice maker. A direct-fit replacement that fixes loose or damaged supply connections. What it does:

• Provides a sealed connection between the supply tubing and the refrigerator water system
• Stops leaks caused by cracked, broken or loose connectors
• Restores proper water flow to the dispenser and ice maker when the original connector fails
• Fits the original mounting/location for a direct replacement

• One water line connector

• Turn off the water supply and unplug the appliance before installing
• Inspect tubing for damage and cut back to clean pipe if necessary; ensure proper seating of tubing in the connector
• Hand-tighten fittings; check for leaks after restoring water and power

Freezer side top hinge shim. For bottom hinge shim use WR2X8593.

Freezer side bottom hinge shim. For top hinge shim use WR2X8592.

This fiberglass sleeve protects and insulates tubing and wiring, helping prevent chafing and damage where lines pass through openings or near sharp edges. It's a simple, durable way to extend component life and reduce noise from rubbing. What it does:

• Provides abrasion protection for water lines, hoses, and electrical wiring
• Adds thermal insulation to help reduce condensation and exposure to temperature extremes
• Cushions components where they pass through metal or plastic panels to prevent wear
• Helps reduce rubbing noises caused by vibration or movement

• Disconnect power and water supply before starting
• Inspect surrounding areas for sharp edges or corrosion; replace sleeve if frayed or damaged
• Slide sleeve over the hose or wire; trim to length with scissors if needed and ensure full coverage of exposed areas
• Use appropriate clamps or zip-ties as required to secure the sleeve without compressing it
