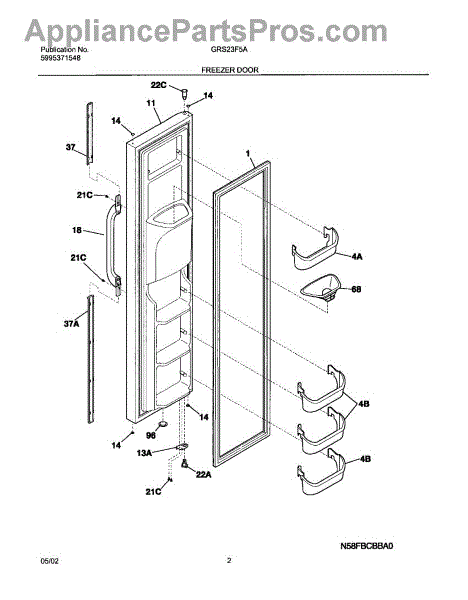

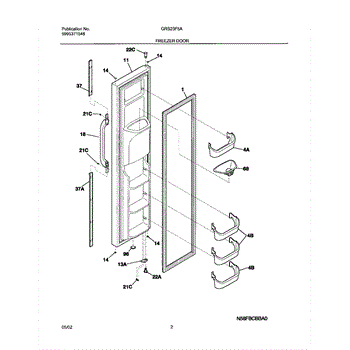

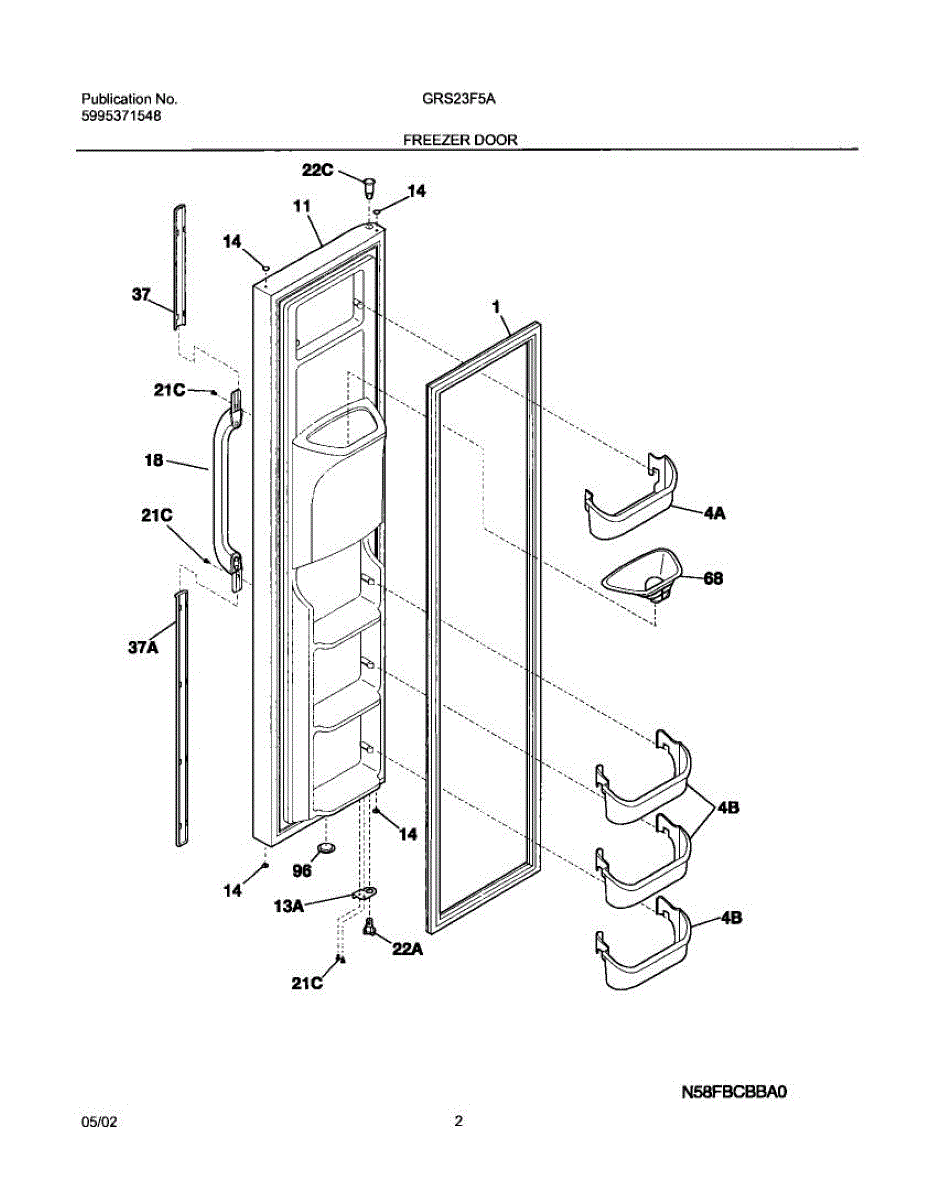

Parts for Gibson GRS23F5AW3: 03 - Freezer Door Parts

This Frigidaire Refrigerator Water Filter is an OEM replacement part for select Frigidaire brand refrigerators with a slide-out cartridge in the front compartment. Your refrigerator water filter reduces the chorine taste and odor from your water. It also effectively helps filter out sediment, including dirt, sand, and rust,

The filter is easy to install without the need for special tools and should be changed every 6 months. With an operating temperature range of 33-100°F and a pressure range of 30-100 PSI, this OEM part offers reliable performance. The filter measures approximately 6-3/4" x 5-1/4" x 2-1/4" and features a high-grade coconut carbon filter media.

For filter bypass order 242227702.

This refrigerator door gasket forms an airtight seal between the door and cabinet to keep cold air in and moisture out. Replacing a worn gasket restores proper temperatures, reduces frost and condensation, and helps the unit run more efficiently.

• Creates a tight perimeter seal to prevent air leaks
• Helps maintain consistent internal temperatures
• Reduces moisture and frost buildup around the door
• Common symptoms of failure: tears or warping, visible gaps, door not sealing fully, temperature fluctuations, excess run time, or condensation at the door edge

• Disconnect power before service.
• Warm the new gasket in hot water or with low heat to relax kinks; avoid overheating.
• Remove the old gasket; install the new one by seating corners first, then work evenly around. For screw-retained styles, loosen and retighten fasteners evenly.
• Verify an even seal all around; adjust door alignment/leveling if needed and use a paper-slip test to check sealing.

Color: white. Measures about 11 inches wide by 4-1/2 inches high by 5 inches deep.

The Door Bin is an OEM part for Frigidaire refrigerators. It is a storage compartment located on the inside of the refrigerator door, providing a convenient space to store items such as condiments, beverages, and jars. This bin measures about 10 inches wide by 4 inches high by 6 inches deep.

A bad door bin can occur due to accidental damage, wear and tear over time, or improper handling. If the bin cracks, breaks, or becomes warped, it can compromise its function and affect the storage capacity of your refrigerator.

Symptoms of a bad door bin include:

• Cracked or broken bin.
• Difficulty in keeping items in place.
• Limited storage capacity.
• Inability to attach the bin to the door.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Adjustable Hinge Kit is an OEM part for Frigidaire refrigerators. This kit includes the components necessary to adjust and secure the refrigerator door hinges, ensuring the door opens and closes smoothly and maintains a proper seal.

Causes of a bad hinge kit can include wear and tear from regular use, physical impact, or loosening of the hinges over time. Misaligned doors can lead to energy inefficiency and temperature fluctuations inside the refrigerator.

Symptoms of a bad adjustable hinge kit include:

• The refrigerator door not closing properly
• A noticeable gap between the door and the refrigerator body
• Difficulty in opening or closing the door
• Cold air escaping from the refrigerator

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Color: White

This factory fastener secures appliance panels and components. Replace a missing, stripped, or corroded screw to restore a tight, rattle-free fit and keep brackets and covers properly aligned.

• Fastens panels, brackets, and internal parts as specified by the manufacturer
• Helps maintain alignment and reduces vibration/rattling
• Replace if the head is stripped, threads are damaged, or corrosion is present
• Symptoms include loose/missing hardware, gaps, or rattling during operation

• Disconnect power; shut off gas/water if applicable before servicing
• Use the correct driver/bit size to avoid stripping the head
• Start threads by hand to prevent cross-threading; do not overtighten
• Match screw length/thread to the location; replace in sets when required

This upper door hinge bearing serves as the low-friction bushing on the top hinge pin so the refrigerator door pivots smoothly. Replacing a worn bearing can stop squeaks and help restore level, easy-opening door operation.

• Provides a low-friction sleeve for the upper hinge pin to reduce wear
• Helps maintain door alignment with the cabinet for a consistent seal
• Common symptoms include squeaking or grinding, door rubbing or sagging, or the door not closing smoothly
• Physical signs include cracks, flattening, or oval-shaped wear in the bushing

• Unplug the refrigerator and remove items from the door
• Support the door; remove the top hinge cover and screws, then lift the door slightly
• Replace the worn upper hinge bearing on the hinge pin or bracket (design varies)
• Reinstall the hinge, align the door, and ensure proper gasket contact

This door hinge bearing fits the refrigerator door hinge and provides a smooth, low-friction pivot point. Replacing a worn bearing restores smoother door movement and helps maintain proper alignment and a reliable gasket seal. What it does:

• Provides a low-friction surface between the hinge pin and door
• Helps keep the door aligned for consistent gasket contact
• Reduces squeaks, scraping, or binding during opening and closing
• Helps with symptoms like door sagging, not closing fully, or uneven sealing

• 1 hinge bearing

• Disconnect power and remove items from the door before servicing
• Support the door; remove hinge cover and fasteners, then lift the door off the hinge pin
• Replace the bearing in the same orientation; reassemble hardware securely
• Reinstall the door and ensure smooth swing and full gasket contact around the perimeter

Snap in

Color: White

This is a push on John Guess design elbow used to connect two 5/16" plastic lines together.
