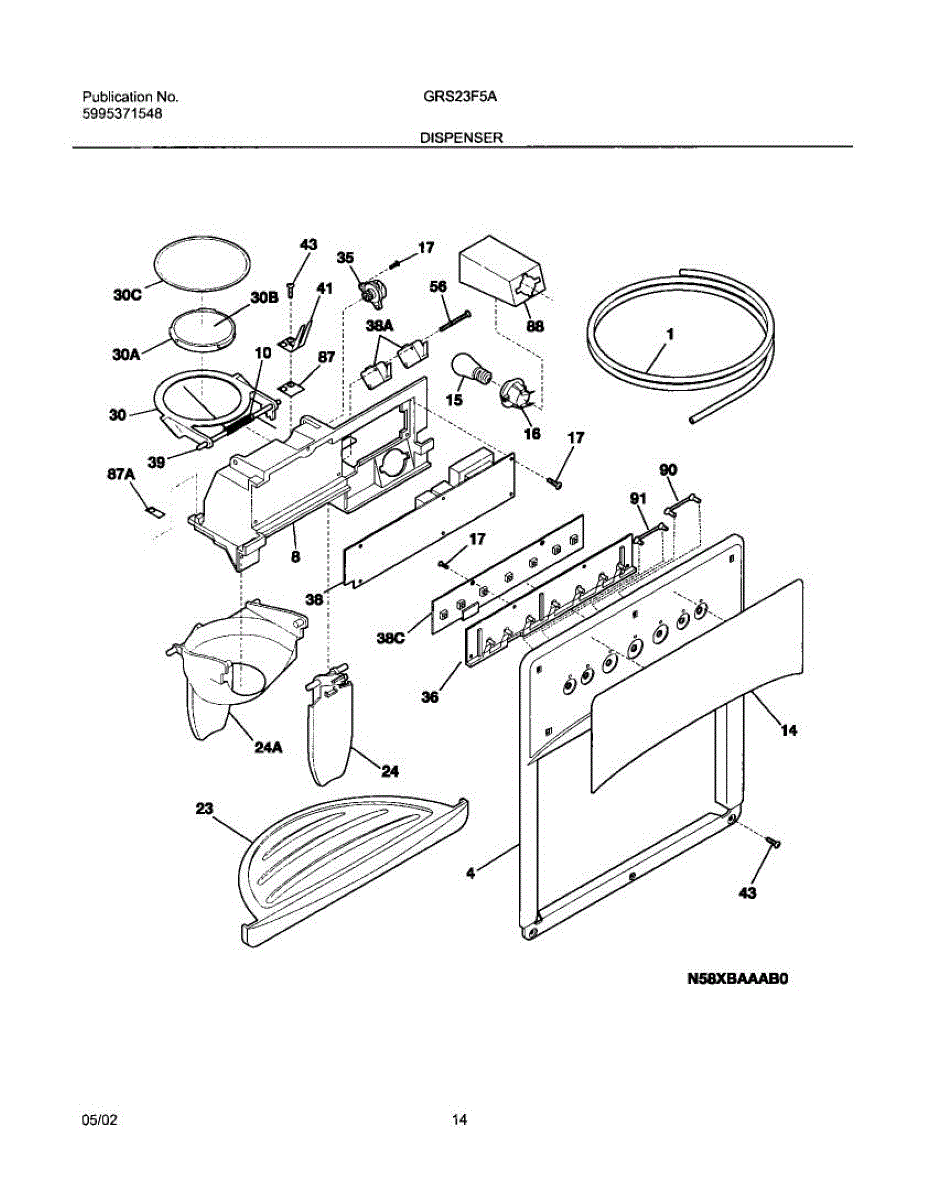

Parts for Gibson GRS23F5AW3: 15 - Dispenser Parts

This Frigidaire Refrigerator Water Filter is an OEM replacement part for select Frigidaire brand refrigerators with a slide-out cartridge in the front compartment. Your refrigerator water filter reduces the chorine taste and odor from your water. It also effectively helps filter out sediment, including dirt, sand, and rust,

The filter is easy to install without the need for special tools and should be changed every 6 months. With an operating temperature range of 33-100°F and a pressure range of 30-100 PSI, this OEM part offers reliable performance. The filter measures approximately 6-3/4" x 5-1/4" x 2-1/4" and features a high-grade coconut carbon filter media.

For filter bypass order 242227702.

The Water Tube is an OEM part for Frigidaire refrigerators. It is responsible for transporting water from the supply line to various components such as the ice maker and water dispenser. Ensuring a steady and reliable flow of water, this tube is essential for the proper functioning of these features.

Causes of a bad water tube can include cracks or splits due to temperature fluctuations, clogging from mineral deposits, or damage from bending and kinking.

Symptoms of a bad water tube include:

• Water leaks inside or outside the refrigerator
• Reduced or no water flow to the ice maker or water dispenser
• Visible cracks or kinks in the tube
• Water tasting off due to contaminants

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Dispenser Frame is an OEM part for Frigidaire refrigerators. It provides structural support for the ice and water dispenser assembly, ensuring that all components are securely held in place and function properly. The frame measures about 11x 12 inches

Causes of a bad dispenser frame can include repeated use, physical impact, or exposure to moisture, which can lead to cracks, warping, or breakage. A damaged frame can compromise the functionality of the dispenser, leading to leaks or misalignment of the dispensing components.

Symptoms of a bad Dispenser Frame include:

• The dispenser assembly becoming loose or wobbly
• Leaks around the dispenser area
• Difficulty in dispensing ice or water properly

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models

This torsion spring mounts in the dispenser to return the ice chute door/flapper to the closed position after dispensing. Replacing a weak or broken spring helps stop warm air leaks, frost, and ice clumping in the chute.

• Provides the closing force for the dispenser ice door
• Helps seal the ice chute to reduce frost and moisture intrusion
• Typical symptoms: ice door won't close fully, frost/ice buildup around the chute, cubes dropping after dispensing, or air leakage at the dispenser
• Replace if the spring is broken, deformed, or has lost tension

• Disconnect power before servicing; shut off water if working near the dispenser area
• Remove dispenser trim/bezel and control panel to access the ice door assembly; support wiring harnesses
• Note spring orientation and preload before removal; install the new spring on the same hinge posts in the same direction
• Manually cycle the flapper to ensure smooth return and a full seal before reassembly

This replacement light bulb restores clear illumination inside your appliance, making it easy to check progress and find items. It matches the original fit and connection for dependable lighting exactly where the manufacturer intended.

• Provides appliance illumination per the original design
• Replaces bulbs that are burned out, dim, flickering, or intermittent
• Helps you monitor progress and see the compartment clearly
• Fits the original socket for straightforward replacement

• Disconnect power to the appliance before replacing the bulb
• Allow the bulb and surrounding area to cool completely
• Handle the bulb by the base; avoid touching the glass
• Replace with the same type and wattage specified on the appliance or in the manual

A replacement refrigerator light socket that holds and connects the interior bulb so the light turns on when the door opens. Restores reliable interior lighting for easier food visibility and maintenance. What it does:

• Holds the interior refrigerator bulb and provides the electrical connection to power the lamp
• Replaces a cracked, burned, loose or intermittently working socket
• Helps stop flickering, arcing, or loss of interior light due to a damaged holder
• Works with the refrigerator's existing wiring and bulb type

• Disconnect power to the appliance before starting any repair
• Handle the bulb carefully; remove it before replacing the socket
• Verify proper wire connections and secure mounting; restore power and test the light after installation

A single replacement mounting screw used to secure appliance panels and components. Restores proper fit and prevents rattling or loose parts so trims and panels stay aligned during normal use. What it does:

• Fastens panels, brackets or trim pieces to the appliance frame
• Replaces worn, stripped or missing screws that cause loose or rattling parts
• Helps restore secure alignment for doors and access panels
• Works where the OEM lists a basic machine/fastener screw

• Disconnect power and water before beginning any repair
• Use the correct screwdriver or driver bit to avoid stripping the head
• Thread by hand to start, then tighten until snug—do not overtighten
• Keep small parts away from children and pets during installation

The Drip Tray is an OEM replacement part that fits Frigidaire refrigerators. It is responsible for catching water drips and spills under the water dispenser. Over time, the tray can crack or warp leading to leaks. Causes of failure include loss of the part, accidental damage, and wear over time.

Symptoms of a failing drip tray include:

• water on the floor
• improper fit allowing leaks
• cracks or breaks in the tray

The drip tray is compatible with Frigidaire, Gibson, White Westinghouse, Kelvinator, Crosley, and Kenmore refrigerator models

This ice dispenser lever is the actuator you press with your glass to release ice from the freezer door. A worn or broken lever can keep the door dispenser from dispensing ice or make it hard to activate.

• Transfers your push at the dispenser pad to the ice dispenser switch
• Helps restore normal ice dispensing from the door chute
• Common symptoms: lever broken, loose, or stuck; no ice dispensed when pressed
• May cause intermittent dispensing if the actuator is worn or misaligned

• Unplug refrigerator before service; wear cut-resistant gloves
• Remove dispenser trim and control panel as needed to access the lever
• Note spring and pivot orientation; transfer any reusable hardware
• Test dispenser operation before reinstalling trim

The Dispenser Lever is an OEM replacement part for Frigidaire refrigerators. This lever is a critical component of the refrigerator's water and ice dispenser system, located on the unit's exterior. It is designed to engage the dispenser when pressed, allowing for the seamless release of ice or water.

Causes of a malfunctioning Dispenser Lever can include physical damage from impact, normal wear, and tear from repeated use, or a failure in the spring mechanism that could prevent it from returning to its off position. Maintaining this part in good working order is essential for its convenience.

Symptoms of a bad Dispenser Lever include:

• The dispenser fails to activate when the lever is pressed.
• The lever sticks in the pressed position or doesn't spring back.
• Difficulty in pressing the lever or it feels loose.

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Ice Chute Door Insulation is an OEM replacement part for Frigidaire refrigerators. It is installed on the ice chute door to prevent warm air infiltration and moisture buildup around the ice dispenser.

Causes may include compression or cracking of insulating foam/material from normal use stress. Spills exposing it to liquid are also damaging.

Symptoms of defective insulation consist of:

• Ice accumulating within the chute cover area
• Condensation visible on exterior chute surfaces
• Inefficient icemaker performance due to altered temperatures

This OEM Frigidaire replacement part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Ice Door Center is an OEM part for Frigidaire refrigerators. This component is part of the ice dispenser system, managing the release of ice through the dispenser chute. It helps prevent cold air from escaping the freezer, maintaining energy efficiency and preserving the ice supply.

You should replace the ice door center if it becomes damaged or fails to seal properly. Causes of a bad ice door center can include regular wear and tear, damage from repeated use, or build-up of ice and debris obstructing its movement.

Symptoms of a bad ice door center include:

• Ice dispenser not working correctly
• Ice build-up around the dispenser area
• Warm air entering the freezer, causing ice to melt or clump
• Increased energy consumption due to poor sealing

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Ice Door Seal is an OEM part for Frigidaire refrigerators. This seal is designed to create an airtight barrier around the ice dispenser door, preventing warm air from entering the freezer and maintaining optimal temperature inside the ice compartment. Please note, this listing is for the seal only, other components are sold separately.

Over time, the ice door seal can become worn out or damaged due to frequent use, exposure to varying temperatures, and regular opening and closing. Causes of a bad ice door seal include cracking, tearing, or loss of elasticity, which can lead to air leaks.

Symptoms of a bad ice door seal include:

• Frost or ice buildup around the ice dispenser
• Warm air entering the freezer compartment
• Increased energy consumption
• Water or condensation around the ice dispenser area
• The ice door not closing properly or sealing tightly

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Ice Door Bracket is an OEM part for Frigidaire refrigerators. It is a critical component of the ice dispenser mechanism, designed to support and align the ice door properly. This bracket ensures the ice door opens and closes smoothly, maintaining an airtight seal to prevent warm air from entering the freezer compartment and causing frost buildup.

Symptoms of a bad Ice Door Bracket include:

• The ice dispenser door failing to close completely, which can lead to ice melting and freezer burn.
• Excessive frost or ice accumulation near the dispenser area.
• Unusual noise when the dispenser is activated, indicating misalignment or instability.

Causes of a bad ice door bracket can include mechanical stress from repeated use, accidental damage from impact, or wear and tear that weakens the structural integrity of the bracket.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Dispenser Switch is an OEM replacement part for Frigidaire refrigerators. It is a component that controls the operation of the water and ice dispenser, allowing users to conveniently access chilled water, cubed ice, or crushed ice from the refrigerator door.

Symptoms of a bad dispenser switch:

• Failure of the water or ice to dispense when the lever or button is activated
• Erratic or inconsistent dispensing behavior
• Water or ice continuously dispensing without user input
• Leaks or moisture around the dispenser area

Causes of a bad dispenser switch can include mechanical wear and tear, electrical malfunctions, or physical damage due to mishandling or impact.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore refrigerator models.

This door hinge pin forms the pivot for the refrigerator door hinge, keeping the door supported and aligned. Replacing a worn or missing pin restores smooth door movement and consistent sealing.

• Acts as the hinge's pivot shaft to support the door
• Helps maintain door alignment so the gasket can seal properly
• Reduces wobble and scraping at the hinge point
• Typical failure symptoms: door sagging, misalignment, poor closing, or a loose/wobbly hinge

• Unplug the refrigerator and remove items from the door to reduce weight.
• Support the door; remove hinge cover and screws, then lift the door off the hinge.
• Replace the hinge pin in the hinge bracket; transfer any existing spacers/bushings as designed.
• Reinstall and align the door; tighten hardware and verify smooth operation and seal contact.

This small but critical actuator spring restores return tension in a refrigerator's actuator mechanism, helping the lever reset to neutral after use so controls feel responsive and operation stops cleanly. What it does:

• Provides the return force for an actuator or lever so it moves back to its neutral position
• Helps the mechanism engage/disengage a switch cleanly
• Common symptoms of a weak or broken spring: lever sticks, feels loose, or doesn't spring back
• Contribute to intermittent activation or failure to stop when released

• 1 actuator spring

• Disconnect power; if working near the dispenser/water system, shut off the water supply
• Access the actuator mechanism and note the spring's exact orientation (take a photo before removal)
• Use needle-nose pliers to transfer the spring; do not over-stretch or deform it
• Wear cut-resistant gloves and eye protection; test lever return action before reassembly

Pan head

Inlet valve to door

Inlet valve filter

Inlet valve to icemaker

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head
