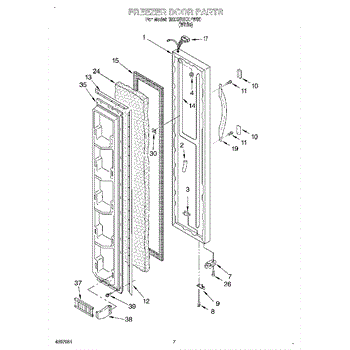

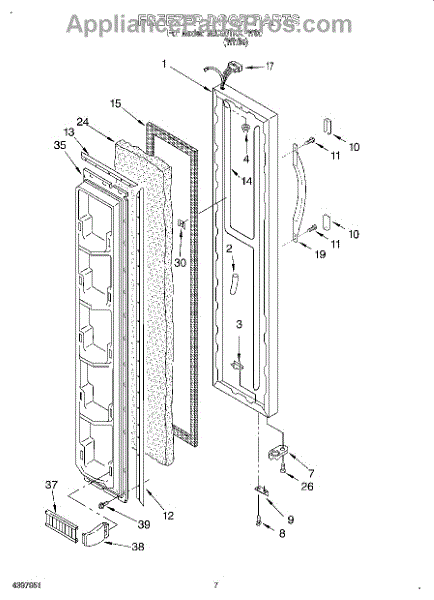

Parts for Whirlpool 6ED20TKXFW00: 05 - Freezer Door Parts

The Door Closer Kit is an OEM part for Whirlpool refrigerators. This kit contains essential components for smooth refrigerator door closing: door cams and screws ensure gentle closure, proper seal, and prevent cool air leakage.

Parts in a door closer kit can wear out over time from frequent use, causing issues like improper closing, the need for extra force to shut, or failed sealing, affecting the refrigerator's cooling.

Symptoms of a bad Door Closer Kit include:

• The refrigerator door feels loose or wobbles when opened or closed
• The door does not close fully on its own or requires extra force to close
• You notice an increase in the refrigerator’s energy consumption due to cool air leaking
• Condensation or frost buildup near the door seal area due to improper sealing

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This replacement screw secures appliance panels, brackets, and internal components so your unit stays assembled, aligned, and quiet. Use it to replace missing, stripped, or corroded hardware and restore a reliable factory-fastened connection.

• Fastens panels, brackets, or trim to the cabinet/frame
• Helps maintain proper alignment of doors, controls, or covers
• Replaces hardware that's missing, rusted, or with a stripped head
• Can help reduce vibration or rattling from loose fasteners

• Disconnect power and shut off gas/water supplies before service
• Match thread and length to the original; transfer any washers if present
• Start threads by hand to avoid cross-threading, then tighten with the correct driver
• Do not overtighten; snug until secure to prevent damage to plastic or sheet metal

Chrome. No longer made in black.

Color: white. It measures about 1 inch wide by 2 inches high.

This replacement screw secures appliance panels, brackets, and components. Using the correct size restores a snug fit to reduce vibration, prevent loosening, and keep assemblies properly aligned during operation. What it does:

• Fastens sheet metal and component brackets in designated locations
• Replaces missing, stripped, or corroded hardware
• Helps eliminate rattling and vibration from loose panels
• Maintains proper alignment of covers and assemblies

• 1 screw

• Disconnect electrical power; shut off water or gas supplies if applicable
• Match length/thread to the original; replace one fastener at a time to preserve alignment
• Start by hand to avoid cross-threading; use the correct driver size
• Snug firmly but do not overtighten to prevent stripping

This freezer door gasket creates a tight seal around the door to keep cold air in and humid air out. Replacing a worn gasket restores proper temperature control, reduces frost, and helps the door close and seal correctly.

• Seals the gap between the freezer door and cabinet to maintain cold temperatures
• Blocks warm, moist room air that can cause frost and ice buildup
• Helps prevent sweating/condensation around the door perimeter
• Addresses issues from torn, shrunken, brittle, or deformed gaskets that won't seal

• Disconnect power before servicing; clear items from the door
• Lay gasket flat and warm gently (hot water or low heat) to relax kinks before installation
• Loosen inner-liner screws/retainer, press gasket fully into the channel, then tighten screws evenly
• Perform a dollar-bill test around the perimeter; gently warm stiff areas to smooth and adjust door alignment if needed

White. For almond order 2186649N. For black order WP2186649B.

This replacement screw secures panels, brackets, and internal components in Whirlpool-built appliances. Use it to replace missing or stripped hardware to restore a snug fit, reduce rattling, and maintain proper alignment. What it does:

• Fastens components to the appliance cabinet or frame
• Helps maintain alignment and proper clearances
• Reduces vibration-related noises from loose or missing hardware
• Common replacement when a screw is lost, corroded, or threads are damaged

• 1 screw

• Disconnect power before service; for gas appliances, also shut off gas supply
• Start threading by hand to avoid cross-threading; use the correct driver bit
• Tighten snugly without overtightening to prevent stripping
• Inspect and replace any worn clip/nut or damaged threads

Color: white. It measures about 2 inches high by 3 inches deep.

Size: 1/4 inch hex head, 10-12 x 1/2 inch.
