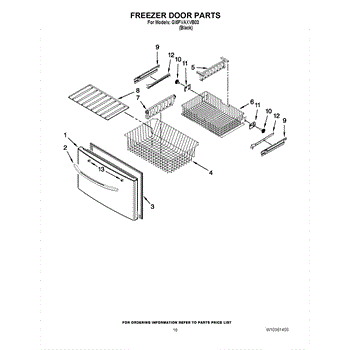

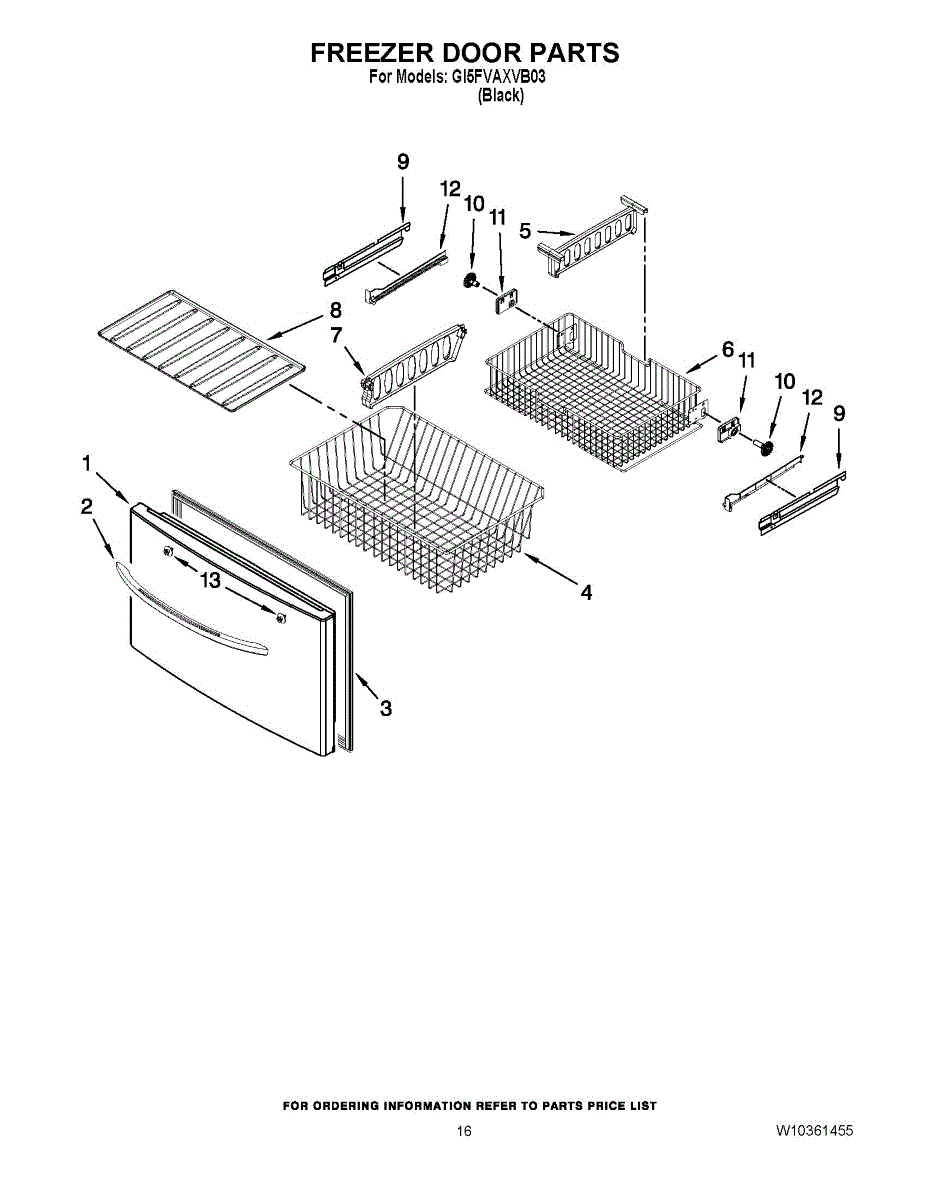

Parts for Whirlpool GI5FVAXVB03: 09 - Freezer Door Parts

Replace your refrigerator water filter every 6 months to ensure clean, fresh-tasting water and ice. Easy twist-on installation. Verify fit with your model.

Replace your cracked, broken, or worn refrigerator door handle. This handle mounts to the exterior door surface for comfortable grip and access.

Seals freezer door to prevent frost buildup and air leaks. Replace when damaged, cracked, or not sealing properly. Verify fit with your model number.

Lost freezer organization? This basket assembly restores storage space and keeps frozen items accessible. Slides out on rails for easy access.

Organizes items inside your refrigerator drawer by creating separate storage sections. Replace if cracked, broken, or missing to restore neat storage.

Supports and secures the freezer basket in proper position for smooth sliding. Replace if cracked, broken, or missing to restore basket alignment.

Support bracket that holds the freezer basket in position and allows it to slide smoothly. Replace if cracked, broken, or basket won't stay aligned.

Refrigerator freezer drawer glide gear that attaches to the rear shaft. Replace if broken, cracked, or missing tabs cause your basket to lean or fall off track.

This spur gear is part of the appliance's drive assembly, transferring motor power to mating components. Replacing a worn or stripped gear restores smooth, consistent motion and helps eliminate grinding, slipping, or no-drive issues. What it does

• Transfers rotational power within the drive mechanism
• Maintains proper engagement with mating gear(s) for smooth operation
• Common failure symptoms: grinding/clicking noises, slipping or stalled movement, irregular motion
• Visual clues: rounded, chipped, or missing teeth

• One spur gear

• Disconnect power; turn off water supply before service
• Access the drive assembly and note gear orientation and any shims/washers during disassembly
• Inspect mating gears, bushings, and bearings; replace any worn components to prevent rapid re-failure
• Apply manufacturer-specified grease if required and tighten fasteners per service information

Left-side gear mount bracket for bottom-mount refrigerators. Secures gear assembly in place. Replace if cracked, broken, or damaged to restore stability.

Right-side gear mount bracket for refrigerators. Secures gear assembly in place. Replace if cracked, broken, or mounting tabs are damaged or missing.

The Drawer Slide Rail is an OEM part for Whirlpool refrigerators. It allows movement of the refrigerator drawer.

A bad drawer slide rail can be caused by regular use, wear and tear, or accidental damage. If you experience issues such as the drawer sticking, not sliding smoothly, or falling off the rail, it may indicate a problem with the slide rail.

Symptoms of a bad drawer slide rail include:

• Difficulty in opening or closing the refrigerator drawer
• Uneven or jerky movement of the drawer
• Drawer falling off or not staying in place

Replace your faulty drawer slide rail with this genuine OEM part to restore your refrigerator.

This Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


The Side Rack is an OEM part for refrigerators. It is designed to ensure movement of the freezer drawer, allowing easy access to frozen items.

A bad freezer drawer slide rail can be caused by regular use, wear and tear, or accidental damage. If you notice issues such as the freezer drawer sticking, not sliding smoothly, or falling off the rail, it may indicate a problem with the slide rail.

Symptoms of a bad drawer rail include:

• Difficulty in opening or closing the freezer drawer
• Uneven movement of the drawer
• Freezer drawer falling off

Replace your faulty freezer drawer slide rail with this genuine OEM part to restore smooth functionality and convenient access to your frozen goods.

This Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


Color: For white, black and bisque models.
