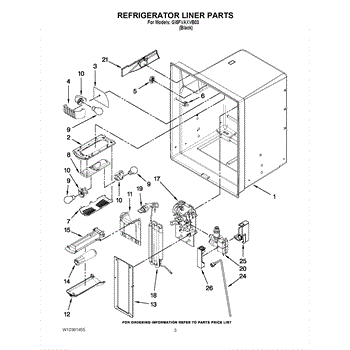

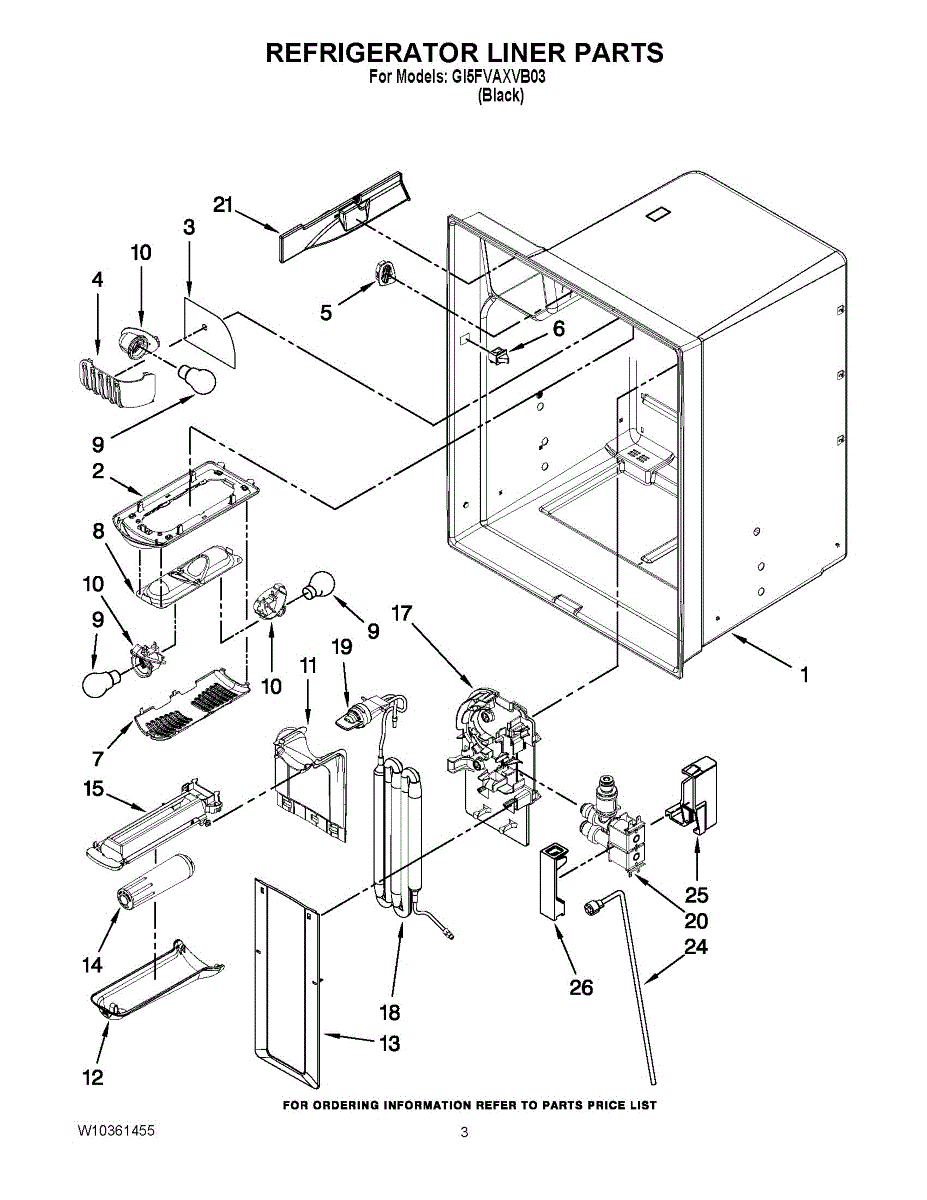

Parts for Whirlpool GI5FVAXVB03: 02 - Refrigerator Liner Parts

The Water Filter is an OEM part for Whirlpool refrigerators. It is designed to filter and purify the water for your refrigerator, ensuring clean and fresh drinking water and ice.

A bad refrigerator water filter can be caused by regular use and the buildup of contaminants over time. It may also become less effective if not replaced according to the manufacturer's recommended schedule.

Symptoms of a bad refrigerator water filter include:

• A decrease in water flow or water pressure.
• An unpleasant taste or odor in the water.
• The presence of particles or sediment in the water.
• Cloudy or discolored ice cubes.

If you notice any of these signs or if it has been more than six months since your last filter replacement, it's time to replace the refrigerator water filter with this genuine OEM part. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


The Door Switch is an OEM part for Whirlpool refrigerators. This switch is crucial for controlling the interior lights and the activation of certain refrigerator functions when the door is opened or closed.

Symptoms of a failing Door Switch include:

• Interior lights staying on when the refrigerator door is closed
• Interior lights not turning on when the door is opened
• The refrigerator unexpectedly starting or stopping
• Alarms or indicators malfunctioning, signaling an open door when it is closed

Causes of a bad door switch can involve mechanical failure due to wear and tear from frequent use, damage from impacts (such as slamming the door), or electrical issues like a short circuit or faulty wiring.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

The Light Bulb Socket is an OEM part for Whirlpool refrigerators. It is responsible for housing the bulb that illuminates the interior fridge light. The socket provides a protective casing and stable electrical connection for the light bulb. Its interior components are precisely arranged to safely conduct current to the bulb.

Causes of a bad light bulb socket can include cracks, loose connections, or damaged internal wiring due to regular use over time.

Symptoms of a bad light bulb socket include:

• The fridge interior light failing to turn on
• The bulb burning out quickly
• Flickering or intermittent lighting

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Water Filter Cover is an OEM part for Whirlpool refrigerators. It is specifically designed to encase and protect the water filter, ensuring it remains securely in place and free from contamination. This cover aids in maintaining the cleanliness and efficiency of the water filtration system, providing safe and clean drinking water.

These problems usually arise from normal wear and tear, accidental damage during filter replacement, or when the refrigerator is moved or handled improperly.

Symptoms of a bad Water Filter Cover include:

• Difficulty in accessing or replacing the water filter.
• Unsecured water filter due to a cracked or broken cover.
• Potential contamination of the water filter if the cover does not seal properly.
• Visible damage or cracks on the cover, which could compromise the integrity of the water filtration system.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This water tank cover replaces a damaged or missing upper reservoir cover to keep the appliance's water reservoir contained and protected. It restores a proper seal and helps prevent water from spilling into internal compartments. What it does:

• Covers and protects the water reservoir to reduce leaks and water intrusion
• Helps maintain correct water flow paths inside the cabinet
• Prevents debris from entering the tank and affecting performance
• Reduces risk of water contacting electrical components or insulation

• One water tank cover

• Designed for drop-in or snap-in replacement; follow OEM diagram for orientation
• Disconnect power and water supply before servicing to avoid shock and leakage
• Inspect adjoining gaskets and mounting clips; replace if cracked or missing
• Handle plastic parts gently to avoid cracking; use appropriate tools to remove fasteners

The Water Filter is an OEM part for Whirlpool refrigerators. It is designed to filter and purify the water for your refrigerator, ensuring clean and fresh drinking water and ice.

A bad refrigerator water filter can be caused by regular use and the buildup of contaminants over time. It may also become less effective if not replaced according to the manufacturer's recommended schedule.

Symptoms of a bad refrigerator water filter include:

• A decrease in water flow or water pressure.
• An unpleasant taste or odor in the water.
• The presence of particles or sediment in the water.
• Cloudy or discolored ice cubes.

If you notice any of these signs or if it has been more than six months since your last filter replacement, it's time to replace the refrigerator water filter with this genuine OEM part. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


This bracket mounts the refrigerator's water filter base/head to the cabinet. Replace a cracked or missing bracket to keep the filter housing secure and properly aligned for smooth filter changes and proper sealing at the connections.

• Secures the water filter head/base to the refrigerator cabinet or liner
• Maintains alignment so the cartridge seats and locks correctly
• Stabilizes the housing to help reduce vibration and drips at the fittings
• Typical symptoms: loose or sagging filter housing, leaks around the filter head, difficulty inserting/removing the filter, rattling during dispensing

• Unplug the refrigerator and shut off the water supply before servicing
• Remove the water filter and any cover or grille to access the bracket
• Support the filter head and tubing; remove mounting screws and swap in the new bracket using existing hardware
• Restore water and power, reinsert the filter, then check for leaks and flush per your filter's instructions

This mounting bracket secures the refrigerator water tank assembly to the cabinet, keeping the tank stable for reliable dispensing and ice/water system operation. Designed to match factory fit for a secure hold. What it does:

• Holds the water tank in place to prevent movement or vibration during normal use
• Maintains proper alignment for water lines and connections
• Helps prevent leaks caused by tank shifting or misalignment
• Addresses symptoms like rattling, loose tank, or intermittent water flow related to a poorly secured tank

• Disconnect power to the appliance before beginning any work
• Shut off the water supply and drain residual water from the lines before removing the tank
• Basic hand tools are typically required; follow OEM diagram for correct placement and fastener locations

This is the refrigerator's water reservoir. It stores a small volume of water inside the fresh-food section so the dispenser delivers a steady, chilled supply. Replace a cracked or blocked tank to stop leaks and restore consistent flow. What it does

• Holds and chills water for the dispenser inside the refrigerator
• Helps maintain consistent dispenser flow and pressure
• Common failure signs include leaks or puddling under the crisper drawers
• May also present as little/no water from the dispenser or sputtering/air in the line

• 1 water reservoir

• Disconnect power and shut off the water supply; depress the dispenser paddle to relieve line pressure
• Access is typically behind crisper drawers or a fresh-food compartment cover, depending on model
• Keep towels handy; disconnect push-to-connect fittings and note tube routing/orientation
• After installation, fully seat tubing, restore water, purge air by dispensing several glasses, and check for leaks

The Cartridge Bypass is an OEM part for Whirlpool refrigerators. It is designed to replace the water filter cartridge when filtration is not desired or necessary. This allows the refrigerator to bypass the filter and provide unfiltered water to the dispenser and ice maker.

Common causes of failure include wear and tear, improper installation, or physical damage from mishandling.

Symptoms of a bad Cartridge Bypass include:

• Water leakage around the filter area
• Reduced water flow or no water flow from the dispenser
• Ice maker not producing ice

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Water Inlet Valve is an OEM part for Whirlpool refrigerators. It controls the flow of water into the refrigerator for the icemaker and water dispenser, ensuring a consistent supply for ice production and chilled water.

Common causes of failure include sediment buildup, electrical issues, or damage from freezing. A malfunctioning valve can disrupt the water supply, affecting both the icemaker and water dispenser functions.

Symptoms of a bad Water Inlet Valve include:

• No water or ice production
• Slow filling of the ice tray or water dispenser
• Leaks or puddles around the refrigerator
• Unusual noises when the water dispenser is activated

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This wire cover protects and secures the ice maker wiring and harness inside the freezer, helping prevent snagging or damage for reliable ice maker operation. It's a small replacement panel used where wires route to the ice maker assembly. What it does:

• Shields the ice maker wiring harness from contact, abrasion, and accidental disconnection
• Keeps wiring routed neatly to reduce strain and interference with moving parts
• Helps maintain proper clearance between wires and the ice maker or evaporator fan
• Can resolve symptoms like loose or exposed wiring near the ice maker or visible wire routing damage

• One wire cover for the ice maker wiring harness

• Disconnect power to the appliance before accessing the ice maker area
• Remove only the fasteners indicated by your model's service instructions and retain them for reassembly
• Handle plastic parts gently to avoid cracking; align tabs and screw holes before fastening
• If wiring is damaged or connectors are loose, inspect/replace the wiring or connector as needed
