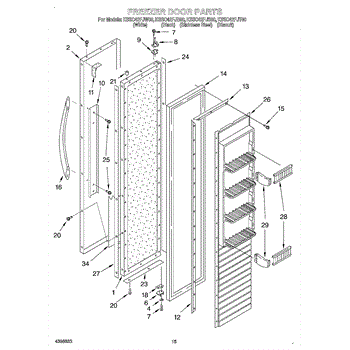

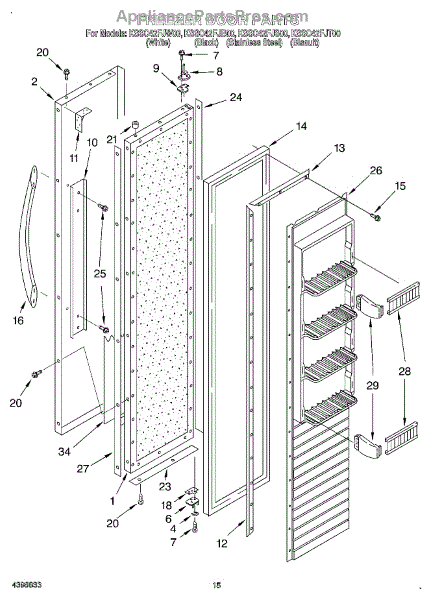

Parts for Kitchenaid KSSC42FJS00: 11 - Freezer Door Parts

The Whirlpool EveryDrop Refrigerator Water Filter 5 is an OEM replacement filter for Whirlpool refrigerators. This filter is used in Whirlpool bottom freezer and side-by-side refrigerators which accept Filter 5.

• Single Port Filter
• Simple turn installation requires no special tools
• For best performance, replace every six months
• Micron Rating: 0.5
• Filter Media: Coconut Carbon Block
• Flow Rate: 0.5 GPM
• Capacity: 300 gallons
• Temp Range: 33 - 100 °F
• Pressure Range: 30 - 120 psi
• Approximate dimensions: 2.30 x 3.00 x 11.60 Inches
• Meets NSF Standard: 42
• Approved for WQA Gold Seal
• Reduces 16 contaminants, including lead, mercury, asbestos, etc

The Screw is an OEM part for Whirlpool refrigerators. This screw plays a small but important structural role, securely fastening the refrigerator door hinges in place.

Causes of a bad screw include normal wear and tear, repeated door opening/closing stress, or accidental damage during cleaning or servicing of the hinge area.

Symptoms of a bad hinge screw include:

• Loose or sagging door that does not close or seal properly
• Increased vibration or noise from the hinge area
• Difficulty opening/closing the door smoothly

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This replacement refrigerator door gasket restores a tight seal between the door and cabinet to help maintain proper temperature and reduce frost and moisture. Use it when the existing seal is torn, warped, or not sealing evenly.

• Creates an airtight barrier around the door to limit warm air infiltration and cold air loss
• Helps minimize frost/ice buildup and condensation at the door opening
• Replaces cracked, shrunken, or deformed gaskets that leave gaps or air leaks
• Common symptoms include visible tears, moisture on or around the seal, temperature fluctuations, or a door that won't seal fully

• Unplug the refrigerator; allow the new gasket to warm to room temperature. Gentle warming (hot water bath or low heat) can help relax kinks.
• Clean the door's sealing surface. Remove the old gasket carefully to avoid damaging any retaining channel.
• Fit corners first, then work along the sides for an even, uniform seal. Design and attachment method vary by model.
• Close the door and check for even contact (dollar-bill test). Readjust gasket seating or door alignment as needed.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This top door spacer positions and supports the upper edge of the appliance door to maintain correct clearance and alignment for smooth opening and closing. It helps keep the door trim and glass properly spaced for reliable operation. What it does:

• Keeps the top edge of the door correctly spaced from the cabinet to prevent rubbing or binding
• Helps maintain door alignment for an even seal and consistent closing
• Reduces vibration-related noise by stabilizing the door assembly
• Protects trim and glass from contact damage at the top edge
• Useful when replacing worn or missing door support components

• One top door spacer

• Disconnect power to the appliance before starting any repair
• Remove the door or door trim panels per the manufacturer's instructions to access the spacer
• Handle door glass and trim carefully; use appropriate tools and support to avoid damage

This is a fastener screw used to secure appliance panels and components where a 10-24 thread is required. It provides a reliable hold for reattaching parts during repairs and maintenance. What it does:

• Fastens panels, brackets, or components with a 10-24 threaded hole
• Restores original attachment points that have missing or damaged screws
• Helps reduce vibration and rattling when properly tightened
• Works with metal or reinforced plastic mating components designed for 10-24 hardware

• One screw (quantity: 1)

• Use the matching 10-24 driver/socket and turn until snug; avoid over-tightening
• Verify mating threads and alignment before driving to prevent cross-threading
• Disconnect power and follow appliance safety procedures before servicing
• Check for proper washer or spacer if originally present
