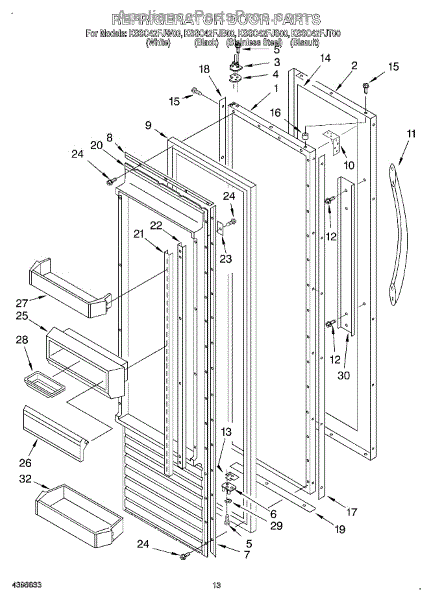

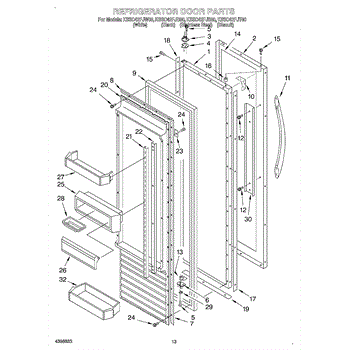

Parts for Kitchenaid KSSC42FJS00: 10 - Refrigerator Door Parts

The Whirlpool EveryDrop Refrigerator Water Filter 5 is an OEM replacement filter for Whirlpool refrigerators. This filter is used in Whirlpool bottom freezer and side-by-side refrigerators which accept Filter 5.

• Single Port Filter
• Simple turn installation requires no special tools
• For best performance, replace every six months
• Micron Rating: 0.5
• Filter Media: Coconut Carbon Block
• Flow Rate: 0.5 GPM
• Capacity: 300 gallons
• Temp Range: 33 - 100 °F
• Pressure Range: 30 - 120 psi
• Approximate dimensions: 2.30 x 3.00 x 11.60 Inches
• Meets NSF Standard: 42
• Approved for WQA Gold Seal
• Reduces 16 contaminants, including lead, mercury, asbestos, etc

The Screw is an OEM part for Whirlpool refrigerators. This screw plays a small but important structural role, securely fastening the refrigerator door hinges in place.

Causes of a bad screw include normal wear and tear, repeated door opening/closing stress, or accidental damage during cleaning or servicing of the hinge area.

Symptoms of a bad hinge screw include:

• Loose or sagging door that does not close or seal properly
• Increased vibration or noise from the hinge area
• Difficulty opening/closing the door smoothly

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This bottom hinge assembly replaces a worn or damaged door hinge to restore proper door alignment and operation. It helps the door open and close smoothly and keeps the appliance door stable during use. What it does:

• Provides the pivot point for the lower side of the appliance door so it swings correctly
• Restores proper door alignment to prevent rubbing, binding or uneven gaps
• Eliminates noisy or rough door movement caused by a broken or worn hinge
• Helps the door latch and seal correctly by maintaining correct hinge geometry

• One bottom hinge assembly

• Disconnect power to the appliance before starting any repair; shut off water supply if applicable
• Support the door while removing the old hinge to prevent dropping or damage
• Use appropriate hand tools; follow OEM instructions for torque and fastener placement
• Inspect mating hardware and surrounding mounts; replace both sides if one hinge shows similar wear

This refrigerator door gasket compresses against the cabinet to create an air-tight seal. Replacing a worn gasket helps keep cold air in, maintain set temperatures, reduce moisture and frost, and support overall efficiency.

• Forms a continuous perimeter seal so the door closes snugly against the frame
• Helps maintain consistent internal temperatures and proper humidity
• Reduces frost/ice buildup and exterior condensation around the door area
• Signs of failure can include torn or warped rubber, visible gaps, condensation or frost near the door, longer run times, or warming inside the compartment

• Unplug the refrigerator and clear items from the door for easier handling
• Warm the new gasket (room temperature, or gently with a hair dryer on low or warm water) to relax folds—do not overheat
• If retained by screws, loosen the inner-liner retainer, seat the gasket lip starting at the corners, then tighten evenly; for push-in styles, press fully into the channel
• After installation, verify uniform contact all around and adjust door hinges if needed; allow up to 24 hours for the gasket to fully conform

This is a fastener screw used to secure appliance panels and components where a 10-24 thread is required. It provides a reliable hold for reattaching parts during repairs and maintenance. What it does:

• Fastens panels, brackets, or components with a 10-24 threaded hole
• Restores original attachment points that have missing or damaged screws
• Helps reduce vibration and rattling when properly tightened
• Works with metal or reinforced plastic mating components designed for 10-24 hardware

• One screw (quantity: 1)

• Use the matching 10-24 driver/socket and turn until snug; avoid over-tightening
• Verify mating threads and alignment before driving to prevent cross-threading
• Disconnect power and follow appliance safety procedures before servicing
• Check for proper washer or spacer if originally present

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This top door spacer positions and supports the upper edge of the appliance door to maintain correct clearance and alignment for smooth opening and closing. It helps keep the door trim and glass properly spaced for reliable operation. What it does:

• Keeps the top edge of the door correctly spaced from the cabinet to prevent rubbing or binding
• Helps maintain door alignment for an even seal and consistent closing
• Reduces vibration-related noise by stabilizing the door assembly
• Protects trim and glass from contact damage at the top edge
• Useful when replacing worn or missing door support components

• One top door spacer

• Disconnect power to the appliance before starting any repair
• Remove the door or door trim panels per the manufacturer's instructions to access the spacer
• Handle door glass and trim carefully; use appropriate tools and support to avoid damage

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.
