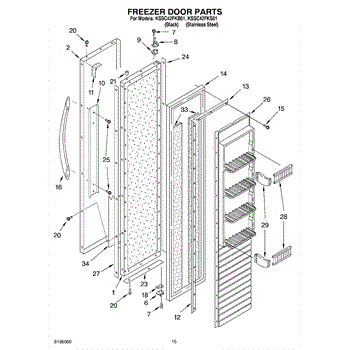

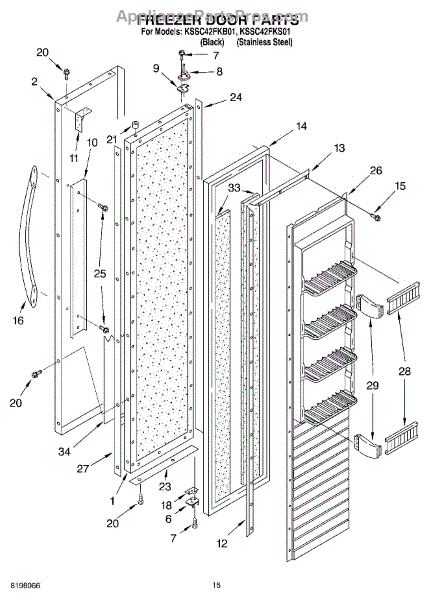

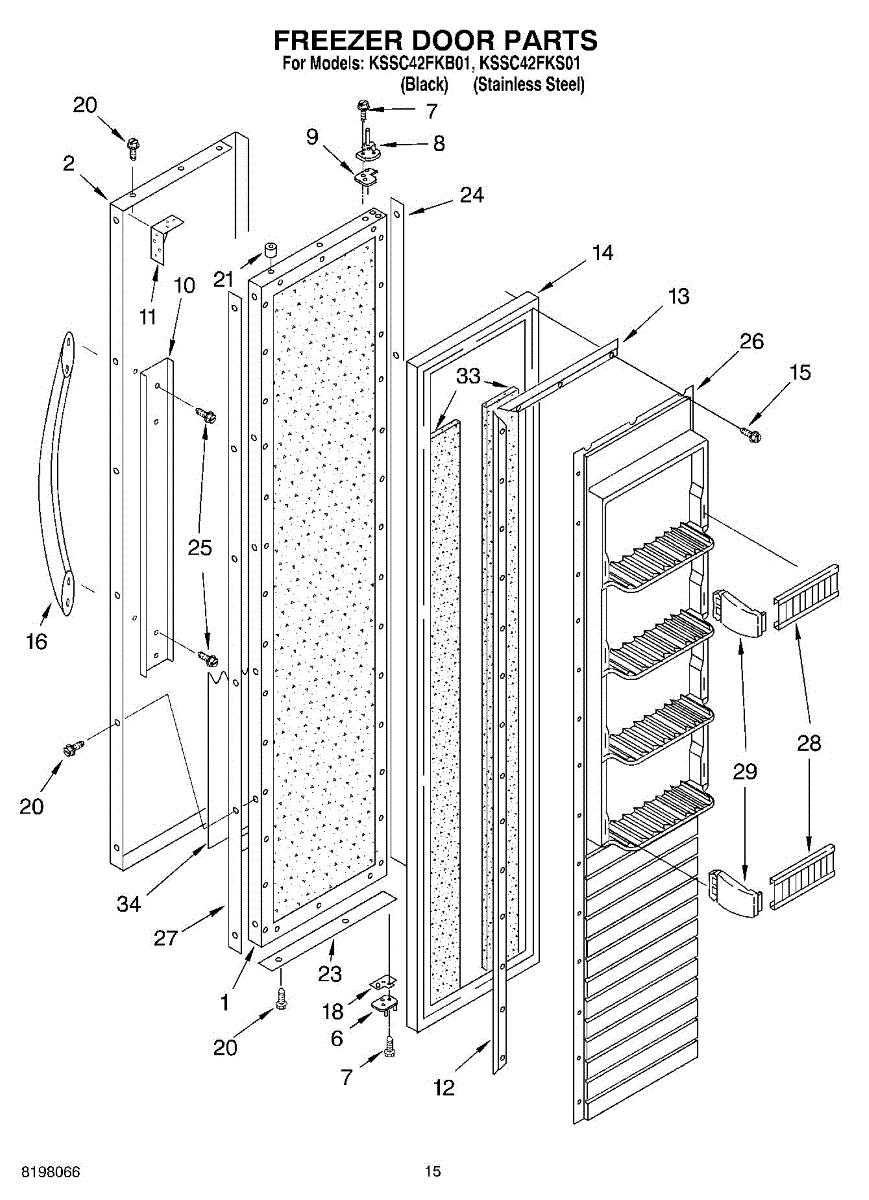

Parts for Kitchenaid KSSC42FKB01: 10 - Freezer Door Parts

The Whirlpool EveryDrop Refrigerator Water Filter 5 is an OEM replacement filter for Whirlpool refrigerators. This filter is used in Whirlpool bottom freezer and side-by-side refrigerators which accept Filter 5.

• Single Port Filter
• Simple turn installation requires no special tools
• For best performance, replace every six months
• Micron Rating: 0.5
• Filter Media: Coconut Carbon Block
• Flow Rate: 0.5 GPM
• Capacity: 300 gallons
• Temp Range: 33 - 100 °F
• Pressure Range: 30 - 120 psi
• Approximate dimensions: 2.30 x 3.00 x 11.60 Inches
• Meets NSF Standard: 42
• Approved for WQA Gold Seal
• Reduces 16 contaminants, including lead, mercury, asbestos, etc

The Screw is an OEM part for Whirlpool refrigerators. This screw plays a small but important structural role, securely fastening the refrigerator door hinges in place.

Causes of a bad screw include normal wear and tear, repeated door opening/closing stress, or accidental damage during cleaning or servicing of the hinge area.

Symptoms of a bad hinge screw include:

• Loose or sagging door that does not close or seal properly
• Increased vibration or noise from the hinge area
• Difficulty opening/closing the door smoothly

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Replace a worn or leaky seal with this refrigerator door gasket. It creates an airtight barrier between the door and cabinet to keep cold air in, reduce frost and moisture, and help your refrigerator run efficiently.

• Forms the perimeter seal so the door closes tightly against the cabinet
• Helps maintain stable temperatures and humidity, reduces frost/condensation, and limits energy loss
• Replace if the gasket is torn, cracked, deformed, or not sealing evenly
• Common symptoms: warm spots, moisture around the door, frost along the liner, or the door popping open

• Disconnect power before servicing
• Warm the new gasket in hot water or with low heat to relax shipping folds for easier fit
• If your model uses a retainer, loosen screws, remove the old gasket, press the new lip fully into the channel, then tighten evenly
• Check the seal all around and adjust hinges if needed; use a "dollar-bill test" to ensure even tension

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This factory replacement screw secures appliance components. It replaces missing or worn hardware to restore a tight, aligned fit for panels, brackets, and assemblies—reducing rattles and keeping parts firmly in place during everyday use.

• Fastens covers, brackets, trim, or internal assemblies to the cabinet/frame
• Replaces stripped, rusted, or missing hardware
• Helps correct loose or misaligned panels or handles
• Can reduce vibration noise caused by unsecured parts

• Disconnect power; shut off water or gas supply if applicable
• Use the correct driver/bit; hand-start threads to avoid cross-threading
• Tighten snugly without overtightening to prevent damage
• Replace any companion clips or grommets if worn

The Screw is an OEM part compatible with Whirlpool dryers. This screw connects the back panel to the side panel, ensuring the dryer cabinet is securely assembled. It plays an integral role in maintaining the structural integrity of the dryer housing.

Symptoms of a bad screw can include loosening, corrosion, or breakage over time and use. This can compromise the bond between panels and weaken the overall dryer frame.

Causes of a bad screw include:

• Repeated expansion and contraction from heat cycles
• Vibrations loosening the connection point
• Stress or cracks developing at the screw head or threads

These issues can lead to:

• Gaps appearing between panels
• Components like controls detaching from the housing
• Cabinet unable to withstand pressure changes

This OEM Whirlpool replacement screw is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This top door spacer positions and supports the upper edge of the appliance door to maintain correct clearance and alignment for smooth opening and closing. It helps keep the door trim and glass properly spaced for reliable operation. What it does:

• Keeps the top edge of the door correctly spaced from the cabinet to prevent rubbing or binding
• Helps maintain door alignment for an even seal and consistent closing
• Reduces vibration-related noise by stabilizing the door assembly
• Protects trim and glass from contact damage at the top edge
• Useful when replacing worn or missing door support components

• One top door spacer

• Disconnect power to the appliance before starting any repair
• Remove the door or door trim panels per the manufacturer's instructions to access the spacer
• Handle door glass and trim carefully; use appropriate tools and support to avoid damage

This is a fastener screw used to secure appliance panels and components where a 10-24 thread is required. It provides a reliable hold for reattaching parts during repairs and maintenance. What it does:

• Fastens panels, brackets, or components with a 10-24 threaded hole
• Restores original attachment points that have missing or damaged screws
• Helps reduce vibration and rattling when properly tightened
• Works with metal or reinforced plastic mating components designed for 10-24 hardware

• One screw (quantity: 1)

• Use the matching 10-24 driver/socket and turn until snug; avoid over-tightening
• Verify mating threads and alignment before driving to prevent cross-threading
• Disconnect power and follow appliance safety procedures before servicing
• Check for proper washer or spacer if originally present
