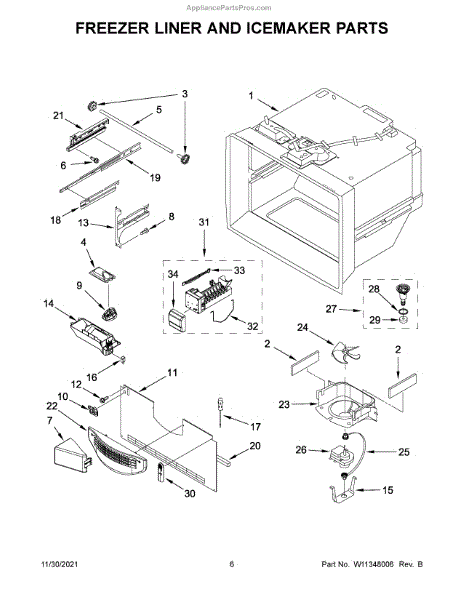

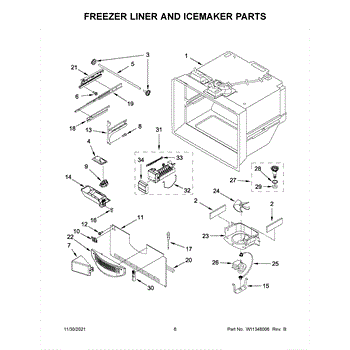

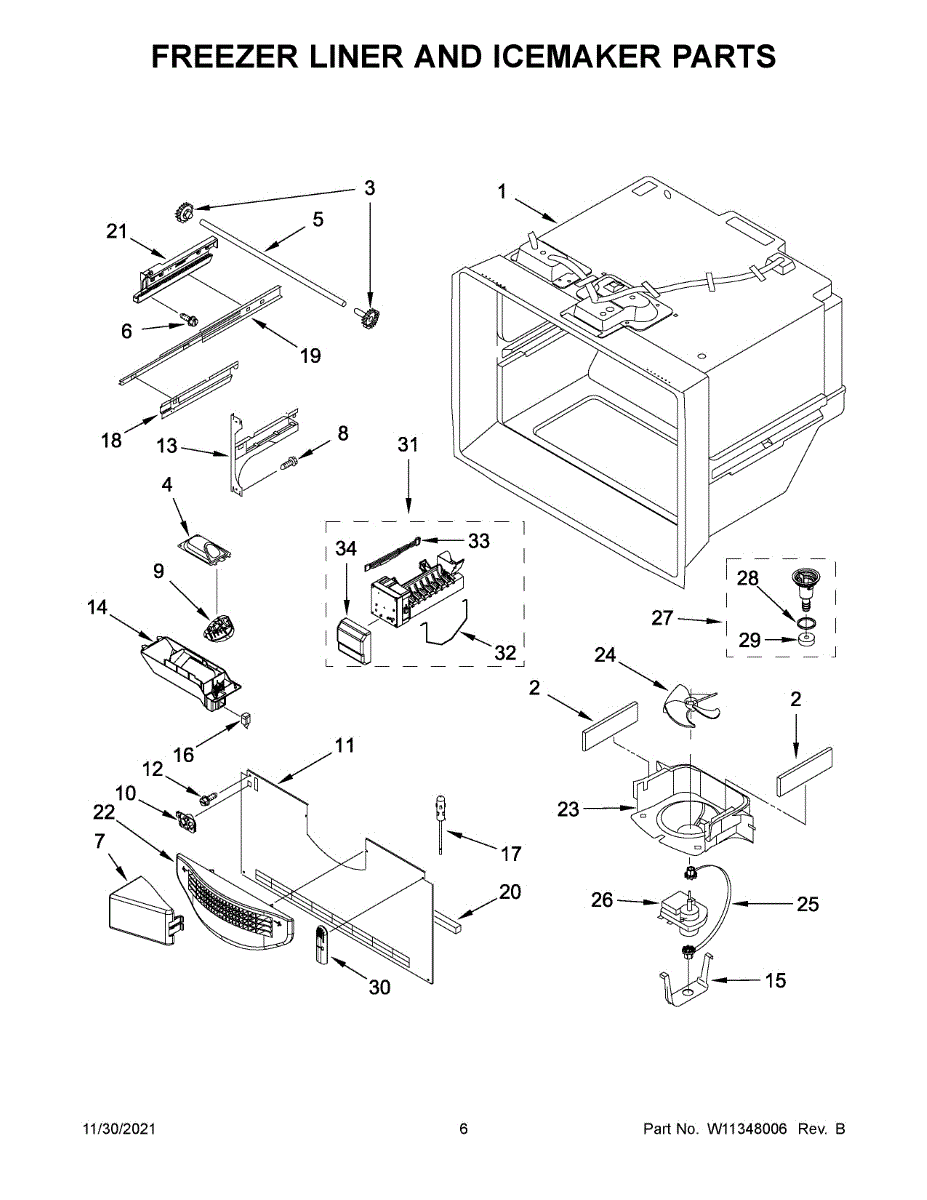

Parts for Kitchenaid KRFC302EBS02: Freezer Liner And Icemaker Parts

The Shaft is an OEM part for Whirlpool refrigerators. This component serves as the axle for the refrigerator's wheels, allowing for smooth movement when repositioning or cleaning the appliance. It is designed to fit securely and ensure stability during use. The shaft's approximate length is 26 inches.

Common causes of a bad wheel shaft include excessive weight, rough handling during relocation, or wear and tear over time.

Symptoms of a bad wheel shaft include:

• Difficulty moving the refrigerator
• Unstable or wobbly positioning
• Visible bending or damage to the shaft
• Unusual noises when moving the appliance

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This housing is the factory replacement outer cabinet that secures and protects internal components while restoring proper fit and appearance. It's a direct-fit body panel that helps keep parts aligned and shields wiring and controls from damage. What it does:

• Replaces cracked, warped, or damaged outer housing that affects cabinet fit or appearance
• Supports and secures internal components and mounting points for panels and controls
• Protects wiring, switches, and electronics from exposure, debris, and accidental contact
• Helps reduce rattles or misalignment caused by a broken or loose housing

• Disconnect power (and water if applicable) before starting any repair
• Handle edges carefully — metal/plastic edges can be sharp
• Basic hand tools required; alignment and fastener locations must match the original housing

The Door Switch is an OEM part for Whirlpool refrigerators. This switch is crucial for controlling the interior lights and the activation of certain refrigerator functions when the door is opened or closed.

Symptoms of a failing Door Switch include:

• Interior lights staying on when the refrigerator door is closed
• Interior lights not turning on when the door is opened
• The refrigerator unexpectedly starting or stopping
• Alarms or indicators malfunctioning, signaling an open door when it is closed

Causes of a bad door switch can involve mechanical failure due to wear and tear from frequent use, damage from impacts (such as slamming the door), or electrical issues like a short circuit or faulty wiring.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This right-side basket cradle secures and supports a dishwasher rack so it rolls and nests correctly. It replaces worn or broken cradles to restore smooth rack movement and stable loading in the dishwasher. What it does:

• Holds the right side of the upper/lower basket in place and guides rack travel
• Restores proper alignment when racks tilt, wobble, or catch during sliding
• Helps prevent rack detachment or uneven loading caused by a broken cradle
• Works with the existing rack hardware and rollers to maintain normal operation

• Designed for straightforward replacement; remove the rack to access the cradle
• Inspect adjacent rollers and clips while replacing; replace any damaged hardware
• Use basic hand tools; disconnect power only if working near electrical components
• Dispose of damaged pieces and package new part per local regulations

This left-side basket cradle replaces a damaged or worn support that holds and stabilizes a removable basket. It restores proper basket alignment and prevents rubbing or sagging so the basket operates smoothly. What it does:

• Supports the left side of the basket to keep it level and secure during use
• Prevents the basket from rubbing against the cabinet or other components
• Restores proper fit and alignment for smooth sliding and operation
• Helps eliminate noise and uneven movement caused by a broken cradle

• Disconnect power to the appliance before starting any repair
• Remove the basket to access the cradle; retain all fasteners for reassembly
• Align the cradle and snap or fasten it into place; verify the basket slides and seats correctly
• If hardware is damaged or missing, replace with OEM-specified fasteners

*** Note: Sold individually ***

This left-side adapter secures the appliance's panel components and helps maintain proper alignment for reliable operation. It's a direct replacement that restores fit and support where the original left-side adapter is damaged or missing. What it does:

• Replaces a worn or broken left-side adapter/bracket to restore panel alignment and support
• Helps prevent rattling, misalignment, or loose panels that can occur with a damaged adapter
• Fits the left side mounting points to secure adjacent panels and components
• Works as a structural support piece in the appliance's chassis assembly

• 1 left-side adapter

• Disconnect power and water before starting any repair
• Handle panels carefully to avoid bending; support panels while removing fasteners
• Use the original fasteners unless replacements are specified by the manufacturer

This right-hand side adapter bracket secures the appliance cabinet or panel, restoring proper fit and stability. Replacing a damaged or missing bracket helps stop loose or misaligned panels and reduces rattling. What it does:

• Secures the right-side cabinet or panel to the chassis to maintain alignment and support.
• Helps eliminate panel movement, vibration and rattling that result from a cracked or missing bracket.
• Restores correct panel gaps so doors or drawers operate and close properly.

• Disconnect power (unplug or shut off breaker) before accessing the appliance.
• Remove the required access panels to reach the bracket; keep and reuse existing fasteners unless new hardware is specified by the model diagram.
• Transfer the bracket into position and fasten securely; check for proper panel alignment after installation.

A molded defrost drain funnel that routes condensation and melted frost into the refrigerator's drain to help prevent pooling and interior leaks. Replaces cracked or clogged funnels to restore proper water flow in the drain path. What it does

• Guides defrost and condensation water from the evaporator area into the fridge drain system.
• Helps prevent water pooling inside the fresh-food or freezer compartments.
• Worn, cracked or clogged funnels can cause dripping, pooling or frost build-up near the evaporator.
• Restores a secure, directed path for meltwater to reach the drain tube and pan.

• Disconnect power to the appliance before accessing internal components to reduce shock risk.
• Remove food and any removable shelving to access the evaporator/drain area; handle plastic trim carefully to avoid breakage.
• Inspect surrounding drain area for ice, debris or clogs and clear before reinstalling the funnel.
• If clips or screws secure the funnel, retain hardware and reinstall securely; test a small amount of water to ensure proper drainage.

This refrigerator ice maker assembly automatically fills, freezes, and ejects ice cubes to keep your bin stocked. Replace it when the original unit stops producing ice, won't complete a harvest cycle, or leaks around the mold area.

• Forms, freezes, and harvests ice automatically into the storage bin
• Coordinates with the water valve and internal controls to manage fill and shut-off
• Common signs of failure: no ice production; cubes not ejecting or jamming; misshapen or hollow cubes; water dripping/leaking near the icemaker; intermittent clicking

• Disconnect power and shut off the water supply before servicing
• Remove the ice bin; loosen mounting screws; unplug the wire harness; transfer any mounting hardware or shut-off arm from the old unit if needed
• Align the fill cup with the water tube; secure the new assembly and reconnect the harness
• Restore power and water; allow several hours and discard the first batches

This wire harness supplies the factory wiring connections between appliance components to restore reliable electrical communication and control. It replaces a damaged or faulty harness to help eliminate intermittent power or control problems. What it does:

• Carries electrical signals and power between switches, sensors, motors and control boards
• Restores lost or intermittent connections that can cause controls, lights or components to stop working
• Prevents arcing and unreliable operation caused by frayed, burned or loose wires
• Ensures correct connector fit and factory routing for safe operation

• Disconnect power (unplug or shut off breaker) before starting any repair
• Match connector shapes and routing to the original harness; do not force connectors
• Inspect mating terminals and grounding points; replace or repair damaged terminals per OEM guidance

This front cover replaces a damaged or worn cabinet front panel to restore the appliance's appearance and protect internal components. It provides a clean, finished look and secures the front of the appliance. What it does:

• Replaces cracked, dented, or warped cabinet front panels to improve cosmetic appearance
• Covers and protects internal parts from dust and debris
• Helps maintain proper alignment of the front assembly
• Reduces gaps that can collect lint or moisture around the appliance opening

• One front cover

• Disconnect power (and gas, if applicable) before beginning any repair
• Removal typically requires unscrewing the old front panel and detaching any connected trim or brackets
• Handle panel carefully to avoid scratching paint or bending mounting tabs
