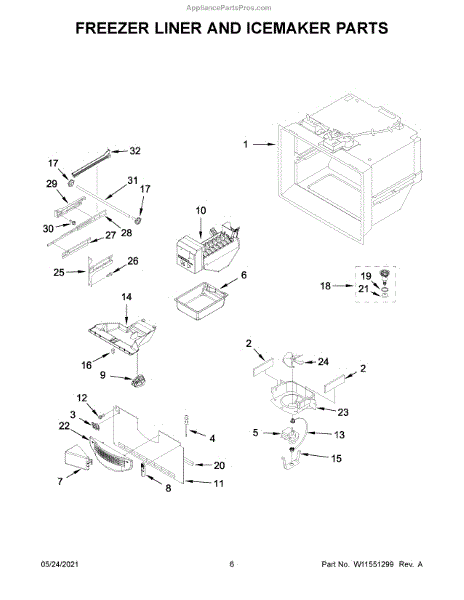

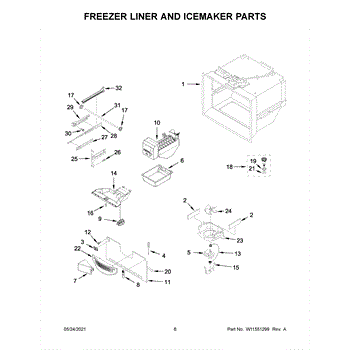

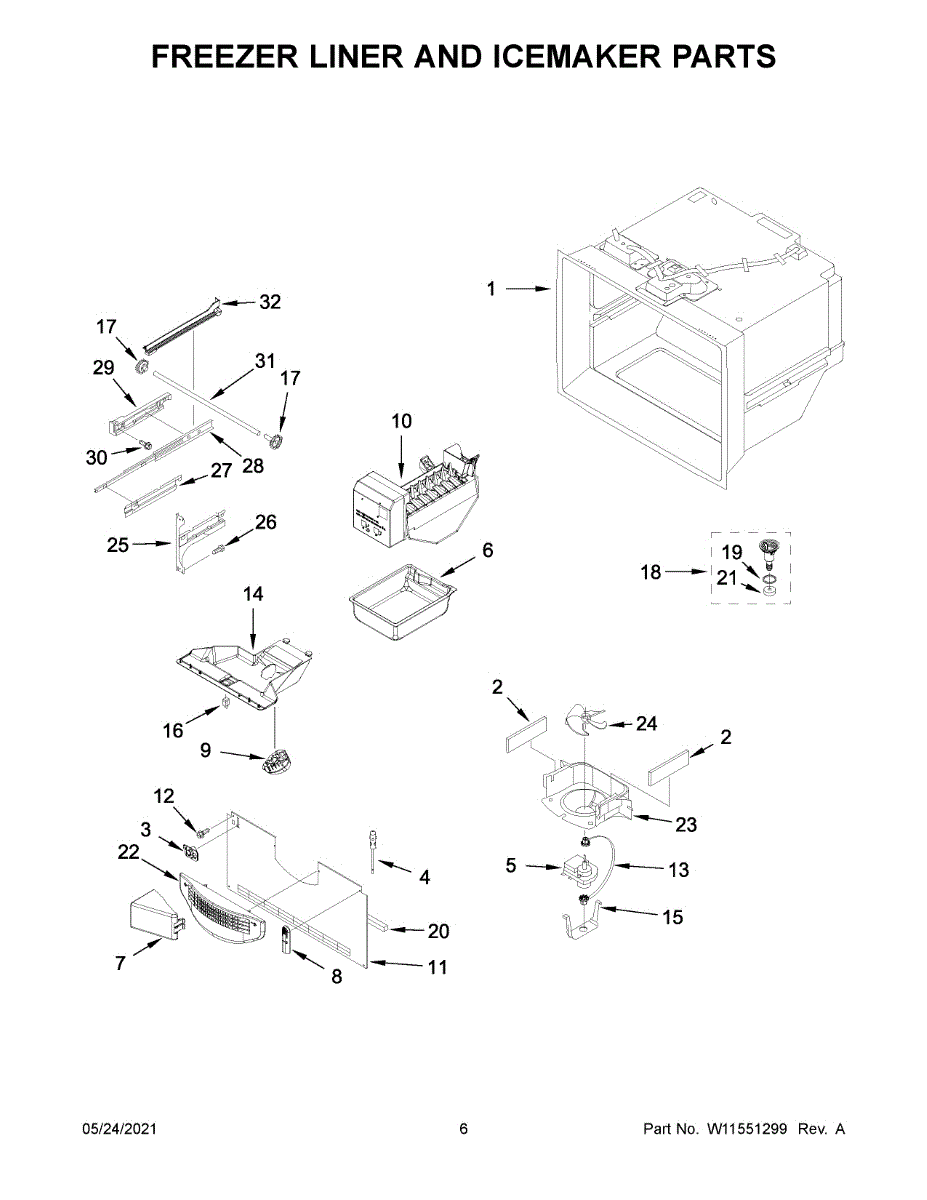

Parts for Kitchenaid KRFF305EBS05: Freezer Liner And Icemaker Parts

The Refrigerator Temperature Sensor is an OEM replacement part for Whirlpool refrigerators. It is a crucial component responsible for accurately monitoring and regulating the temperature inside the refrigerator and freezer compartments.

Symptoms of a faulty temperature sensor include:

• Inconsistent or fluctuating temperatures in the refrigerator or freezer
• The refrigerator running continuously or not cooling properly
• Error codes or indicators related to temperature control issues

Causes of a bad temperature sensor can include normal wear and tear over time, electrical malfunctions, sensor failure, or damage from moisture or condensation.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerator models.

This ice container stores the ice your refrigerator makes and interfaces with the dispenser drive so cubes reach the door. Replacing a cracked or worn bin restores smooth, sanitary ice storage and dependable dispensing.

• Holds and organizes ice beneath the icemaker
• Guides cubes to the dispenser drive for cube or crushed delivery on models with a dispenser
• Helps prevent spills and stray ice in the freezer
• Common failure signs: cracked bin, ice not dispensing, clumping/jamming, or frost/shavings around the bucket area

• Unplug the refrigerator or switch off power before servicing; empty the old bin
• Slide the bin straight out and clear frost/debris from rails or the mounting area
• Align the drive connection (if present) and fully seat the new container so it sits flush or latches
• Restore power and test the ice dispense function

The Door Switch is an OEM part for Whirlpool refrigerators. This switch is crucial for controlling the interior lights and the activation of certain refrigerator functions when the door is opened or closed.

Symptoms of a failing Door Switch include:

• Interior lights staying on when the refrigerator door is closed
• Interior lights not turning on when the door is opened
• The refrigerator unexpectedly starting or stopping
• Alarms or indicators malfunctioning, signaling an open door when it is closed

Causes of a bad door switch can involve mechanical failure due to wear and tear from frequent use, damage from impacts (such as slamming the door), or electrical issues like a short circuit or faulty wiring.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

A molded defrost drain funnel that routes condensation and melted frost into the refrigerator's drain to help prevent pooling and interior leaks. Replaces cracked or clogged funnels to restore proper water flow in the drain path. What it does

• Guides defrost and condensation water from the evaporator area into the fridge drain system.
• Helps prevent water pooling inside the fresh-food or freezer compartments.
• Worn, cracked or clogged funnels can cause dripping, pooling or frost build-up near the evaporator.
• Restores a secure, directed path for meltwater to reach the drain tube and pan.

• Disconnect power to the appliance before accessing internal components to reduce shock risk.
• Remove food and any removable shelving to access the evaporator/drain area; handle plastic trim carefully to avoid breakage.
• Inspect surrounding drain area for ice, debris or clogs and clear before reinstalling the funnel.
• If clips or screws secure the funnel, retain hardware and reinstall securely; test a small amount of water to ensure proper drainage.

This right-hand slide bracket secures and supports a cabinet or drawer slide assembly so drawers and shelves open and close smoothly. It restores alignment and support for proper sliding action. What it does:

• Anchors the right-side slide or rail to the cabinet frame or drawer assembly
• Keeps the slide aligned to prevent binding, sagging, or uneven travel
• Helps restore smooth opening and closing when the drawer or shelf sticks
• Works with the existing slide/rail hardware; replaces damaged or broken brackets

• One right-hand slide bracket

• Turn off power to any nearby powered components and remove contents before starting
• Remove the drawer or shelf to access the bracket
• Typical installation requires basic hand tools (screwdriver or nut driver) and original fasteners; retain screws for reuse unless replacement is specified
• Inspect mating slide/rail and adjacent brackets for wear and replace any damaged components to ensure proper function

This left-side slide bracket secures and guides a sliding assembly so drawers or components open smoothly and stay aligned. It replaces a worn or broken bracket to restore proper support and reduce binding or sagging. What it does:

• Provides structural support for the left side of a sliding drawer/assembly
• Keeps slides aligned so the drawer opens and closes smoothly
• Helps stop sagging, catching, or uneven movement of the sliding part
• Replaces cracked, bent, or damaged brackets that interfere with operation

• Disconnect power and/or unplug the appliance before starting any repair
• Remove any outer panels or drawer components as needed to access the bracket
• Keep original fasteners; install bracket in the same orientation and tighten screws securely but do not overtighten
• If movement still feels restricted after replacement, check mating slide components and alignment

The Refrigerator Slide is an OEM replacment part specific to Whirlpool refrigerators. It is the component that provides extension and retraction of refrigerator shelves. This allows for adjustable shelf positioning to accommodate varied food and beverage storage needs.

Causes of a bad refrigerator slide can include wear and tear of moving parts over time, shelf overload that places strain on slide mechanics, and damage from occasional mishandling.

Symptoms of a bad refrigerator slide include:

• Shelves not sliding smoothly or becoming stuck in place
• Gaps appearing between shelves and refrigerator walls
• Noises or squeaking emanating from shelf tracks
• Visible damage or deformities on slide components

This OEM Whirlpool refrigerator part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Shaft is an OEM part for Whirlpool refrigerators. This component serves as the axle for the refrigerator's wheels, allowing for smooth movement when repositioning or cleaning the appliance. It is designed to fit securely and ensure stability during use. The shaft's approximate length is 26 inches.

Common causes of a bad wheel shaft include excessive weight, rough handling during relocation, or wear and tear over time.

Symptoms of a bad wheel shaft include:

• Difficulty moving the refrigerator
• Unstable or wobbly positioning
• Visible bending or damage to the shaft
• Unusual noises when moving the appliance

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
