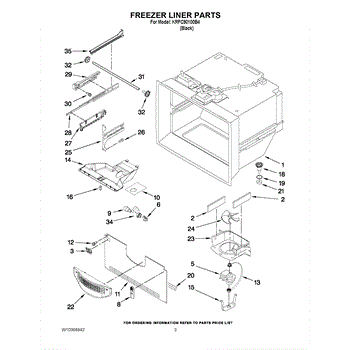

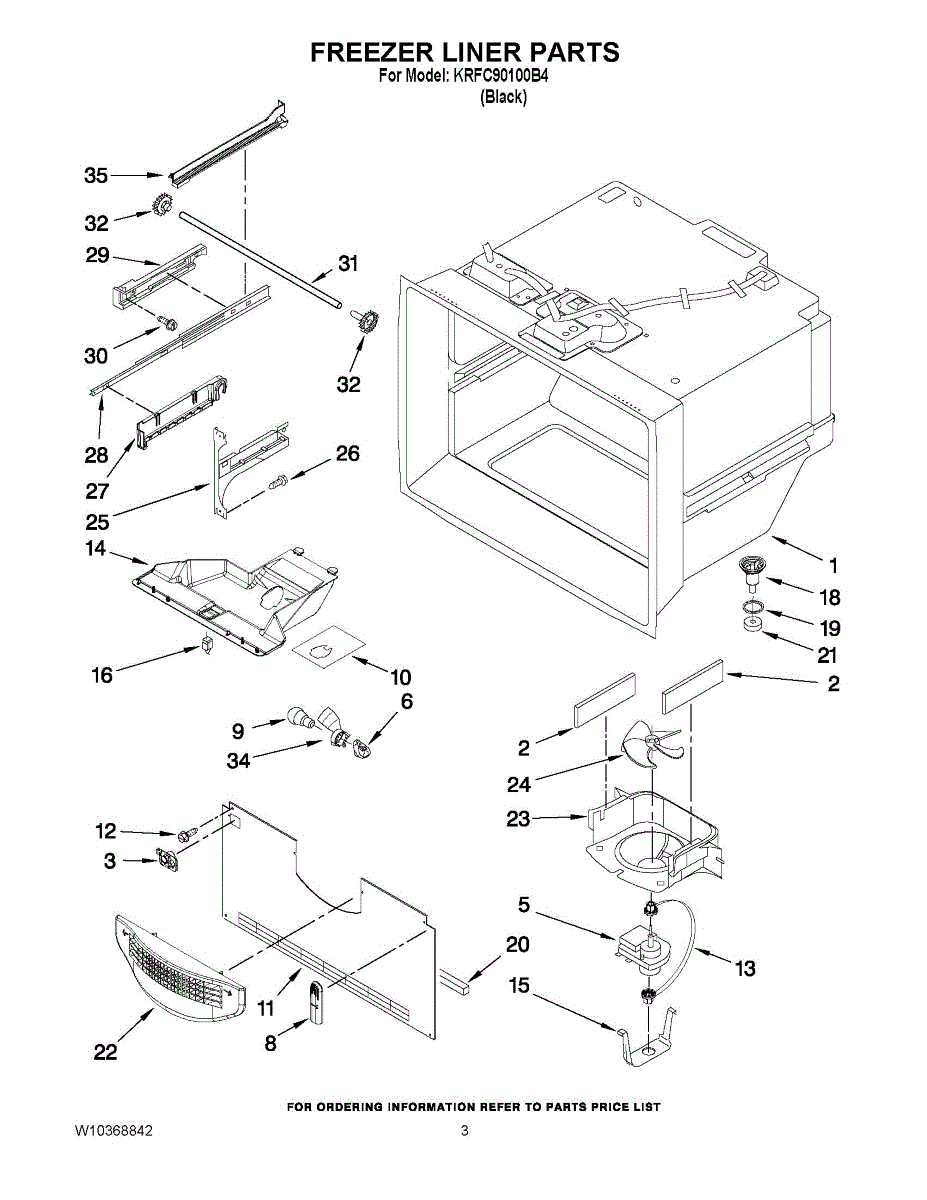

Parts for Kitchenaid KRFC90100B4: 02 - Freezer Liner Parts

The Water Filter is an OEM part for Whirlpool refrigerators. It is designed to filter and purify the water for your refrigerator, ensuring clean and fresh drinking water and ice.

A bad refrigerator water filter can be caused by regular use and the buildup of contaminants over time. It may also become less effective if not replaced according to the manufacturer's recommended schedule.

Symptoms of a bad refrigerator water filter include:

• A decrease in water flow or water pressure.
• An unpleasant taste or odor in the water.
• The presence of particles or sediment in the water.
• Cloudy or discolored ice cubes.

If you notice any of these signs or if it has been more than six months since your last filter replacement, it's time to replace the refrigerator water filter with this genuine OEM part. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


This gasket forms a tight seal between mating surfaces inside your appliance to help contain air or water and maintain proper performance. Replacing a worn or damaged gasket restores reliable sealing and helps prevent leaks or escapes. What it does:

• Maintains an airtight/watertight seal between components
• Helps prevent leaks, drips, and moisture or air escaping
• Supports correct temperatures and operating efficiency
• Common signs of failure: visible cracks or flattening, leaking, moisture around the joint, or poor sealing

• 1 gasket

• Disconnect power; shut off water supply if applicable
• Note gasket orientation before removal and clean mating surfaces
• Seat the gasket evenly without stretching or kinking
• Reassemble and test for proper seal and any leaks

The Light Bulb Socket is an OEM part for Whirlpool refrigerators. It is responsible for housing the bulb that illuminates the interior fridge light. The socket provides a protective casing and stable electrical connection for the light bulb. Its interior components are precisely arranged to safely conduct current to the bulb.

Causes of a bad light bulb socket can include cracks, loose connections, or damaged internal wiring due to regular use over time.

Symptoms of a bad light bulb socket include:

• The fridge interior light failing to turn on
• The bulb burning out quickly
• Flickering or intermittent lighting

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement cover shields and secures the freezer temperature sensor, keeping it correctly positioned for accurate temperature feedback. An intact cover helps protect the sensor and maintain proper placement for consistent cooling performance.

• Holds the freezer thermistor in the correct location and orientation
• Protects the sensor from accidental damage or dislodging
• Supports stable temperature readings to the control system
• Replace if the cover is cracked, missing, or its tabs are broken; if the sensor is loose/exposed; or after visible damage

• Disconnect power to the refrigerator before servicing
• Remove shelves/obstructions to access the thermistor area; release or unfasten the old cover
• Seat the thermistor properly, align the new cover, and secure using existing fastener or tabs
• Restore power and verify normal cooling operation

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

This rubber chassis grommet cushions and protects wiring or thin panels where they pass through sheet metal, helping prevent chafing and reducing vibration-related noise. It's a small but important wear item for safe, quiet operation. What it does

• Cushions wire harnesses or tubing where they pass through holes to prevent abrasion and chafing
• Dampens vibration that can cause noise or premature wear on nearby parts
• Helps keep a snug fit around openings for a more secure routing of components
• Common symptom: squeaks, rubbing noises, or visible insulation wear where wires pass through metal

• One rubber grommet (quantity: 1)

• Disconnect power before accessing internal panels or wiring
• Remove the panel or harness routing clip to access the hole, then press the grommet into place from one side
• Inspect surrounding insulation and wiring; replace or re-route damaged wires as needed

This freezer light module housing secures and positions the freezer lamp assembly so the interior light stays protected and correctly aimed. It replaces a worn, cracked, or broken housing to restore proper lighting and fit. What it does:

• Holds the freezer light bulb and socket in place so the lamp illuminates the compartment
• Protects the lamp from moisture and physical damage
• Helps maintain correct light orientation for even interior lighting
• Commonly replaced when the housing cracks, breaks, or no longer secures the bulb

• Disconnect power (unplug or switch off breaker) before servicing the appliance.
• Handle the lamp/socket carefully; avoid forcing clips or tabs during removal and installation.
• If replacing the bulb or socket, verify correct bulb type separately—this listing is for the housing only.

This evaporator clip secures the refrigerator evaporator assembly and related components so the cooling system stays aligned and vibration-free. It helps maintain proper airflow and prevents rubbing or loose parts. What it does:

• Holds the evaporator coil/assembly or associated covers in place
• Prevents vibration, noise, and contact between the coil and cabinet parts
• Helps maintain consistent airflow for reliable cooling performance
• Commonly linked to rattling, buzzing, or loose parts around the freezer evaporator

• Disconnect power before servicing the appliance
• Handle evaporator and surrounding fins carefully; they are sharp and fragile
• Verify clip orientation against the OEM diagram before fastening

The Door Switch is an OEM part for Whirlpool refrigerators. This switch is crucial for controlling the interior lights and the activation of certain refrigerator functions when the door is opened or closed.

Symptoms of a failing Door Switch include:

• Interior lights staying on when the refrigerator door is closed
• Interior lights not turning on when the door is opened
• The refrigerator unexpectedly starting or stopping
• Alarms or indicators malfunctioning, signaling an open door when it is closed

Causes of a bad door switch can involve mechanical failure due to wear and tear from frequent use, damage from impacts (such as slamming the door), or electrical issues like a short circuit or faulty wiring.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

A molded defrost drain funnel that routes condensation and melted frost into the refrigerator's drain to help prevent pooling and interior leaks. Replaces cracked or clogged funnels to restore proper water flow in the drain path. What it does

• Guides defrost and condensation water from the evaporator area into the fridge drain system.
• Helps prevent water pooling inside the fresh-food or freezer compartments.
• Worn, cracked or clogged funnels can cause dripping, pooling or frost build-up near the evaporator.
• Restores a secure, directed path for meltwater to reach the drain tube and pan.

• Disconnect power to the appliance before accessing internal components to reduce shock risk.
• Remove food and any removable shelving to access the evaporator/drain area; handle plastic trim carefully to avoid breakage.
• Inspect surrounding drain area for ice, debris or clogs and clear before reinstalling the funnel.
• If clips or screws secure the funnel, retain hardware and reinstall securely; test a small amount of water to ensure proper drainage.

This O-ring seal provides a watertight seal for the appliance's water path, helping prevent leaks and maintain proper operation. Use this exact replacement when the original ring is cracked, flattened, or worn. What it does:

• Creates a pressure-tight seal at a water connection to stop drips and leaks
• Keeps water contained inside hoses, valves or pump fittings
• Restores proper sealing when the original O-ring becomes brittle or deformed
• Helps prevent water damage to cabinetry and flooring from appliance leaks

• One O-ring seal

• Turn off power and water supply before beginning any repair
• Remove the old O-ring and clean mating surfaces of debris and buildup
• Inspect the groove or fitting for damage; replace the part if the mating surface is scored
• If needed, use a small amount of manufacturer-recommended lubricant to ease installation and protect the O-ring

This gasket forms a tight seal between mating surfaces inside your appliance to help contain air or water and maintain proper performance. Replacing a worn or damaged gasket restores reliable sealing and helps prevent leaks or escapes. What it does:

• Maintains an airtight/watertight seal between components
• Helps prevent leaks, drips, and moisture or air escaping
• Supports correct temperatures and operating efficiency
• Common signs of failure: visible cracks or flattening, leaking, moisture around the joint, or poor sealing

• 1 gasket

• Disconnect power; shut off water supply if applicable
• Note gasket orientation before removal and clean mating surfaces
• Seat the gasket evenly without stretching or kinking
• Reassemble and test for proper seal and any leaks

This drain tube gasket seals the connection between the drain tube and its mating port to prevent leaks. A tight seal helps keep water where it belongs and protects surrounding components from moisture damage.

• Creates a watertight seal at the drain tube connection point
• Can help address water leaks around the drain area
• Deterioration, cracking, or hardening of the old gasket may cause seepage
• Replacing a worn gasket can restore proper leak prevention

• Unplug the appliance and shut off water supply before service
• Place a towel or pan to catch residual water when disconnecting the tube
• Inspect the tube and mating surfaces; clean before installing the new gasket
• Do not overtighten fittings; verify a snug, even seal and check for leaks on first run

Restore the clean look and proper ventilation of your microwave with this air grille. It covers the upper front vent opening, helps guide airflow through the vent path, and shields internal components for reliable performance.

• Covers the upper/front vent opening while allowing proper airflow
• Helps secure the charcoal filter on many recirculating models
• Restores appearance and fit when the original grille is cracked or missing
• Common fix for a loose, rattling, or broken vent cover

• Disconnect power to the microwave before servicing
• Open the door (most models), remove the screws along the top edge, and slide the old grille to release its tabs
• Position the new grille, ensure tabs engage fully, and reinstall the screws without overtightening

This replacement shroud is the outer housing that covers and protects internal dryer components, restoring proper fit and appearance and helping keep wiring and parts shielded from lint and damage. What it does

• Covers and protects internal components and wiring from lint, debris, and accidental contact
• Helps maintain correct clearances between parts to prevent rubbing or interference
• Restores appliance appearance and secure mounting where the original shroud is cracked or broken
• Can reduce rattles or vibration caused by loose or damaged shroud tabs

• One shroud

• Disconnect power (unplug or shut off breaker) before any service
• Removal typically requires taking off outer panels or access covers and keeping track of fasteners
• Use basic hand tools; avoid forcing tabs—inspect and replace any damaged clips or screws

The Evaporator Fan Motor Blade is an OEM part for Whirlpool refrigerators. It is a crucial component of the refrigerator's cooling system, attached to the evaporator fan motor to circulate air over the evaporator coils. This circulation helps distribute cold air throughout the refrigerator and freezer compartments, ensuring consistent temperatures and efficient operation.

Symptoms of a bad Evaporator Fan Motor Blade include:

• Unusual noise coming from the fan area, indicating the blade may be hitting another component or is unbalanced,
• Insufficient cooling in the refrigerator or freezer compartments,
• The refrigerator running longer than usual to maintain the desired temperature.

Causes of evaporator fan motor blade failure typically include physical damage from interference with other components, wear from continuous use, or buildup of ice or debris that unbalances the blade.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This left-side slide bracket secures and guides a sliding assembly so drawers or components open smoothly and stay aligned. It replaces a worn or broken bracket to restore proper support and reduce binding or sagging. What it does:

• Provides structural support for the left side of a sliding drawer/assembly
• Keeps slides aligned so the drawer opens and closes smoothly
• Helps stop sagging, catching, or uneven movement of the sliding part
• Replaces cracked, bent, or damaged brackets that interfere with operation

• Disconnect power and/or unplug the appliance before starting any repair
• Remove any outer panels or drawer components as needed to access the bracket
• Keep original fasteners; install bracket in the same orientation and tighten screws securely but do not overtighten
• If movement still feels restricted after replacement, check mating slide components and alignment

This replacement screw secures panels, brackets, and components inside appliances. Replacing a missing or stripped fastener restores a snug, rattle-free fit using the correct #8-18 thread and 5/8-inch length.

• Fastens covers, trims, brackets, and internal parts to the cabinet/frame
• Used wherever a #8-18 x 5/8 screw is specified
• Replace if the original is missing, corroded, stripped, or will not tighten
• Symptoms: loose or rattling panels, gaps, or hardware that backs out

• Disconnect power; shut off gas/water before servicing
• Match thread and length; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• Inspect and replace damaged clips or tabs before securing

This replacement cradle secures the freezer basket inside the freezer compartment, restoring proper support and alignment so the basket slides and seats correctly. Designed to replace a damaged or broken bracket. What it does:

• Supports and holds the freezer basket in place to prevent sagging or tipping
• Keeps the basket aligned for smooth sliding and proper door closure
• Helps stop rattling or excess movement from a loose or broken bracket
• Fits and mates with the freezer interior where the basket rests

• One cradle

• Disconnect power before accessing the freezer interior and working near electrical components
• Remove the freezer basket first to access and replace the cradle more easily
• Retain any screws or clips from the original part and reuse if undamaged; replace damaged fasteners
• If clips or mounting tabs are broken, inspect surrounding plastic for damage that may need repair

This cradle secures the freezer basket inside the freezer compartment so the basket stays supported and properly aligned for smooth use. It restores stable basket positioning and helps prevent sagging or unexpected drops. What it does:

• Provides a sturdy mounting point that holds the freezer basket in place
• Keeps the basket properly aligned for smooth sliding and removal
• Prevents the basket from tilting, sagging, or falling during use
• Helps reduce noise caused by a loose or misaligned basket

• Disconnect power to the appliance or unplug before beginning repairs
• Remove the freezer basket and any contents before installing the cradle
• Typical installation uses basic hand tools; handle parts carefully to avoid damage

*** Note: Sold individually ***

Left-hand side adapter bracket that secures and aligns the appliance's left panel or component. Replaces a damaged or missing bracket to restore proper fit and reduce vibration or panel misalignment. What it does:

• Provides a mounting point and alignment for the appliance's left-side panel or related component.
• Keeps panels flush and prevents gaps that can cause rattling or rubbing.
• Commonly replaced when a panel is loose, misaligned, or the original bracket is broken.
• Helps maintain proper door/panel operation and overall appliance stability.

• Disconnect power (and gas if applicable) before beginning any repair.
• Basic hand tools are typically required; follow the appliance's service manual for exact fastener types.
• Inspect surrounding clips and fasteners during replacement and replace if worn or damaged.

This right-side adapter bracket mounts to the appliance cabinet and supports the mating shelf, bin, or panel on that side. Replace it to restore a secure fit and alignment when the original is cracked, loose, or missing.

• Secures and supports the component on the right side of the assembly
• Maintains alignment to prevent wobble, sagging, or pop-out
• Helps drawers/shelves operate smoothly when properly fastened
• Common replacement reasons: broken tabs, stripped holes, visible cracks, or missing bracket

• Disconnect power to the appliance before servicing
• Remove the related shelf/bin/drawer to access the bracket
• Reuse original mounting screws and any transferable clips/spacers
• Tighten screws evenly without overtightening

Size: 8 x 1-1/4 inch.

The Shaft is an OEM part for Whirlpool refrigerators. This component serves as the axle for the refrigerator's wheels, allowing for smooth movement when repositioning or cleaning the appliance. It is designed to fit securely and ensure stability during use. The shaft's approximate length is 26 inches.

Common causes of a bad wheel shaft include excessive weight, rough handling during relocation, or wear and tear over time.

Symptoms of a bad wheel shaft include:

• Difficulty moving the refrigerator
• Unstable or wobbly positioning
• Visible bending or damage to the shaft
• Unusual noises when moving the appliance

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Drawer Gear Kit is an OEM part for Whirlpool refrigerators. This kit is designed to repair or replace the gear system that operates the sliding or rolling mechanism of a refrigerator drawer. It includes all necessary gears and components to ensure smooth operation of the drawer, allowing for easy access to fruits, vegetables, meats, or other items stored inside.

Causes for replacement can vary, including wear and tear from regular use, damage from overloading the drawer, or accidental breakage. Over time, the gears can wear down, lose teeth, or become misaligned, leading to poor drawer performance.

Symptoms of a bad Drawer Gear Kit include:

• The drawer is difficult to open or close
• A grinding or clicking noise when the drawer is moved
• The drawer sticks or jams during operation

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This replacement rail restores proper support and smooth sliding for a refrigerator drawer or bin, helping prevent sagging and uneven movement so stored items stay secure and the drawer operates correctly. What it does:

• Provides structural support for a refrigerator drawer or bin to prevent sagging or misalignment
• Guides the drawer for smooth in-and-out movement and stable positioning
• Helps stop binding, scraping, or uneven travel when opening or closing the drawer
• Addresses symptoms like a loose, tilted, or falling drawer and noisy operation

• Remove all contents from the drawer and pull the drawer out to access the rail location.
• Support the drawer while removing the old rail to prevent dropping or damage.
• Use basic hand tools; follow OEM diagram for proper fastener locations and orientation.

This replacement rail provides a direct-fit slide support that helps racks or drawers move smoothly and stay aligned. Restores proper sliding operation and reduces sticking or sagging for affected appliance compartments. What it does:

• Guides and supports the rack/drawer to enable smooth in-and-out movement
• Helps keep the rack/drawer aligned and prevents tipping or sagging
• Reduces binding, catching, or excessive noise during operation
• Addresses symptoms like a rack that won't slide smoothly, drags, or sits unevenly

• One replacement rail

• Disconnect power (and water for dishwashers) before beginning any service
• Installation typically requires removing the affected rack/drawer and using basic hand tools
• Handle replacement parts carefully to avoid scratching finishes or damaging adjacent components
• Refer to OEM instructions for model-specific steps and safety guidance
