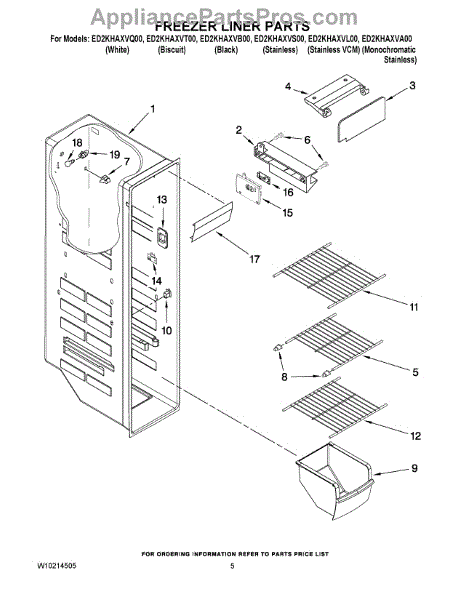

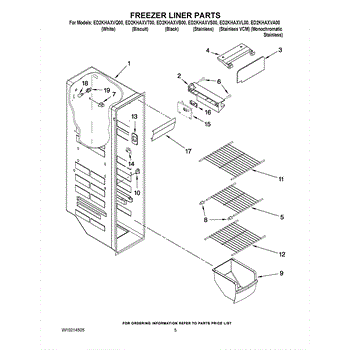

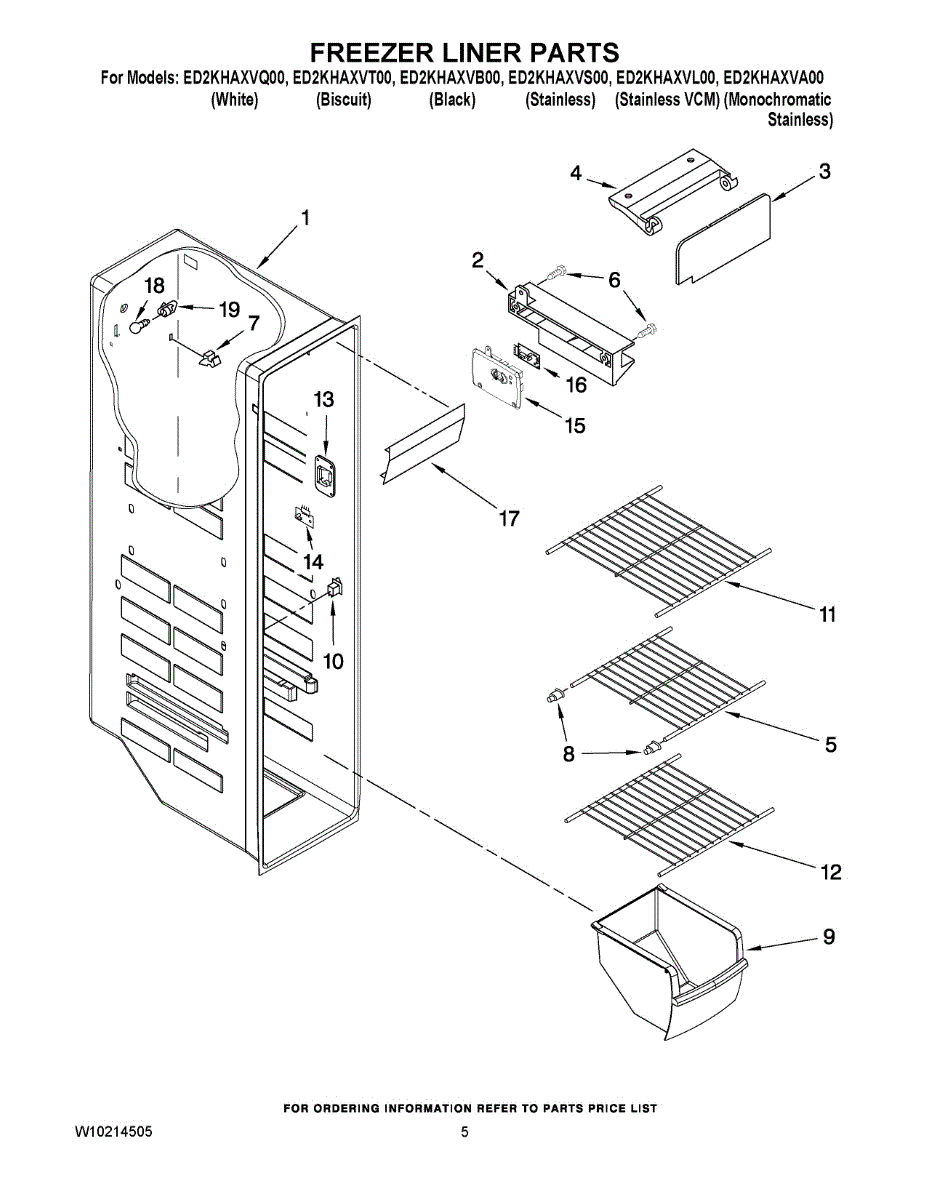

Parts for Whirlpool ED2KHAXVS00: 04 - Freezer Liner Parts

The Whirlpool Everydrop Water Filter 3 is a genuine OEM replacement part designed to improve the quality and taste of water while filtering out impurities. This filter is specifically designed for side-by-side refrigerators that accept Filter 3. Contains the ability to reduce 66 contaminants including lead, mercury, asbestos, and industrial chemicals. It helps to provide clean, fresh-tasting water. The filter needs to be changed every 6 months or 200 gallons for optimal performance. The fast and easy filter change requires no special tools. Simply push until you hear the receiver click into place. This NSF-certified filter is a reliable and affordable way to ensure that your family is drinking clean, refreshing water. SOLD INDIVIDUALLY

Specs:

• Filter Media: Carbon Block
• Operating Pressure: 30-120 psi
• Operating Temperature: 33-100 °F
• Flow rate: 0.5 gpm
• Material: Plastic
• Color: White
• Approximate Dimensions: 12 inches long, 2 inches in diameter

This replacement ice door is the dispenser flap that opens and closes to release ice from the freezer into the dispenser chute, restoring normal ice delivery and helping keep the dispenser sealed when idle. What it does:

• Replaces a cracked, warped, or broken dispenser/ice door that won't open or close properly
• Helps stop ice from jamming or falling into the dispenser area
• Restores the seal that keeps warm air out of the ice chute
• Works with the dispenser actuator to allow normal ice dispensing

• Disconnect power to the refrigerator before starting any work.
• Remove the dispenser housing trim per your model's service instructions to access the door; handle carefully to avoid damaging surrounding components.
• Inspect the actuator arm and mounting tabs during install; replace or realign if worn or broken.
• Test dispenser operation after installation to ensure the door opens and closes smoothly.

This bracket secures the ice maker's front cover in place. It supports and positions the cover so it stays attached to the ice maker head, protecting internal components and maintaining a clean, finished appearance inside the freezer. What it does:

• Holds the ice maker cover securely against the ice maker assembly
• Maintains proper alignment and a finished look
• Helps reduce vibration and rattling from a loose cover
• Common signs of failure: cracked/missing bracket, cover won't stay on, visible sagging or gaps

• One ice maker cover bracket

• Disconnect power to the refrigerator and turn off the water supply before servicing
• Remove the ice bin and the ice maker cover; retain any screws/fasteners
• Replace the bracket and reuse existing hardware; avoid overtightening into plastic
• Ensure the cover seats fully and moves/operates without interference

Approximate measurement: 13.5" x 9.5"

Size: 8 x 1/2 ab.

This air duct clip secures an appliance's air duct or vent to the housing, keeping airflow channels properly aligned and reducing air leaks. A simple replacement that restores correct duct positioning and minimizes airflow issues. What it does:

• Holds the air duct or vent in place to maintain proper airflow alignment
• Prevents the duct from slipping or separating from the housing
• Helps reduce air leaks that can affect performance or cause noise
• Fits where a small plastic/metal retainer is required to secure ducting

• One air duct clip/retainer

• Disconnect power before servicing the appliance to avoid shock or injury
• Use basic hand tools to remove the old clip and snap or screw the new clip into place
• Handle carefully to avoid breaking plastic tabs; the clip fully engages the duct and housing
• If the clip doesn't fit securely, re-check the duct orientation and mounting position

This mounting cup installs in the freezer liner to create a secure attachment point for the ice maker or its bracket. It helps keep the assembly stable and properly aligned so the ice maker mounts firmly and operates reliably. What it does:

• Provides the receiving anchor for the ice maker/bracket mounting screw
• Helps hold the ice maker level and reduces movement or vibration
• A worn, stripped, or missing cup can prevent the screw from tightening
• Common signs include a loose or sagging ice maker, rattling, or difficulty keeping the ice maker aligned

• 1 mounting cup

• Disconnect power and shut off the water supply before servicing
• Remove the ice maker to access the cup location
• Seat the cup fully into the liner opening, then reinstall the bracket/ice maker and mounting screw
• Do not overtighten; verify the ice maker sits level and clears the fill tube

This freezer bin replaces a cracked or missing bin to restore organized storage in your freezer. It mounts on existing tabs or rails to keep frozen items secure and easy to access.

• Provides storage and organization within the freezer compartment
• Replaces a broken, warped, or missing bin
• Helps prevent items from tipping or falling when the door opens
• Restores proper fit so the bin stays seated on its mounts

• Power isn't required for this replacement; open the freezer and remove items from the affected area
• Lift the old bin straight up and out from the tabs/rails
• Align the new bin with the mounting points and slide or press down until fully seated
• Do not force into place; distribute weight evenly and avoid overloading

The Door Switch is an OEM part for Whirlpool refrigerators. This switch is crucial for controlling the interior lights and the activation of certain refrigerator functions when the door is opened or closed.

Symptoms of a failing Door Switch include:

• Interior lights staying on when the refrigerator door is closed
• Interior lights not turning on when the door is opened
• The refrigerator unexpectedly starting or stopping
• Alarms or indicators malfunctioning, signaling an open door when it is closed

Causes of a bad door switch can involve mechanical failure due to wear and tear from frequent use, damage from impacts (such as slamming the door), or electrical issues like a short circuit or faulty wiring.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Approximate measurement: 15" x 11"

Approximate measurement: 11.5" x 11"

This emitter cover is the molded housing that shields and positions the infrared emitter for the refrigerator's ice level optics. Replacing a cracked or missing cover helps protect the board and keep the beam path clear for reliable ice making. What it does:

• Shields the emitter board and lens from moisture, frost, and debris
• Aligns the infrared beam path across the ice bin to the receiver
• Helps secure and position the ice level optics assembly
• Common symptoms: broken/missing cover, intermittent or no ice production due to optics misalignment or obstruction

• 1 emitter cover

• Disconnect power to the refrigerator before servicing
• Remove the ice bin to access the optics components
• Release the old cover's retaining tabs or fastener and lift it off; avoid touching board components
• Position and secure the new cover, then restore power and test ice maker operation

The Ice Level Control Board is an OEM part for Whirlpool refrigerators. It is an electronic component responsible for monitoring and regulating ice production in the icemaker. The board works with sensors to detect the level of ice in the bucket and control the icemaker accordingly. It plays a vital role in ensuring a consistent ice supply.

Symptoms of a bad control board include:

• Irregular or inconsistent ice production
• The icemaker failing to turn on at all
• Error codes displayed related to the icemaker
• Sensors providing inaccurate readings to the control board

Causes of a bad control board can include failure over time due to normal wear and tear, exposure to moisture or temperature fluctuations, or damage due to electrical surges.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Ice Level Control Board is an OEM part for Whirlpool refrigerators. It is an electronic component responsible for monitoring and regulating ice production in the icemaker. The board works with sensors to detect the level of ice in the bucket and control the icemaker accordingly. It plays a vital role in ensuring a consistent ice supply.

Symptoms of a bad control board include:

• Irregular or inconsistent ice production
• The icemaker failing to turn on at all
• Error codes displayed related to the icemaker
• Sensors providing inaccurate readings to the control board

Causes of a bad control board can include failure over time due to normal wear and tear, exposure to moisture or temperature fluctuations, or damage due to electrical surges.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

The Light Socket Kit is an OEM part for Whirlpool refrigerators. This kit includes the light socket and necessary components to ensure proper installation and functionality. It is designed to hold the refrigerator light bulb securely and provide reliable electrical connections to illuminate the interior of the refrigerator.

Common causes of failure include wear and tear, corrosion from moisture, or damage from handling or bulb replacement.

Symptoms of a bad Light Socket Kit include:

• Refrigerator light not turning on
• Flickering or intermittent lighting
• Visible damage or corrosion on the socket
• Burned or melted areas around the socket

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
