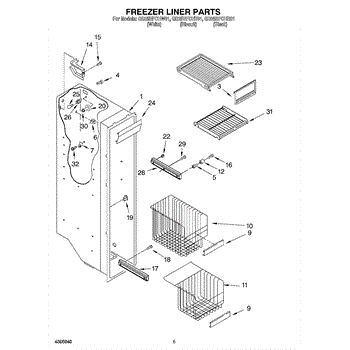

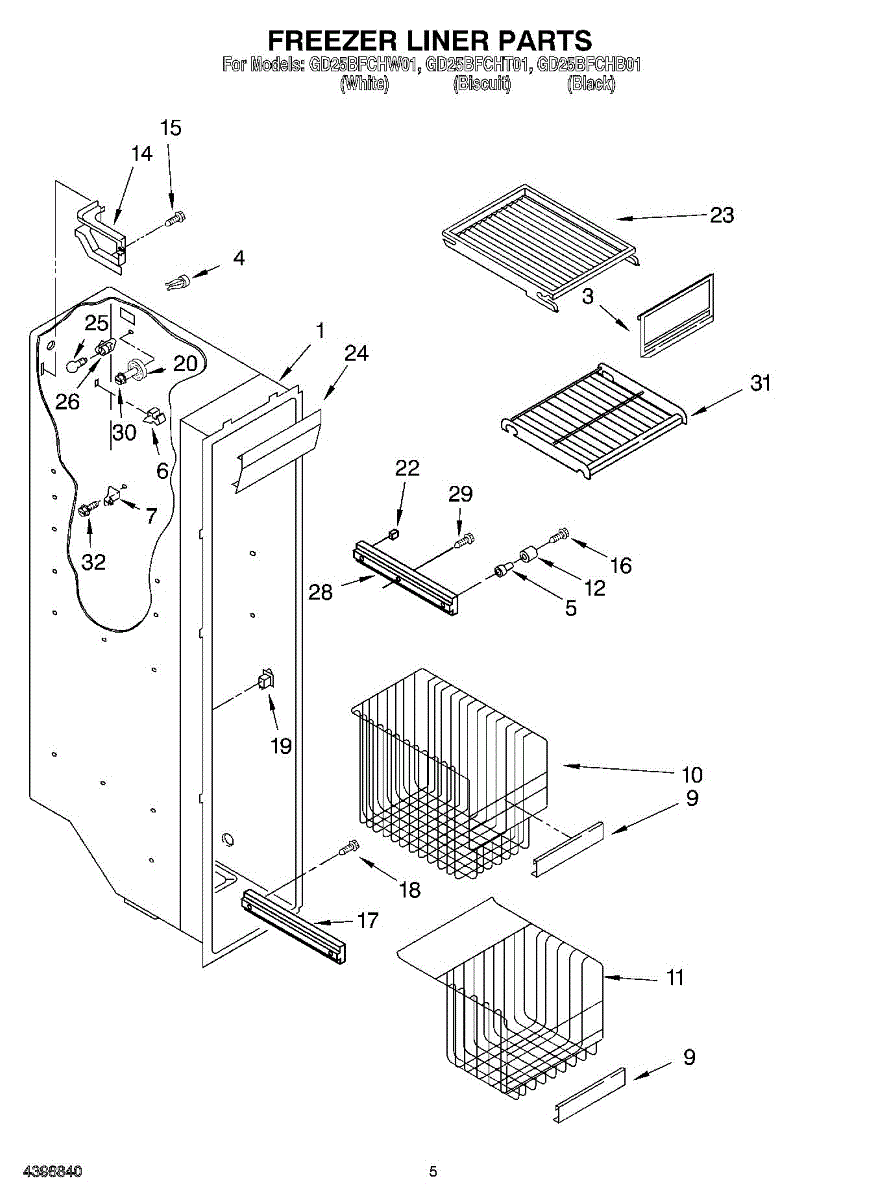

Parts for Whirlpool GD25BFCHT01: 04 - Freezer Liner Parts

The Whirlpool EveryDrop Refrigerator Water Filter 5 is an OEM replacement filter for Whirlpool refrigerators. This filter is used in Whirlpool bottom freezer and side-by-side refrigerators which accept Filter 5.

• Single Port Filter
• Simple turn installation requires no special tools
• For best performance, replace every six months
• Micron Rating: 0.5
• Filter Media: Coconut Carbon Block
• Flow Rate: 0.5 GPM
• Capacity: 300 gallons
• Temp Range: 33 - 100 °F
• Pressure Range: 30 - 120 psi
• Approximate dimensions: 2.30 x 3.00 x 11.60 Inches
• Meets NSF Standard: 42
• Approved for WQA Gold Seal
• Reduces 16 contaminants, including lead, mercury, asbestos, etc

This air duct clip secures an appliance's air duct or vent to the housing, keeping airflow channels properly aligned and reducing air leaks. A simple replacement that restores correct duct positioning and minimizes airflow issues. What it does:

• Holds the air duct or vent in place to maintain proper airflow alignment
• Prevents the duct from slipping or separating from the housing
• Helps reduce air leaks that can affect performance or cause noise
• Fits where a small plastic/metal retainer is required to secure ducting

• One air duct clip/retainer

• Disconnect power before servicing the appliance to avoid shock or injury
• Use basic hand tools to remove the old clip and snap or screw the new clip into place
• Handle carefully to avoid breaking plastic tabs; the clip fully engages the duct and housing
• If the clip doesn't fit securely, re-check the duct orientation and mounting position

This shelf support stud secures a refrigerator shelf or rail to the liner wall, restoring proper support so shelves sit level and stay in place during everyday use.

• Provides a stable mounting point for the shelf/rail in the cabinet wall
• Helps correct a sagging, loose, or uneven shelf
• Replaces a broken, stripped, or missing stud
• Helps prevent shelves from slipping or falling when loaded

• Unplug refrigerator and wear cut-resistant gloves
• Remove the shelf/rail to access the mounting point
• Install the new stud fully seated and aligned before reinstalling the shelf
• Do not overtighten or force; replace any damaged mating parts for a secure fit

Comes with two rollers and two eyelets

This is a replacement screw designed to work with a wide range of household appliances. It is used for many purposes in these appliances, from holding body panels together to securing electronics into control boards. However, screws are subject to damage through corrosion, impact, and improper installation/removal. In most cases, the primary damage to this screw is through corrosion – it may become rusted or corroded in place, depending on the appliance and the maintenance provided during its lifespan. The screw may also be stripped or rounded due to improper removal or installation. If the screw is damaged, lost, or corroded in place, it will need to be replaced. In most cases, removal will require nothing more than a Phillips head screwdriver or the appropriately sized socket with a ratchet. However, if the screw is damaged, it may require a tap set to remove it from its mounting location. Note that this is a genuine OEM replacement screw made from durable, high-quality metal, and is sold individually. It fits Whirlpool, Maytag, Roper, Estate, Amana, Crosley, and Thermador appliances. It is used in over 150 machines, ranging from washers and dryers to air conditioners.

This is a replacement 10-16-1 screw used to fasten appliance panels and components. It restores a secure fit for loose or rattling parts so panels and assemblies stay properly aligned during use. What it does:

• Secures panels, brackets, or small appliance components in place
• Helps stop rattling, vibration noise, or loose-fitting parts
• Restores proper alignment for doors, access panels, or internal assemblies
• Matches OEM thread and length for correct fit when replacing worn or missing screws

• Use the correct screwdriver or driver bit to avoid stripping the head
• Hand-start the screw to ensure proper thread engagement before tightening
• Do not overtighten; snug the screw until the part is secure to avoid damage
• Disconnect power to the appliance before accessing internal components

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

The Door Switch is an OEM part for Whirlpool refrigerators. This switch is crucial for controlling the interior lights and the activation of certain refrigerator functions when the door is opened or closed.

Symptoms of a failing Door Switch include:

• Interior lights staying on when the refrigerator door is closed
• Interior lights not turning on when the door is opened
• The refrigerator unexpectedly starting or stopping
• Alarms or indicators malfunctioning, signaling an open door when it is closed

Causes of a bad door switch can involve mechanical failure due to wear and tear from frequent use, damage from impacts (such as slamming the door), or electrical issues like a short circuit or faulty wiring.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Shelf Stud is an OEM part for Whirlpool refrigerators. It serves as a support peg that holds the refrigerator shelves in place, ensuring they remain stable and properly positioned.

Causes of a bad shelf stud can include wear and tear from regular use, accidental impact that causes the stud to break, or repeated removal and reinstallation of shelves leading to loosening or damage.

Symptoms of a bad shelf stud include:

• Shelves not staying securely in place
• Shelves tilting or collapsing
• Visible cracks or damage to the stud
• Difficulty in inserting or removing shelves

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is a rear stud with a screw. For the front stud with screw use part number W11223328. For studs with no screw use kit part number 4388538.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

The Light Socket Kit is an OEM part for Whirlpool refrigerators. This kit includes the light socket and necessary components to ensure proper installation and functionality. It is designed to hold the refrigerator light bulb securely and provide reliable electrical connections to illuminate the interior of the refrigerator.

Common causes of failure include wear and tear, corrosion from moisture, or damage from handling or bulb replacement.

Symptoms of a bad Light Socket Kit include:

• Refrigerator light not turning on
• Flickering or intermittent lighting
• Visible damage or corrosion on the socket
• Burned or melted areas around the socket

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This TRACK is the replacement guide that keeps a door or drawer aligned and sliding smoothly. It restores stable movement and reduces misalignment or scraping for a properly operating opening mechanism. What it does:

• Guides the door or drawer along its intended path to maintain alignment and smooth motion
• Prevents rubbing, sticking, or uneven movement that can lead to noisy operation
• Helps keep the panel or drawer from sagging or catching on the frame
• Restores consistent closing and opening performance when worn or damaged

• One replacement track

• Disconnect power to the appliance before starting any repair
• Access may require removing the panel, screws, or trim; keep fasteners organized
• Inspect adjacent rollers, brackets, and clips and replace any visibly worn parts

This 10-16 screw secures panels, brackets, and internal components in your appliance. Replacing a missing or stripped fastener restores a snug fit, reduces vibration and rattling, and keeps parts properly anchored for reliable operation.

• Provides 10-16-thread fastening for sheet metal, plastic, and bracket assemblies
• Direct replacement for a missing, worn, or stripped factory screw
• Helps address loose or rattling panels or covers that won't stay secured
• Supports proper alignment and retention of internal components

• Disconnect power; shut off water and/or gas before servicing
• Match the new screw to the original location and length; replace like-for-like
• Start threads by hand to avoid cross-threading; use the correct driver for the head style
• Tighten snugly; do not overtighten into plastic or thin sheet metal

This is a replacement #8-18 screw used to fasten components in compatible Whirlpool appliances. It restores worn or missing fasteners so panels and parts stay securely mounted and function safely. What it does

• Secures panels, brackets, and small appliance components to the frame or mounting points
• Restores proper fit where a stripped, missing, or corroded screw causes rattling or loose parts
• Provides the correct thread engagement to prevent backing out under normal use
• Small fastener intended for interior and light-duty exterior appliance applications

• One #8-18 screw

• Use the matching screwdriver or bit to avoid damaging the screw head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic parts
• Replace any damaged mating clips or inserts for a secure repair
• Disconnect power and follow appliance safety instructions before accessing internal components
