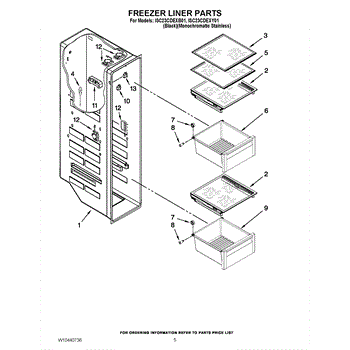

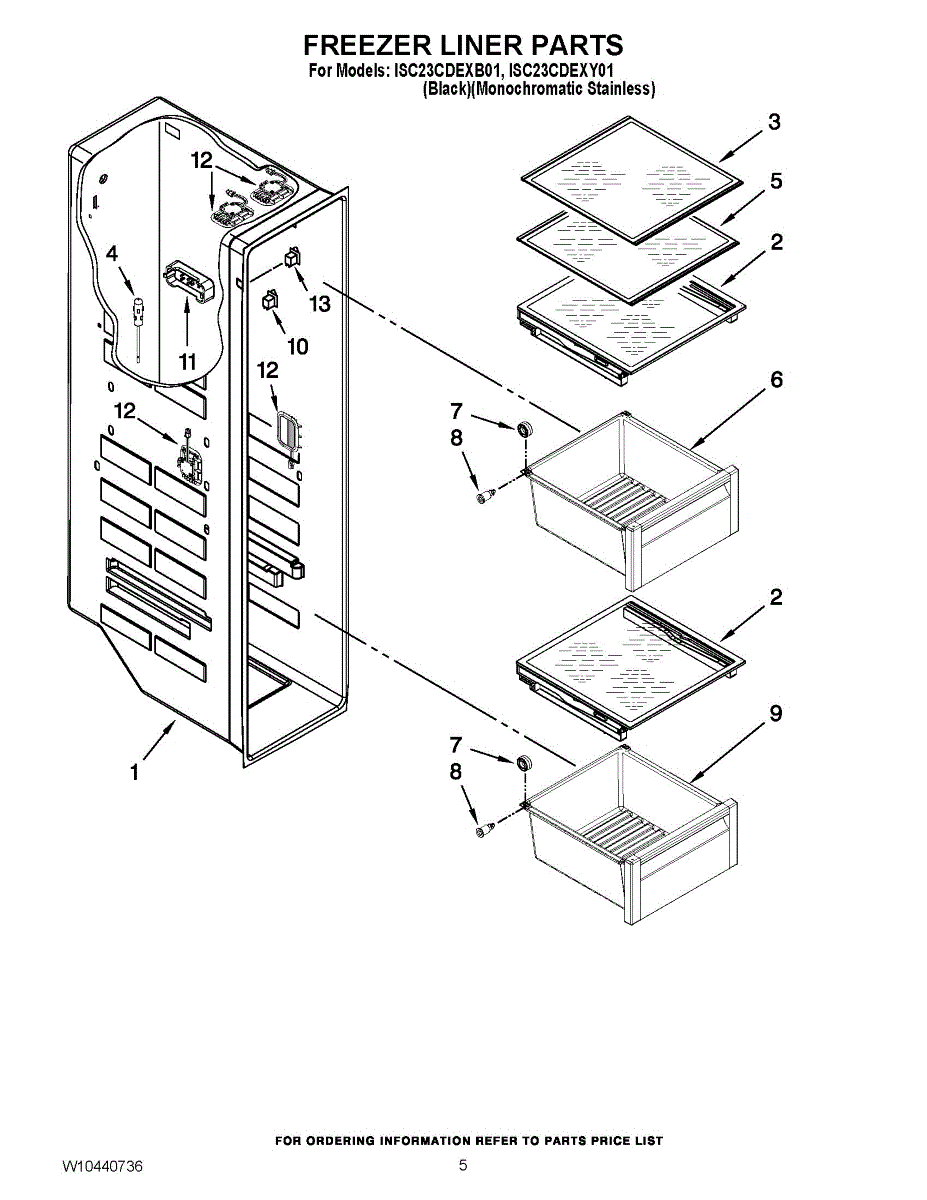

Parts for Whirlpool ISC23CDEXY01: 04 - Freezer Liner Parts

The Whirlpool EveryDrop Ice and Refrigerator Water Filter 1 is an OEM replacement part for Whirlpool refrigerators. This filter works to remove small particles from water to ensure clean, great-tasting ice and drinking water directly from the refrigerator door.  Measuring approximately 2.50 x 2.50 x 8.69 inches, this filter is easy to install.

For optimal performance, we recommend replacing the filter every six months. The filter material is made from coconut carbon block, which has a micron rating of 0.5 and a flow rate of 0.5 gpm. The filter is designed to operate at a maximum pressure of 125 psi and an operating temperature of 38-100°.

Symptoms of a filter needing replacement include:

• Gradual decline in water/ice quality over time exhibiting muddy appearance or odd tastes
• Filter life indicator appears showing it is time for a new one

Causes stem from normal usage over the stated capacity of the original filter. Allowing one to expire could produce unhealthy water.

This OEM replacement part is compatible with select Maytag, Jenn-Air, and Amana models as well.

This replacement access panel restores a finished, protective cover over internal components on compatible Whirlpool laundry appliances, helping keep wiring and parts shielded from debris and accidental contact. What it does:

• Replaces a damaged, cracked, or missing access cover that exposes internal components
• Protects wiring, connectors, and mechanical parts from dust, lint, and accidental bumps
• Helps reduce rattling or vibration caused by loose or broken panels
• Restores the appliance's finished appearance where the original cover was missing

• One access cover

• Disconnect power to the appliance before starting any work
• Remove any adjacent panels or components as needed to access mounting points
• Secure with original fasteners or replacements that match OEM specifications
• If you see damaged wiring or components while installing, stop.

This glass shelf replaces a damaged or missing refrigerator shelf to restore level, easy-to-clean storage for food and containers. It provides a stable surface to keep items organized and help prevent spills or items falling between compartments. What it does:

• Provides a flat, sturdy surface for storing food, beverages and containers.
• Replaces cracked, chipped or shattered glass shelves that compromise storage.
• Helps keep refrigerator contents organized and prevents items from tipping or falling.
• Designed to sit in existing shelf tracks or supports (verify fit for your model).

• Remove food and loose items from the area before replacing the shelf.
• Handle the glass carefully; wear protective gloves when handling broken or sharp glass.
• Align the shelf with existing tracks/supports and slide into place until fully seated — do not force.
• If trim or support brackets are damaged, inspect and replace those parts as needed for a secure fit.

This replacement glass shelf fits the freezer compartment and restores a strong, level surface for storing frozen foods. Swap out a cracked or missing shelf to regain usable space and keep items supported and organized. What it does:

• Provides a rigid, flat storage surface inside the freezer
• Restores capacity when the original shelf is broken or missing
• Helps keep containers level and prevents items from tipping
• Designed to slide into the designated freezer shelf supports

• One shelf

• Remove food from the area and handle glass carefully; wear cut-resistant gloves
• Lift out the old shelf and clean the support rails/ledges
• Slide the new shelf into the side rails until fully seated and level
• Distribute weight evenly and avoid overloading the shelf

This freezer bin replaces a damaged or missing bin to restore usable storage space in your freezer. It keeps items contained and organized so the compartment closes smoothly and you can access food more easily.

• Provides dedicated, organized storage within the freezer compartment
• Holds items securely to reduce tipping or spills during door/drawer movement
• Restores proper fit when the original bin is cracked, warped, or broken
• Common signs to replace: bin is cracked, won't stay seated, falls off, or is missing

• Disconnect power to the appliance before servicing
• Remove food from the area and take out the old bin
• Align the new bin with its mounting points and slide/press into place until fully seated
• Verify smooth door/drawer closure before reloading items

The Drawer Roller is an OEM part for Whirlpool refrigerators, specifically designed to facilitate the smooth and effortless sliding of drawers within the appliance. This small but crucial component ensures that the refrigerator's drawers open and close with ease, allowing for convenient access to fruits, vegetables, meats, and other items stored inside.

Causes of a bad Drawer Roller can stem from wear and tear over time, accumulation of debris or food particles in the roller mechanism, or damage from overloading the drawer beyond its capacity.

Symptoms of a bad Drawer Roller include:

• Drawers sticking or jamming when you try to open or close them
• A grinding or squeaking noise during drawer movement
• The drawer sagging or not aligning properly within the refrigerator

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This pan roller axle fits refrigerator drawers. It's the small support pin that anchors the roller so the crisper or pantry pan glides smoothly. Replacing a damaged axle restores proper glide and keeps the drawer tracking correctly.

• Secures the drawer's roller to the bin or rail so the pan slides smoothly
• Helps keep the crisper/pantry drawer level and properly aligned
• Common symptoms: drawer hard to open/close, sags on one side, scraping/clicking sounds
• Visible damage or a missing axle/roller at the drawer corner

• Unplug the refrigerator, remove contents, and take out the affected drawer
• Locate the broken axle and gently pry/pull it out
• Seat the new axle fully in the mounting hole; ensure the roller spins freely
• Reinstall the drawer and check for smooth operation

The Door Switch is an OEM part for Whirlpool refrigerators. This switch is crucial for controlling the interior lights and the activation of certain refrigerator functions when the door is opened or closed.

Symptoms of a failing Door Switch include:

• Interior lights staying on when the refrigerator door is closed
• Interior lights not turning on when the door is opened
• The refrigerator unexpectedly starting or stopping
• Alarms or indicators malfunctioning, signaling an open door when it is closed

Causes of a bad door switch can involve mechanical failure due to wear and tear from frequent use, damage from impacts (such as slamming the door), or electrical issues like a short circuit or faulty wiring.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This thermistor cover shields and positions the refrigerator's temperature sensor so it reads cabinet air accurately. Replacing a cracked or missing cover helps restore stable temperatures and normal cooling performance.

• Holds the thermistor in place and shields it from direct airflow for accurate temperature sensing
• Helps prevent erratic temperatures, overcooling/undercooling, or long run times caused by an exposed sensor
• Commonly replaced when the original cover is cracked, loose, or missing
• Supports consistent temperature control by ensuring proper sensor placement

• Disconnect power before servicing
• Remove shelves/bins as needed to access the sensor location
• Align the thermistor and seat the cover fully; engage tabs or reuse existing hardware per model
• Avoid pinching the sensor or wiring and verify the cover is snug

The LED Module is an OEM part for Whirlpool refrigerators. This module plays a role in illuminating the inside of the refrigerator and freezer compartments. Properly functioning LED lights are necessary for visibility when accessing refrigerator contents.

Over time, exposure to temperature fluctuations and general use can cause LED modules to fail or burn out prematurely. Replacing this OEM Whirlpool part will restore full illumination inside your refrigerator.

Symptoms of a bad LED Module can include:

• Dim or flickering lights inside the refrigerator or freezer
• Partial lighting with some LEDs not working
• Lights that will not turn on at all

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Ice Bin Safety Switch is an OEM replacement part for Whirlpool refrigerators, ensuring safe and efficient operation of the ice maker. Positioned to detect the ice bin, it activates the ice maker when the bin is in place and deactivates it when removed for cleaning or emptying.

Common causes for Ice Bin Safety Switch issues may include physical damage occurring during cleaning or routine use, electrical problems like short circuits, wear on the switch's contacts affecting functionality, and misalignment or incorrect installation of the ice bin causing inaccurate bin detection.

Symptoms of a malfunctioning Ice Bin Safety Switch include:

• The ice maker not producing ice
• The ice maker continuing to operate even without the ice bin in place
• Unusual behavior from the ice maker, such as starting and stopping erratically

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
