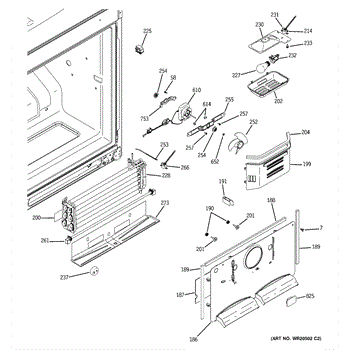

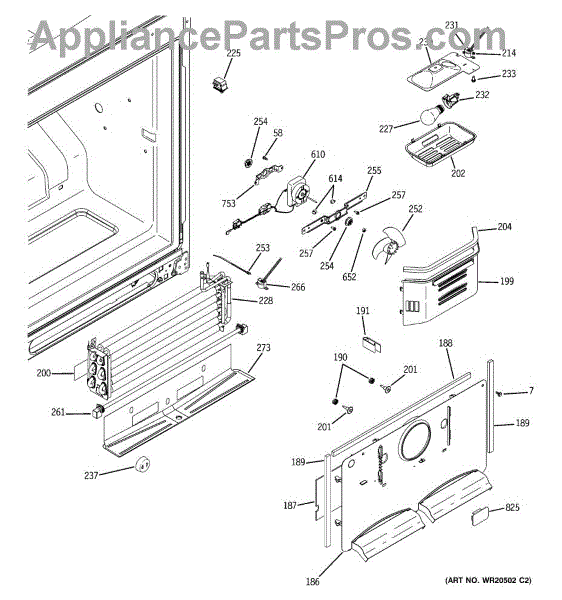

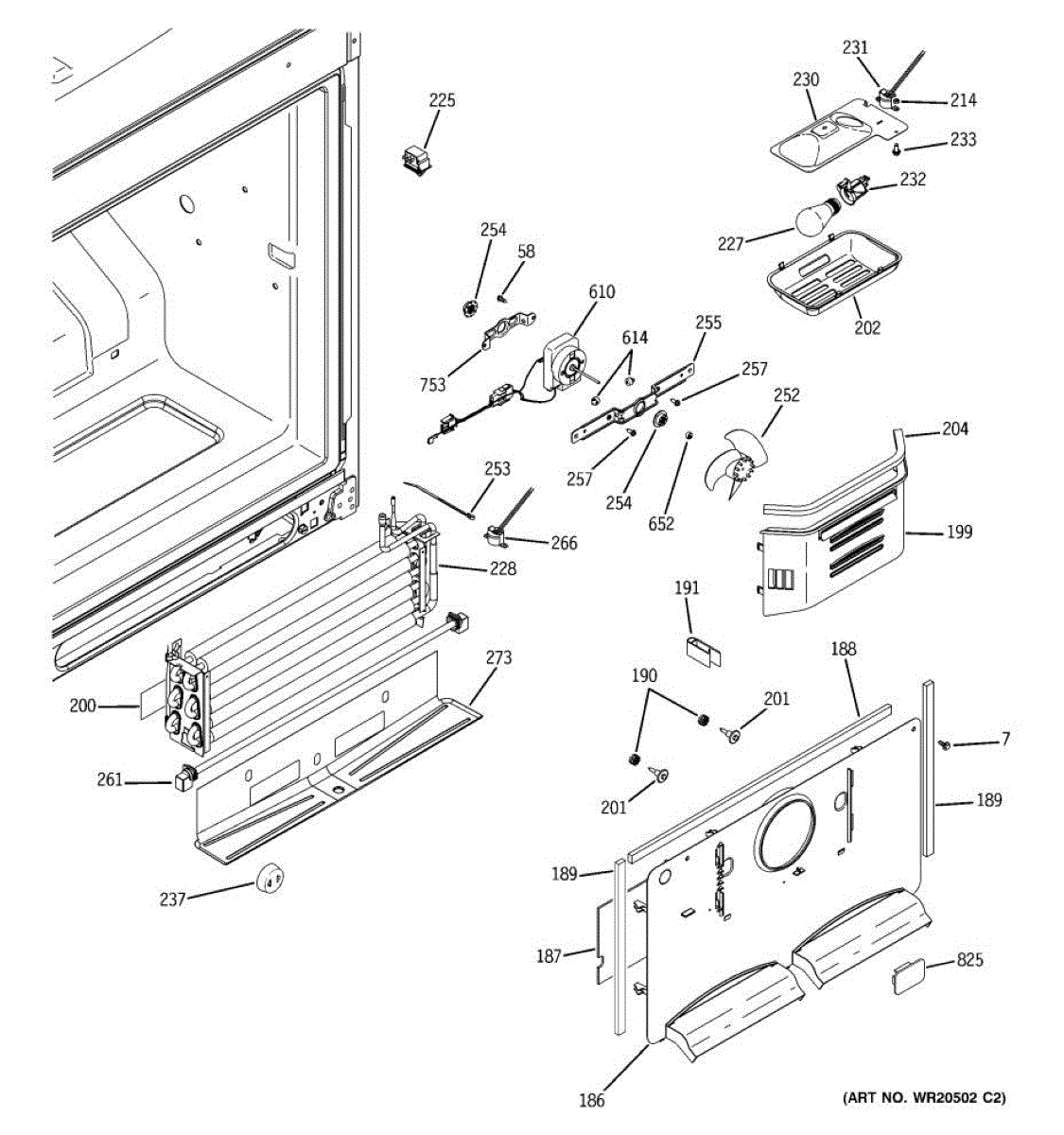

Parts for Ge GBSC3HBYARBB: 02 - Freezer Section Parts

8-18 CA HX 1/2 S

This 8-18 x 9/16 screw is a short sheet-metal fastener used to secure panels, trim and small components on appliances. It replaces missing or stripped screws to restore proper fit and reduce noise from loose parts. What it does

• Secures appliance panels, brackets and trim to prevent movement and rattling
• Holds small components in correct alignment for reliable operation
• Replaces lost, worn or stripped screws that cause gaps or loose fittings
• Common symptom link: fixes rattling panels, loose trim, or parts that shift during use

• One 8-18 x 9/16 screw

• Use the correct 8-18 driver bit and hand or low-torque power driver to avoid stripping
• Do not overtighten; snug until secure to prevent thread damage or panel deformation
• Turn power off/unplug appliance when installing near electrical components
• Keep extra screws on hand—hardware often comes in single quantities

A self-adhesive foam strip that cushions gaps and seals edges to reduce air leaks, vibration, and moisture intrusion. Simple peel-and-stick design makes it a fast way to restore proper sealing and quiet operation. What it does

• Creates a soft seal along doors, panels or trim to help stop cold air loss and drafts.
• Dampens vibration and rattles caused by loose or worn mounting surfaces.
• Helps block dust and moisture from entering seams and crevices.
• Works where a thin, compressible filler is needed for a snug fit.

• Clean and dry the mounting surface thoroughly before installation for best adhesion.
• Measure and trim foam to fit; peel backing and press firmly to adhere along the entire length.
• Avoid stretching the foam during installation; allow adhesive to set before regular use.
• If adhesive residue remains on hands or surfaces, use a mild solvent per manufacturer guidance.

The Fan Motor Grommet is an OEM replacement part for GE refrigerators. It is a small but essential component that helps to seal and insulate the area around the fan motor, preventing air leaks and maintaining optimal cooling efficiency.

Causes of a damaged or worn-out fan motor grommet can include prolonged use, exposure to extreme temperatures, or physical damage from improper handling or installation.

Symptoms of a bad fan motor grommet include:

• Reduced cooling performance
• Increased energy consumption
• Frost buildup in the freezer compartment
• Unusual noises coming from the fan area

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This tube clamp secures flexible water tubing to its fitting in refrigerators. It helps maintain a tight seal to prevent leaks and keeps lines from slipping off under normal operating pressure.

• Holds plastic or rubber tubing firmly on a barbed fitting or nipple
• Helps prevent drips and leaks at tube connection points
• Addresses loose or disconnected water lines
• Useful when tubing slips off or won't stay seated

• Disconnect power and shut off the water supply before servicing
• Position the clamp over the tube and fitting; compress with pliers and release to lock in place
• Ensure the clamp is centered and fully seated; tug-test the tube
• Restore water and power; check all connections for leaks

The GE Door Light Switch is an OEM Replacement Part that serves as the Freezer Door Fan and Light Switch. The switch is made from metal, wiring, and plastic. It plays an essential role in energy conservation by turning off the light when the refrigerator or freezer door is closed

Over time, the door light switch can wear out or fail due to frequent use, exposure to moisture, or electrical issues. When this happens, the interior light may not function correctly, which can hinder visibility inside the refrigerator.

Symptoms of a bad door light switch may include:

• Interior light not turning on when the door is opened
• Interior light not turning off when the door is closed
• Flickering or intermittent operation of the interior light

This switch is compatible with select GE and Hotpoint models.

The Light Bulb (40W) is an OEM component for GE refrigerators. As an essential task lamp, it illuminates the interior of the refrigerator and freezer compartments.

All light bulbs will eventually burn out with consistent use over many years. Vibration during compressor cycles can also potentially disrupt bulb filaments faster.

Symptoms of a burnt out refrigerator light bulb include:

• Dim or no light illuminating inside refrigerator shelves
• Shadows and dark spots making it difficult to find items
• Higher utility costs from leaving the door open to see inside

This bulb is also compatible with refrigerators from brands like Hotpoint, RCA, and some Kenmore models.

The Light Socket is an OEM part for GE refrigerators. It is responsible for holding the refrigerator's light bulb and ensuring it receives power to illuminate the interior when the door is opened.

You should replace the light socket if it becomes faulty. Causes of a bad light socket can include wear and tear from regular use, electrical issues such as short circuits or power surges, and corrosion from moisture exposure.

Symptoms of a bad light socket include:

• The refrigerator light not turning on when the door is opened
• Flickering or intermittent light operation
• Visible damage or corrosion on the socket
• The light bulb not fitting securely or falling out

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This plug cover and gasket assembly provides the replacement cover and sealing gasket for the appliance electrical access area, restoring a secure fit and helping keep out moisture and debris. It's a direct-fit replacement designed to restore proper coverage. What it does:

• Covers and protects the appliance's electrical plug/access opening to prevent exposure to wiring and terminals
• Gasket creates a seal to help keep out moisture, dirt and cooking residues
• Restores a snug, stable fit where a cracked or missing cover allowed movement or gaps
• Helps reduce risk of corrosion or shorting from contaminants reaching components

• One plug cover and gasket assembly

• Always disconnect power before accessing electrical components
• Remove only the fasteners securing the old cover; note orientation of the gasket for correct reinstallation
• Inspect mounting area and wiring for damage before installing the new part
• Use basic hand tools;

The Evaporator Fan Blade is an OEM part for GE refrigerators. This fan blade is crucial for circulating air over the evaporator coils, which helps to maintain an even temperature throughout the refrigerator and ensures efficient cooling.

Common causes of a bad fan blade include regular wear and tear, damage from ice buildup or debris, and mechanical issues that cause the blade to crack or warp. A compromised fan blade can lead to poor air circulation, resulting in uneven cooling and potential frost buildup.

Symptoms of a bad evaporator fan blade include:

• Unusual noises coming from the freezer compartment
• Inconsistent temperatures within the refrigerator or freezer
• Frost buildup on the evaporator coils
• Reduced cooling efficiency

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Fan Motor Grommet is an OEM replacement part for GE refrigerators. It is a small but essential component that helps to seal and insulate the area around the fan motor, preventing air leaks and maintaining optimal cooling efficiency.

Causes of a damaged or worn-out fan motor grommet can include prolonged use, exposure to extreme temperatures, or physical damage from improper handling or installation.

Symptoms of a bad fan motor grommet include:

• Reduced cooling performance
• Increased energy consumption
• Frost buildup in the freezer compartment
• Unusual noises coming from the fan area

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Defrost Heater Assembly is an OEM replacement part for GE refrigerators. It contains the heating element responsible for maintaining optimal temperatures within the refrigerator. As a crucial component, the heater works to keep stored food safely cooled and prevent freezing.

Causes of a bad defrost heater can include gradual wear over time, mineral buildup reducing heat transfer efficiency, and physical damage.

Symptoms of failure are:

• Fluctuating temperatures inside the fridge
• Food spoiling more quickly
• Compressor running excessively
• Error codes indicating heating issues

This GE OEM part is also compatible with Hotpoint, RCA, and Kenmore models for simple cross-referencing.

This defrost thermostat is the temperature-sensing switch mounted on the freezer evaporator. It controls power to the defrost heater during the cycle to help prevent frost buildup and restore proper airflow and cooling performance.

• Monitors evaporator temperature and opens the heater circuit when the coil warms
• Helps stop heavy frost/ice accumulation on the evaporator and back wall
• Failure can cause poor cooling, weak airflow, or frost-covered coils
• If stuck open, may prevent the defrost heater from energizing at all

• Disconnect power to the refrigerator before service
• Access the evaporator behind the freezer's rear panel; locate the thermostat attached to the coil/tubing
• Install the new thermostat in the same location and orientation, ensuring firm contact with the evaporator surface
• Route and secure wires as original; keep clear of the fan and moving parts

This evaporator fan motor assembly includes a jumper harness to match updated wiring. It circulates air across the evaporator and throughout the cabinet to maintain even temperatures and consistent cooling performance.

• Drives airflow across the evaporator coils to remove heat
• Distributes cold air between freezer and fresh food sections
• Helps reduce frost buildup and temperature swings
• Typical failure signs: weak or no airflow, warm compartments, or loud/squealing fan noise

• Disconnect power before servicing; wear cut-resistant gloves
• Transfer the existing fan blade, bracket, and grommets if not supplied
• Make tight, fully seated connections; use the jumper only if your harness requires it
• After reassembly, restore power and close the door switch to verify fan operation

The Lid Bumper is an OEM part for GE refrigerators. It is designed to provide cushioning and protection for the refrigerator lid, preventing damage and ensuring smooth, quiet closing.

Causes of a bad Lid Bumper can include deterioration over time due to frequent use, exposure to temperature variations, or damage from accidental impacts. A worn or damaged bumper may no longer provide adequate cushioning, leading to potential damage to the lid or the refrigerator itself.

Symptoms of a bad Lid Bumper include:

• The refrigerator lid closing too hard
• Unusual noises when closing the lid
• Visible wear or cracks on the bumper

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Compression Ring is an OEM part for GE refrigerators. It is designed to secure and seal connections within the refrigerator’s water and ice dispensing system, ensuring a leak-free operation. This small yet vital component helps maintain the integrity of the connections, preventing water leaks and ensuring the proper flow of water through the dispenser and ice maker.

Over time, the compression ring can wear out or become damaged due to regular use and the natural aging of materials. If the compression ring is compromised, it can lead to water leaks or poor water flow, which can affect the overall performance of the refrigerator’s water and ice dispensing functions.

Symptoms of a bad compression ring include:

• Water leaks around the dispenser or ice maker
• Reduced water flow or no water flow at all
• Drips or puddles forming inside the refrigerator

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This condenser fan mounting bracket secures the condenser fan motor and blade in the correct position to move air across the coils. Replacing a cracked or bent bracket restores stable mounting, reduces vibration, and helps maintain proper condenser airflow.

• Holds the condenser fan motor/blade assembly in alignment for proper airflow through the condenser
• Maintains clearance to prevent the fan blade from rubbing or contacting nearby components
• Helps reduce rattling, vibration, or scraping noises from the rear of the refrigerator
• Damage or misalignment can contribute to restricted condenser airflow and warmer temperatures

• Disconnect power and pull the refrigerator away from the wall to access the rear service area
• Remove the rear lower access panel; note wiring and hardware locations
• Support the fan motor/blade while removing the old bracket; transfer motor, blade, grommets, and screws to the new bracket
• The fan spins freely with proper clearance and correct airflow direction before reassembly
