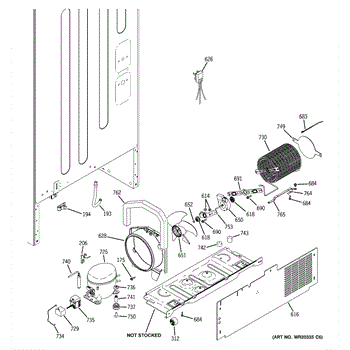

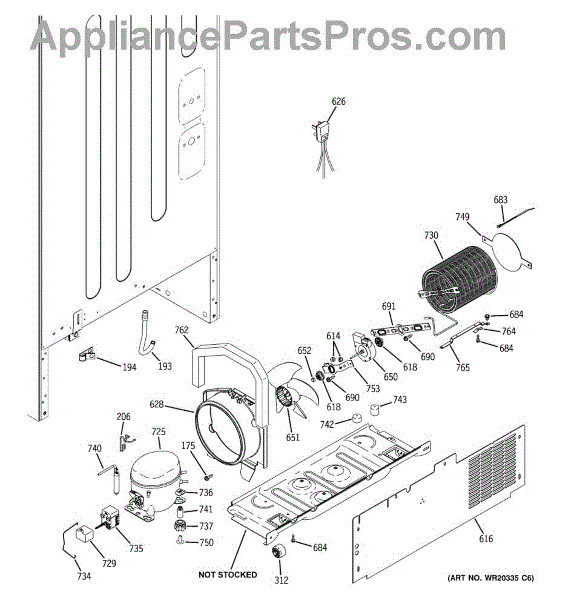

Parts for Ge GBSC3HBYARBB: 07 - Machine Compartment Parts

Mounting screw for refrigerator interior components like fan brackets, ice maker assemblies, and shelving. Replace if stripped, missing, or corroded.

Directs defrost water from the evaporator to the drain pan below your refrigerator. Replace if cracked, damaged, or clogged to prevent water pooling.

Secures wiring harnesses and cables inside your refrigerator. Replace if broken, cracked, or missing to prevent wire damage. Verify fit with your model.

A small retaining clip that secures the refrigerator drain tube to the cabinet or drain assembly to keep the tube in place and help direct defrost water to the drain pan. Simple replacement for loose or broken clips. What it does:

• Holds the drain tube or drain hose in the correct position to prevent kinks or dislodging
• Helps maintain proper water flow from the defrost/drain channel to the drain pan
• Commonly used when water pools inside the fridge, leaks onto the floor, or drips from the cabinet
• Prevents tube movement that can lead to freeze-ups or overflow at the drain inlet

• One drain tube retaining clip

• Disconnect power to the appliance before beginning any service
• Access the clip by removing the rear or interior access panel as required by your model
• Snap the clip over the drain tube and into the cabinet or mounting boss until it seats securely
• Inspect the tube and surrounding area for blockages or damage while replacing the clip

Rear caster wheel assembly for refrigerators. Mounts under the back of the unit to provide smooth rolling mobility. Replace if cracked, broken, or worn.

The Lid Bumper is an OEM part for GE refrigerators. It is designed to provide cushioning and protection for the refrigerator lid, preventing damage and ensuring smooth, quiet closing.

Causes of a bad Lid Bumper can include deterioration over time due to frequent use, exposure to temperature variations, or damage from accidental impacts. A worn or damaged bumper may no longer provide adequate cushioning, leading to potential damage to the lid or the refrigerator itself.

Symptoms of a bad Lid Bumper include:

• The refrigerator lid closing too hard
• Unusual noises when closing the lid
• Visible wear or cracks on the bumper

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Cardboard or metal cover that closes the machine compartment opening on your refrigerator back panel. Replace if cracked, missing, or water-damaged.

Rubber grommet that mounts the evaporator or condenser fan motor to its bracket. Replace when worn, cracked, or missing to reduce vibration and noise.

Supplies electrical power from wall outlet to refrigerator. Replace this cord if cut, frayed, overheated, or damaged to restore safe electrical connection.

Guides airflow across the condenser and secures the fan motor in place. Replace if cracked, broken, or missing to restore proper cooling airflow.

Replace a dead or noisy refrigerator fan motor to restore proper airflow and cooling. Fixes non-spinning or intermittently running fans. DIY-friendly.

Refrigerator running hot or making loud noises? A worn condenser fan blade prevents proper airflow across coils. DIY repair in 30 minutes or less.

Secures and seals water line connections in your refrigerator's dispensing system. Replace if leaking or loose to prevent water damage. Confirm fit.

10-32 x 5/16 machine-thread screw secures refrigerator panels, trim, and internal brackets. Replaces missing or damaged fasteners to prevent rattles.

Size: 8-32 t. Includes 12 screws.

This rear condenser fan bracket secures the condenser fan assembly to the refrigerator chassis, helping keep the fan stable for proper airflow and efficient cooling. It restores correct fan alignment and reduces rattling or vibration. What it does:

• Holds the condenser fan motor and blade in the correct position behind the condenser coil
• Prevents fan wobble, rubbing, and metal-on-metal noise
• Helps maintain consistent condenser airflow for efficient cooling
• Useful when the original bracket is bent, cracked, or broken

• Disconnect power to the appliance before starting any work.
• Basic hand tools are typically required; handle sharp sheet metal carefully.
• Inspect surrounding mounting hardware and fan components; replace any damaged fasteners.

Refrigerator not cooling or compressor clicking on and off? This compressor kit restores cooling. Requires certified technician with specialty tools.

The Run Capacitor is an OEM part for GE refrigerators. It plays a crucial role in the refrigerator's cooling system by providing the necessary start and run voltage to the compressor. Without a properly functioning run capacitor, your refrigerator may struggle to maintain the desired temperature, leading to spoiled food and inefficient energy use.

Causes of a bad run capacitor include electrical surges, wear and tear over time, or overheating due to a malfunctioning refrigerator compressor or poor ventilation.

Symptoms of a bad Run Capacitor include:

• The refrigerator compressor fails to start.
• Unusual humming noises coming from the refrigerator.
• The refrigerator cycles on and off more frequently than normal.
• A noticeable increase in energy consumption as the refrigerator struggles to maintain the proper temperature.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

Refrigerator not cooling or running constantly? A damaged condenser coil prevents proper heat release. This assembly restores cooling efficiency.

Fix compressor clicking every few minutes or fridge not cooling. This start relay and overload combo helps your compressor start and prevents overheating. Easy 5-minute fix.

This is a grommet and it is intended for use on refrigerators and freezers. This is a genuine replacement part made by General Electric. A new grommet might be needed if the current one is visibly worn out or damaged in any way. If there are noises from vibration coming from the lower back area of the fridge there might be need for a new grommet. This is an OEM part sourced directly from the manufacturer, and it is sold individually. It is compatible with refrigerators and freezers, or units with a compressor and is made by General Electric.

The R134 Drier is an OEM part for GE refrigerators. This component plays a critical role in the refrigeration system by removing moisture and contaminants from the refrigerant, ensuring efficient cooling and preventing damage to other parts of the system. It helps maintain the purity and effectiveness of the refrigerant as it cycles through the system.

You should replace the R134 drier if it becomes clogged or damaged. Common causes of a bad drier include wear and tear over time, exposure to moisture, or contamination from other failing components in the refrigeration system.

Symptoms of a bad R134 drier include:

• Reduced cooling efficiency
• Frost buildup on the evaporator coils
• Unusual noises from the refrigeration system
• Increased energy consumption
• Refrigerator not maintaining the set temperature

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Replacement shelf support stud for refrigerator shelves. Installs to hold shelves in place. Needed when original stud is broken, cracked, or missing.

Replacement mounting screw for securing panels, trim, and internal components in appliances. Needed when original screws are stripped, lost, or damaged.

Secures the condenser fan motor in position. Replace this bracket if cracked, bent, or causing excessive vibration to restore stable mounting.

This self-adhesive foam strip provides a flexible seal and buffer for appliance gaps, helping reduce drafts, rattling, and moisture intrusion. Designed for easy stick-on replacement where foam padding or sealing is needed. What it does

• Seals small gaps between components to help reduce air leaks and temperature loss
• Cushions panels and doors to minimize noise and vibration
• Helps block moisture and dust from entering sensitive areas
• Self-adhesive backing allows for quick placement without extra glue

• One self-adhesive foam strip

• Surface must be clean and dry; wipe with isopropyl alcohol for best adhesion
• Measure and trim the foam strip to fit—use scissors or a utility knife
• Press firmly along the length to ensure full contact; allow adhesive to set before closing doors or panels
• For safety, disconnect power to the appliance before working in internal areas

Secures the condenser unit in your refrigerator. Replace if loose, broken, or causing vibration noise. Verify fit with your model number before ordering.
