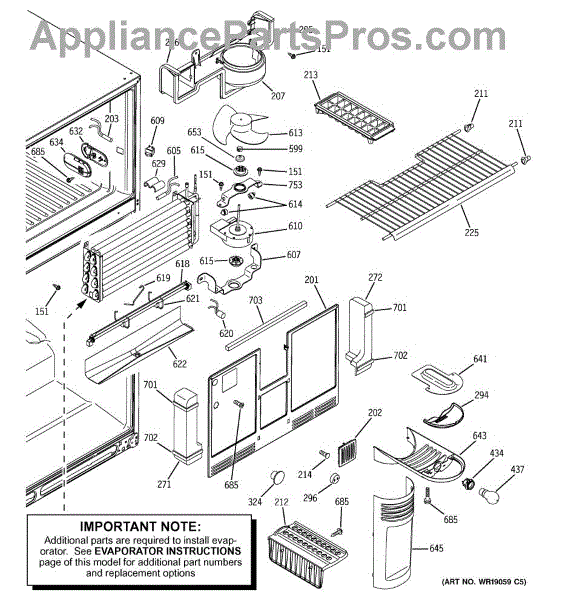

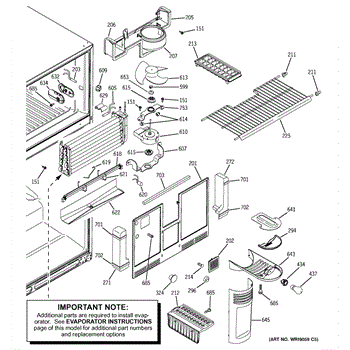

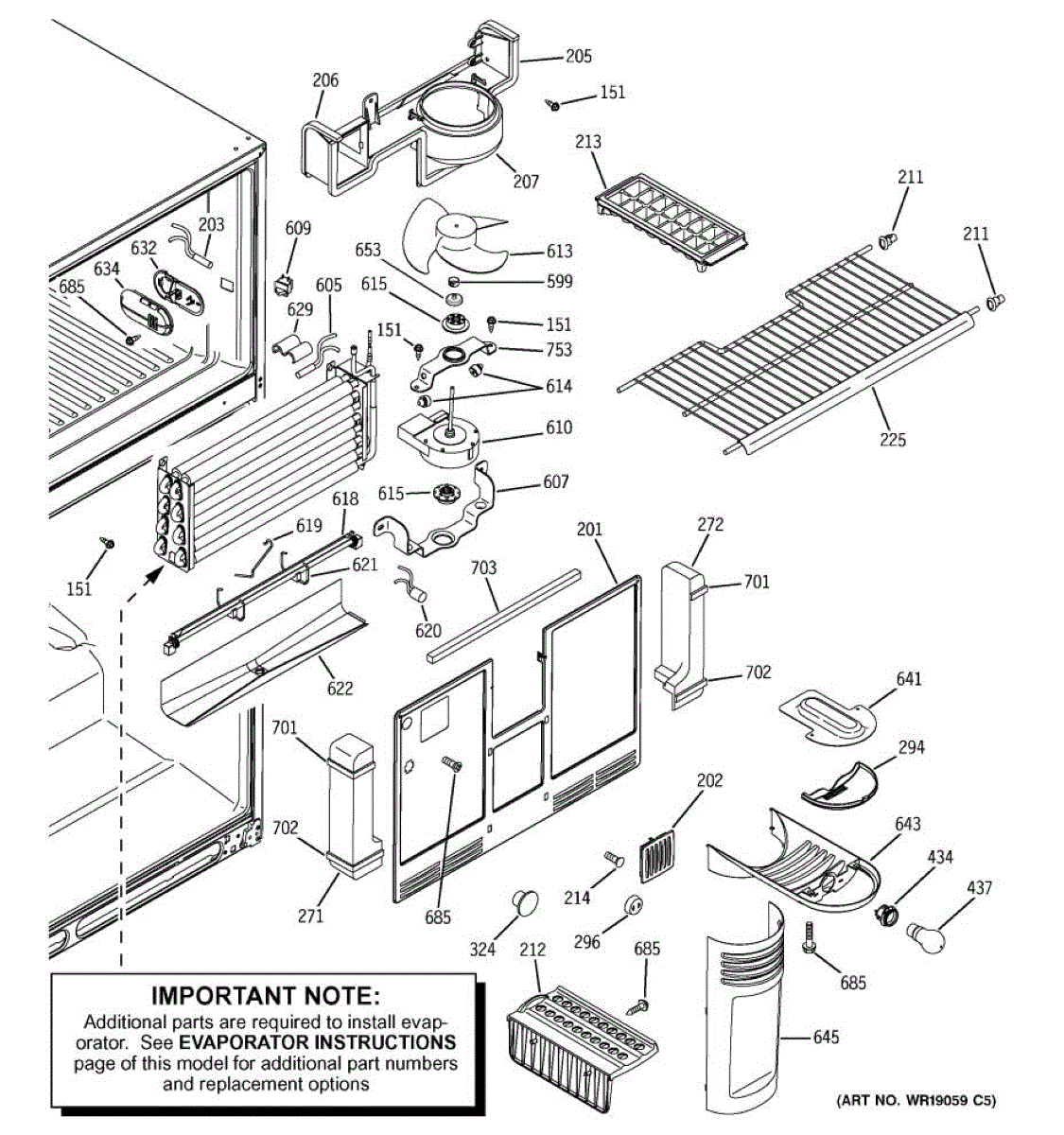

Parts for Ge GTS22KBMBRBB: 03 - Freezer Section Parts

This is a replacement 8-18 x 9/16 machine screw used to secure internal and external appliance components. It restores proper fastening and helps stop rattling or loose panels caused by worn or missing fasteners. What it does

• Secures panels, brackets, or small assemblies to prevent movement and vibration
• Replaces stripped, corroded, or missing screws that can cause rattling or misalignment
• Helps maintain electrical and mechanical connections by holding parts in proper position
• Appropriate where an 8-18 thread size and 9/16" length are required

• Replacement screw

• Disconnect power to the appliance before accessing internal components
• Use the correct driver to avoid stripping the screw head and ensure proper torque
• Do not overtighten; snug until secure to avoid damaging threads or parts

The Temperature Sensor is an OEM replacement part for GE refrigerators, designed to accurately monitor and relay the temperature inside the refrigerator and freezer compartments to the electronic control board. By detecting the slightest changes in internal temperature, the sensor allows the control board to make real-time adjustments to the cooling system, activating the compressor and fans as needed to maintain optimal conditions for food preservation.

Over time, the temperature sensor can fail due to electrical issues, exposure to moisture, or general wear and tear. A malfunctioning sensor can lead to improper temperature regulation, affecting the efficiency of the refrigerator and the freshness of stored food.

Symptoms of a bad Temperature Sensor include:

• The refrigerator or freezer not maintaining the set temperature
• The appliance running continuously or more frequently than normal
• Inaccurate temperature readings displayed

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This plug cover and gasket assembly provides the replacement cover and sealing gasket for the appliance electrical access area, restoring a secure fit and helping keep out moisture and debris. It's a direct-fit replacement designed to restore proper coverage. What it does:

• Covers and protects the appliance's electrical plug/access opening to prevent exposure to wiring and terminals
• Gasket creates a seal to help keep out moisture, dirt and cooking residues
• Restores a snug, stable fit where a cracked or missing cover allowed movement or gaps
• Helps reduce risk of corrosion or shorting from contaminants reaching components

• One plug cover and gasket assembly

• Always disconnect power before accessing electrical components
• Remove only the fasteners securing the old cover; note orientation of the gasket for correct reinstallation
• Inspect mounting area and wiring for damage before installing the new part
• Use basic hand tools;

The Lamp Socket is an OEM component specifically designed for GE refrigerator interiors. It provides the connection point for interior lighting.

The lamp socket mounts near the top of the interior and includes contacts that receive and hold the installed light bulb firmly in position. Proper socket operation enables convenient and dependable interior illumination.

Causes of a bad socket can include wear from repeated bulb replacements, damaged contacts from moisture exposure over time, or loose electrical connections.

Symptoms include:

• Intermittent or no interior light function
• Bulbs that will not screw in securely or pop out easily
• Exposed or frayed electrical wire connections
• Visible cracks or breaks in the socket assembly

This genuine OEM GE replacement socket ensures clear vision inside refrigerator shelves for years. Compatible with additional brands including Hotpoint, RCA, or Kenmore refrigerator models.

The Light Bulb (40W) is an OEM component for GE refrigerators. As an essential task lamp, it illuminates the interior of the refrigerator and freezer compartments.

All light bulbs will eventually burn out with consistent use over many years. Vibration during compressor cycles can also potentially disrupt bulb filaments faster.

Symptoms of a burnt out refrigerator light bulb include:

• Dim or no light illuminating inside refrigerator shelves
• Shadows and dark spots making it difficult to find items
• Higher utility costs from leaving the door open to see inside

This bulb is also compatible with refrigerators from brands like Hotpoint, RCA, and some Kenmore models.

The Compression Ring is an OEM part for GE refrigerators. It is designed to secure and seal connections within the refrigerator’s water and ice dispensing system, ensuring a leak-free operation. This small yet vital component helps maintain the integrity of the connections, preventing water leaks and ensuring the proper flow of water through the dispenser and ice maker.

Over time, the compression ring can wear out or become damaged due to regular use and the natural aging of materials. If the compression ring is compromised, it can lead to water leaks or poor water flow, which can affect the overall performance of the refrigerator’s water and ice dispensing functions.

Symptoms of a bad compression ring include:

• Water leaks around the dispenser or ice maker
• Reduced water flow or no water flow at all
• Drips or puddles forming inside the refrigerator

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Temperature Sensor is an OEM replacement part for GE refrigerators, designed to accurately monitor and relay the temperature inside the refrigerator and freezer compartments to the electronic control board. By detecting the slightest changes in internal temperature, the sensor allows the control board to make real-time adjustments to the cooling system, activating the compressor and fans as needed to maintain optimal conditions for food preservation.

Over time, the temperature sensor can fail due to electrical issues, exposure to moisture, or general wear and tear. A malfunctioning sensor can lead to improper temperature regulation, affecting the efficiency of the refrigerator and the freshness of stored food.

Symptoms of a bad Temperature Sensor include:

• The refrigerator or freezer not maintaining the set temperature
• The appliance running continuously or more frequently than normal
• Inaccurate temperature readings displayed

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Light Switch is an OEM replacement part for GE refrigerators. It controls the interior light, turning it on when the refrigerator door is opened and off when the door is closed. This ensures proper illumination for visibility when accessing the refrigerator's contents.

A malfunctioning light switch can result from wear and tear, electrical issues, or damage caused by repeated use. Over time, the internal mechanism may fail, or the housing can crack, leading to improper operation.

Symptoms of a bad light switch include:

• Interior light not turning on when the door is opened
• Light staying on even when the door is closed
• Flickering or inconsistent light operation
• Difficulty pressing or releasing the switch

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Evaporator Fan Motor is an OEM part for GE refrigerators. It circulates air over the evaporator coils, ensuring consistent cooling throughout the refrigerator and freezer compartments. The motor operates 9.75 volts DC. The motor has a 1/8" shaft and a 12" long, 4-wire harness.

You should replace the evaporator fan motor if it becomes faulty due to wear and tear, electrical issues, or physical damage. Over time, the motor bearings can wear out, or the motor itself can fail due to continuous operation.

Symptoms of a bad evaporator fan motor include:

• The refrigerator or freezer not cooling properly
• Unusual noises coming from the freezer area
• Frost buildup in the freezer
• The refrigerator running continuously without reaching the set temperature

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Evaporator Motor Fan Blade is an OEM part for GE refrigerators. This component is crucial for circulating air over the evaporator coils, which helps to maintain the correct temperature within the refrigerator and freezer compartments. By moving air efficiently, it ensures that the appliance cools evenly and prevents frost buildup.

Over time, the evaporator motor fan blade can become damaged or wear out due to regular use, ice accumulation, or accidental impact from other items within the refrigerator. These issues can hinder its ability to circulate air effectively.

Symptoms of a bad evaporator motor fan blade include:

• Unusual noises like clicking or scraping from the fan area
• Inconsistent temperatures in the refrigerator or freezer
• The refrigerator running more frequently or continuously
• Visible damage or warping of the fan blade

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Lid Bumper is an OEM part for GE refrigerators. It is designed to provide cushioning and protection for the refrigerator lid, preventing damage and ensuring smooth, quiet closing.

Causes of a bad Lid Bumper can include deterioration over time due to frequent use, exposure to temperature variations, or damage from accidental impacts. A worn or damaged bumper may no longer provide adequate cushioning, leading to potential damage to the lid or the refrigerator itself.

Symptoms of a bad Lid Bumper include:

• The refrigerator lid closing too hard
• Unusual noises when closing the lid
• Visible wear or cracks on the bumper

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Fan Motor Grommet is an OEM replacement part for GE refrigerators. This small but essential component serves as a seal and insulator around the area where the fan motor shaft protrudes from the appliance body.

Causes of needing to replace the fan motor grommet can include normal wear and tear over time, exposure to extreme temperatures or moisture, or physical damage due to impact or improper installation.

Symptoms of a faulty or missing grommet include:

• Air leaks or drafts around the fan motor area
• Condensation buildup or frost formation near the motor shaft
• Increased noise or vibration from the fan motor assembly
• Reduced cooling efficiency due to air leakage

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerator models.

The Defrost Heater is an OEM part for GE refrigerators. This part melts away frost that accumulates on the evaporator coils during the cooling cycle. This process is vital for maintaining the efficiency of the refrigerator, ensuring that air can flow freely over the coils to keep the unit cooling effectively.

Causes of a bad defrost heater can include a faulty heater element, electrical issues preventing the heater from activating, or damage to the heater's wiring.

Symptoms of a bad Defrost Heater include:

• Frost buildup on the evaporator coils
• The refrigerator or freezer section is too warm
• The refrigerator is running constantly without cycling off
• Pools of water or ice on the floor of the freezer compartment

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This replacement defrost heater warms the freezer's evaporator area during the automatic defrost cycle. It melts accumulated frost so air can circulate, helping maintain stable temperatures and preventing ice buildup on the back wall.

• Heats the evaporator to clear frost and ice during defrost
• Helps keep airflow passages and the defrost drain path open
• Common symptoms of a failed heater: heavy frost on the back panel/coils, poor cooling or warm sections, fan noise from ice contact, cooling returns temporarily after a manual defrost
• Typically located behind the rear freezer panel

• Disconnect power before servicing; wear cut-resistant gloves
• Access the evaporator by removing the freezer's rear panel; thaw heavy ice before removal
• Transfer any clips/brackets and route wires exactly as original, keeping them away from plastic parts
• After installation, ensure wiring connections are secure and the heater is not contacting plastic surfaces

The Defrost Thermostat is an OEM replacement part designed for use in GE refrigerators. This component acts as a safety device in the refrigerator's defrost system, preventing the freezer from overheating during the defrost cycle. It works by monitoring the temperature of the evaporator coil and turning off the defrost heater when the coil gets warm enough, thus safeguarding the freezer from getting too hot.

Causes of a bad defrost thermostat can include corrosion, a blown fuse inside the thermostat, or wear and tear over time, which can lead to malfunctioning of the refrigerator's defrost system.

Symptoms of a bad Defrost Thermostat include:

• Frost buildup on the back wall of the freezer
• The refrigerator is not cooling properly
• The freezer is cold but the refrigerator is warm
• The defrost heater not turning on

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This holder element assembly secures the appliance's heating element in the correct position so the element stays stable for consistent operation and safe performance. It's a direct-fit replacement for worn or damaged holders. What it does:

• Secures and supports the heating element inside the appliance to maintain proper alignment
• Prevents element sagging or contact with other components that can cause noise or arcing
• Helps reduce vibration and movement that can lead to intermittent heating
• Common symptom: visible holder damage, loose or shifted element, unusual noise during operation

• Disconnect power (unplug or switch off breaker) before starting any repair
• Allow appliance and element to fully cool before handling
• Handle the element and holder carefully to avoid bending or damaging the element

This trough drain routes defrost water from the evaporator to the refrigerator's drain system so meltwater exits safely instead of pooling inside the cabinet. Replaces a cracked, clogged or damaged drain trough to restore proper water flow. What it does:

• Collects and channels defrost/melt water away from the evaporator area
• Prevents water pooling, ice buildup or leaks inside the refrigerator cabinet
• Helps maintain proper drain flow when original trough is cracked, warped or obstructed
• Works with the fridge drain line and drain pan to carry water out of the unit

• One trough drain

• Disconnect power before starting any repair to avoid shock
• Access typically requires removing interior panels and/or the evaporator cover—retain fasteners and take photos for reassembly
• Clear surrounding drain channel of ice and debris before installing the new trough

This clip secures the evaporator thermistor to the evaporator tubing so the control can read coil temperature accurately. Replacing a damaged or missing clip helps restore correct cooling and defrost performance by keeping the sensor firmly in place. What it does:

• Holds the evaporator thermistor tightly against the evaporator coil/tubing for accurate temperature sensing
• Supports proper cooling regulation and defrost cycle timing
• A loose or misplaced sensor may show temperature swings, long run times, or frost buildup on the evaporator
• Restores correct sensor placement after repairs or when the original clip is lost or broken

• 1 evaporator thermistor clip

• Unplug the refrigerator; interior metal edges and fins are sharp—wear cut-resistant gloves
• Remove the evaporator cover to access the sensor; note the original sensor location and orientation
• Transfer the thermistor into the new clip and attach it at the same spot so the sensor makes firm contact; do not pinch wires
• Reinstall panels, keep wiring clear of the fan, and restore power

This evaporator fan motor dust cap is an authentic OEM replacement part found on refrigerator and freezer fan motors. This dust cap prevents the fan motor bearing and housing from being damaged by dirt and debris. If the dust cap is cracked or broken, the fan may make loud squealing noises. If the dust cap is not removed and replaced, the fan could stop working and ultimately cause the refrigerator's temperature to be affected. To start, disconnect the power and water to the refrigerator. Remove food from the freezer so that the back panel of the freezer can be accessed to reach the fan. Remove the ice maker and set it outside the freezer. Disconnect the fan and take it out of the freezer to expose the fan's shaft and the dust cover. Pry the dust cover off and install the new one. Replace the fan and cover. Reconnect the wires and reinstall the icemaker. Put the food back in the freezer. Reconnect the power and water.The evaporator fan motor dust cap is a white plastic part that is sold individually. This dust cover is made for use in refrigerators manufactured by General Electric, Hotpoint, and Kenmore.

8-18 CA HX 1/2 S

This self-adhesive foam strip provides a thin, flexible seal used to fill gaps, reduce vibration, and block drafts or moisture around appliance components. It restores a close fit and helps reduce energy loss and noise. What it does:

• Seals small gaps between panels or trim to reduce drafts and moisture intrusion
• Dampens vibration and rattling from loose or misaligned parts
• Helps prevent dust and debris from entering sensitive areas
• Supports proper airflow by reducing unwanted leaks that can affect cooling

• Clean and dry mating surfaces before applying to ensure adhesive bonds properly
• Trim to fit with scissors or a utility knife; press firmly along the entire length to secure
• For best results, apply at room temperature and allow adhesive to set before reassembling

This evaporator fan bracket secures the evaporator fan assembly behind the rear panel. A rigid, correct-fit mount preserves blade clearance and airflow across the evaporator coils for steady temperatures while minimizing vibration and noise.

• Holds the evaporator fan assembly firmly in position
• Maintains alignment and clearance to prevent fan rubbing and excess noise
• Supports proper airflow through the evaporator compartment for consistent cooling
• Replace if the bracket is cracked, warped, or loose; symptoms may include rattling, scraping sounds, or the fan contacting the shroud

• Disconnect power before servicing and use cut-resistant gloves
• Remove shelves/drawers and the rear evaporator cover to access the fan assembly
• Transfer the fan motor and existing hardware to the new bracket; ensure the blade spins freely without contact
• Avoid damaging the evaporator coils; reassemble panels and restore power to test
