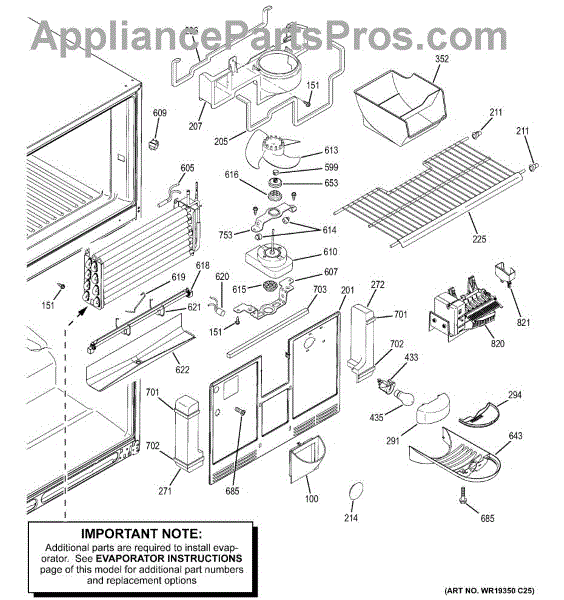

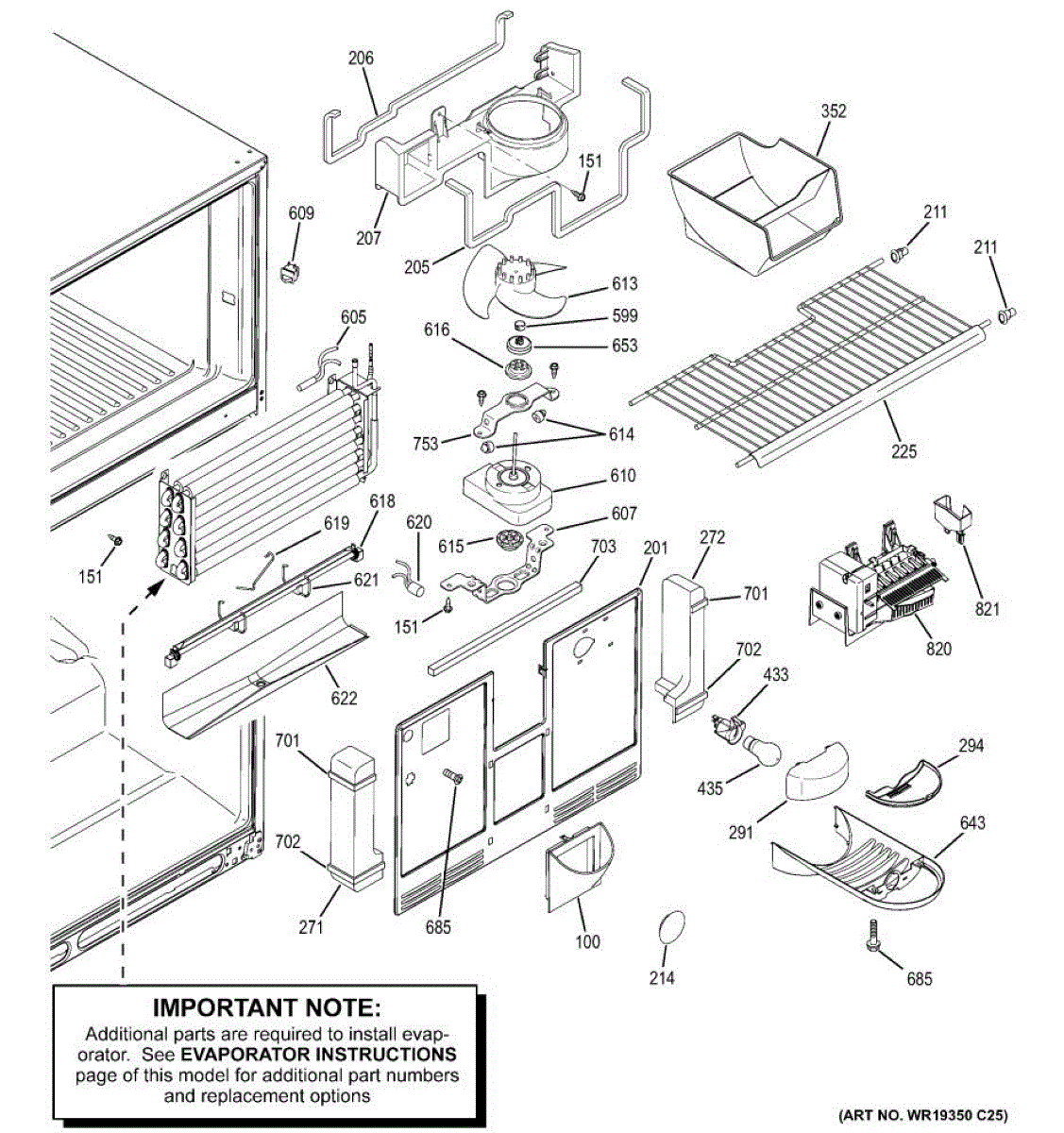

Parts for Ge GTS22KHPBRWW: 03 - Freezer Section Parts

Purifies water before reaching your dispenser and ice maker. Replace every 6 months for clean, safe drinking water. Verify fit with your model number.

Replacement 8-18 x 9/16 machine screw for securing panels, brackets, and internal components. Needed when fasteners are stripped, missing, or worn.

Self-adhesive foam strip that seals gaps to block drafts and improve temperature retention. Replace when foam is compressed, torn, or no longer sealing properly. Verify fit with your model number.

Self-adhesive foam insulation strip for refrigerator doors. Replaces worn, compressed, or missing foam that affects door seal and energy efficiency.

Foam insulation block that surrounds the evaporator coils in your refrigerator. Replace if cracked, deteriorated, or missing to restore proper insulation.

Evaporator housing block for refrigerators. Secures and protects the evaporator assembly. Replace if cracked, broken, or missing to restore coverage.

Replace your refrigerator's freezer light lens cover when cracked, yellowed, or missing. Protects the bulb and ensures proper lighting. Verify fit.

Ice overflowing freezer or ice maker won't shut off? Replace the missing or broken ice bucket. Installs in minutes, no tools required.

The Light Socket is an OEM part for GE refrigerators. It is responsible for holding the refrigerator's light bulb and ensuring it receives power to illuminate the interior when the door is opened.

You should replace the light socket if it becomes faulty. Causes of a bad light socket can include wear and tear from regular use, electrical issues such as short circuits or power surges, and corrosion from moisture exposure.

Symptoms of a bad light socket include:

• The refrigerator light not turning on when the door is opened
• Flickering or intermittent light operation
• Visible damage or corrosion on the socket
• The light bulb not fitting securely or falling out

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

Secures and seals water line connections in your refrigerator's dispensing system. Replace if leaking or loose to prevent water damage. Confirm fit.

Fix uneven cooling or defrost issues with a new temperature sensor. Most DIYers complete this repair in under an hour with basic tools and our video.

Bracket that secures the evaporator fan in place inside your refrigerator. Replace if original bracket is cracked, broken, or missing hardware.

Interior light not working when door opens? This light switch controls refrigerator illumination. DIY-friendly install takes 30-45 minutes with video.

Fix loud whirring, rattling noise or no cooling in your fridge. This evaporator fan motor circulates cold air. Moderate DIY repair, 30-60 minutes.

Freezer fan loud or not spinning? This evaporator fan blade circulates cold air over the coils. DIY-friendly repair with our video guide.

The Lid Bumper is an OEM part for GE refrigerators. It is designed to provide cushioning and protection for the refrigerator lid, preventing damage and ensuring smooth, quiet closing.

Causes of a bad Lid Bumper can include deterioration over time due to frequent use, exposure to temperature variations, or damage from accidental impacts. A worn or damaged bumper may no longer provide adequate cushioning, leading to potential damage to the lid or the refrigerator itself.

Symptoms of a bad Lid Bumper include:

• The refrigerator lid closing too hard
• Unusual noises when closing the lid
• Visible wear or cracks on the bumper

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Rubber grommet that seals and cushions where the evaporator fan motor shaft mounts. Replace if cracked, worn, or missing to eliminate noise and vibration.

Rubber grommet that mounts and cushions the evaporator or condenser fan motor. Replace if cracked, worn, or missing to prevent vibration and noise.

Fix a warm fridge or freezer ice buildup. This defrost heater melts frost on evaporator coils to restore cooling. Moderate DIY repair, 1-2 hours.

This replacement defrost heater warms the freezer's evaporator area during the automatic defrost cycle. It melts accumulated frost so air can circulate, helping maintain stable temperatures and preventing ice buildup on the back wall.

• Heats the evaporator to clear frost and ice during defrost
• Helps keep airflow passages and the defrost drain path open
• Common symptoms of a failed heater: heavy frost on the back panel/coils, poor cooling or warm sections, fan noise from ice contact, cooling returns temporarily after a manual defrost
• Typically located behind the rear freezer panel

• Disconnect power before servicing; wear cut-resistant gloves
• Access the evaporator by removing the freezer's rear panel; thaw heavy ice before removal
• Transfer any clips/brackets and route wires exactly as original, keeping them away from plastic parts
• After installation, ensure wiring connections are secure and the heater is not contacting plastic surfaces

Fixes heavy frost buildup on evaporator coils and warm fresh food compartment. Clips onto evaporator assembly. Straightforward DIY with video guide.

Routes defrost water from the evaporator to the drain system. Replace this trough if cracked, clogged, or damaged to prevent water pooling inside your fridge.

This evaporator fan motor dust cap is an authentic OEM replacement part found on refrigerator and freezer fan motors. This dust cap prevents the fan motor bearing and housing from being damaged by dirt and debris. If the dust cap is cracked or broken, the fan may make loud squealing noises. If the dust cap is not removed and replaced, the fan could stop working and ultimately cause the refrigerator's temperature to be affected. To start, disconnect the power and water to the refrigerator. Remove food from the freezer so that the back panel of the freezer can be accessed to reach the fan. Remove the ice maker and set it outside the freezer. Disconnect the fan and take it out of the freezer to expose the fan's shaft and the dust cover. Pry the dust cover off and install the new one. Replace the fan and cover. Reconnect the wires and reinstall the icemaker. Put the food back in the freezer. Reconnect the power and water.The evaporator fan motor dust cap is a white plastic part that is sold individually. This dust cover is made for use in refrigerators manufactured by General Electric, Hotpoint, and Kenmore.

8-18 CA HX 1/2 S

Replace worn or missing foam insulation strip in your refrigerator. Installs along door edges or cabinet surfaces to seal gaps and improve energy efficiency.

This self-adhesive foam strip seals gaps and cushions components to reduce drafts, noise, and moisture intrusion—helpful for restoring proper airflow and improving efficiency where foam padding or gap sealing has deteriorated. What it does:

• Provides a soft seal to close small gaps and prevent air leaks
• Cushions panels to reduce vibration and rattling noises
• Helps limit moisture and dust entry around seals and components
• Supports consistent temperature by reducing unwanted airflow

• Clean and dry the mounting surface before applying for best adhesion.
• Trim to length with scissors or a utility knife; press firmly to set adhesive.
• Avoid stretching the foam while applying; allow adhesive to set 24 hours for full bond.
• If near electrical components, disconnect power before working and avoid covering vents.

Self-adhesive foam strip seals gaps around refrigerator doors to prevent air leaks and improve energy efficiency. Replace when worn or compressed.

Secures the evaporator fan assembly behind the rear freezer panel. Replace if cracked, rusted, or missing to restore proper fan mounting and clearance.

Ice maker not producing ice or stopped working? This ice maker kit restores ice production. Includes full assembly for harvesting and ejecting ice.
