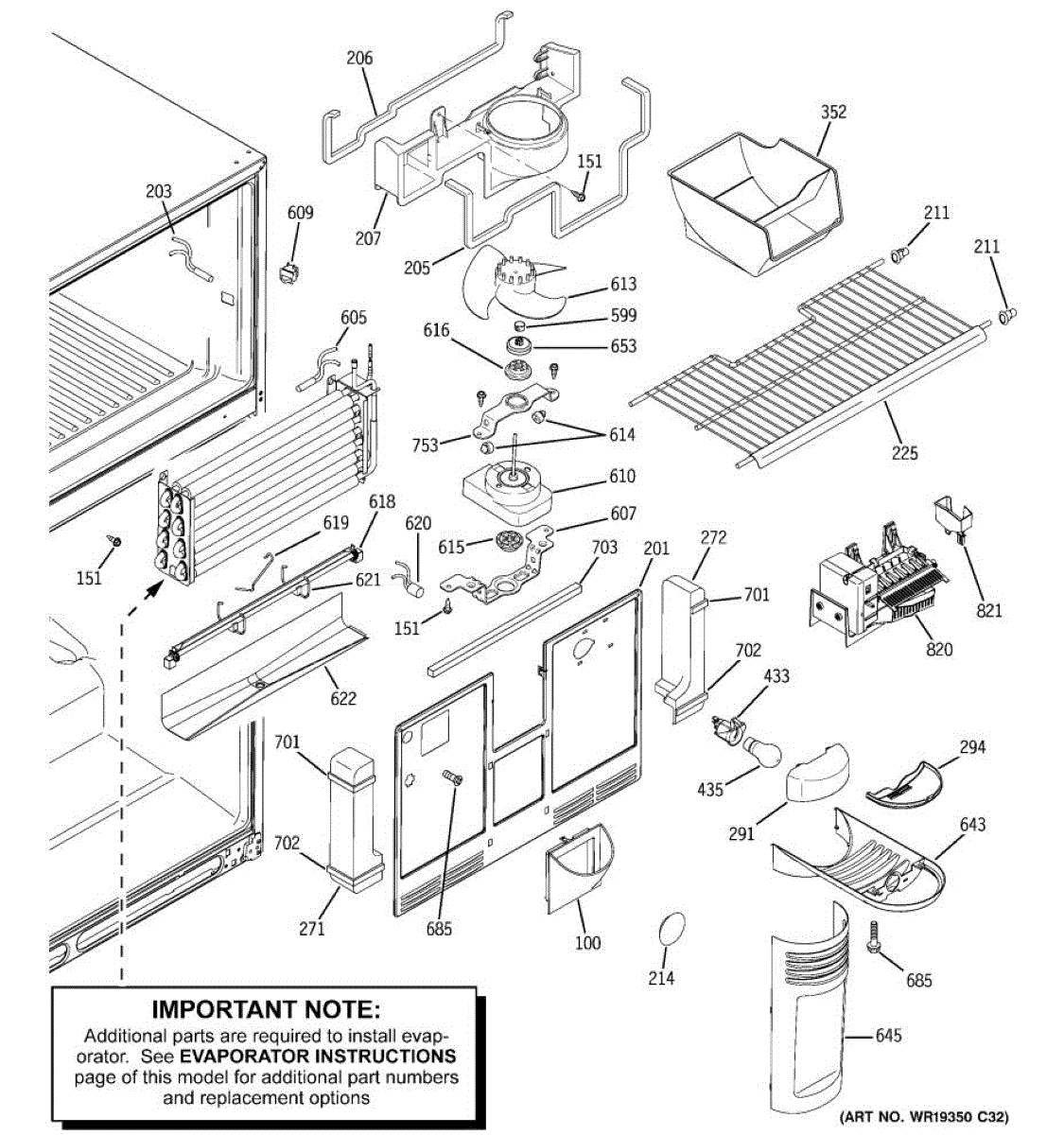

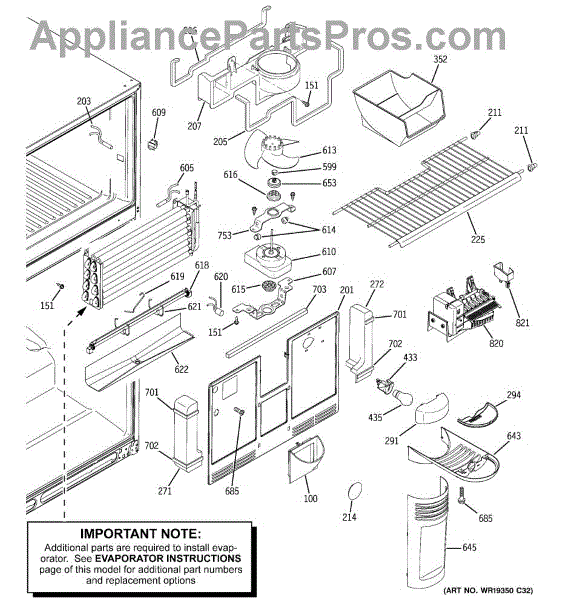

Parts for Ge GTS22KHPDRBB: 03 - Freezer Section Parts

The GE refrigerator water filter is an OEM replacement part responsible for ensuring the quality of the water dispensed on GE Profile top and bottom freezer refrigerators. It is responsible for purifying the water before it reaches your glass or ice maker, providing you with clean and safe drinking water directly from your refrigerator. To maintain optimal water quality and ensure the filter's effectiveness, it is recommended to replace the filter every 6 months or when the rated capacity of 750 gallons is reached.

Over time, the water filter can become clogged with sediment, reducing its effectiveness. Regular use and the accumulation of minerals and contaminants can lead to the need for replacement.

Symptoms of a bad water filter include:

• Reduced water flow from the dispenser
• Ice cubes with an unusual taste or odor
• The filter indicator light staying on
• Visible particles in the water or ice

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models. For the best performance, it is recommended to replace the water filter every six months or as indicated by the filter change light on your refrigerator.

This 8-18 x 9/16 screw is a short sheet-metal fastener used to secure panels, trim and small components on appliances. It replaces missing or stripped screws to restore proper fit and reduce noise from loose parts. What it does

• Secures appliance panels, brackets and trim to prevent movement and rattling
• Holds small components in correct alignment for reliable operation
• Replaces lost, worn or stripped screws that cause gaps or loose fittings
• Common symptom link: fixes rattling panels, loose trim, or parts that shift during use

• One 8-18 x 9/16 screw

• Use the correct 8-18 driver bit and hand or low-torque power driver to avoid stripping
• Do not overtighten; snug until secure to prevent thread damage or panel deformation
• Turn power off/unplug appliance when installing near electrical components
• Keep extra screws on hand—hardware often comes in single quantities

The Temperature Sensor is an OEM replacement part for GE refrigerators, designed to accurately monitor and relay the temperature inside the refrigerator and freezer compartments to the electronic control board. By detecting the slightest changes in internal temperature, the sensor allows the control board to make real-time adjustments to the cooling system, activating the compressor and fans as needed to maintain optimal conditions for food preservation.

Over time, the temperature sensor can fail due to electrical issues, exposure to moisture, or general wear and tear. A malfunctioning sensor can lead to improper temperature regulation, affecting the efficiency of the refrigerator and the freshness of stored food.

Symptoms of a bad Temperature Sensor include:

• The refrigerator or freezer not maintaining the set temperature
• The appliance running continuously or more frequently than normal
• Inaccurate temperature readings displayed

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This self-adhesive foam strip seals gaps to help block drafts, reduce moisture intrusion, and improve temperature retention. It's a simple replacement that helps restore a proper seal where foam padding has worn or separated. What it does:

• Provides a compressible seal along edges and contact surfaces to reduce air leaks
• Helps prevent frost build-up and condensation by maintaining an even seal
• Cushions panels and reduces rattles or vibration where foam padding is missing
• Restores contact where existing foam is cracked, compressed, or detached

• Clean and dry the mounting surface thoroughly before applying for best adhesion
• Measure and trim the strip to fit; remove backing and press firmly into place
• Replace only when foam is worn, torn, or no longer seals effectively
• For safety, unplug the appliance or turn off power when working near electrical components

The Ice Bucket is an OEM replacement part for GE refrigerator-freezers. It collects and stores freshly produced ice within the freezer compartment.  This bucket is made of white plastic and is approximately 13 inches in length and 9 inches wide at the widest point.

Causes of a bad ice bucket can include wear and tear over time, or damage to the bucket or its components due to mishandling or impact. Please note, this is just the ice bucket and does not include the auger or auger motor.

Symptoms of a bad ice bucket include:

• Cracks or breakage in the bucket
• Ice not dispensing properly
• Bucket not fitting securely in its compartment
• Visible damage or wear to the bucket

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Light Socket is an OEM part for GE refrigerators. It is responsible for holding the refrigerator's light bulb and ensuring it receives power to illuminate the interior when the door is opened.

You should replace the light socket if it becomes faulty. Causes of a bad light socket can include wear and tear from regular use, electrical issues such as short circuits or power surges, and corrosion from moisture exposure.

Symptoms of a bad light socket include:

• The refrigerator light not turning on when the door is opened
• Flickering or intermittent light operation
• Visible damage or corrosion on the socket
• The light bulb not fitting securely or falling out

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

The Compression Ring is an OEM part for GE refrigerators. It is designed to secure and seal connections within the refrigerator’s water and ice dispensing system, ensuring a leak-free operation. This small yet vital component helps maintain the integrity of the connections, preventing water leaks and ensuring the proper flow of water through the dispenser and ice maker.

Over time, the compression ring can wear out or become damaged due to regular use and the natural aging of materials. If the compression ring is compromised, it can lead to water leaks or poor water flow, which can affect the overall performance of the refrigerator’s water and ice dispensing functions.

Symptoms of a bad compression ring include:

• Water leaks around the dispenser or ice maker
• Reduced water flow or no water flow at all
• Drips or puddles forming inside the refrigerator

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Temperature Sensor is an OEM replacement part for GE refrigerators, designed to accurately monitor and relay the temperature inside the refrigerator and freezer compartments to the electronic control board. By detecting the slightest changes in internal temperature, the sensor allows the control board to make real-time adjustments to the cooling system, activating the compressor and fans as needed to maintain optimal conditions for food preservation.

Over time, the temperature sensor can fail due to electrical issues, exposure to moisture, or general wear and tear. A malfunctioning sensor can lead to improper temperature regulation, affecting the efficiency of the refrigerator and the freshness of stored food.

Symptoms of a bad Temperature Sensor include:

• The refrigerator or freezer not maintaining the set temperature
• The appliance running continuously or more frequently than normal
• Inaccurate temperature readings displayed

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Light Switch is an OEM replacement part for GE refrigerators. It controls the interior light, turning it on when the refrigerator door is opened and off when the door is closed. This ensures proper illumination for visibility when accessing the refrigerator's contents.

A malfunctioning light switch can result from wear and tear, electrical issues, or damage caused by repeated use. Over time, the internal mechanism may fail, or the housing can crack, leading to improper operation.

Symptoms of a bad light switch include:

• Interior light not turning on when the door is opened
• Light staying on even when the door is closed
• Flickering or inconsistent light operation
• Difficulty pressing or releasing the switch

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Evaporator Fan Motor is an OEM replacement part for GE refrigerators. This component is responsible for circulating air over the evaporator coils. The process aids in the efficient cooling of the interior, ensuring that the stored food and beverages are preserved at the desired temperatures.

Causes of a bad Evaporator Fan Motor can include wear from regular use, electrical issues that impede its operation, or frost and ice build-up that obstruct the fan blades. A malfunctioning fan motor can lead to inadequate cooling and temperature fluctuations within the refrigerator.

Symptoms of a malfunctioning Evaporator Fan Motor are:

• Unusual noises indicating the fan is not operating smoothly
• The refrigerator or freezer section is warmer than usual
• Frost build-up in the freezer due to poor air circulation
• The motor not running when activated

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Evaporator Motor Fan Blade is an OEM part for GE refrigerators. This component is crucial for circulating air over the evaporator coils, which helps to maintain the correct temperature within the refrigerator and freezer compartments. By moving air efficiently, it ensures that the appliance cools evenly and prevents frost buildup.

Over time, the evaporator motor fan blade can become damaged or wear out due to regular use, ice accumulation, or accidental impact from other items within the refrigerator. These issues can hinder its ability to circulate air effectively.

Symptoms of a bad evaporator motor fan blade include:

• Unusual noises like clicking or scraping from the fan area
• Inconsistent temperatures in the refrigerator or freezer
• The refrigerator running more frequently or continuously
• Visible damage or warping of the fan blade

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Lid Bumper is an OEM part for GE refrigerators. It is designed to provide cushioning and protection for the refrigerator lid, preventing damage and ensuring smooth, quiet closing.

Causes of a bad Lid Bumper can include deterioration over time due to frequent use, exposure to temperature variations, or damage from accidental impacts. A worn or damaged bumper may no longer provide adequate cushioning, leading to potential damage to the lid or the refrigerator itself.

Symptoms of a bad Lid Bumper include:

• The refrigerator lid closing too hard
• Unusual noises when closing the lid
• Visible wear or cracks on the bumper

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Fan Motor Grommet is an OEM replacement part for GE refrigerators. This small but essential component serves as a seal and insulator around the area where the fan motor shaft protrudes from the appliance body.

Causes of needing to replace the fan motor grommet can include normal wear and tear over time, exposure to extreme temperatures or moisture, or physical damage due to impact or improper installation.

Symptoms of a faulty or missing grommet include:

• Air leaks or drafts around the fan motor area
• Condensation buildup or frost formation near the motor shaft
• Increased noise or vibration from the fan motor assembly
• Reduced cooling efficiency due to air leakage

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerator models.

The Fan Motor Grommet is an OEM replacement part for GE refrigerators. It is a small but essential component that helps to seal and insulate the area around the fan motor, preventing air leaks and maintaining optimal cooling efficiency.

Causes of a damaged or worn-out fan motor grommet can include prolonged use, exposure to extreme temperatures, or physical damage from improper handling or installation.

Symptoms of a bad fan motor grommet include:

• Reduced cooling performance
• Increased energy consumption
• Frost buildup in the freezer compartment
• Unusual noises coming from the fan area

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Defrost Heater is an OEM part for GE refrigerators. This part melts away frost that accumulates on the evaporator coils during the cooling cycle. This process is vital for maintaining the efficiency of the refrigerator, ensuring that air can flow freely over the coils to keep the unit cooling effectively.

Causes of a bad defrost heater can include a faulty heater element, electrical issues preventing the heater from activating, or damage to the heater's wiring.

Symptoms of a bad Defrost Heater include:

• Frost buildup on the evaporator coils
• The refrigerator or freezer section is too warm
• The refrigerator is running constantly without cycling off
• Pools of water or ice on the floor of the freezer compartment

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This replacement defrost heater warms the freezer's evaporator area during the automatic defrost cycle. It melts accumulated frost so air can circulate, helping maintain stable temperatures and preventing ice buildup on the back wall.

• Heats the evaporator to clear frost and ice during defrost
• Helps keep airflow passages and the defrost drain path open
• Common symptoms of a failed heater: heavy frost on the back panel/coils, poor cooling or warm sections, fan noise from ice contact, cooling returns temporarily after a manual defrost
• Typically located behind the rear freezer panel

• Disconnect power before servicing; wear cut-resistant gloves
• Access the evaporator by removing the freezer's rear panel; thaw heavy ice before removal
• Transfer any clips/brackets and route wires exactly as original, keeping them away from plastic parts
• After installation, ensure wiring connections are secure and the heater is not contacting plastic surfaces

The Defrost Thermostat is an OEM part for GE refrigerators. It plays a critical role in the refrigerator's defrost system, preventing frost build-up on the evaporator coils by turning the defrost heater on and off at appropriate times. This component is designed to sense the temperature of the evaporator coils and activate the defrost heater when the coils get too cold, ensuring efficient operation and optimal cooling performance.

Symptoms of a bad Defrost Thermostat include:

• Excessive frost or ice accumulation in the freezer compartment
• The refrigerator or freezer section becoming too warm
• The defrost heater not activating, leading to reduced efficiency

Causes of a bad defrost thermostat can include damage from moisture or ice, electrical failures within the thermostat, or simply wear and tear from regular use.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This holder element assembly secures the appliance's heating element in the correct position so the element stays stable for consistent operation and safe performance. It's a direct-fit replacement for worn or damaged holders. What it does:

• Secures and supports the heating element inside the appliance to maintain proper alignment
• Prevents element sagging or contact with other components that can cause noise or arcing
• Helps reduce vibration and movement that can lead to intermittent heating
• Common symptom: visible holder damage, loose or shifted element, unusual noise during operation

• Disconnect power (unplug or switch off breaker) before starting any repair
• Allow appliance and element to fully cool before handling
• Handle the element and holder carefully to avoid bending or damaging the element

This trough drain routes defrost water from the evaporator to the refrigerator's drain system so meltwater exits safely instead of pooling inside the cabinet. Replaces a cracked, clogged or damaged drain trough to restore proper water flow. What it does:

• Collects and channels defrost/melt water away from the evaporator area
• Prevents water pooling, ice buildup or leaks inside the refrigerator cabinet
• Helps maintain proper drain flow when original trough is cracked, warped or obstructed
• Works with the fridge drain line and drain pan to carry water out of the unit

• One trough drain

• Disconnect power before starting any repair to avoid shock
• Access typically requires removing interior panels and/or the evaporator cover—retain fasteners and take photos for reassembly
• Clear surrounding drain channel of ice and debris before installing the new trough

This evaporator fan motor dust cap is an authentic OEM replacement part found on refrigerator and freezer fan motors. This dust cap prevents the fan motor bearing and housing from being damaged by dirt and debris. If the dust cap is cracked or broken, the fan may make loud squealing noises. If the dust cap is not removed and replaced, the fan could stop working and ultimately cause the refrigerator's temperature to be affected. To start, disconnect the power and water to the refrigerator. Remove food from the freezer so that the back panel of the freezer can be accessed to reach the fan. Remove the ice maker and set it outside the freezer. Disconnect the fan and take it out of the freezer to expose the fan's shaft and the dust cover. Pry the dust cover off and install the new one. Replace the fan and cover. Reconnect the wires and reinstall the icemaker. Put the food back in the freezer. Reconnect the power and water.The evaporator fan motor dust cap is a white plastic part that is sold individually. This dust cover is made for use in refrigerators manufactured by General Electric, Hotpoint, and Kenmore.

8-18 CA HX 1/2 S

This self-adhesive foam strip seals gaps and cushions components to reduce drafts, noise, and moisture intrusion—helpful for restoring proper airflow and improving efficiency where foam padding or gap sealing has deteriorated. What it does:

• Provides a soft seal to close small gaps and prevent air leaks
• Cushions panels to reduce vibration and rattling noises
• Helps limit moisture and dust entry around seals and components
• Supports consistent temperature by reducing unwanted airflow

• Clean and dry the mounting surface before applying for best adhesion.
• Trim to length with scissors or a utility knife; press firmly to set adhesive.
• Avoid stretching the foam while applying; allow adhesive to set 24 hours for full bond.
• If near electrical components, disconnect power before working and avoid covering vents.

This evaporator fan bracket secures the evaporator fan assembly behind the rear panel. A rigid, correct-fit mount preserves blade clearance and airflow across the evaporator coils for steady temperatures while minimizing vibration and noise.

• Holds the evaporator fan assembly firmly in position
• Maintains alignment and clearance to prevent fan rubbing and excess noise
• Supports proper airflow through the evaporator compartment for consistent cooling
• Replace if the bracket is cracked, warped, or loose; symptoms may include rattling, scraping sounds, or the fan contacting the shroud

• Disconnect power before servicing and use cut-resistant gloves
• Remove shelves/drawers and the rear evaporator cover to access the fan assembly
• Transfer the fan motor and existing hardware to the new bracket; ensure the blade spins freely without contact
• Avoid damaging the evaporator coils; reassemble panels and restore power to test

The Electromechanical Icemaker Kit is an OEM replacement part for GE refrigerators. It includes the ice maker assembly components responsible for harvesting, ejecting, and monitoring the ice-making process.

Symptoms of a faulty electromechanical kit include:

• Ice not being produced or dispensing properly
• The ice maker failing to turn on or stop automatically
• Strange noises emanating from the ice maker

Causes can be worn parts like the ejector assembly or drive motor, as well as electrical malfunctions. Continued use puts wear on components that regulate ice production.

This OEM GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models. Replace yours today for reliable ice on demand.

This ice maker fill cup directs water from the refrigerator fill tube into the ice maker mold so each cycle fills correctly. Replacing a damaged cup restores consistent ice production and helps prevent water spills. What it does:

• Channels water from the fill tube into the ice maker mold for proper tray filling.
• Prevents water from dripping into the freezer compartment when intact.
• A cracked, warped, or missing fill cup can cause underfilled ice cubes, overflowing molds, or water pooling in the freezer.
• Compatible with common top/front-mounted household ice makers that use a separate plastic fill cup.

• Disconnect power and shut off the water supply before starting work.
• Remove the ice bin or ice maker assembly as needed to access the fill cup.
• The cup typically snaps or slides into place; use gentle pressure and avoid forcing plastic tabs.
